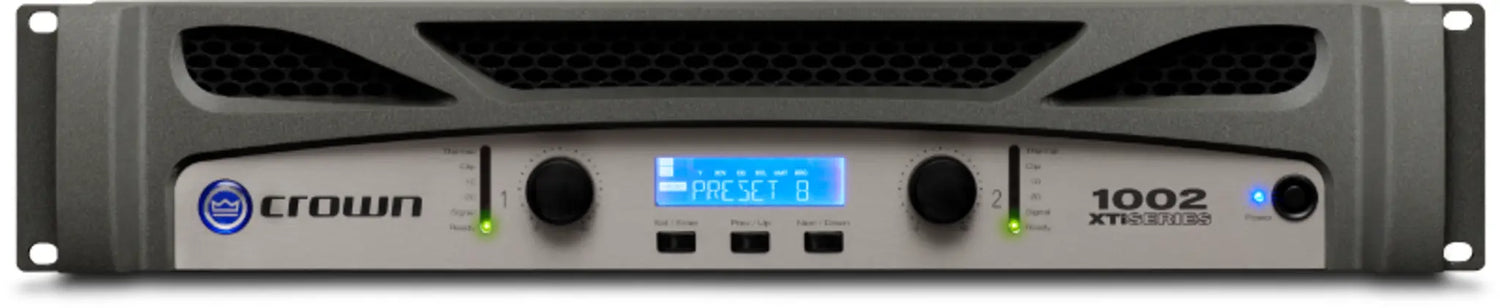

Crown XTi 1002 – 2-Channel 500W Power Amplifier with DSP

Product Overview

The Crown XTi 1002 is a 2-channel 500W professional power amplifier with built-in DSP, offering comprehensive loudspeaker management in a single rack unit. Part of Crown's XTi 2 Series, the XTi 1002 provides onboard signal processing including parametric EQ, crossover, and limiting — delivering more sophisticated control than the XLS series at an accessible price point.

Product Description

The Crown XTi 1002 bridges the gap between basic power amplification and full-featured DSP amplification. Its onboard DSP provides parametric equalization, Linkwitz-Riley and Butterworth crossover filters, compression/limiting, and signal delay — allowing the XTi 1002 to serve as both amplifier and loudspeaker processor for most applications. Crown's PeakX Plus limiting technology provides multi-band protection that prevents loudspeaker damage while maintaining maximum program level. The XTi 1002 connects to a computer via USB for access to Crown's Audio Architect software for full DSP configuration and system optimization.

Key Features

• 500W Per Channel @ 4Ω: Reliable output for small-to-medium PA and installed sound systems.
• Comprehensive Onboard DSP: Parametric EQ, crossover (LR, BW), compression, limiting, and delay per channel.
• PeakX Plus Limiting: Crown's advanced multi-band limiter for superior loudspeaker protection.
• USB Connectivity: Connect to Crown Audio Architect software for full DSP access and configuration.

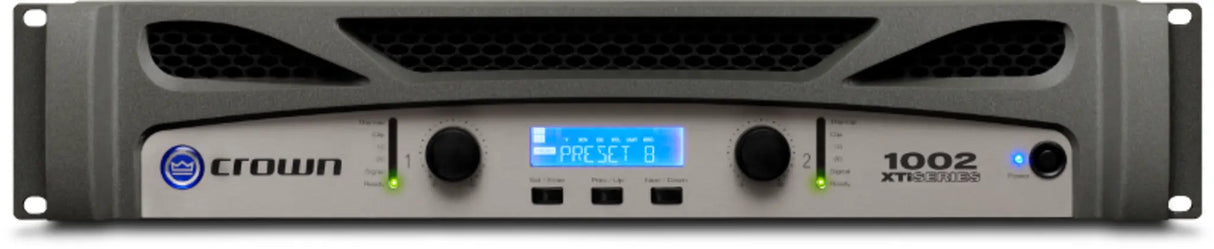

• Front Panel DSP Control: Quick access to common DSP functions via front panel controls without a computer.
• Balanced XLR Inputs.

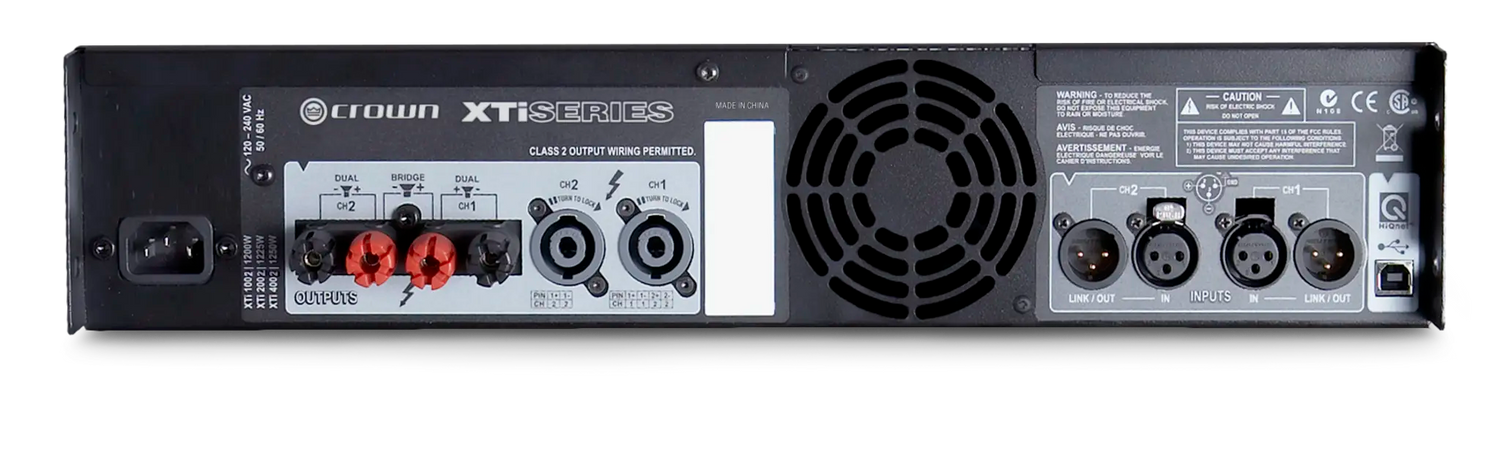

• Speakon & Binding Post Outputs.
• 2U Rack Mount.

Typical Applications

• Small-to-Medium PA Systems: Complete amplification and loudspeaker management in a single unit.
• Houses of Worship: Church PA with precise DSP control for consistent, speech-intelligible sound.
• Live Sound Monitoring: Stage monitor amplification with per-channel EQ and limiting.
• Installed Sound: Compact installed sound systems benefiting from integrated DSP processing.

Technical Specifications

Frequently Asked Questions

What is the difference between the XTi series and the XLS DriveCore 2 series?

The XTi series features more comprehensive onboard DSP including parametric EQ, full crossover functionality, compression/limiting, and delay — accessible via both front panel and USB/Audio Architect software. The XLS DriveCore 2 series has a simpler DSP section (HPF, LPF, crossover) and is lighter due to DriveCore 2 technology. The XTi series offers greater DSP depth for applications requiring precise loudspeaker optimization.

What software is used to program the XTi 1002's DSP?

Crown's Audio Architect software connects to the XTi 1002 via USB and provides full access to all DSP parameters including parametric EQ bands, crossover slopes, limiter thresholds, and delay settings. Harman's loudspeaker preset library is also accessible via Audio Architect.

Can the XTi 1002 be used without a computer?

Yes. The XTi 1002's front panel provides access to commonly used DSP functions, allowing operation without connecting to a computer. For detailed DSP configuration, Audio Architect software is recommended.

What is PeakX Plus limiting?

PeakX Plus is Crown's advanced multi-band limiting technology that monitors and limits the signal across multiple frequency bands simultaneously. This provides superior loudspeaker protection compared to single-band limiters, preventing both thermal and excursion damage while maintaining maximum program levels.

What warranty does the XTi 1002 carry?

The Crown XTi 1002 carries Crown's 3-year limited warranty for professional audio amplifiers.
