Crown XLS2502 Two-Channel, 775W Power Amplifier
Crown XLS2502 – 2-Channel 775W XLS DriveCore 2 Power Amplifier
Product Overview
The Crown XLS2502 is a two-channel, 775-watt-per-channel professional power amplifier from Crown's XLS DriveCore 2 Series, representing the highest-output model in the XLS range. The XLS2502 combines DriveCore efficiency with a built-in PFC power supply and onboard loudspeaker crossover, making it suited for conference rooms, houses of worship, auditoriums, and commercial AV installations requiring high output from the XLS DriveCore 2 platform.
Product Description
The XLS2502 delivers 775 watts per channel into 4 ohms using Crown's DriveCore IC. The integrated PFC power supply ensures consistent output across varying AC voltage conditions. The onboard loudspeaker crossover enables biamplification without an external processor. In bridge mono mode the XLS2502 delivers 1550 watts into 8 ohms for subwoofer and demanding main speaker applications. The amplifier supports 2-ohm, 4-ohm, and 8-ohm stereo loads with front-panel LCD for on-site configuration and monitoring.
Key Features
- 775W per channel at 4Ω — Highest output in the XLS DriveCore 2 Series for demanding commercial AV applications.
- 1550W bridge mono at 8Ω — High single-channel output for subwoofer and main speaker systems.
- Crown DriveCore technology — Integrated IC for high-efficiency amplification in a compact chassis.
- Built-in PFC power supply — Consistent performance across varying AC voltage conditions.
- Onboard loudspeaker crossover — Built-in crossover for biamplification without external processing.

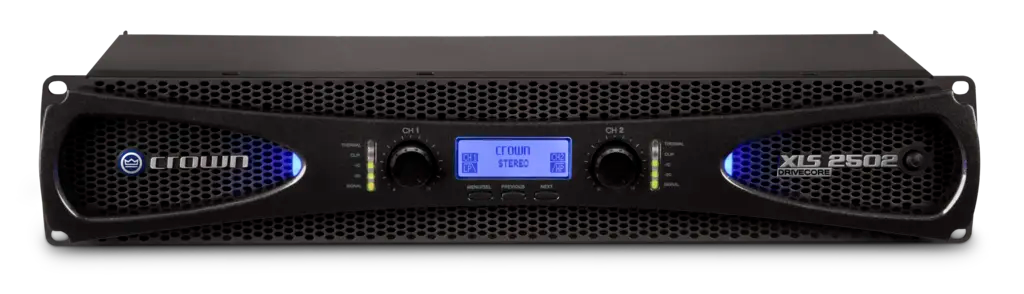

- Front-panel LCD — On-site status display and configuration.
- 2Ω load stability — Stable at demanding low-impedance loads.
- Bridge mono capability — Maximum XLS series single-channel output.
- Comprehensive protection — DC, thermal, and short-circuit protection on both channels.
Typical Applications
- Conference room and boardroom main speaker systems
- House of worship main and fill speaker amplification
- Auditorium and multi-purpose room sound reinforcement
- Subwoofer amplification in commercial AV systems
- Biamplified speaker system applications
- Commercial venue high-output sound reinforcement
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Power Output (4Ω stereo) | 775W per channel |
| Power Output (8Ω stereo) | 440W per channel |
| Power Output (bridge mono, 8Ω) | 1550W |
| Minimum Load Impedance | 2Ω stereo / 4Ω bridge |
| PFC Power Supply | Yes |
| Onboard Crossover | Yes |
| DriveCore Technology | Yes |
| SKU | XLS2502 |
| Full specs | See vendor datasheet |
Competitor Comparison
| Criteria | Crown XLS2502 | Crown XTI2002 | QSC RMX 2450a | Yamaha P7000S |
|---|---|---|---|---|
| Channels | 2 | 2 | 2 | 2 |
| Power per ch (4Ω) | 775W | 800W | 1200W | 700W |
| DriveCore | Yes | No (Class I) | No | No |
| PFC Supply | Yes | Yes | Yes | No |
| Built-in DSP | Crossover + delay/limiter | Full PEQ/crossover/delay | Full PEQ/crossover | No |
| Bridge Mono (8Ω) | 1550W | 1600W | 2400W | 1400W |
Frequently Asked Questions
- How does the XLS2502 compare to the XLS1502?
- The XLS2502 delivers 775 watts per channel versus 525 watts on the XLS1502, and 1550 watts bridge mono versus 1050 watts. It is the highest-output model in the XLS DriveCore 2 Series.
- Does the XLS2502 include full parametric EQ?
- The XLS2502 includes an onboard crossover and signal delay/limiter. For full parametric EQ and advanced DSP, the Crown XTi 2 Series is recommended.
- What is the warranty?
- Crown XLS DriveCore 2 Series amplifiers carry a 3-year limited warranty. Contact Creation Networks for service information.
