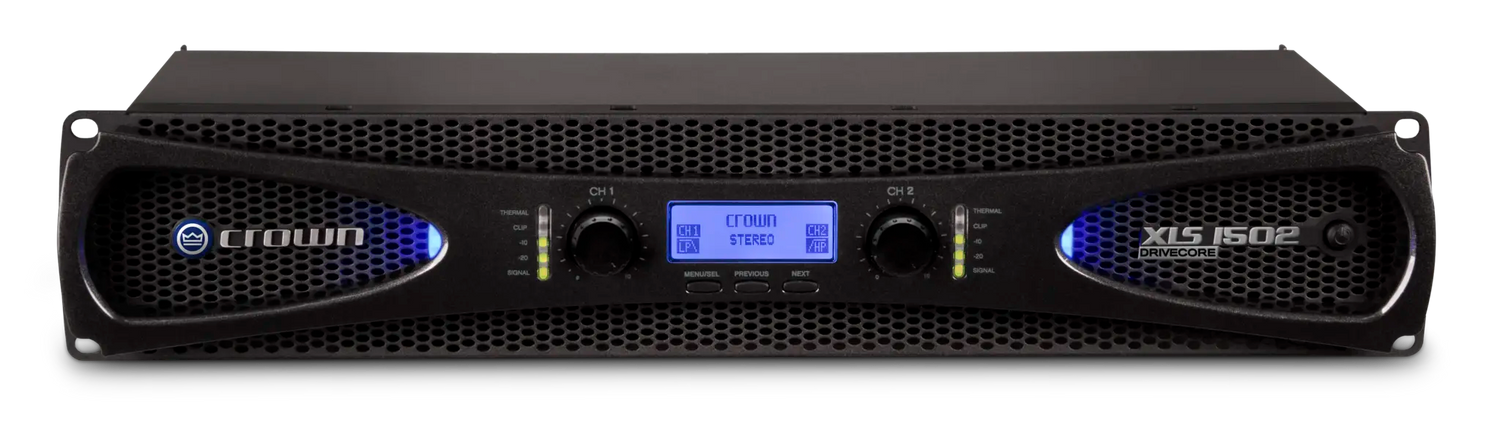

Crown XLS 1502 – 2-Channel 525W DriveCore Power Amplifier
Crown XLS 1502 – 2-Channel 525W DriveCore Power Amplifier is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crown XLS 1502 – 2-Channel 525W DriveCore Power Amplifier
Product Overview
The Crown XLS 1502 is a 2-channel 525W DriveCore 2 power amplifier delivering increased power over the XLS 1002 while maintaining the lightweight, efficient design that makes the XLS DriveCore 2 series a professional favorite. With onboard DSP and a featherlight 11-pound chassis, the XLS 1502 is an outstanding choice for medium-sized PA and installed sound applications.
Product Description
The Crown XLS 1502 steps up from the XLS 1002 to deliver 525 watts per channel, making it suitable for medium-sized PA systems, installed sound in larger venues, and applications where the XLS 1002's output falls short. Crown's DriveCore 2 technology keeps the weight down to just 11 pounds — a remarkable achievement for a 525W/channel amplifier. The onboard DSP includes sweepable high-pass and low-pass filters with crossover mode selection, providing integrated loudspeaker management without additional hardware.
Key Features
- 525W Per Channel @ 4Ω: Mid-range output power for medium-sized PA and installed sound systems.
- DriveCore 2 Technology: Ultra-lightweight Class D design with single-chip driver/output integration.
- Onboard DSP: Built-in sweepable HPF, LPF, and crossover mode selection.
- 11 lbs: Remarkably light for a 525W/channel professional amplifier.
- Class D Efficiency: High-efficiency design for reduced power consumption and heat output.
- XLR Inputs: Balanced professional inputs.

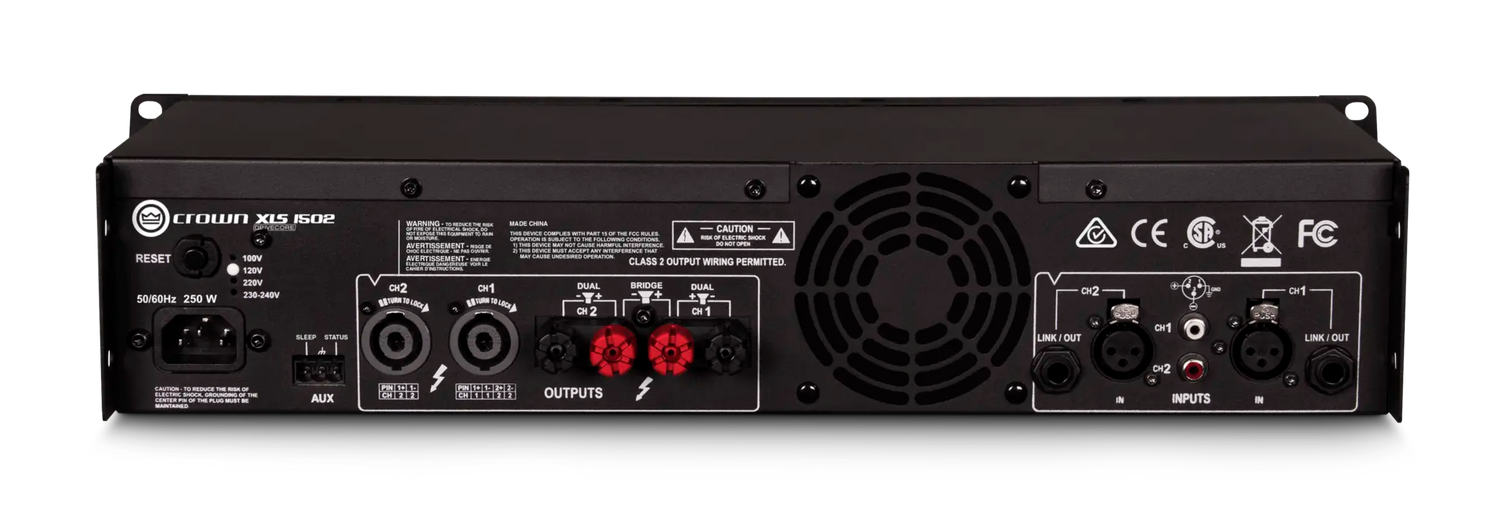

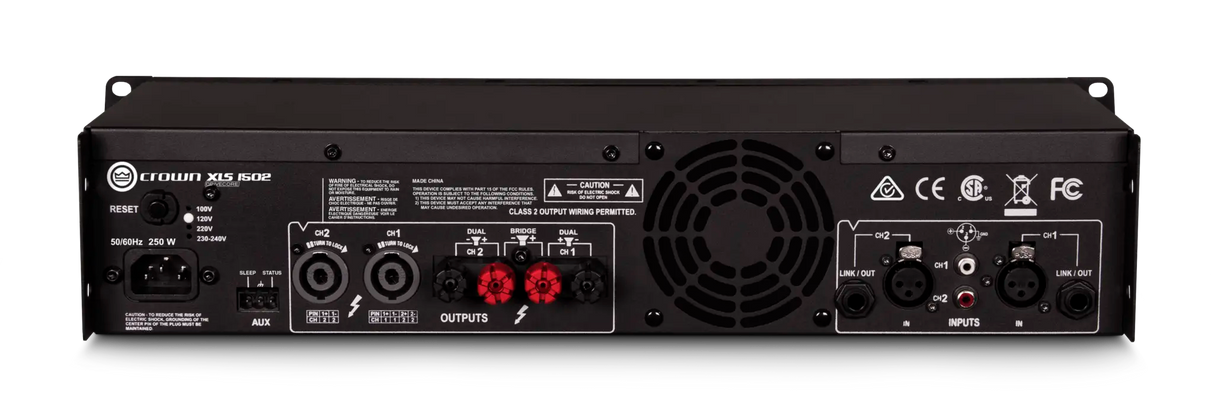

- Speakon & Binding Post Outputs: Flexible speaker connection options.
- 2U Rack Mount.
Typical Applications
- Medium PA Systems: Clubs, theaters, and mid-sized performance spaces.
- Houses of Worship: Church PA systems requiring clean, reliable amplification with integrated DSP.
- DJ & Entertainment: Mobile DJ and entertainment systems benefiting from the lightweight design.
- Installed Sound: Mid-sized commercial installed sound applications.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Power Output (per channel @ 4Ω) | 525W |
| Power Output (per channel @ 8Ω) | 300W |
| Bridged Mono @ 8Ω | 1050W |
| DSP | Yes – Built-in (HPF, LPF, Crossover) |
| Amplifier Technology | DriveCore 2 (Class D) |
| Input Connectors | XLR |
| Output Connectors | Speakon, Binding Post |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD+N | <0.5% |
| Signal-to-Noise Ratio | >100dB |
| Form Factor | 2U Rack Mount |
| Weight | 11 lbs |
| SKU | NXLS1502-0-US |
| UPC | 691991001000 |
Frequently Asked Questions
- How does the XLS 1502 compare to the XLS 1002?
- The XLS 1502 delivers 525W per channel versus 350W for the XLS 1002 — approximately 50% more power. Both share the same DriveCore 2 technology, onboard DSP, and 11-pound weight. The XLS 1502 is the better choice for medium-sized systems or applications requiring more headroom.
- Does the XLS 1502 include the same DSP features as the XLS 1002?
- Yes. Both the XLS 1002 and XLS 1502 feature the same onboard DSP with sweepable high-pass and low-pass filters and crossover mode selection.
- What bridged mono output does the XLS 1502 provide?
- In bridged mono mode, the XLS 1502 delivers approximately 1050W into 8Ω — suitable for driving medium-output subwoofer systems.
- Is the XLS 1502 suitable for outdoor events?
- The XLS 1502 is rated for indoor professional use. For outdoor applications, ensure the amplifier is protected from weather exposure and operated within its rated temperature range.
- What warranty covers the XLS 1502?
- The Crown XLS 1502 carries Crown's 3-year limited warranty for professional audio amplifiers.
