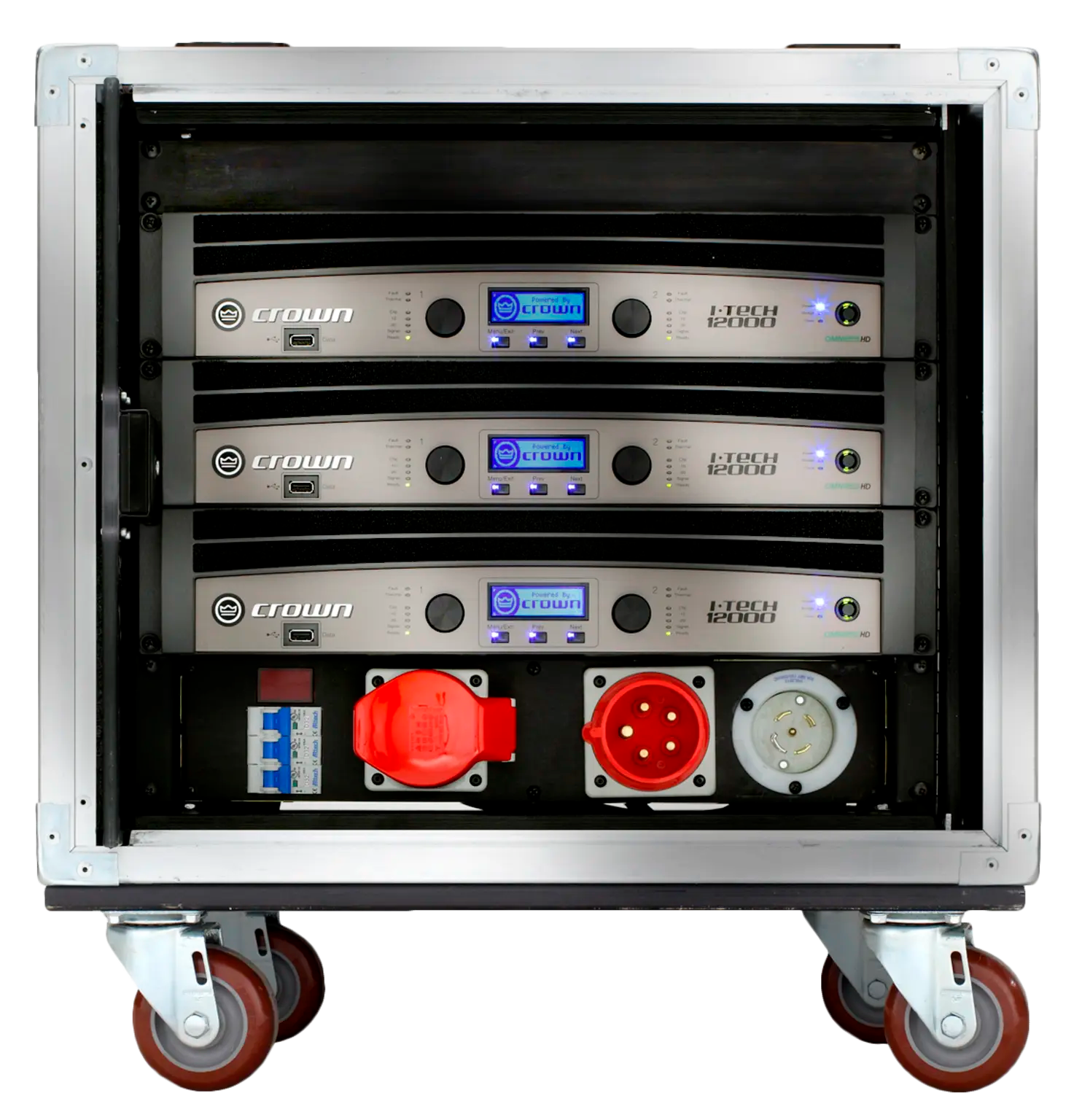

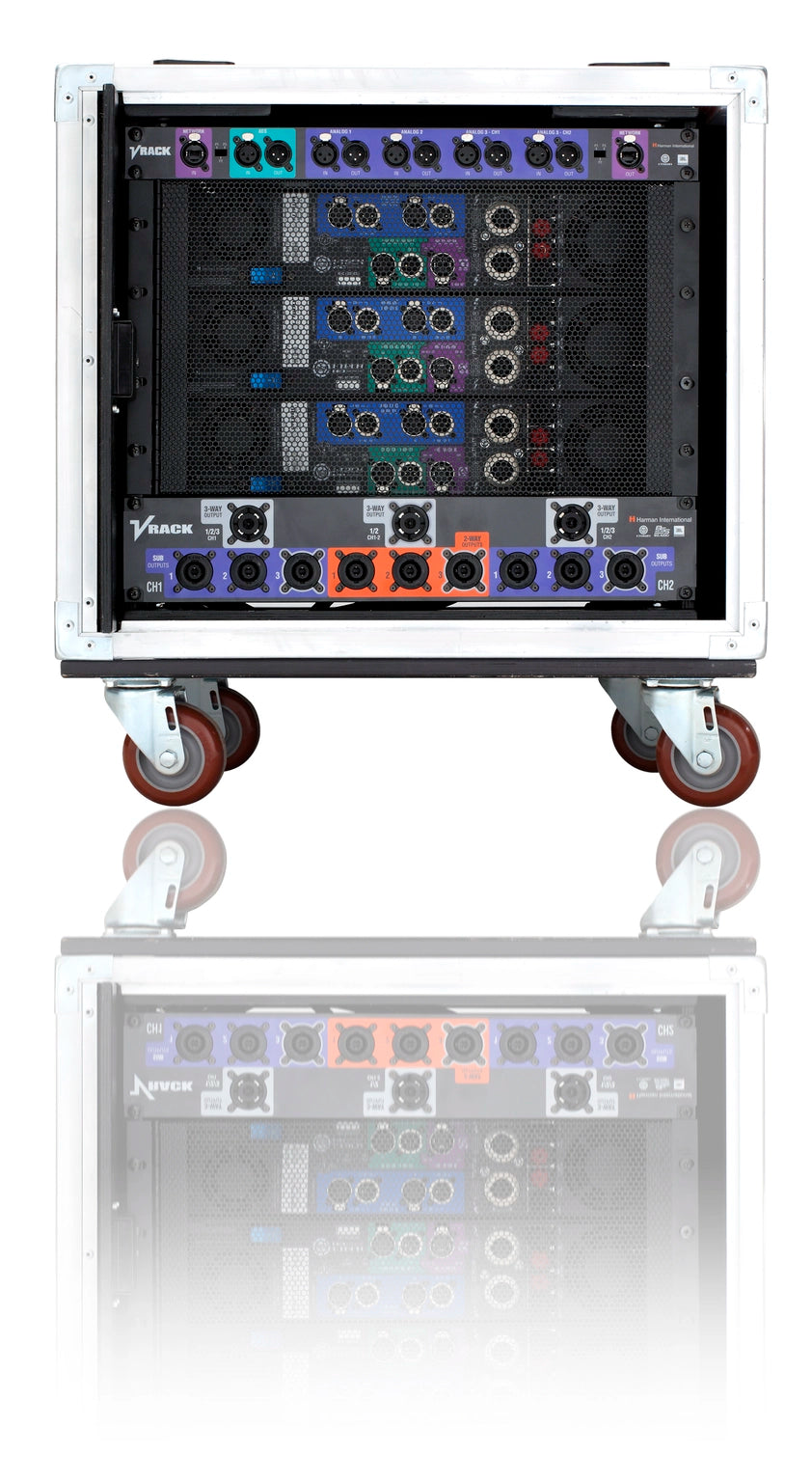

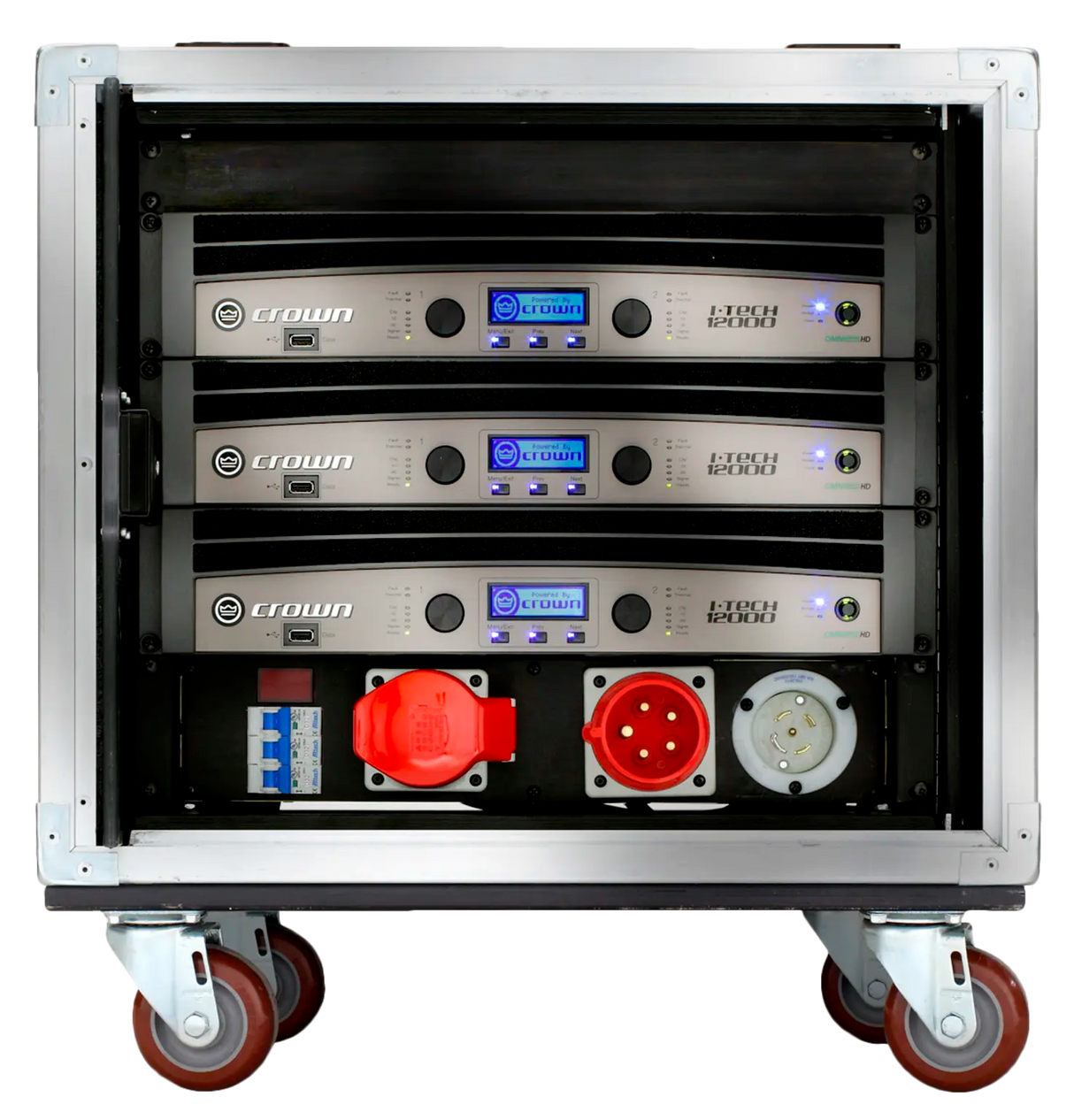

Crown VRACK-12000HD – Complete V-Rack with Three IT12000HD Amplifiers

Product Overview

The Crown VRACK-12000HD is a complete, road-ready amplifier rack system pre-loaded with three Crown IT12000HD amplifiers, delivering a combined output of over 27,000 watts. Designed for the professional touring and large-scale installed sound markets, the VRACK-12000HD provides an integrated, pre-wired, immediately deployable amplifier solution that saves critical setup time and ensures optimal system performance from the first show.

Product Description

The Crown VRACK-12000HD eliminates the time and complexity of building custom amplifier racks from scratch. Three Crown IT12000HD amplifiers — each delivering 4500W per channel — are factory-installed and pre-wired in a robust touring road rack, complete with power distribution, signal routing, and cable management. The result is a turnkey six-channel amplification system delivering up to 27,000 watts total, ready for immediate deployment in touring, festival, or large permanent installation environments.

Each IT12000HD in the VRACK features full onboard DSP for independent loudspeaker management per amplifier, plus HiQnet networking connectivity. This means all three amplifiers can be monitored and controlled from a single HiQnet workstation — no additional hardware required. The V-Rack enclosure itself is built to touring-grade standards with heavy-duty latching hardware, recessed handles, and shock-mounted amplifier bays to protect the amplifiers during transport.

For large touring productions, festivals, concert venues, and stadium systems requiring maximum amplifier density and fast deployment, the VRACK-12000HD sets the benchmark for professional V-Rack amplification systems.

Key Features

• Three IT12000HD Amplifiers Included: Factory-installed Crown IT12000HD amplifiers, each delivering 4500W per channel — six channels total.
• 27,000+ Watts Total Output: Massive combined output for driving large-format line array systems, subwoofer arrays, and complex multi-zone speaker configurations.
• Fully Pre-Wired: Power distribution, signal cabling, and AC connections are factory-installed and tested, eliminating field wiring errors and reducing setup time dramatically.
• Onboard DSP Per Amplifier: Each IT12000HD features comprehensive DSP including EQ, crossover, time alignment, and multi-mode limiting for complete loudspeaker management.
• HiQnet Network Control: All three amplifiers are network-connected via HiQnet, enabling centralized monitoring and control from Crown System Architect or any HiQnet-compatible platform.

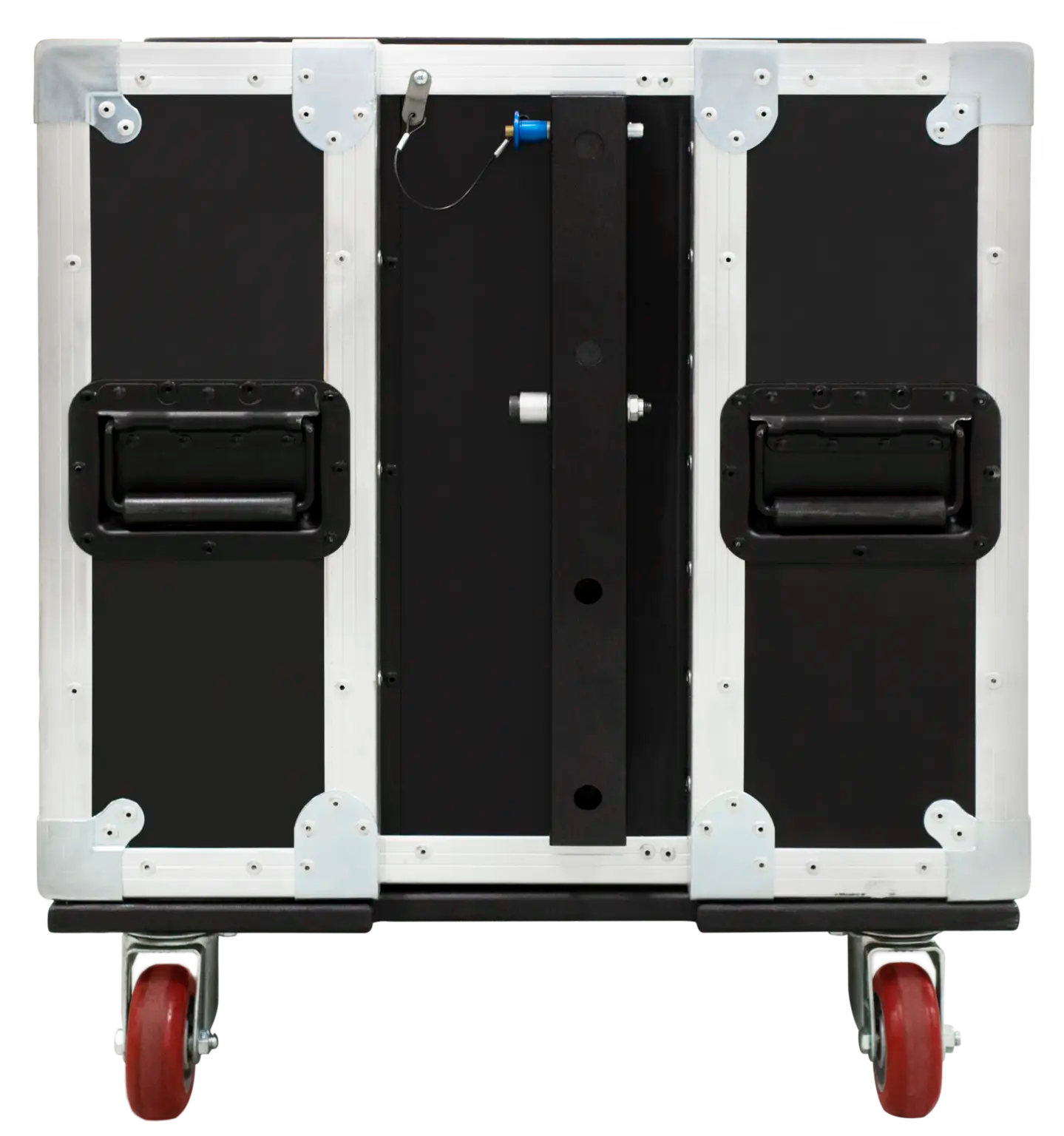

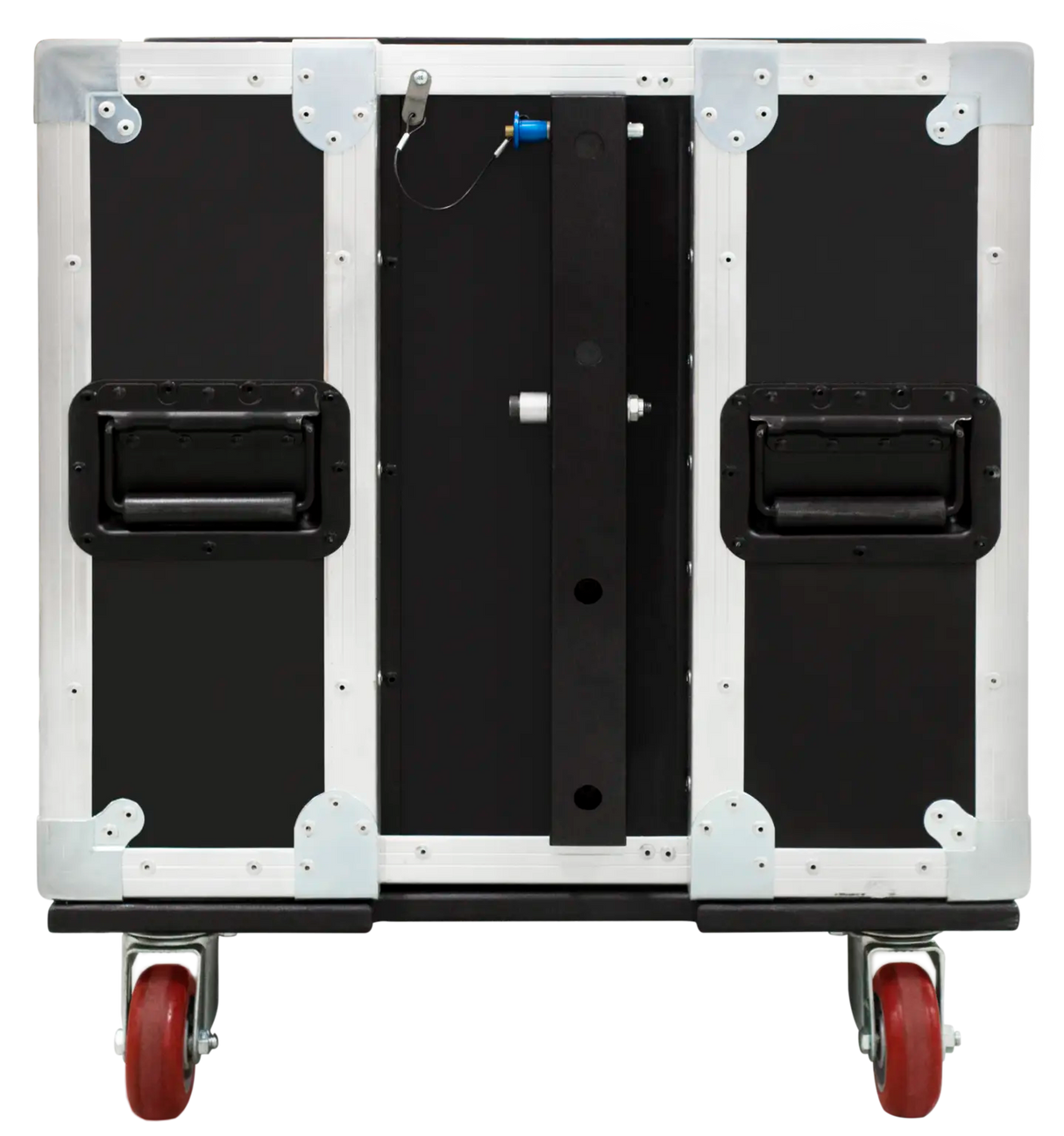

• Touring-Grade Road Rack: Heavy-duty enclosure with shock-mounted amplifier bays, robust latching hardware, and reinforced corners engineered for the rigors of touring transport.
• Power Distribution: Integrated power distribution module ensures clean, properly fused AC power delivery to each amplifier.
• Cable Management: Organized internal cable routing prevents interference and facilitates quick access for service or reconfiguration.

Typical Applications

• Touring Productions: The VRACK-12000HD is a cornerstone of major touring audio systems, offering the fastest possible amplifier deployment with no on-site rack building.
• Music Festivals: Festival stages benefit from the VRACK's self-contained design and high output — a single rack provides all the amplification needed for a large main stage system.
• Concert Venues: Large permanent installations using the VRACK reduce infrastructure complexity while delivering the same amplifier performance as custom-built racks.
• Stadium & Arena Systems: High-output stadium PA systems leverage the VRACK's combined power and network control for consistent coverage across massive audience areas.

Technical Specifications
