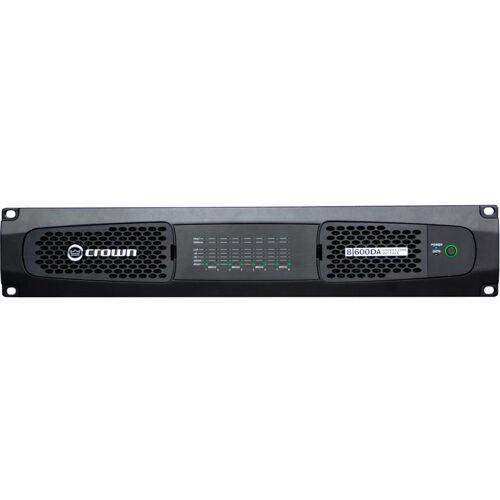

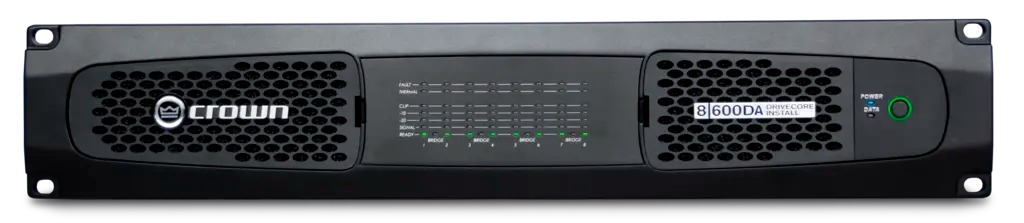

Crown DCI8X600DA – 8-Channel 600W Dante DriveCore Install Amplifier

Product Overview

The Crown DCI8X600DA is an eight-channel, 600-watt-per-channel installation amplifier with integrated Dante and AES67 networked audio transport, designed for large-scale commercial AV systems migrating to IP audio distribution. Part of Crown's DriveCore Install DA Series, the DCI8X600DA delivers high channel density with networked audio input in a 2U rack chassis, suited for AV integrators designing multi-zone distributed audio systems in conference centers, houses of worship, universities, and commercial facilities on Dante network infrastructure.

Product Description

The DCI8X600DA combines eight channels of 600-watt DriveCore amplification with a factory-integrated Dante audio module, allowing all eight channels to receive audio routed from any Dante-enabled source on the network over a single Cat cable. Each channel supports 70V and 100V constant-voltage output alongside 4-ohm and 8-ohm low-impedance operation. Onboard DSP provides per-channel limiting, EQ, crossover, and delay. AES67 interoperability mode enables connection with non-Dante networked audio devices. Analog XLR and AES3 inputs provide backup or supplemental signal paths. HiQnet protocol support enables integration with Harman system control platforms for centralized monitoring across multi-amplifier installations.

Key Features

• Integrated Dante / AES67 networked audio — Eight channels of audio delivered over a single Cat cable from any Dante source on the network.
• 600W per channel at 4 ohms — Eight channels of high-output amplification in a 2U rack chassis.
• 70V/100V constant-voltage output — All eight channels support distributed speaker systems with long cable runs.
• Crown DriveCore technology — Integrated IC reduces heat and improves reliability in permanent installation racks.
• Onboard DSP per channel — Limiting, EQ, crossover, and delay without an external processor.
• AES67 interoperability — Compatible with non-Dante AES67 networked audio systems.
• HiQnet control — Remote monitoring and control via Harman AV management platforms.
• 2U rack-mount chassis — Eight channels and Dante in a compact 2U installation footprint.
• Analog and AES3 inputs — Fallback or supplemental analog and digital inputs available per channel.
• Comprehensive protection — DC, thermal, and short-circuit protection on all eight channels.

Typical Applications

• Multi-zone conference center and hotel audio on Dante infrastructure
• House of worship distributed fill and delay speaker systems
• University campus distributed audio on Dante networks
• Government and municipal facility multi-zone paging systems
• Large commercial facility background and foreground music
• Broadcast studio monitor and foldback systems
• Training room and auditorium fill speaker amplification

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How many Dante channels does the DCI8X600DA support?

The Dante module supports 64x64 channels of networked audio. Eight receive channels are routed to the amplifier inputs, with the remainder available for routing to other Dante devices on the network.

Does AES67 mode affect audio latency?

AES67 mode operates at a fixed latency that may differ from standard Dante latency settings. Consult the Crown installation guide and Dante Controller documentation for latency configuration.

Can I use analog inputs as a backup when Dante is unavailable?

Yes. The analog XLR and AES3 inputs can be configured as primary or backup sources per channel via the rear-panel controls or HiQnet.

What is the warranty?

Crown professional installation amplifiers carry a 3-year limited warranty. Contact Creation Networks for service and support information.
