Crown DCI8X600 8 Channel, 600W, 70V, DriveCore Install Series - Analog
Crown DCI8X600 – 8-Channel 600W DriveCore Install Analog Amplifier
Product Overview

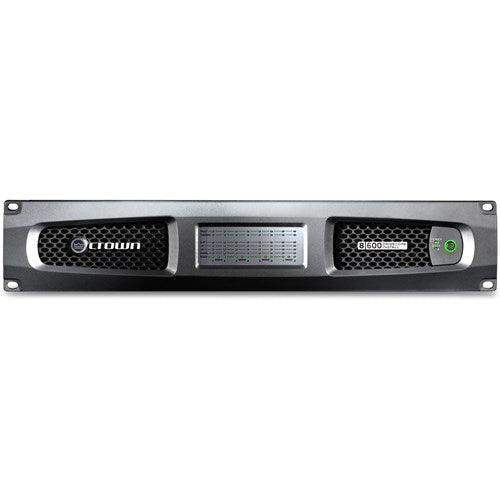

The Crown DCI8X600 is an eight-channel, 600-watt-per-channel installation amplifier in a 2U rack chassis, built for commercial AV deployments requiring high channel density and distributed audio coverage across multiple zones. Based on Crown's DriveCore Install Analog platform, the DCI8X600 is a primary specification choice for AV integrators designing multi-zone background music, paging, and foreground audio systems in conference centers, commercial facilities, houses of worship, and institutional environments. Eight independently configurable channels with 70V and 100V constant-voltage support make this amplifier one of the most efficient solutions for large-scale distributed audio deployments.
Product Description

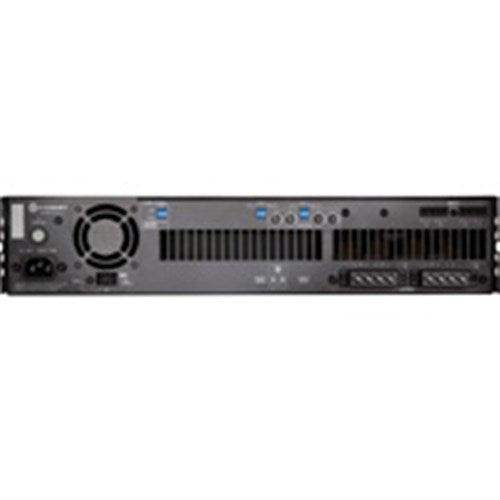

The DCi 8-channel analog series delivers 600 watts per channel into 4 ohms across all eight channels simultaneously from a 2U rack footprint, providing 4800 watts of total amplification capacity. Crown's DriveCore IC integrates the driver and output stages into a single component, reducing heat generation and improving long-term operational reliability in commercial rack installations. Each channel supports 70V and 100V constant-voltage output for distributed speaker systems with long cable runs, as well as 4-ohm and 8-ohm low-impedance operation for direct speaker connections. Onboard DSP provides per-channel limiting, crossover, parametric EQ, and delay without requiring an external processor for standard installations. Front-panel metering and rear-panel configuration controls allow on-site system setup, and HiQnet protocol support enables integration with Harman network control platforms for remote monitoring across large multi-amplifier systems.
Key Features
- Eight independent channels at 600W/4Ω — High channel density enables multi-zone audio from a single 2U rack unit.
- 70V/100V constant-voltage output — All eight channels support distributed speaker systems with extended cable runs.
- Crown DriveCore technology — Integrated IC improves thermal efficiency and reliability in permanent rack installations.
- Onboard DSP per channel — Limiting, EQ, crossover, and delay built in, reducing external processor requirements.
- HiQnet network control — Remote monitoring and control via Harman system management platforms.
- 2U rack-mount chassis — Eight channels in a compact 2U footprint for high-density multi-zone AV systems.
- Independent channel configuration — Each channel fully assignable for zone-specific level, EQ, and delay settings.
- 4800W total output capacity — Drives large multi-zone speaker systems from a single amplifier frame.
- PureBand Flatness technology — Consistent frequency response across the full audio bandwidth.
- Comprehensive protection — DC, thermal, and short-circuit protection on all eight channels.
Typical Applications
- Multi-zone commercial background and foreground music systems
- Conference center and hotel meeting room distributed audio
- House of worship distributed fill and overflow speaker systems
- Government and municipal facility multi-zone paging and music
- University campus and training facility distributed audio
- Large multi-purpose room and all-hands room audio
- Commercial retail and hospitality background music systems
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 8 |
| Power Output (4Ω) | 600W per channel |
| Power Output (8Ω) | 300W per channel |
| 70V/100V Support | Yes, all channels |
| DSP | Built-in per channel |
| Network Control | HiQnet |
| THD+N | <0.35% |
| Frequency Response | 20Hz–20kHz ±0.5dB |
| Rack Spaces | 2U |
| SKU | DCI8X600-U-USFX |
Competitor Comparison
| Criteria | Crown DCI8X600 | QSC CX-Q 8K8 | Lab.gruppen C 88:4 | Biamp Amp 8 |
|---|---|---|---|---|
| Channels | 8 | 8 | 8 | 8 |
| Power per ch (4Ω) | 600W | 800W | 500W | 125W |
| 70V/100V | Yes | Yes | Yes | Yes |
| Onboard DSP | Full per channel | Via Q-SYS Core | Limited onboard | Biamp TesiraFORTÉ |
| Network Control | HiQnet | Q-SYS | Lake optional | Biamp native |
| Form Factor | 2U | 2U | 2U | 1U |
Frequently Asked Questions
- Can individual channels be bridged for higher output?
- Yes. Adjacent channel pairs can be bridged for higher mono output. Check the Crown installation guide for bridged-mode impedance minimums.
- Does the DCI8X600 support both 70V and low-impedance operation?
- Yes. Each channel is configurable for 70V, 100V, 4Ω, or 8Ω operation independently, allowing mixed speaker system configurations.
- What is the recommended rack ventilation for the DCI8X600?
- Crown recommends front-to-rear airflow with at least 1U of ventilation space above and below in enclosed racks.
- What is the warranty?
- Crown professional installation amplifiers carry a 3-year limited warranty. Contact Creation Networks for service information.
