Crown CDI2X1200BL 1200 watts per channel 2 channel amplifier, 70/100V, 4/8 ohm
Crown CDI2X1200BL 1200 watts per channel 2 channel amplifier, 70/100V, 4/8 ohm is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crown CDI2X1200BL 1200 watts per channel 2 channel amplifier, 70/10...

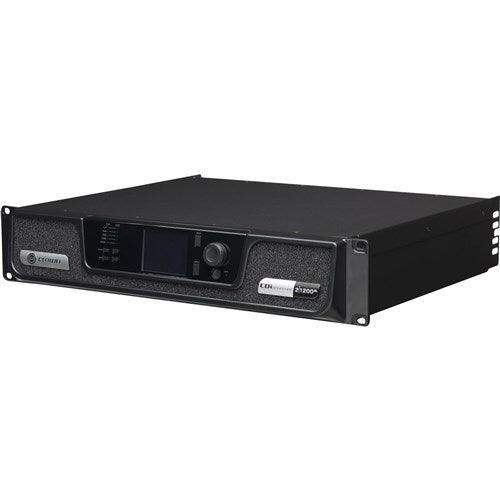

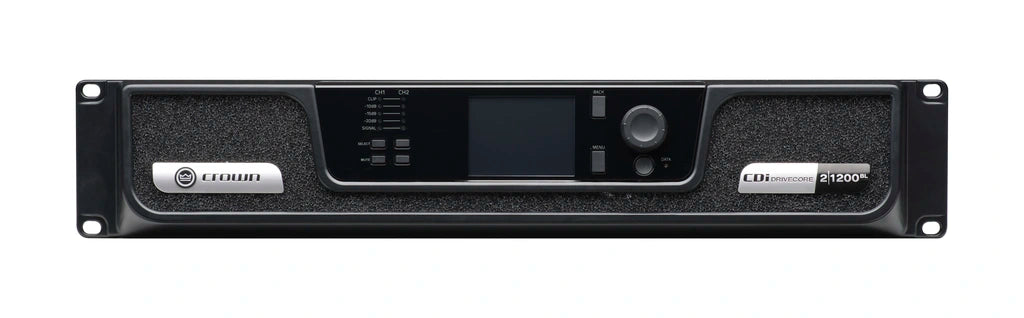

Crown CDI2X1200BL – 2-Channel 1200W DriveCore Amplifier with BLU link
Product Overview
The Crown CDI2X1200BL is a two-channel, 1200-watt-per-channel CDi DriveCore Series amplifier with integrated BLU link digital audio networking, combining high-output amplification with Harman's BLU link infrastructure for commercial AV installations using BSS Audio signal processing. The CDI2X1200BL is suited for AV integrators specifying high-output two-channel zone amplification within Harman BSS-based system architectures in auditoriums, houses of worship, and large commercial facilities.
Product Description
The CDI2X1200BL delivers 1200 watts per channel into 4 ohms across both channels with 70V and 100V constant-voltage output and BLU link digital audio transport from BSS Audio processors. The integrated BLU link interface provides 256-channel digital audio at up to 96kHz/24-bit resolution over shielded Cat cable, eliminating analog runs between the BSS signal processor and the amplifier. Crown's DriveCore IC manages the thermal demands of high-power continuous-duty operation in enclosed commercial rack installations. Comprehensive DC, thermal, and short-circuit protection supports reliable unattended operation.
Key Features
- Integrated BLU link digital networking — 256-channel lossless audio over Cat cable from BSS Audio processors.
- 1200W per channel at 4Ω — High continuous output for main speaker systems in large commercial venues.
- 70V/100V constant-voltage output — Both channels support distributed speaker systems.
- Crown DriveCore technology — Integrated IC manages thermal demands of high-power permanent installation.
- BSS Audio system integration — Purpose-built for Harman BSS BLU link-enabled system architectures.
- Independent channel operation — Biamplification or dual-zone use from a single amplifier.
- Comprehensive protection — DC, thermal, and short-circuit protection on both channels.
- Rack-mount chassis — Standard commercial AV rack-mount form factor.
Typical Applications
- Auditorium and performing arts center main systems on BSS BLU link networks
- House of worship high-output speaker systems with BLU link integration
- Large conference room main speaker systems in Harman BSS environments
- Government facility large-venue public address on BLU link
- Multi-purpose room high-output audio in Harman AV ecosystems
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Power Output (4Ω) | 1200W per channel |
| Power Output (8Ω) | 600W per channel |
| 70V/100V Support | Yes |
| Digital Network | BLU link (Harman) |
| BLU link Channels | 256 channels, 96kHz/24-bit |
| Protection | DC, thermal, short-circuit |
| SKU | NCDI2X12BL-U-US |
| Full specs | See vendor datasheet |
Frequently Asked Questions
- What is the difference between the CDI2X1200 and CDI2X1200BL?
- The CDI2X1200BL adds BLU link digital audio networking for lossless audio transport from BSS Audio processors. The CDI2X1200 uses analog XLR inputs only.
- Is BLU link compatible with all BSS Audio processors?
- BLU link is compatible with BSS Soundweb London BLU link-enabled processors. Consult Harman/BSS Audio for current device compatibility.
- What is the warranty?
- Crown CDi DriveCore amplifiers carry a 3-year limited warranty. Contact Creation Networks for service information.
