Crestron UC-SB2-DMK Display Mounting Kit for Crestron Videobar 70
Product Overview

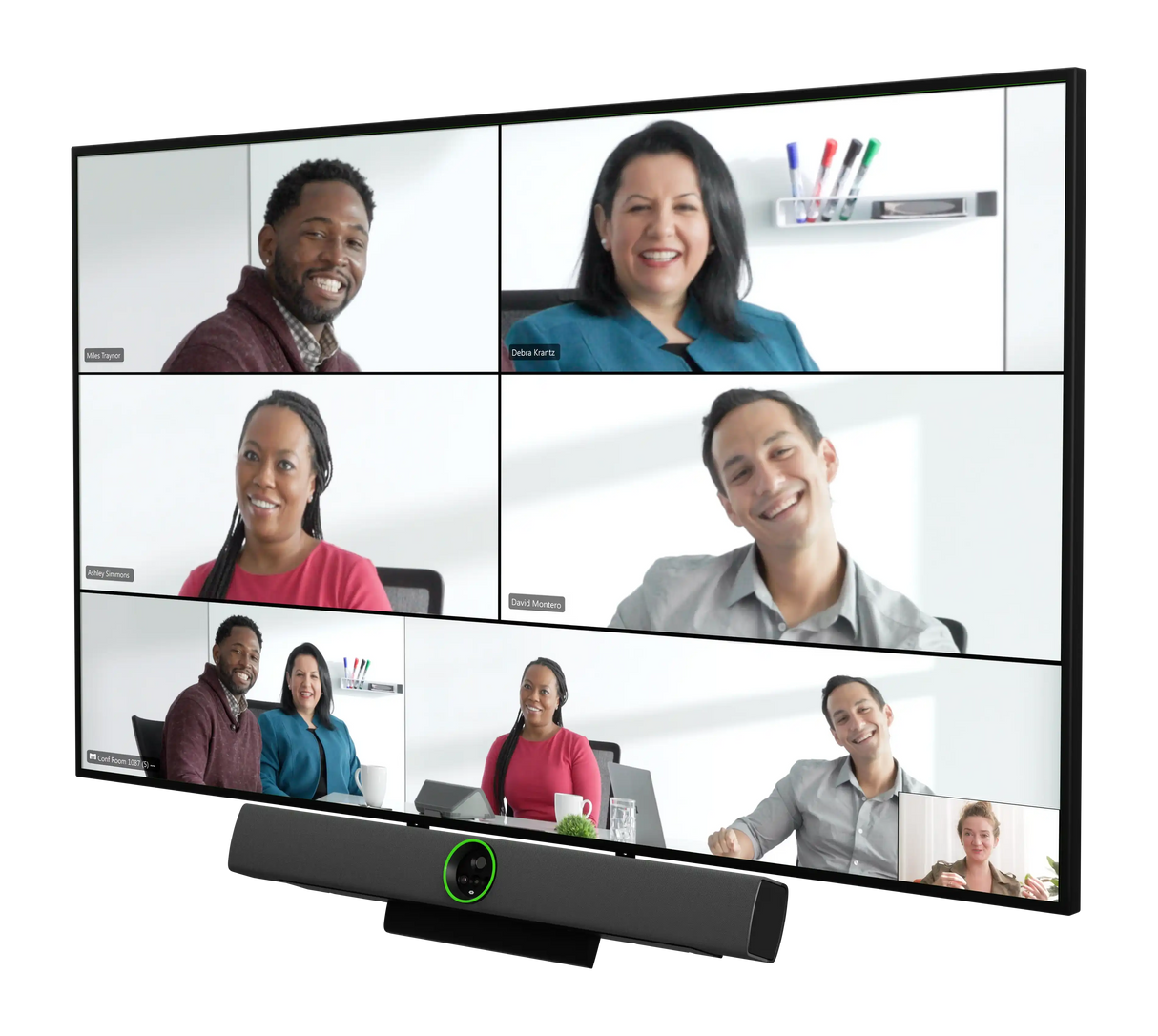

The Crestron UC-SB2-DMK is an optional display mounting kit for the Crestron Videobar 70. It mounts between the back of a VESA-compliant display and the wall, positioning the Videobar 70 in a top or bottom configuration relative to the screen. The kit includes the brackets and screws required for installation. It provides a tidy, integrated mounting solution for front-of-room conferencing displays.
Product Description

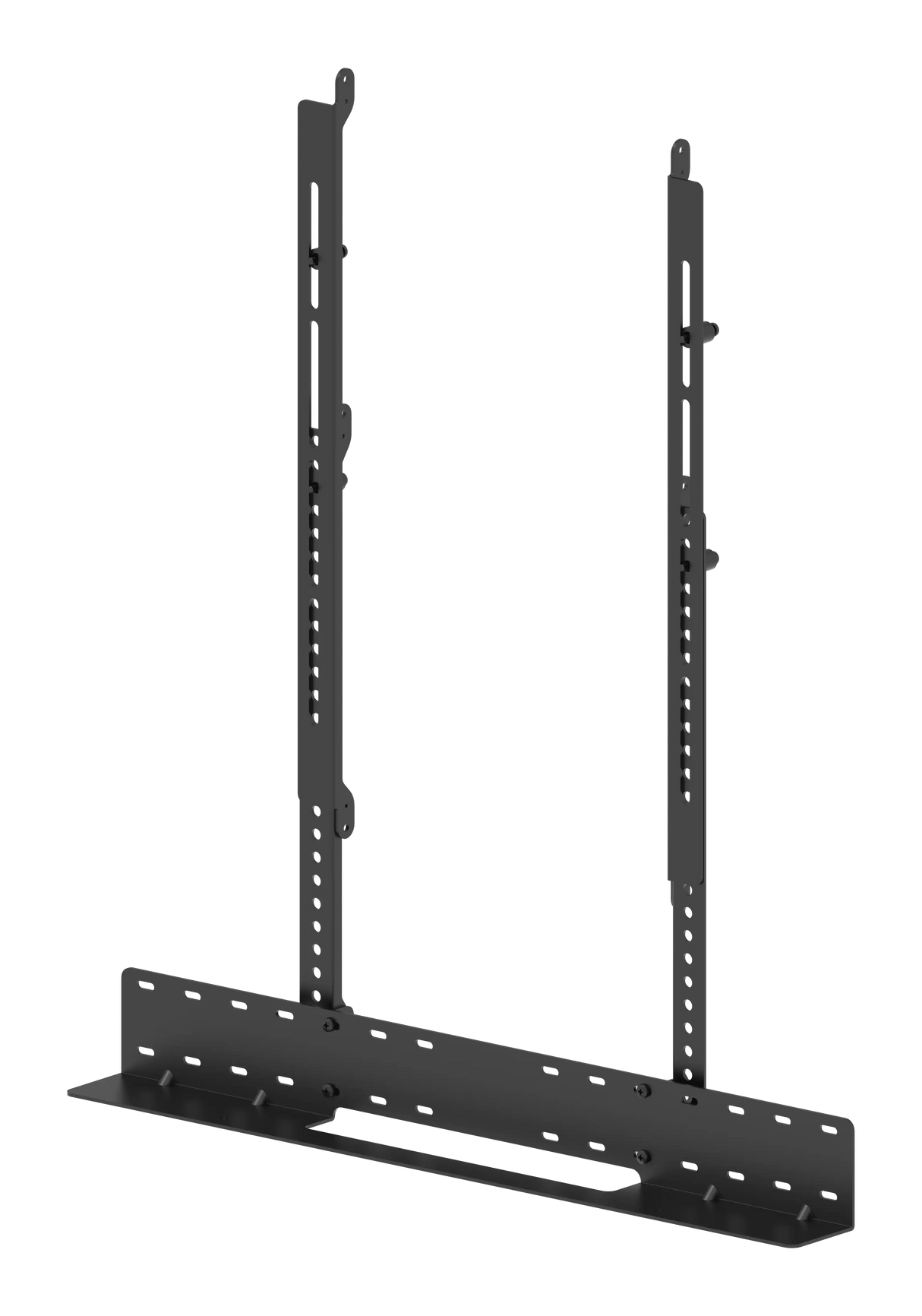

The UC-SB2-DMK installs behind a VESA-compliant display device to hold the Crestron Videobar 70 in alignment with the display. The kit consists of two base bracket rails, two extension bracket rails, two tilt brackets, and one mounting bracket, and supports both top and bottom mounting configurations for flexibility in how the videobar is positioned. A complete hardware set is supplied, including four screw types for base and extension rail installation (M6 x 40 mm, M8 x 40 mm, M6 x 50 mm, and M8 x 50 mm, four of each), plus M3 x 6 mm and M6 x 12 mm screws for the tilt brackets and videobar mounting bracket. The assembly is designed to integrate the videobar with the display while concealing mounting hardware behind the screen.
Key Features
- VESA display mounting — Installs between a VESA-compliant display and the wall.
- Top or bottom mounting — Supports positioning the Videobar 70 above or below the display.
- Complete bracket set — Includes base rails, extension rails, tilt brackets, and a mounting bracket.
- Full hardware included — Ships with the M3, M6, and M8 screws required for installation.
- Videobar 70 specific — Engineered to mount the Crestron Videobar 70 to a display.
- Integrated appearance — Aligns the videobar with the screen while concealing hardware.
Technical Specifications
| Model | UC-SB2-DMK |
| Compatibility | Crestron Videobar 70; VESA-compliant display devices |
| Included Brackets | 2 base bracket rails, 2 extension bracket rails, 2 tilt brackets, 1 mounting bracket |
| Rail Hardware | M6 x 40 mm (x4), M8 x 40 mm (x4), M6 x 50 mm (x4), M8 x 50 mm (x4) |
| Bracket Hardware | M3 x 6 mm (x2), M6 x 12 mm (x6) |
| Mounting Configurations | Top and bottom |
| Installation Location | Between rear of VESA display and wall |
| Additional Specifications | Refer to Crestron data sheet |
