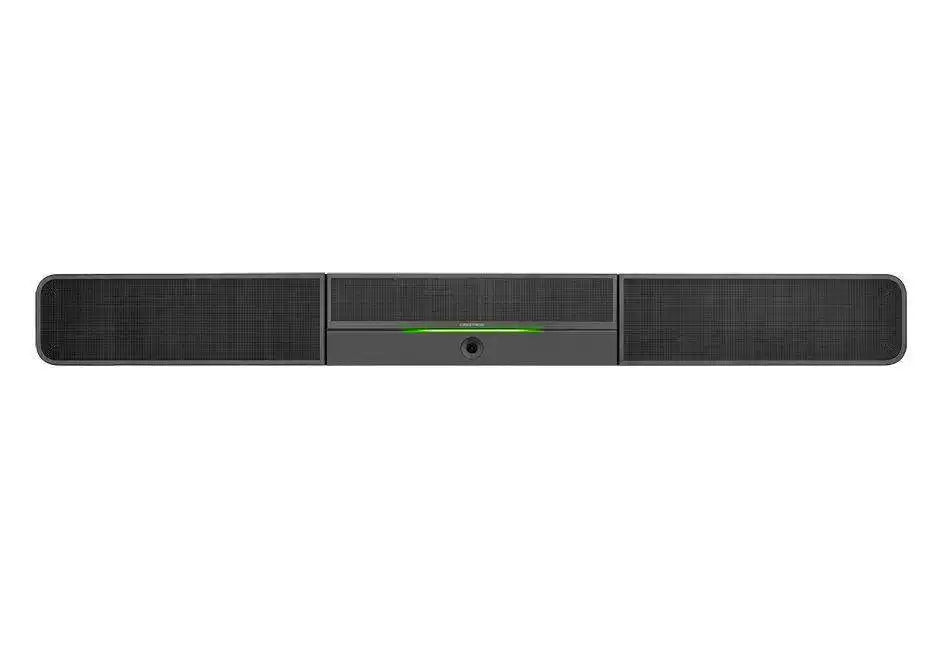

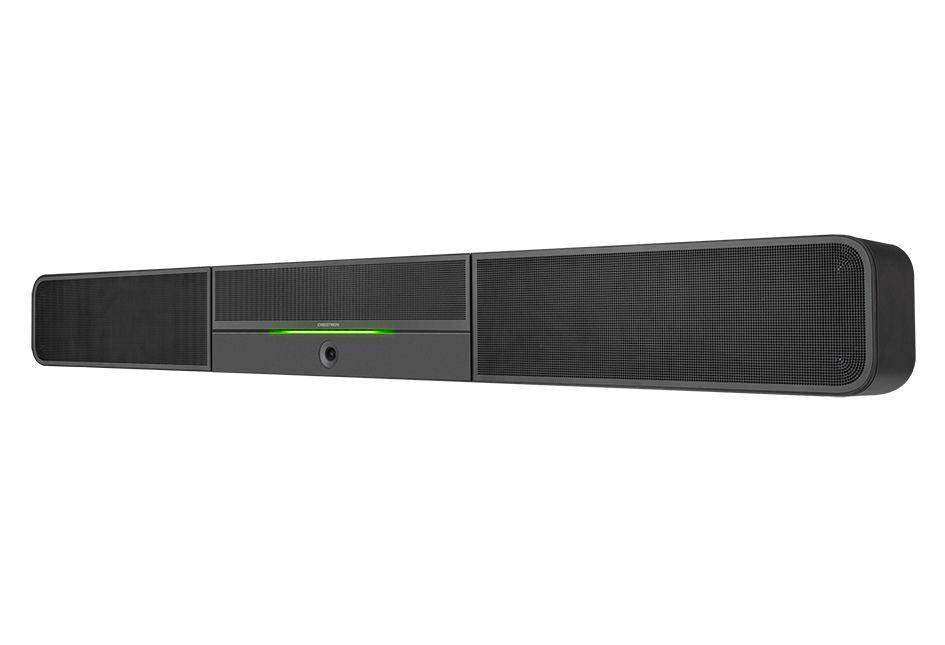

Crestron UC-SB1-CAM UC Video Conference Smart Soundbar and Camera

Save 40%
Crestron SKU: UC-SB1-CAM
No reviews

Price:
Sale price$1,200.00 Regular price$2,000.00

Description


Spec Sheet

The  Crestron® UC-SB1-CAM UC Video Conference Smart Soundbar and Camera is a front-of-room device that makes collaborating in conference spaces more efficient. It eliminates the need for extra microphones, speakers, or cameras and is perfect for small to medium-sized meeting rooms. The smart soundbar is visually appealing and produces exceptional sound quality when mounted on a wall or placed on a credenza beneath the room display.


High‑powered stereo speakers, adaptive beamforming microphone, and advanced digital signal processing deliver exceptional full‑duplex speakerphone performance with highly intelligible, echo‑free voice clarity. The built-in conferencing camera featuring HD 1080p video resolution, ultra-wide 150° diagonal field of view, and Genius Framing digital autozoom achieves a perfect view of the room.1

NOTE: See also model UC‑SB1 for a similar solution with no built‑in camera. The UC‑SB1 allows for the use of any USB camera mounted separately from the smart soundbar.

USB Speakerphone & Camera
The UC-SB1-CAM comprises a high‑performance AEC‑enabled speakerphone and camera. It is designed for integration with a computer running UC conferencing or web collaboration software, and can also be used for general presentation of computer‑based AV content. A single USB 3.0 connection provides a plug‑and‑play interface to a computer.

The soundbar behaves like most USB Audio or USB Video Class devices, enabling use as a speaker, microphone, and camera for all types of multimedia applications running on a computer. Even if you’re not on a call, you can use the smart soundbar to share content with everyone in the room, or make a professional recording of the meeting.

Superb Sound Quality
The soundbar facilitates conversations with exceptional audio fidelity and pickup. Its integrated 180° far‑field microphone array faithfully captures voices throughout the room using adaptive beamforming technology. Its high‑powered, two‑way stereo speakers produce full, rich and real sounding audio. High‑performance AEC technology achieves transparent full‑duplex performance free of distracting echo or noise. Additional digital signal processing assures optimal sound quality for an immersive experience.

Intelligent HD Camera
The integrated Huddly IQ™ camera features an ultra wide‑angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure an immersive, crystal clear video image free from light or noise artifacts or optical aberrations.

Genius Framing digital autozoom intelligently detects the people in the room and frames them perfectly for an optimal view. With Genius Framing, there’s no need to control the camera manually or rely on stored presets. When conferencing, the camera image adjusts automatically to frame everyone in the shot.1 People counting analytics detects and reports the number of people in frame for analysis by room utilization software.2

Enhanced Functionality
The UC-SB1-CAM integrates seamlessly with a wide variety of computer‑based UC platforms. Plug‑and‑play USB connectivity enables control of the soundbar through the computer without requiring extra remotes or a control system. The computer detects the soundbar connection automatically, and the soundbar responds when an online meeting is started, speaker volume is adjusted, or the speaker or mic is muted. On the front of the soundbar, operational status is displayed by a multicolor LED status bar that illuminates as the volume is increased, and changes colors to indicate connection and mute status.

Analog Audio Input & Output
Additional audio connectivity is provided through unbalanced stereo analog input and output jacks on the rear panel. The input accommodates a line‑level audio source, which feeds to the internal amplifier and speakers with no volume control or other signal processing. The output is provided to feed an assistive listening system, and carries the same audio signal as the soundbar speakers.

Easy Installation
The integral hinged mounting bracket attaches easily to a wall surface using four screws. A total of eight mounting keyholes, arranged in 2 in. (51 mm) increments, accommodates wall stud spacing from 12 to 24 in. (305 to 610 mm). The mounting bracket allows the soundbar to be tipped forward for full access to the rear panel connections. Once installed and connected, the soundbar is held upright magnetically for normal operation. Alternately, the soundbar can be placed on a shelf or credenza. Optimal results are achieved by positioning the unit at ear/face height when seated. A single 100‑240 VAC outlet is required to power the unit.

  • A complete conferencing speakerphone and camera solution in one front‑of‑room device
  • Sleek and stylish design installs cleanly beneath the room display(s) — mounts on the wall with an integral mounting bracket or sits on a credenza
  • 180° far‑field adaptive beamforming microphone array senses who is speaking and optimizes directionality for clear pickup
  • High‑powered 2‑way stereo speakers produce full, rich, and natural sound quality
  • Advanced AEC & DSP technology affords exceptional full‑duplex audio performance with highly‑intelligible, echo‑free 2‑way voice quality
  • Built‑in Huddly IQ™ camera — a premium conferencing camera fully integrated into the soundbar
  • Ultra wide‑angle 150° diagonal field of view captures the entire room
  • Full HD 1080p video resolution, precision optics, and advanced video processing delivers a crystal clear video image
  • 4x digital zoom, pan, and tilt allows manual shot control
  • Genius Framing lossless digital autozoom automatically detects people and frames them perfectly in the shot1
  • People counting provides room usage analytics2
  • Analog audio input and output connections for local source and assistive listening devices
  • Multicolor status bar indicates audio volume, mute, and operational status
  • USB 3.0 port provides audio and video connectivity through a single USB interface
  • Plug & Play compatible with major computer OS platforms running web conferencing software
Speakers
Woofers (2) 3 in. (76 mm) polypropylene cone w/rubber surround
Passive Radiators (2) 3 x 4‑3/8 in. (76 x 112 mm) polypropylene cone w/rubber surround
Tweeters (2) 1 in. (25 mm) polyester dome
Amplifier Power 20 W RMS per channel, stereo
Frequency Response 80 Hz to 20 kHz (±3 dB)
Effective Output Level 91 dB SPL @ 1 m, both channels driven at full power
Microphone
Microphone Linear quad‑element far‑field adaptive beamforming microphone array
Pickup Range 15 ft. (4.6m)3
Pickup Angle 180° horizontal and 180° vertical
Frequency Response 20 Hz to 8 kHz
Audio
DSP Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed);
Full‑duplex IEEE 1329 Type 1 compliant
NOTE: DSP affects USB audio in/out only unless noted otherwise
USB Audio In/Out USB 3.0, UAC 1.0 & HID, AEC‑enabled USB speakerphone, 2‑channel stereo far‑end/content signal input, 2‑channel mono microphone signal output;
Plug & play compatible with the computer, or other USB Audio Class host
Analog Input 2‑Channel stereo, fixed level (bypasses DSP), for in‑room amplification of an external audio source
Analog Input Sensitivity 1 Vrms per channel for full rated output
Analog Output 2‑Channel stereo, fixed level, feeds amplified audio content to an assistive listening system
NOTE: Output level varies for USB input signal only according to the speaker volume control setting; analog input signal passes through without volume control or DSP.
Camera
Model Huddly IQ (mounted internally)
Image Sensor 12 megapixel 1/2.3 CMOS sensor
Lens High precision, ultra wide angle, six element aspherical glass lens
Field of View 150º diagonal, 120º horizontal, 90º vertical
Aperture f/2.8
Processor Neural Compute Engine based on Intel® Movidius™ Myriad™ X video processing unit
Pan/Tilt/Zoom 4x lossless digital zoom, pan, and tilt
Autozoom Genius Framing automatic lossless digital zoom intelligently frames people in the room1
Dynamic Light Optimization Auto‑adjusts light levels and white balance
Noise Reduction 3D noise reduction, bias compensating spatio‑temporal filtering, wide area chroma filtering, flicker elimination
Scaling Real‑time scaling, dewarping, and perspective correction
People Counting Detects and reports the number of people in frame2
Video
USB Video Out USB 3.0, UVC 1.1 & HID, conferencing camera;
Plug & play compatible with a computer, or other USB Video Class host
Output Resolution HD 1080p @ 30 fps
Color Space YCbCr 4:2:0, YCbCr 4:2:2, MJPEG
Indicators
Status Bar (1) Multi‑segment RGBY LED zero‑center mutually‑diverging linear bargraph;
Indicates the speaker volume, microphone mute, and speaker mute in red and green LEDs
Connectors
AUDIO IN (1) 3.5 mm TRS mini‑phone jack;
Unbalanced stereo line‑level audio input;
Input Level: 1 Vrms maximum;
Input Impedance: 10k Ohms
AUDIO OUT (1) 3.5 mm TRS mini‑phone jack;
Unbalanced stereo line‑level audio output;
Output Level: 1 Vrms maximum;
Output Impedance: 100 Ohms
PC (1) USB 3.0 Type‑B connector, female;
USB 3.0 device port;
Connects to computer;
6 ft (1.83 m) USB 3.0 Type B to Type A cable included
CAMERA (1) USB 3.0 Type‑A connector, female;
USB 3.0 host port;
Connects to the internal camera output via a 6 in. (13 cm) USB Type‑C™ to USB 3.0 Type A cable
24 VDC 2.5 A 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU (included)
Power
Power Consumption 22 W
Environmental
Temperature 41° to 104° F (5° to 40° C)
Humidity 10% to 90% RH (non‑condensing)
Heat Dissipation 75 BTU/hr
Construction
Enclosure Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die‑cast aluminum rear cover, integral steel hinged mounting bracket
Mounting Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached)
Dimension
Height 4.57 in. (117 mm), 4.64 in. (118 mm) with feet
Width 43.60 in. (1108 mm)
Depth 3.90 in. (100 mm)
Weight
13.56 lb (6.2 kg)
