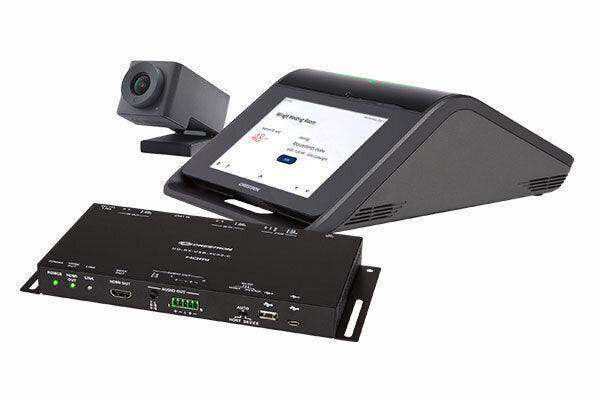

The UC-MX50-U is a comprehensive conferencing and collaboration solution that is compatible with open-platform UC applications. It can accommodate one video display and includes the Crestron Flex tabletop conference device (CCS-UC-1-X), a collaboration camera (CCS-CAM-USB-F-400), an HDMI® over CATx Receiver (HD-RX-USB-2000-C), as well as cables and a power supply.
Intuitive User Interface with Impressive Audio
The CCS-UC-1-X Crestron Flex Tabletop Conference device is designed to enhance the conferencing and collaboration experience. It features a large 7-inch HD display, a 360° quad microphone array, and an AEC-enabled USB speakerphone that supports full-duplex wideband audio performance.
High-Definition Video Conferencing
The collaboration camera (CCS-CAM-USB-F-400) that comes with this package has a wide 150° diagonal field of view that captures the entire conference room in Full HD 1080p video resolution. Its high precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear and noise-free video image. The digital autozoom feature, called Genius Framing, recognizes the individuals in the room and frames them for the best view possible.
Voice Calling & Audio Conferencing
The CCS‑UC‑1‑X provides full-duplex conferencing speakerphone capabilities and is compatible with major SIP‑compliant phone systems. Dialing and answering calls is easy and intuitive using the large HD color touch screen. Corporate directory access (LDAP) enables one-touch dialing from the customer’s centrally‑managed directory. Native Skype® for Business VoIP support enables one-touch join capability for scheduled Skype meetings (audio only), or you can place a Skype call using the directory or dial pad.
The CCS-UC-1-X can pair with a mobile phone using Bluetooth® connectivity to make or join phone calls, or to use as a speaker and/or microphone for an application running on a smartphone. When used for calls, controls for the Bluetooth‑enabled phone appear on the touch screen, enabling instant connectivity with the press of a button.
The CCS-UC-1-X functions like any USB Audio Class device, allowing you to connect a laptop computer via USB to improve audio performance for any softphone, multimedia, or audio conferencing application running on the laptop.
BYOD Multimedia Presentation
Connect a display device to the HD-RX-USB-2000-C's HDMI output port to enable high‑definition video presentation from all types of BYOD sources.
Connect an AV source to the CCS-UC-1-X's HDMI input port to present full‑motion HD video content on the room display. Sources with DisplayPort™ or USB Type‑C® outputs can also be connected using an optional Crestron video cable system (CBL‑MULTI‑6 or CBL‑MULTI‑12, sold separately).
Use the built‑in AirMedia® technology for wireless presentation of content from a laptop, smartphone, or tablet device via the room’s Wi‑Fi® wireless network.
Visit www.crestron.com/airmedia for more information.1
Video conferencing & Web Collaboration
Videoconferencing is enabled by connecting a laptop running a web conferencing or UC application such as Microsoft Teams® Rooms, Skype for Business, Cisco Webex®, GotoMeeting®, Slack®, BlueJeans, or Zoom Rooms™. All participants are provided with enhanced bidirectional audio along with a high‑definition view of the whole room.
Connect the laptop’s HDMI output to allow the whole room to view far-end content and camera images on the main room display. Laptops with DisplayPort or USB Type‑C outputs can also be connected using an optional Crestron video cable system (CBL‑MULTI‑6 or CBL‑MULTI‑12, sold separately).
HDMI over CATx Receiver
The HDMI over CATx Receiver (HD-RX-USB-2000-C) receives uncompressed HDMI, CEC, RS‑232, Ethernet, and IR signals sent from a Crestron Flex tabletop conference device (CCS‑UC‑1‑X) through a single CAT type2 cable. Signals are broken out to relevant output ports for connection to the front-of-room display.
Crestron Flex is an enterprise-grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility. Its advanced security features ensure privacy, reliability, and compliance with your organization’s IT policies.
Easy Provisioning and Device Management
The XiO Cloud service3 is an IoT cloud-based provisioning service that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning.
Visit www.crestron.com/xiocloud for additional information.
Premium Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Visit www.crestron.com/flexcare for additional information.
- Tabletop audio and video conferencing solution
- Present, call, conference, and collaborate using your own UC conference software (BYOD)
- Complete kit contains the Crestron Flex tabletop conference device (CCS‑UC‑1‑X), a collaboration camera, HD-RX-USB-2000-C HDMI® over CATx Receiver, cables, and power supply
- Easy to specify and install — no custom design, programming, or software installation required
- Network management and provisioning and system alerts through the XiO Cloud® service
- Premium-level support with Crestron Flex Care (optional)
- Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network
|CCS‑UC‑1‑X||Crestron Flex tabletop conferencing device;
|HD-RX-USB-2000-C||HDMI over CATx Receiver|
|CBL‑USBC‑USBA‑6||USB Type‑C® right‑angle to USB A cable 6 ft (1.8 m)|
|CBL‑HD‑THIN‑HS‑6||HDMI Cable, Thin, Type A Male‑to‑Male, 6 ft (1.8 m)|
|CBL‑HD-6||HDMI Interface Cable, 6 ft (1.8 m)|
|CBL-USB-A-BMICRO-6||USB Cable, USB Type A Male to Micro‑B Male cable, 6 ft (1.8 m)|
|DM-CBL-ULTRA-PC-20||Ethernet LAN cable for touch screen, CAT6a, RJ‑45‑to‑RJ‑45, blue, 20 ft (6 m)|
|STIRP||IR Emitter Probe w/3.5 mm Mini Phone Plug|
|UC-CAM-WMK||Wall Mount Kit for Crestron Cameras|
|Crestron Flex tabletop conferencing device|
|Touch Screen||7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels|
|Mic Mute Symbol & Light Bar||Capacitive buttons with bi‑color LEDs, either button toggles between mute and unmute|
|AEC||Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction;
Full‑duplex IEEE 1329 Type 1 compliant
|Speaker||Full range speaker;
Amplifier power: 11 W;
95 dB SPL at 0.5 m maximum output;
Frequency response: 90 Hz to 22 kHz
|Microphones||360° quad mic array;
Pickup range (typical): 20 ft (6 m)
|Extension Microphones||Supports two mic pods, model CCS‑UCA‑MIC KIT (sold separately)|
|Occupancy Sensor||6 ft (1.83 m) PIR range in front of touch screen;|
|Ethernet||100 Mbps, enterprise-grade security and management including IEEE 802.1X, Active Directory® authentication, LDAP, Kerberos, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, digest access authentication, password login, HTTPS secure provisioning, XiO Cloud service|
|USB||USB 2.0 micro Type B device port;
Supports UAC for audio interface
|Power||24 VDC via external 100‑240 VAC, 50/60 Hz power pack, model PW‑2420RU (included)
NOTE: The CCS-UC-1-X cannot be powered by Power over Ethernet or PoE+.
|Dimensions||Height: 4.11 in. (105 mm)
Width: 8.92 in. (227 mm)
Depth: 12.74 in. (324 mm)
|Weight||5.50 lb (2.5 kg)|
|Image Sensor||12 Megapixel 1/2.3 CMOS sensor|
|Lens||High precision, ultra wide angle, six element aspherical glass lens|
|Field of View||150° diagonal, 120° horizontal, 90° vertical|
|Autozoom||Genius Framing automatic lossless digital zoom intelligently frames around people in the room|
|Connectivity||Plug‑and‑play USB 3.1|
|Resolution/FPS||HD 1080p @ 30 fps|
|Dimensions||Height: 1.40 in. (36 mm)
Width: 1.60 in. (41 mm)
Depth: 2.82 in. (72 mm)
|Weight||4.2 oz (120 g)|
|HDMI over CATx Receiver|
|Video Output Signal Types||HDMI (DVI-compatible4)|
|Audio Output Signal Types||HDMI|
|Communications||Ethernet: 100 Mbps pass‑through;
USB: USB 2.0 pass‑through for camera;
RS-232: 2‑way serial pass‑through up to 115.2k baud
(Transmit Data/Receive Data only);
IR: IR signal pass‑through up to 60 kHz;
HDMI: HDCP 2.2, EDID, CEC pass‑through
HDMI over CATx2: HDCP 2.2, EDID, Ethernet, CEC/IR/RS‑232
|Power Pack (included)||Input: 0.8 A (maximum) @
100‑240 VAC, 50/60 Hz;
Output: 1.25 A @ 24 VDC;
|Dimensions||Height: 4.47 in. (114 mm)
Width: 9.61 in. (244 mm)
Depth: 0.99 in. (25 mm)
|Weight||1.71 lb (776 g)|
