Overview

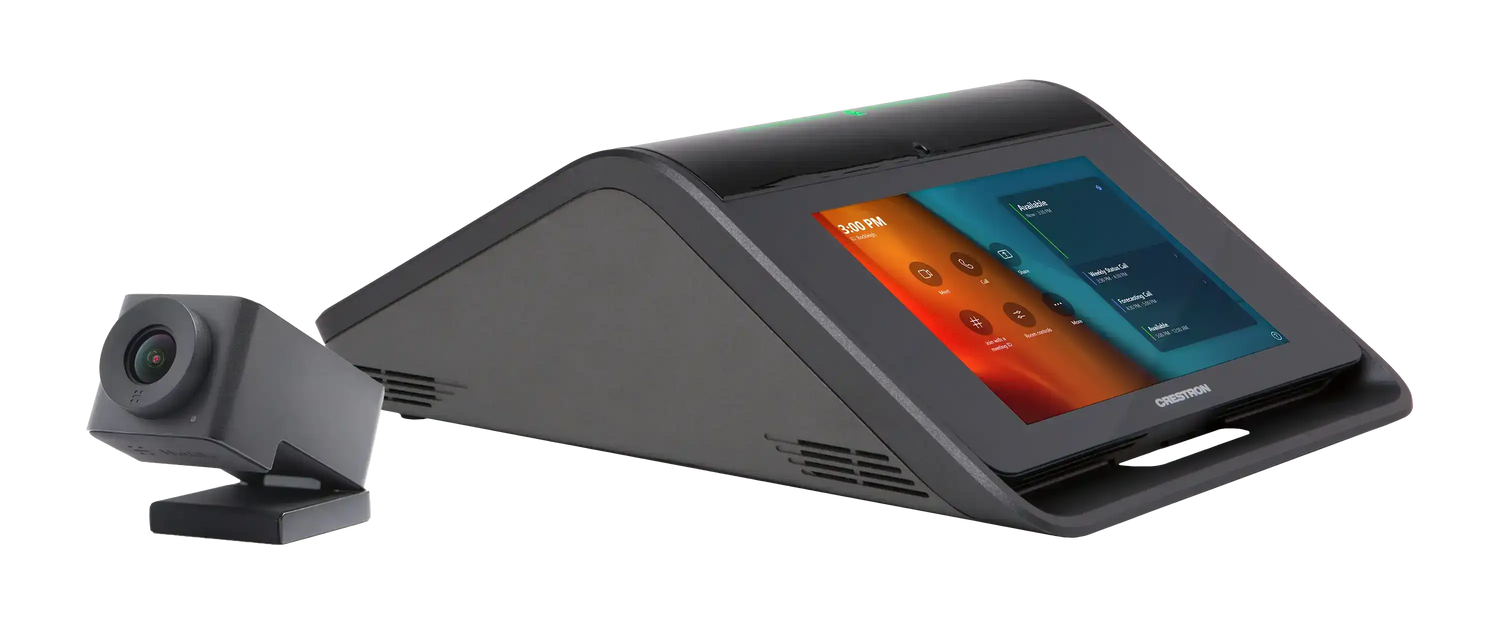

The Crestron Flex UC-MX50-T is an advanced tabletop conferencing system that is ideal for medium-sized rooms and works seamlessly with Microsoft Teams® Rooms software. It offers support for one or two video displays (which are not included) and comes with a complete set of components, including a Crestron Flex tabletop conference device, a collaboration camera, a UC bracket assembly, power supply, and all necessary cables.
Native Microsoft Teams® Rooms Experience
The UC-MX50-T system brings the full Microsoft Teams Rooms UC experience to any enterprise or SMB facility meeting space.
Intuitive User Interface with Impressive Audio

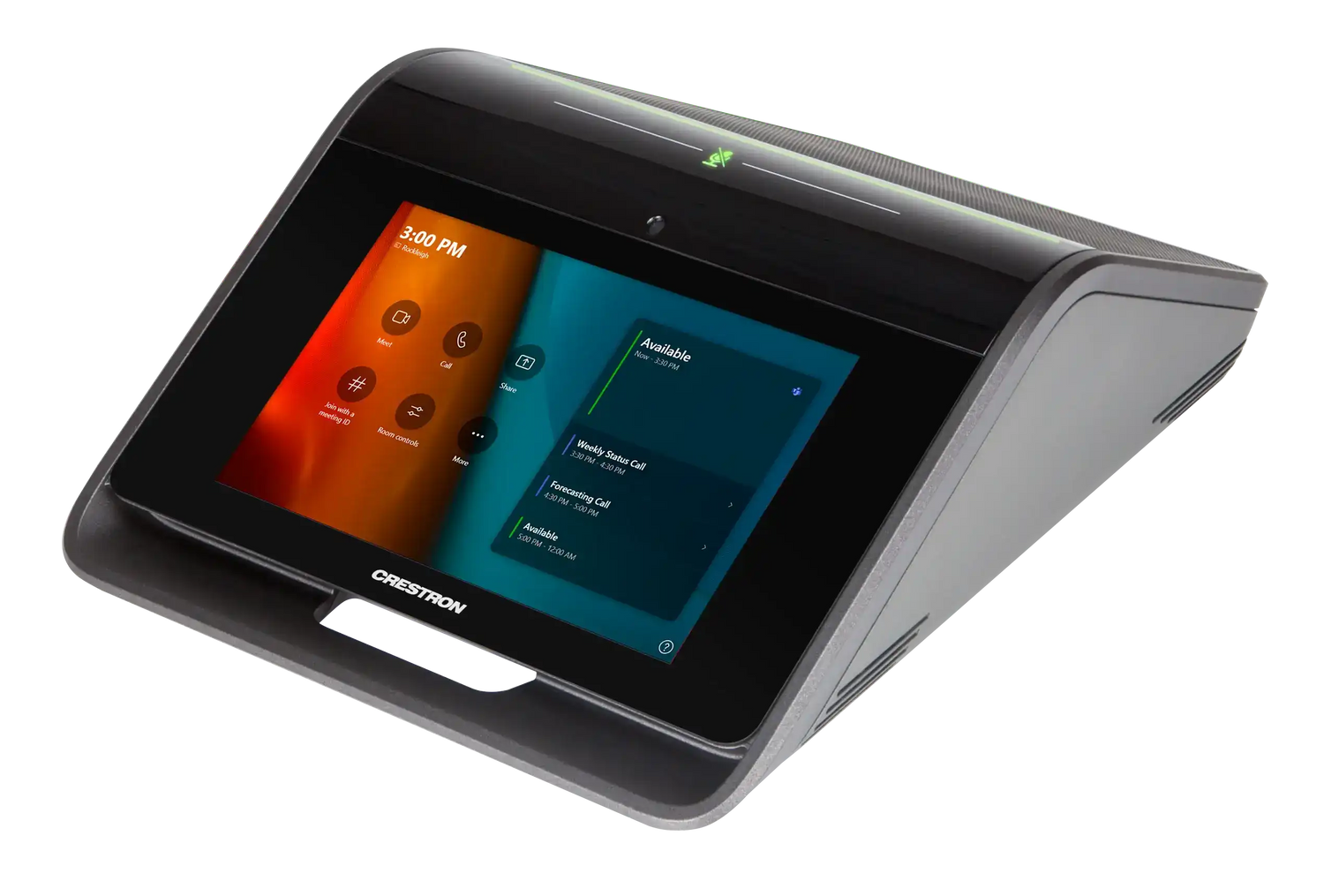

The Crestron Flex Tabletop Conference device (CCS-UC-1-X-T-V) is a great choice for meeting rooms, huddle spaces, and executive offices. It has a large 7-inch HD color touch screen and an integrated AEC-enabled USB speakerphone that delivers full-duplex wideband audio performance, ensuring a superior conferencing and collaboration experience. Additionally, it comes with optional control of room lighting, shades, thermostats, and other equipment.
Simplified Deployment

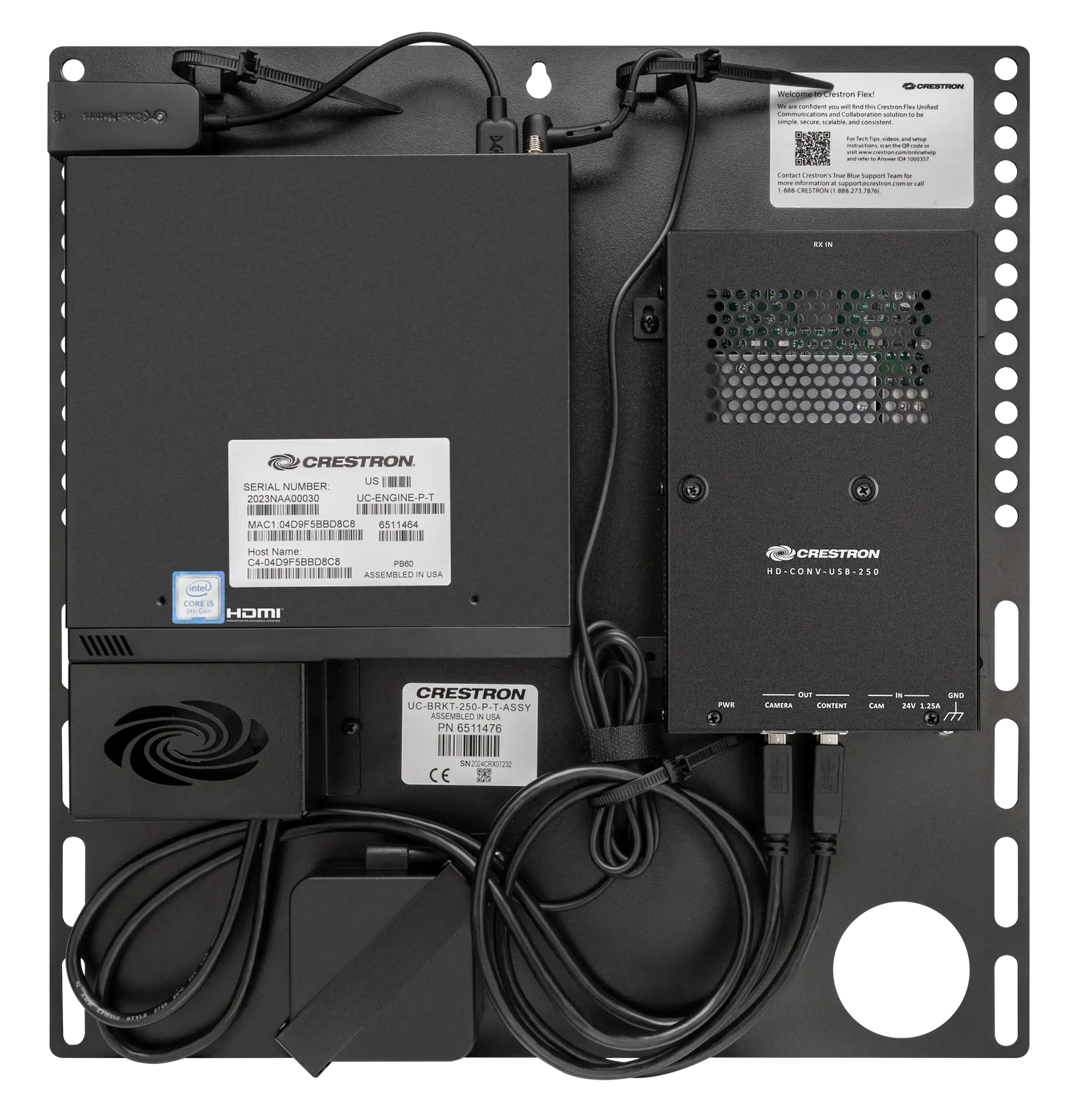

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Crestron Flex tabletop conference device to the UC Bracket Assembly.
High-Definition Video Conferencing

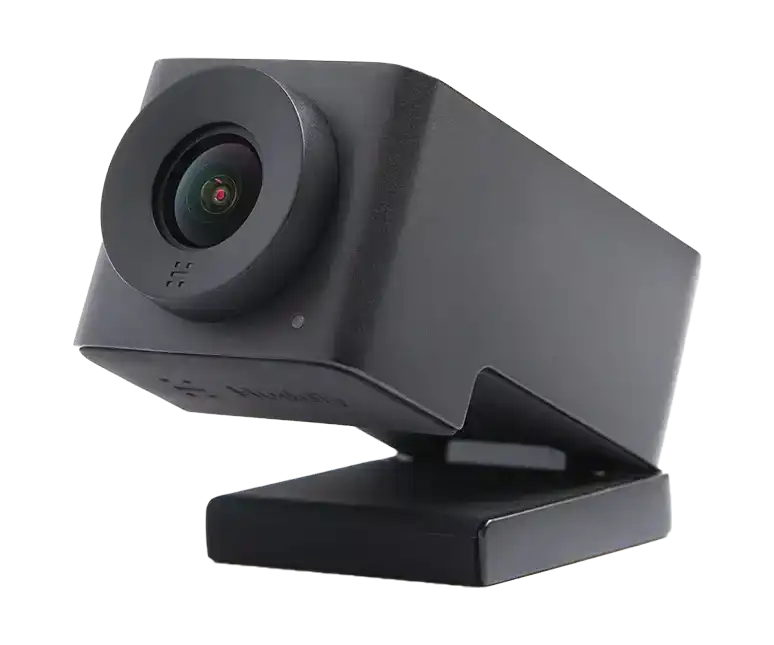

The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom detects the people in the room and frames them for an optimal view.
Crestron Control System Integration
The UC-MX50-T integrates with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.2
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system's built-in content ingest device switches to the connected laptop's UC platform and returns to the native platform when disconnected.
Enterprise-Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Visit www.crestron.com/flexcare for additional information.
Dual Control Option
A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.2, 3
Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.
Key Features
- Tabletop video conferencing solution for the Microsoft Teams® Rooms environment
- Present, call, conference, and collaborate using your own device's UC conference platform (BYOD) or the native Microsoft Teams Rooms platform
- Native Microsoft Teams Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins
- Complete kit contains a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, power supply, and cables — just add a display and mount
- Easy to specify and install — no custom design, programming, or software installation required
- Direct connection option between UC Engine and Crestron Flex tabletop conference device for simple installation and configuration
- Network management and provisioning, system alerts, and the pairing of a Crestron Flex tabletop conference device to the UC-MX50-T system’s UC Engine through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network
- Supports single or dual video displays (not included)
Specifications
| Included Components | |
| CCS‑UC‑1‑X-T-V | Crestron Flex tabletop conferencing device includes:
|
|
UC‑BRKT‑250‑P‑T‑ASSY or UC‑BRKT‑260‑P‑T‑ASSY |
UC Bracket Assembly for Microsoft Teams Rooms systems, comprised of:
|
| CCS‑CAM‑USB‑F‑400 | Collaboration Camera |
| CBL‑4K‑DP‑HD-6 | Active Converter Cable, DisplayPort™ to HDMI®, 18 Gbps, 6 ft (1.8 m); secondary display |
| CBL‑CAT5E‑7 | Ethernet LAN cable, CAT5e, RJ‑45‑to‑RJ‑45, black, 7 ft (2.1 m) |
| CBL‑HD-6 | HDMI Interface Cable, 6 ft (1.8 m); primary display |
| CBL‑HD‑THIN‑HS‑6 | Thin HDMI cable for connecting display device, Type A male‑to‑male, 6 ft (1.8 m) |
| CBL-USB-A-BMICRO-6 | USB 2.0 A - Micro-B cable, 6 ft (1.8 m) |
| CBL‑USBC‑USBA‑6 | USB Type‑C® right‑angle to USB A cable 6 ft (1.8 m) |
| DM-CBL-ULTRA-PC-20 | (2) Ethernet LAN cable for touch screen, CAT6a, RJ‑45‑to‑RJ‑45, blue, 20 ft (6 m) |
| UC-CAM-WMK | Wall mount kit for Crestron cameras |
| Crestron Flex tabletop conferencing device | |
| Touch Screen | 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels |
| UI | Microsoft Teams Rooms UI plus optional Crestron room control UI2 |
| Mic Mute Symbol & Light Bar | (2) Capacitive buttons with bi‑color LEDs, either button toggles between mute and unmute |
| AEC | Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction; full‑duplex IEEE 1329 Type 1 compliant |
| Speaker | Full range speaker, 11 W amplifier power, 95 dB SPL at 0.5 m maximum output, 90 Hz to 22 kHz frequency response |
| Microphones | 360° quad mic array, 20 ft (6 m) typical pickup range |
| Extension Microphones | Supports two mic pods, model CCS‑UCA‑MIC (sold separately) |
| Occupancy Sensor | 6 ft (1.8 m) PIR range in front of touch screen |
| Ethernet | 100 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory authentication, digest access authentication, password login, XiO Cloud service, Microsoft Intune® client |
| USB | USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (model UC-ENGINE-P-T) (cable included) |
| Power | 24 VDC via external 100‑240 VAC, 50/60 Hz power pack, model PW‑2420RU (included) NOTE: The CCS-UC-1-X-T-V cannot be powered by Power over Ethernet or PoE+. |
| Dimensions | Height: 4.11 in. (104 mm) Width: 8.92 in. (227 mm) Depth: 12.74 in. (324 mm) |
| Weight | 5.50 lb (2.5 kg) |
| Camera | |
| Image Sensor | 12 Megapixel 1/2.3 CMOS sensor |
| Lens | High precision, ultra wide angle, six element aspherical glass lens |
| Field of View | 150° diagonal, 120° horizontal, 90° vertical |
| Aperture | f/2.8 |
| Autozoom | Genius Framing automatic lossless digital zoom intelligently frames around people in the room |
| Connectivity | Plug‑and‑play USB 3.1 |
| Resolution/FPS | HD 1080p @ 30 fps |
| Dimensions | Height: 1.40 in. (36 mm) Width: 1.60 in. (41 mm) Depth: 2.82 in. (72 mm) |
| Weight | 4.2 oz (120 g) |
| UC Bracket Assembly | |
| UC Engine | Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity |
| UC Client | Microsoft Teams Rooms |
| Management Client | XiO Cloud service |
| Content Ingest | HDMI input via CAT5 to USB 3.0 converter |
| NOTE: Use only DigitalMedia™ Ultra cable between the conference and content ingest devices. The maximum supported cable length is 300 ft. | |
| Display Output | Single or dual display support |
| Display Output Resolution | 1080p |
| Power | UC Engine: 100‑240VAC, 50/60 Hz adapter (included); CAT5 to USB 3.0 converter: 24VDC via external 100‑240VAC, 50/60 Hz power pack (included) |
| Construction | Metal mounting bracket, black, preassembled with UC Engine and CAT5 to USB 3.0 content ingest device |
| Mounting | Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; the bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate |
| Dimensions | Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Maximum Depth: 1.87 in. (48 mm) |
| Maximum Weight | 8.0 lb (3.7 kg) |
