Overview

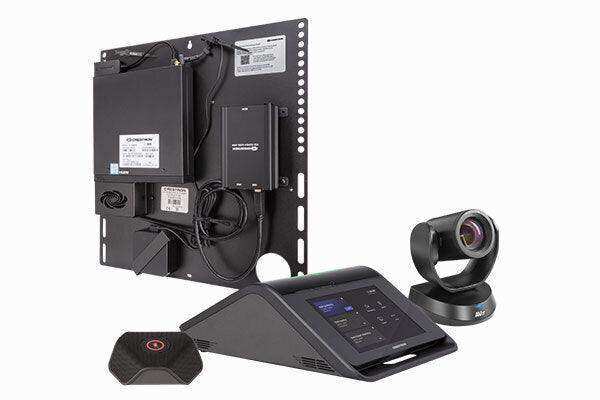

The Crestron Flex tabletop conferencing system, UC-M70-Z, is perfect for Zoom Rooms® software and is an excellent video conferencing solution for bigger rooms. It can support up to three video displays (not provided) and comes with a Crestron Flex tabletop conference device, an AI collaboration camera, a UC bracket assembly, a microphone pod, power supply, and cables.
Native Zoom Rooms™ Software Experience
The UC-M70-Z system comes with Zoom Rooms conferencing software, making collaboration and content sharing seamless through audio and video connections.
Intuitive User Interface with Impressive Audio
The Crestron Flex Tabletop Conference device, CCS-UC-1, offers an outstanding collaboration and conferencing experience for executive offices, huddle spaces, and meeting rooms. It features a 7-inch high-definition color touch screen and an integrated USB speakerphone with AEC, providing full-duplex wideband audio performance.
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
High-Definition Video Conferencing
The included AI collaboration camera (UC-CAM-L1) features a wide-angle 103° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 20.30 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom intelligently detects the people in the room and frames them for an optimal view.
Enterprise-Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® branded hardware, expedited advance replacements, and a discounted rate for on-site support.
Visit www.crestron.com/flexcare for detailed terms and conditions and additional information.
Deployment Resources
View the Crestron Flex Pre‑Deployment Checklist to help plan your Crestron Flex installation.
Key Features
- Tabletop video conferencing solution for Zoom Rooms® environment
- Native Zoom Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins
- Complete kit contains a Crestron Flex tabletop conference device, AI collaboration camera, UC bracket assembly, microphone pod, power supply, and cables — just add a display and mount
- Easy to specify and install — no custom design, programming, or software installation required
- Network management and provisioning and system alerts through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network
- Supports up to three video displays (not included)
Specifications
| Included Components | |
| CCS‑UC‑1 | Crestron Flex tabletop conferencing device:
|
| UC‑BRKT‑200‑S‑Z‑ASSY | UC Bracket Assembly for Zoom Rooms systems, comprised of:
|
| UC-CAM-L1 | AI collaboration camera |
| CCS-UCA-MIC | Extension microphone pod |
| CBL-4K-DP-HD-6 | DisplayPort™ to HDMI Cable, 6 ft (1.8 m); secondary display |
| CBL‑CAT5E‑7 | Ethernet LAN cable for UC Engine, RJ‑45‑to‑RJ‑45, black, 7 ft (2.1 m) |
| CBL‑HD-6 | HDMI Interface Cable, 6 ft (1.8 m); primary display |
| CBL‑HD‑20 | HDMI Interface Cable, 20 ft (6.1 m); content sharing |
| CBL-USB-A-BMICRO-6 | USB Cable, USB Type A Male to Micro‑B Male cable, 6 ft (1.8 m) |
| CBL‑USB‑A‑EXT‑15 | USB Extension Cable, USB Type A Male‑to‑Female, 15 ft (4.6 m) |
| PW‑2420RU | Universal power supply and power cord |
| Crestron Flex tabletop conferencing device | |
| Touch Screen | 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels |
| UI | Zoom Rooms UI |
| Mic Mute Symbol and Light Bar | (2) Capacitive buttons with bi‑color LEDs, either button toggles between mute and unmute |
| AEC | Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full‑duplex IEEE 1329 Type 1 compliant |
| Speaker | Full range speaker; Amplifier Power: 11 W; 95 dB SPL at 0.5 m maximum output; Frequency Response: 90 Hz to 22 kHz |
| Microphones | 360° quad mic array; Pickup Range (typical): 20 ft (6 m) |
| Extension Microphones | One extension microphone pod (CCS‑UCA‑MIC) included |
| Occupancy Sensor | 6 ft (1.83 m) PIR range in front of touch screen; |
| Ethernet | 100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory® authentication, LDAP, Kerberos, digest access authentication, password login, HTTPS secure provisioning, XiO Cloud client, primary port is IEEE 802.3at Type 2 PoE+ compliant |
| USB | USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (cable included) |
| Power Options | PoE+: IEEE 802.3at Type 2, Class 4 (25.5 W) PoE+ Powered Device NOTE: If the additional mic pod (CCS‑UCA‑MIC) is used, PoE+ cannot be used to power the device. 24 VDC: 24 VDC via external 100‑240 VAC, 50/60 Hz power pack, model PW‑2420RU |
| Dimensions | Height: 4.11 in. (104 mm) Width: 8.92 in. (227 mm) Depth: 12.74 in. (324 mm) |
| Weight | 5.5 lb (2.5 kg) |
| Microphone Pod | |
| Model | CCS-UCA-MIC |
| Communications | A2B bus protocol, slave, synchronous data, multichannel I2S/TDM to I2S/TDM |
| Microphone | Triple mic array with (3) cardioid electret elements |
| Pickup Range | 20 ft (6 m) typical, 360° |
| Mic Mute | (1) Capacitive button with bi-color LED, toggles between mute and unmute (affects all system mics) |
| Connectors | (2) RJ9 4P4C connector, female |
| Power | Powered via the CCS-UC-1 through the A2B bus |
| Dimensions | Height: 0.97 in (25 mm) Width: 3.81 in (97 mm) Depth: 3.42 in (87 mm) |
| Camera | |
| Image Sensor | 20.30 Megapixels 1 in. CMOS Sensor |
| Lens | High precision, wide angle, aspherical glass lens |
| Field of View | 103º diagonal, 92º horizontal, 65º vertical |
| Aperture | f/2.9 |
| Autozoom | Genius Framing automatic lossless digital zoom intelligently frames around people in the room |
| Connectivity | USB 3.0 port (via USB to PoE Adapter) |
| Power | 5VDC power adapter |
| Resolution/FPS | HD 1080p @ 30 fps |
| Dimensions | Height: 2.1 in. (53 mm) Width: 4.8 in. (122 mm) Depth: 3.5 in. (89 mm) |
| Weight | 1.3 lb (0.6 kg) |
| UC Bracket Assembly | |
| UC Engine | Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity |
| UC Client | Zoom Rooms Software |
| Management Client | XiO Cloud Service |
| Content Ingest | HDMI input via HDMI to USB 3.0 converter |
| Display Output | Up to three displays support1 |
| Display Output Resolution | 1080p |
| Power | 100‑240 VAC, 50/60 Hz adapter (included) |
| Construction | Metal mounting bracket, black, preassembled with UC Engine and HDMI to USB 3.0 converter |
| Mounting | Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate |
| Dimensions | Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Depth: 1.87 in. (48 mm) (UC Bracket Assembly with HD-CONV-USB-200) 1.93 in. (49 mm) (UC Bracket Assembly with HD-CONV-USB-300) |
| Weight | 7.7 lb (3.5 kg) (UC Bracket Assembly with HD-CONV-USB-200) 7.95 lb (3.6 kg) (UC Bracket Assembly with HD-CONV-USB-300) |
