Overview

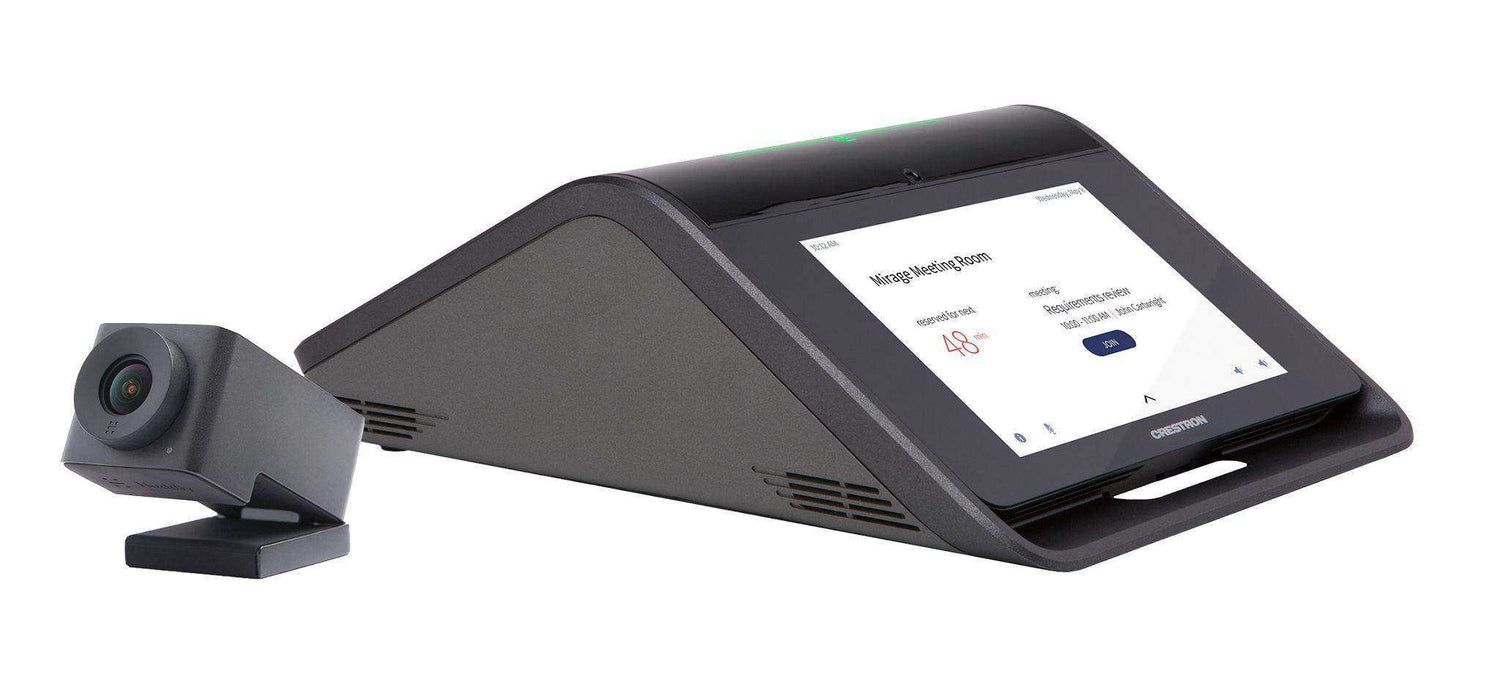

The Crestron Flex UC-M50-U is an all-in-one conferencing and collaboration solution perfect for open-platform UC applications. It comes equipped with a single video display and includes the Crestron Flex tabletop conferencing device (CCS-UC-1-AV), a CCS-CAM-USB-F-400 collaboration camera, necessary cables, and a power supply.
Intuitive User Interface with Impressive Audio

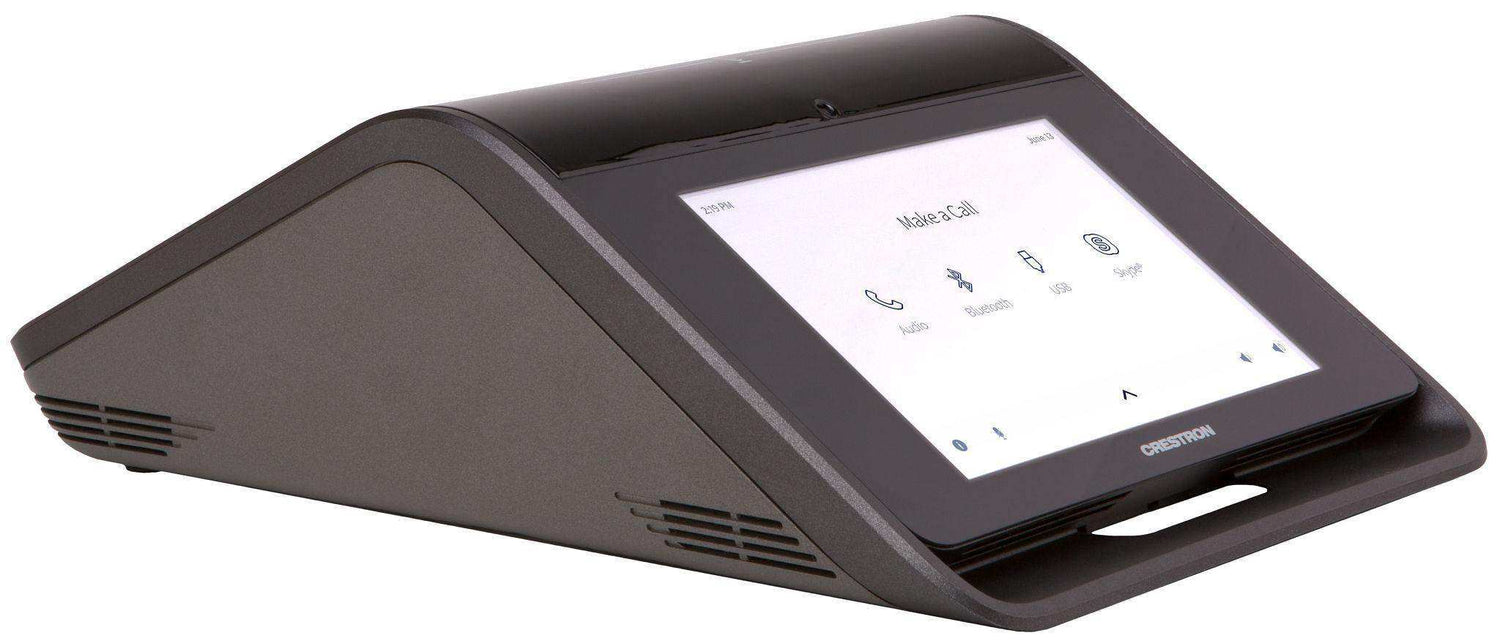

The CCS-UC-1-AV Crestron Flex Tabletop Conference device offers an exceptional conferencing and collaboration experience. Its sizeable 7-inch HD display, integrated 360° quad microphone array, and AEC-enabled USB speakerphone support full-duplex wideband audio performance.
High-Definition Video Conferencing

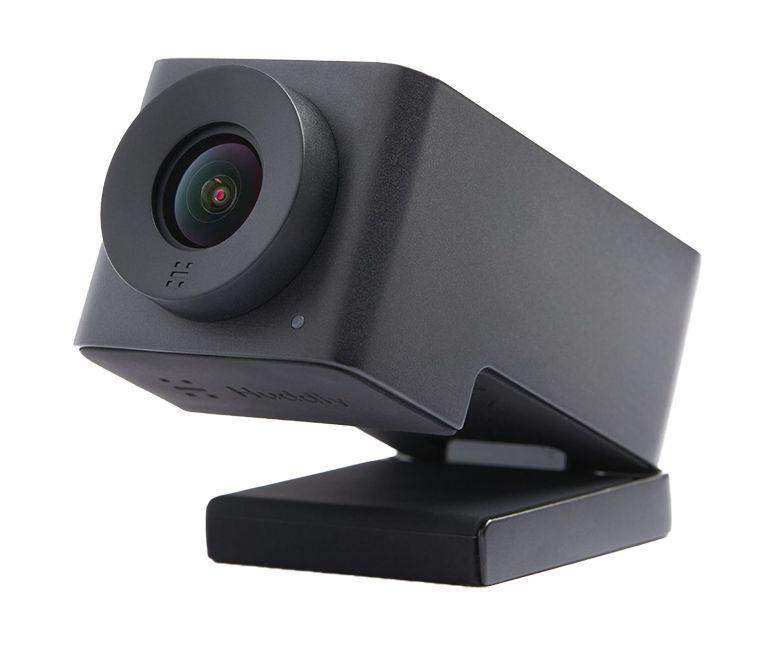

The collaboration camera provided (CCS-CAM-USB-F-400) has a broad 150° diagonal field of view, which enables it to capture the entire conference room in Full HD 1080p video resolution. The camera incorporates high-precision aspherical optics, a 12 MP CMOS sensor, and advanced video processing to guarantee a crystal-clear video image free from light or noise artifacts. Additionally, the Genius Framing digital autozoom identifies the individuals present in the room and centers them for an optimum view.
Voice Calling & Audio Conferencing
The CCS‑UC‑1‑AV is a full-featured VoIP conferencing speakerphone that’s fully compatible with major SIP-compliant phone systems. Its advanced design provides highly intelligible, full-duplex communication for every participant around a conference table. Dialing and answering calls is easy and intuitive using the large HD color touch screen. Corporate directory access (LDAP) enables one-touch dialing from the customer’s centrally managed directory.
The CCS-UC-1-AV can pair with a mobile phone using Bluetooth® connectivity to make or join phone calls, or to use as a speaker and/or microphone for an application running on a smartphone. When used for calls, controls for the Bluetooth enabled phone appear on the touch screen, enabling instant connectivity with the press of a button.
The CCS-UC-1-AV functions like any USB Audio class device, allowing you to connect a laptop computer via USB to improve audio performance for any softphone, multimedia, or audio conferencing application running on the laptop.
BYOD Multimedia Presentation
Connect a display device to the CCS-UC-1-AV's HDMI® output port to enable high‑definition video presentation from all types of BYOD sources.
Connect an AV source to the HDMI input port to present full‑motion HD video content on the room display. Sources with DisplayPort™ or USB Type‑C® outputs can also be connected using an optional Crestron video cable system (CBL‑MULTI‑6 or CBL‑MULTI‑12, sold separately).
Use the built‑in AirMedia® technology for wireless presentation of content from a laptop, smartphone, or tablet device via the room’s Wi‑Fi® wireless network.
Visit crestron.com/airmedia for more information.1
Video conferencing & Web Collaboration
Videoconferencing is enabled by connecting a laptop running a web conferencing or UC application such as Microsoft Teams®, Skype® for Business, Cisco WebEx®, GotoMeeting®, Slack®, BlueJeans, or Zoom Rooms™. All participants are provided with enhanced bidirectional audio along with a high‑definition view of the whole room.
Connect the laptop’s HDMI output to allow the whole room to view far-end content and camera images on the main room display. Laptops with DisplayPort or USB Type‑C outputs can also be connected using an optional Crestron video cable system (CBL‑MULTI‑6 or CBL‑MULTI‑12, sold separately).
Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility. Its advanced security features ensure privacy, reliability, and compliance with your organization’s IT policies.
Easy Provisioning and Device Management
The XiO Cloud service2 is an IoT cloud-based provisioning service that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning.
Visit www.crestron.com/xiocloud for additional information.
Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Visit www.crestron.com/flexcare for additional information.
Key Features
- Tabletop audio and video conferencing solution
- Simple, intuitive touch screen UX provides a consistent user experience in every room
- Present, call, conference, and collaborate using your own UC conference software (BYOD)
- Complete kit contains the Crestron Flex tabletop conferencing device, a collaboration camera, cables, and power supply
- Easy to specify and install — no custom design, programming, or software installation required
- Premium‑level support with Crestron Flex Care (optional)
- Network management and provisioning and system alerts through the XiO Cloud® service
- Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network
Specifications
| Included Components | |
| CCS‑UC‑1‑AV | Crestron Flex tabletop conferencing device:
|
| CCS‑CAM‑USB‑F‑400 | Collaboration Camera |
| CBL‑USBC‑USBA‑6 | USB Type‑C® right‑angle to USB A cable 6 ft (1.8 m) |
| CBL‑HD‑THIN‑HS‑6 | HDMI Cable, Thin, Type A Male‑to‑Male, 6 ft (1.8 m) |
| UC-HUB-USB | 4-Port USB 3.0 Hub w/2A USB Power Adapter |
| CBL‑HD‑20 | HDMI Interface Cable, 20 ft (6.1 m) |
| CBL-USB-A-BMICRO-6 | USB Cable, USB Type A Male to Micro‑B Male cable, 6 ft (1.8 m) |
| CBL‑USB‑A‑EXT‑15 | USB Extension Cable, USB Type A Male‑to‑Female, 15 ft (4.6 m) |
| PW‑2420RU | Universal power supply and power cord |
| STIRP | IR Emitter Probe w/3.5 mm Mini Phone Plug |
| UC‑CAM‑WMK | Wall Mount Kit for Crestron Cameras |
| Crestron Flex tabletop conferencing device | |
| Touch Screen | 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels |
| Mic Mute Symbol and Light Bar | (2) Capacitive buttons with bi‑color LEDs, either button toggles between mute and unmute |
| AEC | Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full‑duplex IEEE 1329 Type 1 compliant |
| Speaker | Full range speaker; Amplifier Power: 11 W; 95 dB SPL at 0.5 m maximum output; Frequency Response: 90 Hz to 22 kHz |
| Microphones | 360° quad mic array; Pickup Range (typical): 20 ft (6 m) |
| Extension Microphones | Supports two mic pods, model CCS‑UCA‑MIC KIT (sold separately) |
| Occupancy Sensor | 6 ft (1.83 m) PIR range in front of touch screen; |
| Ethernet | Dual‑port 100 Mbps, enterprise grade security and management including IEEE 802.1X, Active Directory® authentication, LDAP, Kerberos, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, digest access authentication, password login, HTTPS secure provisioning, XiO Cloud service, primary port is IEEE 802.3at Type 2 PoE+ compliant |
| USB | USB 2.0 micro Type B device port, supports UAC for audio interface(cable included) |
| Power Options | PoE+: IEEE 802.3at Type 2, Class 4 (25.5 W) PoE+ Powered Device NOTE: If the additional mic pod (CCS‑UCA‑MIC) is used, PoE+ cannot be used to power the device. 24 VDC: 24 VDC via external 100‑240 VAC, 50/60 Hz power pack, model PW‑2420RU |
| Dimensions | Height: 4.11 in. (104 mm) Width: 8.92 in. (227 mm) Depth: 12.74 in. (324 mm) |
| Weight | 5.5 lb (2.5 kg) |
| Camera | |
| Image Sensor | 12 Megapixel 1/2.3 CMOS sensor |
| Lens | High precision, ultra wide angle, six element aspherical glass lens |
| Field of View | 150º diagonal, 120º horizontal, 90º vertical |
| Aperture | f/2.8 |
| Autozoom | Genius Framing automatic lossless digital zoom intelligently frames around people in the room |
| Connectivity | Plug‑and‑play USB 3.1 |
| Resolution/FPS | HD 1080p @ 30 fps |
| Dimensions | Height: 1.40 in. (36 mm) Width: 1.60 in. (41 mm) Depth: 2.82 in. (72 mm) |
| Weight | 4.2 oz (120 g) |
