Crestron Flex Standard to Advanced Room Upgrade with Teams Rooms and BYOD | UC-ENGINE-BRKT-T-UPGRD-BRKTX

Crestron Flex Standard to Advanced Room Upgrade with Microsoft Teams Rooms and BYOD

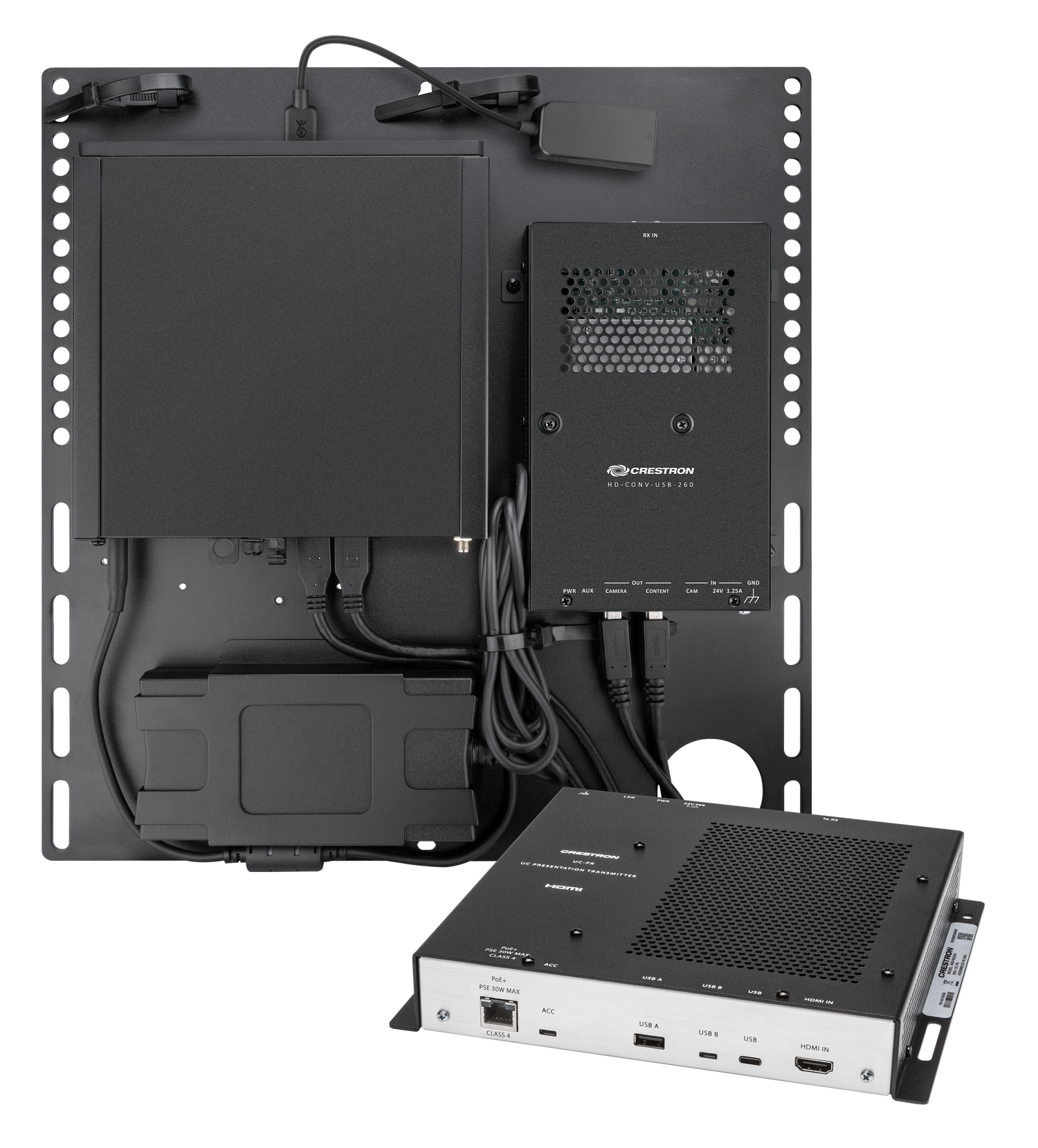

The Crestron UC-ENGINE-BRKT-T-UPGRD-BRKTX is a complete upgrade kit that converts an existing Crestron Flex standard tabletop conference room into a full Microsoft Teams Rooms video conferencing system with Bring Your Own Device (BYOD) support. It includes the UC-BRKT-260-P-T-ASSY bracket assembly, a UC-PR Presentation Transmitter, cable organizer, and all required cables and adapters.

Product Description

The UC-ENGINE-BRKT-T-UPGRD-BRKTX is designed for organizations that have already deployed Crestron Flex tabletop conference devices and want to add a full video conferencing engine and BYOD capability without replacing the existing room hardware. The kit supplies a Windows 11 IoT Intel Core Mini PC pre-loaded with Microsoft Teams Rooms software, mounted on the UC-BRKT-260-P-T-ASSY bracket assembly that installs behind the display.

The included UC-PR Presentation Transmitter enables BYOD: a visitor connects their laptop to the transmitter, and the system automatically switches from the native Teams Rooms platform to the guest's UC conference platform. When the laptop is disconnected, the system returns to Teams Rooms. HDCP 1.4 and HDCP 2.2 content protection are supported. The system supports one or two video displays and integrates with the XiO Cloud service for remote provisioning and management.

Key Features

• Upgrades an existing Crestron Flex tabletop room to a full Teams Rooms video system
• Includes UC-BRKT-260-P-T-ASSY bracket assembly with Intel Core Mini PC, Windows 11 IoT, Teams Rooms pre-installed
• UC-PR Presentation Transmitter included for BYOD conferencing support
• BYOD visitors can use their own UC platform (Teams, Zoom, Webex, etc.) via laptop connection
• Automatic platform switching — reverts to native Teams Rooms when BYOD laptop is disconnected
• Supports single or dual video displays (sold separately)
• HDCP 1.4 and HDCP 2.2 content protection
• XiO Cloud compatible for remote device management and provisioning
• Optional Crestron control system integration for full room automation
• Weight: 8.2 lb

Typical Applications

• Existing Crestron Flex standard room deployments being upgraded to full video conferencing
• Conference rooms that host both internal Teams Rooms meetings and external BYOD guests
• Corporate AV refreshes that want to preserve existing tabletop hardware investments
• IT teams standardizing rooms on Microsoft Teams Rooms with BYOD flexibility
• Any room requiring content ingest for laptop-based presentations and guest UC platforms

Technical Specifications

Frequently Asked Questions

What existing hardware does this kit require?

The UC-ENGINE-BRKT-T-UPGRD-BRKTX is designed to upgrade rooms that already have a Crestron Flex tabletop conference device (such as a UC-2-T-V or similar). The existing touch screen and camera are reused; the kit supplies the Teams Rooms compute engine and BYOD capability.

What is the difference between this kit and the UC-ENGINE-BRKT-T-UPGRD?

The BRKTX variant adds the UC-PR Presentation Transmitter for BYOD support. The standard UC-ENGINE-BRKT-T-UPGRD provides the Teams Rooms compute upgrade only, without the BYOD transmitter.

Is this kit TAA compliant?

No — for the TAA-compliant Government Version, see the UC-ENGINE-BRKTX-T-UPGRD-GV.

Can the system manage multiple rooms?

Yes. With the XiO Cloud service (sold separately), IT administrators can provision, monitor, and update all rooms from a centralized cloud dashboard.

Where can I purchase the UC-ENGINE-BRKT-T-UPGRD-BRKTX?

This upgrade kit is available at Creation Networks, an authorized Crestron dealer.
