Product Overview

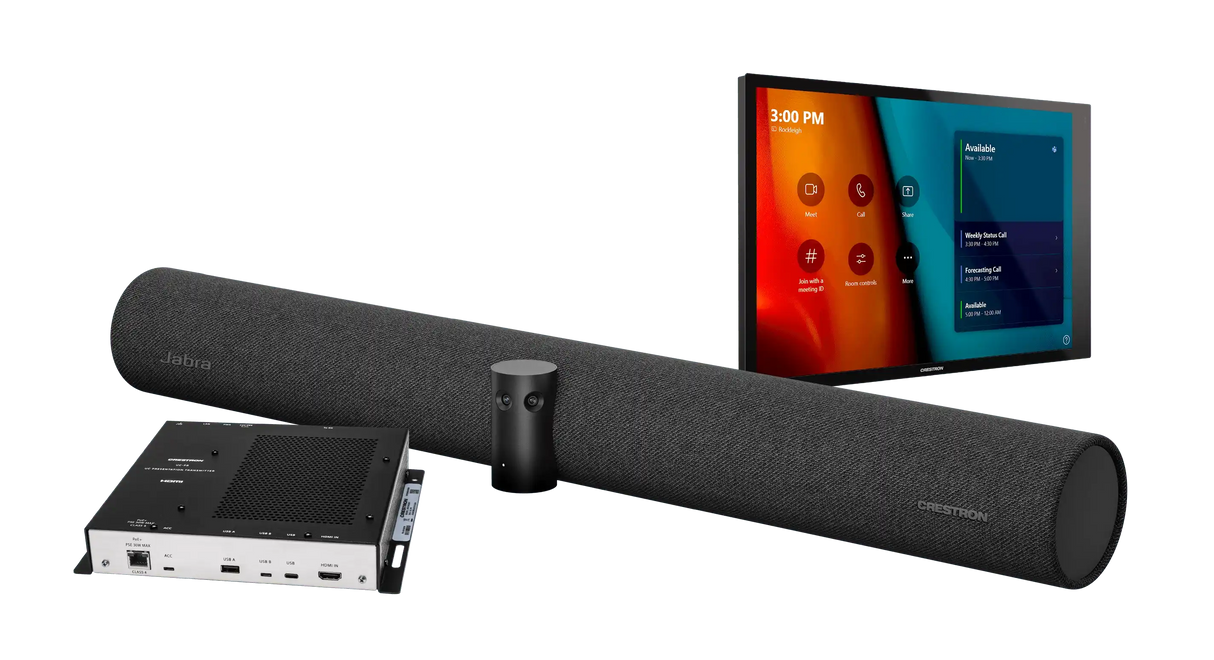

The Crestron UC-BX31-T-WM is an advanced small room video conferencing system for native Microsoft Teams Rooms, built around the Jabra PanaCast 50 video bar and a wall-mounted 10.1 in. touch screen. This Crestron Flex small room conference system delivers panoramic 4K video, BYOD support, and one-touch Teams meeting joins in a ready-to-deploy Microsoft Teams Rooms kit. The wall-mount (WM) configuration places the control interface on the wall rather than the table, ideal for huddle rooms and small conference spaces where table space is limited.
Product Description
The UC-BX31-T-WM provides a native Microsoft Teams Rooms experience using a wall-mounted TSW-1070 10.1 in. capacitive touch screen for conferencing control. Video and audio are handled by the Jabra PanaCast 50 video bar (UC-SB-P50), which uses three built-in cameras to capture the room in panoramic 4K with a 180-degree horizontal field of view, plus a beamforming microphone array and stereo speakers for full-duplex audio. The included UC Presentation Transmitter (UC-PR) provides BYOD content sharing over USB-C, switching to a guest laptop UC platform and returning to Teams when disconnected. Components arrive preassembled on a single UC Bracket Assembly to simplify mounting behind or beside the display, and a direct connection option links the touch screen to the UC Engine for straightforward installation. The system supports single or dual displays (not included), integrates optionally with Crestron control systems for room control, and is managed at scale through the XiO Cloud service. A licensed Microsoft Teams Rooms account is required and is not included.
Key Features
- Native Microsoft Teams Rooms — The system runs native Teams Rooms software with a consistent touch screen UI and one-touch meeting joins.

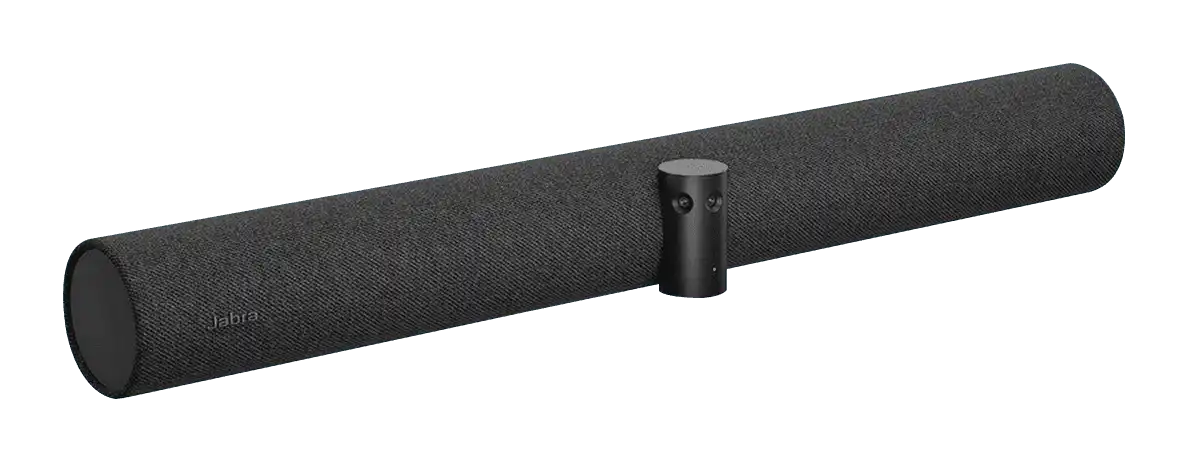

- Jabra PanaCast 50 video bar — Three built-in cameras capture panoramic 4K video across a 180-degree horizontal field of view with intelligent auto-framing.

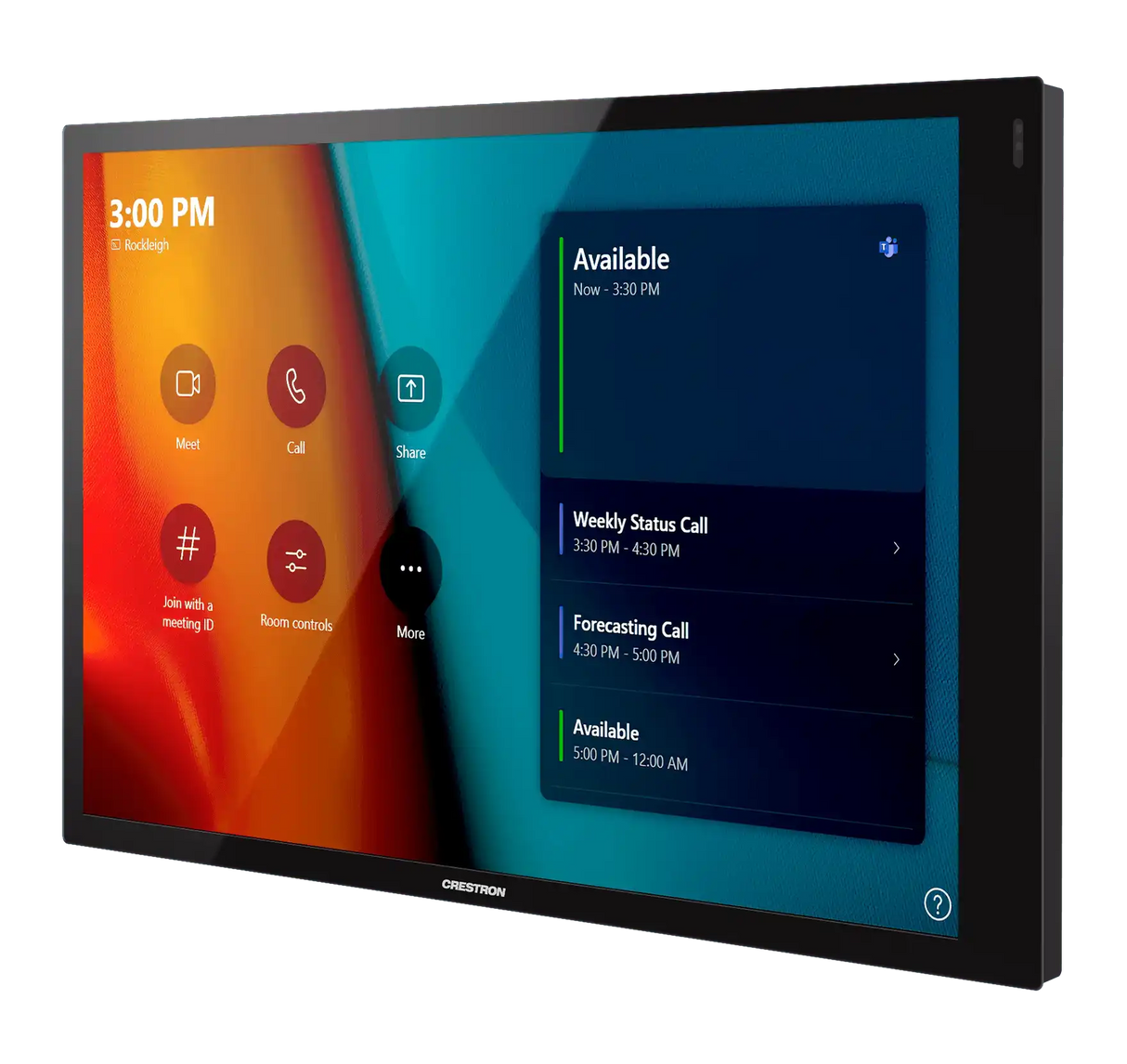

- Wall-mounted touch screen — A TSW-1070 10.1 in. capacitive touch screen mounts over a standard electrical box with an included security latch option.
- Bring Your Own Device — The UC Presentation Transmitter (UC-PR) enables USB-C content sharing and reverts to Teams when the laptop is disconnected.
- Beamforming audio — An 8-microphone beamforming array and stereo speakers deliver full-duplex audio for small rooms.

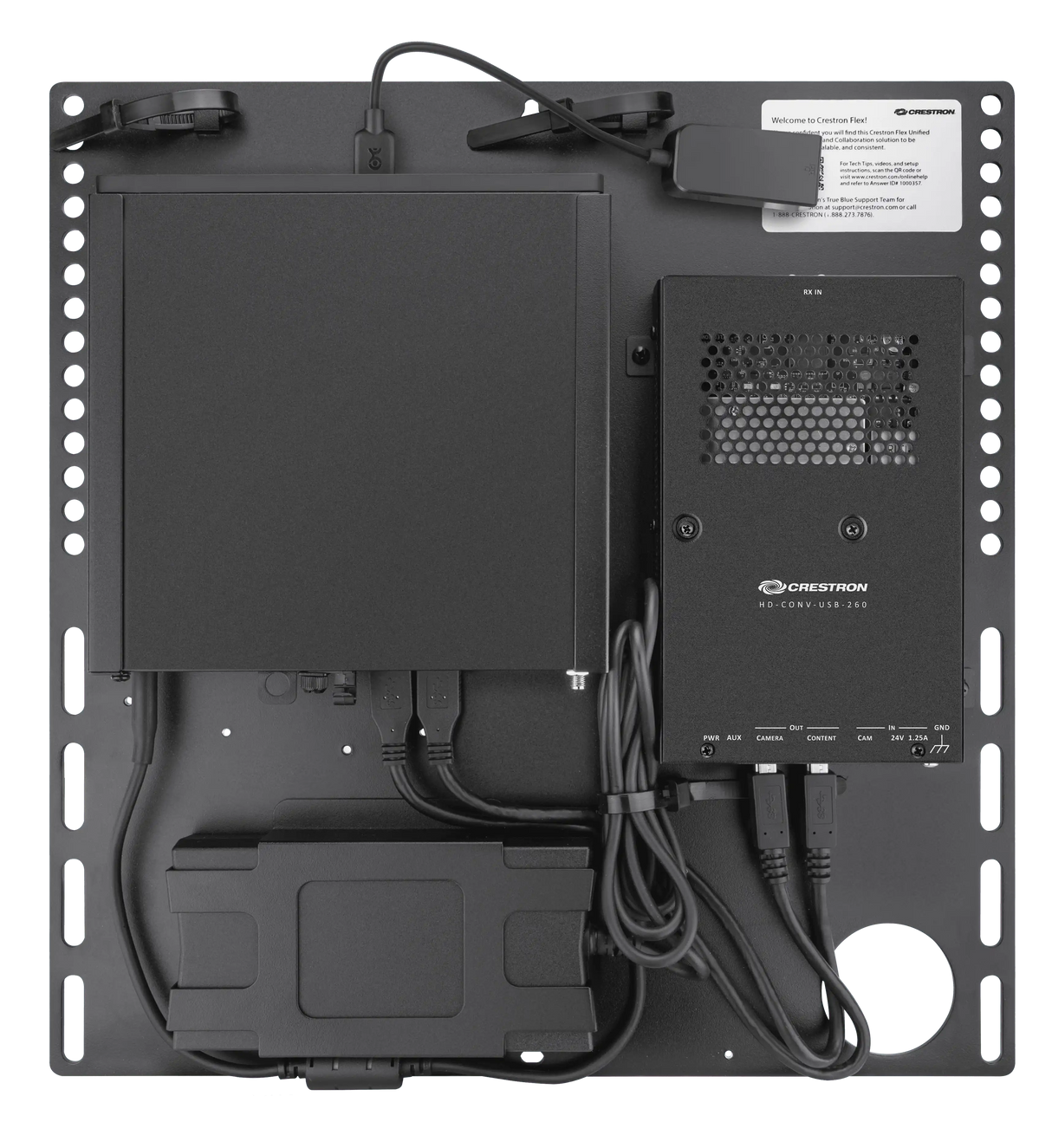

- Simplified deployment — Components arrive preassembled on a single UC Bracket Assembly with a direct connection option to the UC Engine.

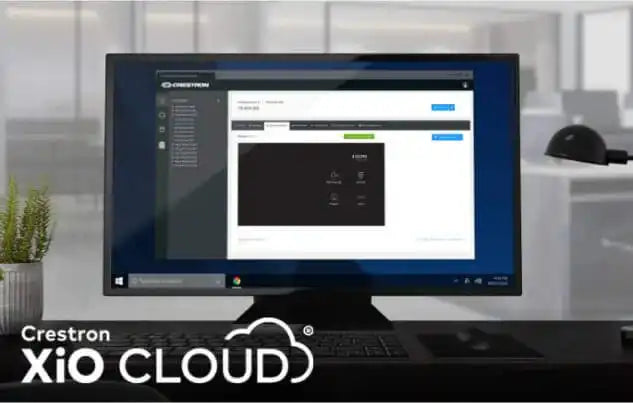

- XiO Cloud management — The platform supports remote provisioning, alerts, and touch screen pairing through the XiO Cloud service (sold separately).
- Crestron control integration — Optional integration enables touch screen control of lighting, shades, and climate.
Typical Applications
- Small conference rooms and huddle spaces
- Executive offices
- Focus and collaboration rooms
- Higher education small-group rooms
- Government and military small meeting facilities
- Healthcare consultation and administrative rooms
Technical Specifications
| Model | UC-BX31-T-WM |
| Conferencing Platform | Native Microsoft Teams Rooms software |
| Room Size | Small room |
| Touch Screen | TSW-1070 10.1 in. (257 mm) wall-mount capacitive touch screen, 1920 x 1200 |
| Camera / Soundbar | Jabra PanaCast 50 (UC-SB-P50): 3 cameras, 13 MP, panoramic 4K, 180° horizontal FOV |
| Microphones | 8-microphone beamforming array; rooms up to 15 x 15 ft |
| Speakers | 4 speakers, stereo, 80 Hz to 20 kHz |
| UC Engine | Mini PC, Intel Core processor, Windows 11 IoT Enterprise |
| Display Support | Single or dual displays (not included) |
| BYOD | Yes, via UC Presentation Transmitter (UC-PR), USB-C |
| Management | XiO Cloud service (sold separately) |
| In the Box / Included Components | UC-SB-P50 Jabra PanaCast 50 video bar; TSW-1070-B-S-T-V wall-mount touch screen; UC-BRKT-250-P-T-ASSY or UC-BRKT-260-P-T-ASSY UC Bracket Assembly (with UC Engine); UC-PR Presentation Transmitter with cable organizer; cables |
| Warranty | Crestron 3-year limited warranty |
Competitor Comparison
| Criteria | Crestron UC-BX31-T-WM | Yealink MVC II (Teams) | Poly Studio Small Room (Teams) |
| Platform | Native Teams Rooms on included UC Engine | Teams Rooms on included Yealink mini-PC | Teams Rooms on included compute |
| Camera | Jabra PanaCast 50, 3-cam panoramic 4K, 180° FOV | Single camera bar with auto-framing | Studio camera with auto-framing |
| Control Placement | Wall-mounted 10.1 in. touch screen (WM) | Tabletop touch console | Tabletop TC8/TC10 controller |
| BYOD | Included UC-PR presentation transmitter | Optional add-on | Optional add-on |
| Cloud Management | XiO Cloud | Yealink Device Management | Poly Lens |
| Room Control Integration | Optional native Crestron control of lighting, shades, climate | Limited third-party integration | Limited third-party integration |
| Warranty | 3-year limited | Typically 2-year limited | Typically 1-year limited |
Frequently Asked Questions
What is the difference between this WM model and the standard UC-BX31-T?
The WM (wall-mount) model includes a TSW-1070 wall-mounted touch screen instead of the tabletop TS-1070, which frees table space in small rooms. For the tabletop version, see the Crestron UC-BX31-T.
Does this kit include a display?
No. The system supports single or dual displays, sold separately. Displays must support Wake on Sync and Sleep on No Sync functionality.
Is a Microsoft Teams Rooms license required?
Yes. A licensed Microsoft Teams Rooms account is required and is not included with the kit.
Can the system integrate with room control?
Yes. Optional integration with a Crestron control system enables touch screen control of lighting, shades, climate, and other amenities, with additional equipment and commissioning.
What warranty and support are available?
The system carries the Crestron 3-year limited warranty, with optional Crestron Flex Care for extended coverage and 24/7 remote support. Contact Creation Networks.
