Crestron Flex Room Upgrade Pro Solution with Zoom Rooms

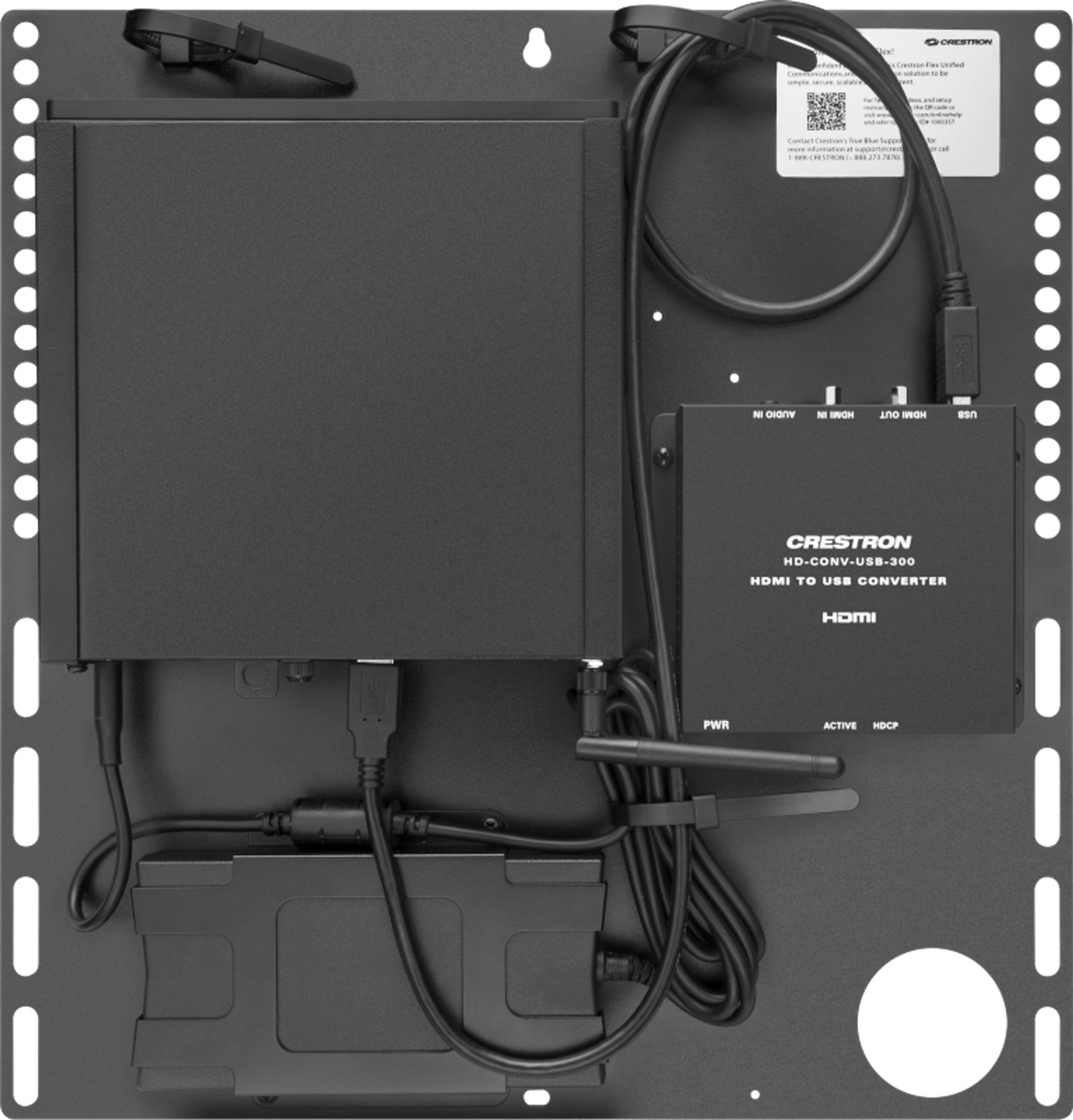

The Crestron UC-BRKT-200-PRO-Z-ASSY is a high-performance bracket assembly for building a complete Zoom Rooms video conferencing system. It combines an Intel Core i7 12th Gen Mini PC with a content ingest converter on a single rear-of-display bracket, delivering the compute power needed for demanding multi-display Zoom Rooms deployments.
Product Description
The UC-BRKT-200-PRO-Z-ASSY targets integrators and IT teams deploying Zoom Rooms in conference rooms that require higher compute performance than the standard Intel Core bracket assemblies provide. The Intel Core i7 12th Gen processor handles Zoom Rooms software, content ingest, and multi-display management without compromise.
The bracket includes an HD-CONV-USB-200 or HD-CONV-USB-300 HDMI-to-USB content ingest converter, allowing room participants to connect laptops via HDMI for wired content sharing. The assembly mounts behind the display for a clean, cable-managed installation and supports up to three displays with 4K output. The system is compatible with the XiO Cloud service for remote provisioning, monitoring, and management.
Key Features
- Intel Core i7 12th Gen Mini PC for high-performance Zoom Rooms compute
- Zoom Rooms software pre-installed on Windows 11 IoT Enterprise
- HD-CONV-USB-200 or HD-CONV-USB-300 HDMI content ingest converter included
- Supports up to three displays with 4K resolution output
- Rear-of-display bracket assembly for clean, cable-managed installation
- Compatible with Crestron Flex touch screen controllers (sold separately)
- XiO Cloud compatible for remote device management and provisioning
- Optional Crestron control system integration for room automation
- Max dimensions: 15.00 × 14.50 × 1.93 in.
- Max weight: 7.95 lb
Typical Applications
- Medium and large conference rooms requiring Zoom Rooms with high-performance compute
- Rooms with multi-display setups needing reliable 4K content output
- IT teams deploying Zoom Rooms Pro-tier hardware across enterprise facilities
- Integrators building custom Zoom Rooms configurations with the Crestron Flex ecosystem
- Rooms requiring wired HDMI content ingest from laptops alongside Zoom Rooms
Technical Specifications
| Specification | Details |
|---|---|
| Model | UC-BRKT-200-PRO-Z-ASSY |
| UC Client Software | Zoom Rooms (pre-installed) |
| Processor | Intel Core i7 12th Gen |
| OS | Windows 11 IoT Enterprise |
| Content Ingest | HD-CONV-USB-200 or HD-CONV-USB-300 HDMI converter |
| Display Support | Up to three displays with 4K output |
| Bracket Dimensions (max) | 15.00 × 14.50 × 1.93 in. |
| Weight (max) | 7.95 lb |
| Management | XiO Cloud service (sold separately) |
Frequently Asked Questions
- What is the difference between the UC-BRKT-200-PRO-Z-ASSY and the standard UC-BRKT-200-Z-ASSY?
- The PRO variant features an Intel Core i7 12th Gen processor for higher compute performance, compared to the standard Intel Core processor in the non-PRO version. Both are Zoom Rooms bracket assemblies for rear-of-display mounting.
- Does this kit include a touch screen controller?
- No — a Crestron Flex touch screen controller (such as the UC-2-Z-V) is required and sold separately.
- Does it support BYOD?
- The UC-BRKT-200-PRO-Z-ASSY supports wired HDMI content ingest but does not include a UC-PR Presentation Transmitter for full BYOD switching. For BYOD capability, see the UC-BRKT-260-PRO-Z-ASSY.
- Can the system be managed remotely?
- Yes. With the XiO Cloud service (sold separately), IT administrators can provision, monitor, and update the device remotely.
- Where can I purchase the UC-BRKT-200-PRO-Z-ASSY?
- The UC-BRKT-200-PRO-Z-ASSY is available at Creation Networks, an authorized Crestron dealer.
