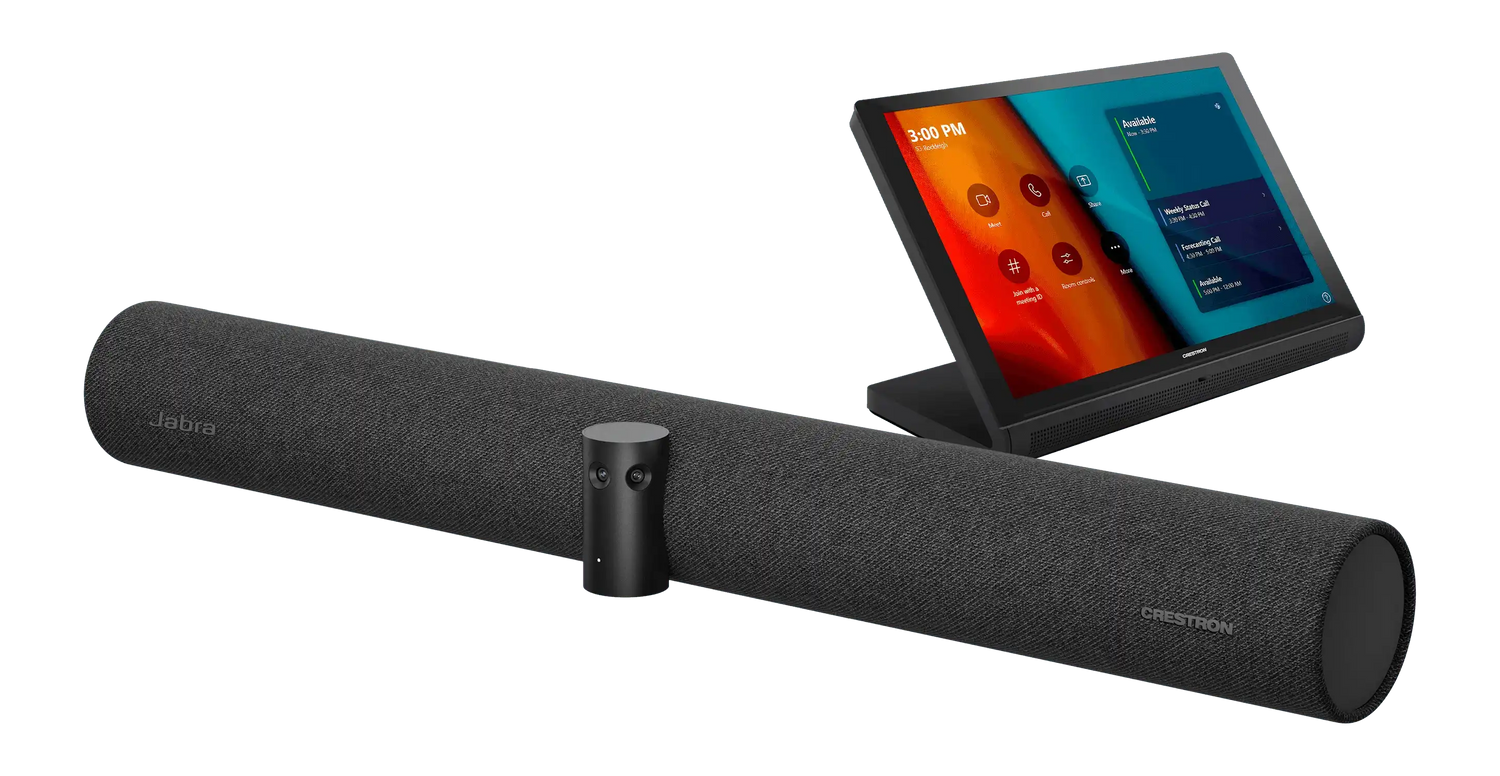

| Included Components |
| TS‑1070‑B‑S‑T‑V |
10.1 in. (257 mm) tabletop touch screen, black |
| UC‑BRKT‑200‑S‑T‑ASSY |
UC Bracket Assembly comprised of:
- UC Engine: Mini PC with Microsoft Teams video
- HD-CONV-USB-200: HDMI® to USB 3.0 converter for content ingest
- Mounting hardware
|
| UC‑SB‑P50 |
Jabra® PanaCast 50 Video Bar |

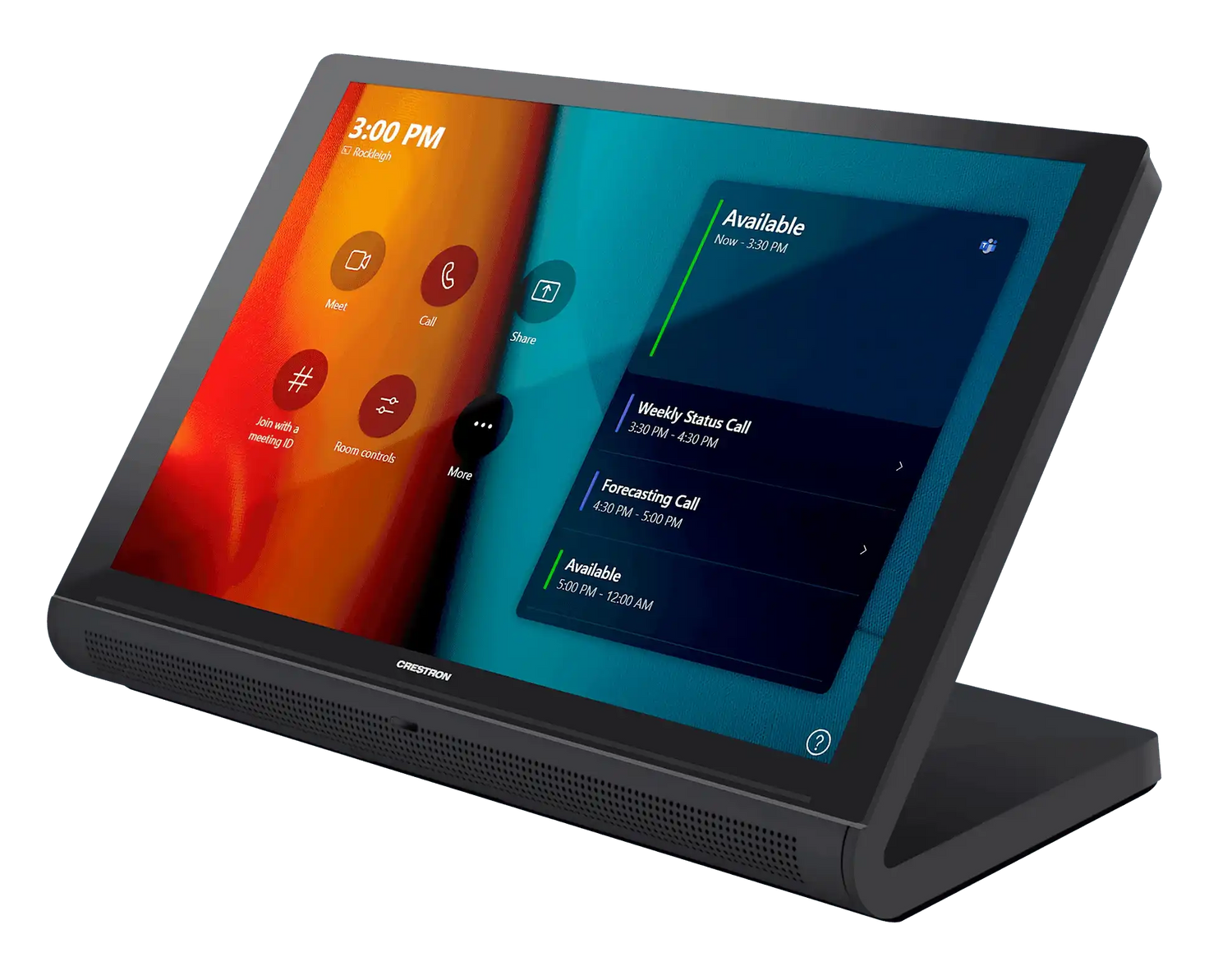

| Tabletop Touch Screen |
| Touch Screen |
10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels |
| UI |
Microsoft Teams UI plus optional Crestron Smart Graphics® room control UI2
|
| Ethernet |
100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant |
| Power over Ethernet |
IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management;
With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP;
Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP;
Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE |
| PoE Injector |
A PoE injector is included to power the touch screen if network PoE is not available |
| Construction |
Plastic, smooth black finish, edge-to-edge glass with black surround |
| Dimensions |
Height: 5.29 in. (134 mm)
Width: 9.63 in. (245 mm)
Depth: 4.67 in. (119 mm) |
| Weight |
2.44 lb (1105 g) |

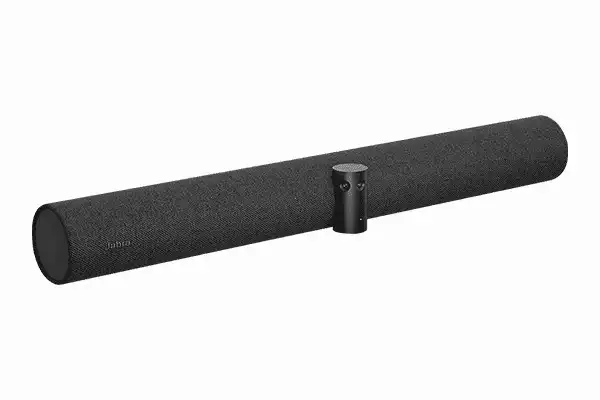

| Jabra® PanaCast 50 Video Bar |
| Speakers |
(4) speakers, stereo;
2 in. (50 mm) woofers;
2 x 3/4 in. (50 x 20 mm) tweeters;
80 Hz to 20 kHz frequency response;
Automatic speaker detection |
| Microphone |
(8) microphone beamforming array;
-37 dBFS microphone sensitivity;
100 Hz to 8 kHz microphone frequency range;
Suitable for rooms up to 15 x 15 ft (4.5 x 4.5 m) |
| NOTE: Microphone pickup range may vary in rooms with highly reflective infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or above average ambient noise. |
| Camera Optics |
(3) cameras;
13 Megapixels |
| Camera Field of View |
180º horizontal, 54º vertical |
| Autozoom |
Automatic digital zoom dynamically frames people within 11 ft (3.5 m) |
| Camera Resolution |
3840 x 1080 @ 30 fps |
| Power |
From external power pack;
Input: 100‑240VAC, 50/60 Hz;
Output: 5A @ 12V |
| Enclosure |
Black speaker and camera housing, rear air vents, integrated adjustable mounting bracket |
| Mounting |
Wall mount using integrated mounting bracket;
Optional table mount or VESA® compliant screen mount (both sold separately) |
| Dimensions |
Height: 3.1 in. (90 mm)
Width: 25.60 in. (650 mm)
Depth: 4.90 in. (125 mm) |
| Weight |
4.85 lb (2.2 kg) |
|
For more information on the Jabra PanaCast 50 video bar, refer to jabra.com/panacast50.
|

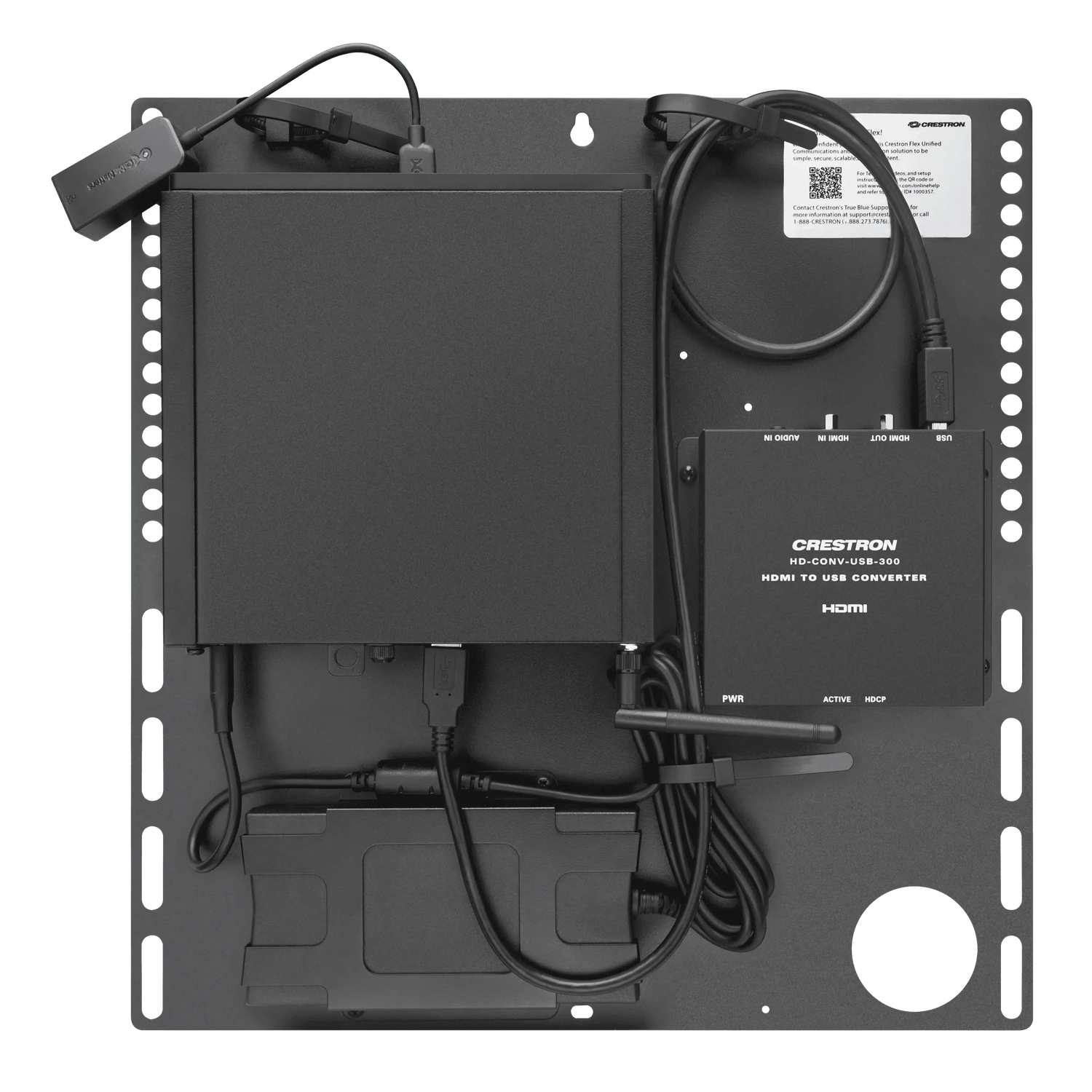

| UC Bracket Assembly |
| UC Engine |
Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity |
| UC Client |
Microsoft Teams Rooms |
| Management Client |
XiO Cloud Service |
| Content Ingest |
HDMI input via HDMI to USB 3.0 converter (model HD‑CONV‑USB‑200) |
| Display Output |
Single or dual display support1
|
| Display Output Resolution |
1080p |
| Construction |
Metal mounting bracket, black, preassembled with UC Engine and HD‑CONV‑USB‑200 |
| Mounting |
Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount;
Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate |
