Overview

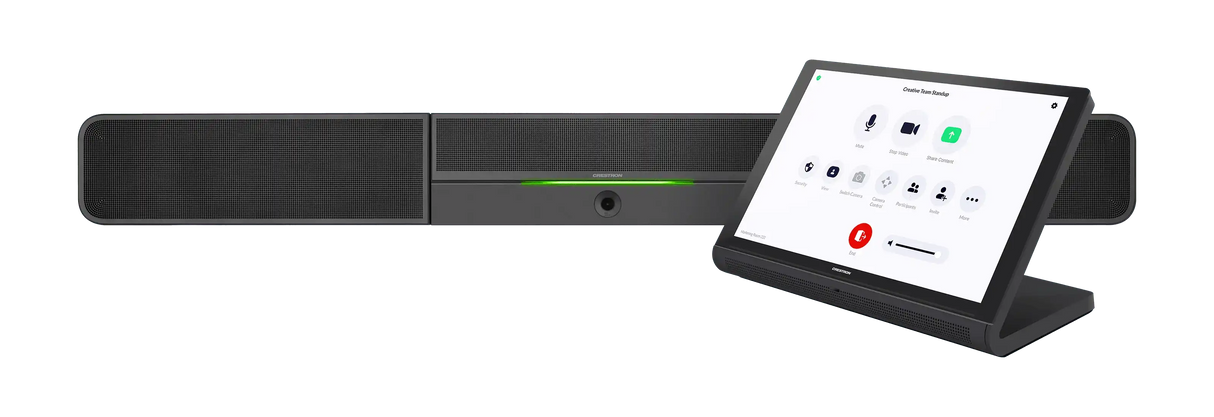

The Crestron UC-B30-Z Flex tabletop conferencing system offers an effective video conferencing solution for small meeting rooms utilizing Zoom Rooms® software. With the ability to support up to three separate video displays1 (not included), this system includes a tabletop touch screen, smart soundbar and camera, UC bracket assembly, PoE injector, and cables.
Native Zoom Rooms® Software Experience
The UC-B30-Z system features Zoom Rooms conferencing software, enabling audio and video connectivity for easy collaboration and content sharing.
Intuitive User Interface

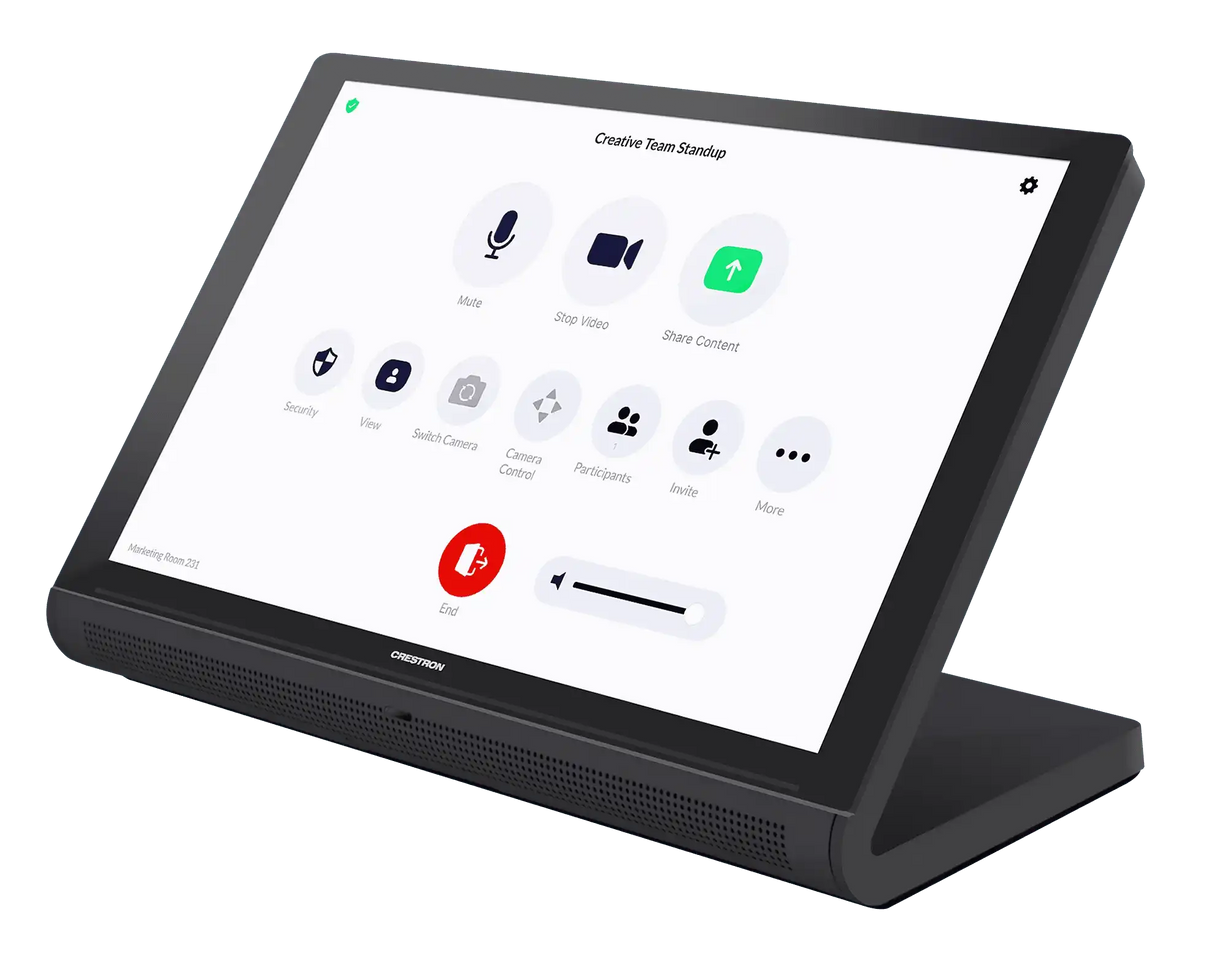

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.2
Simplified Deployment

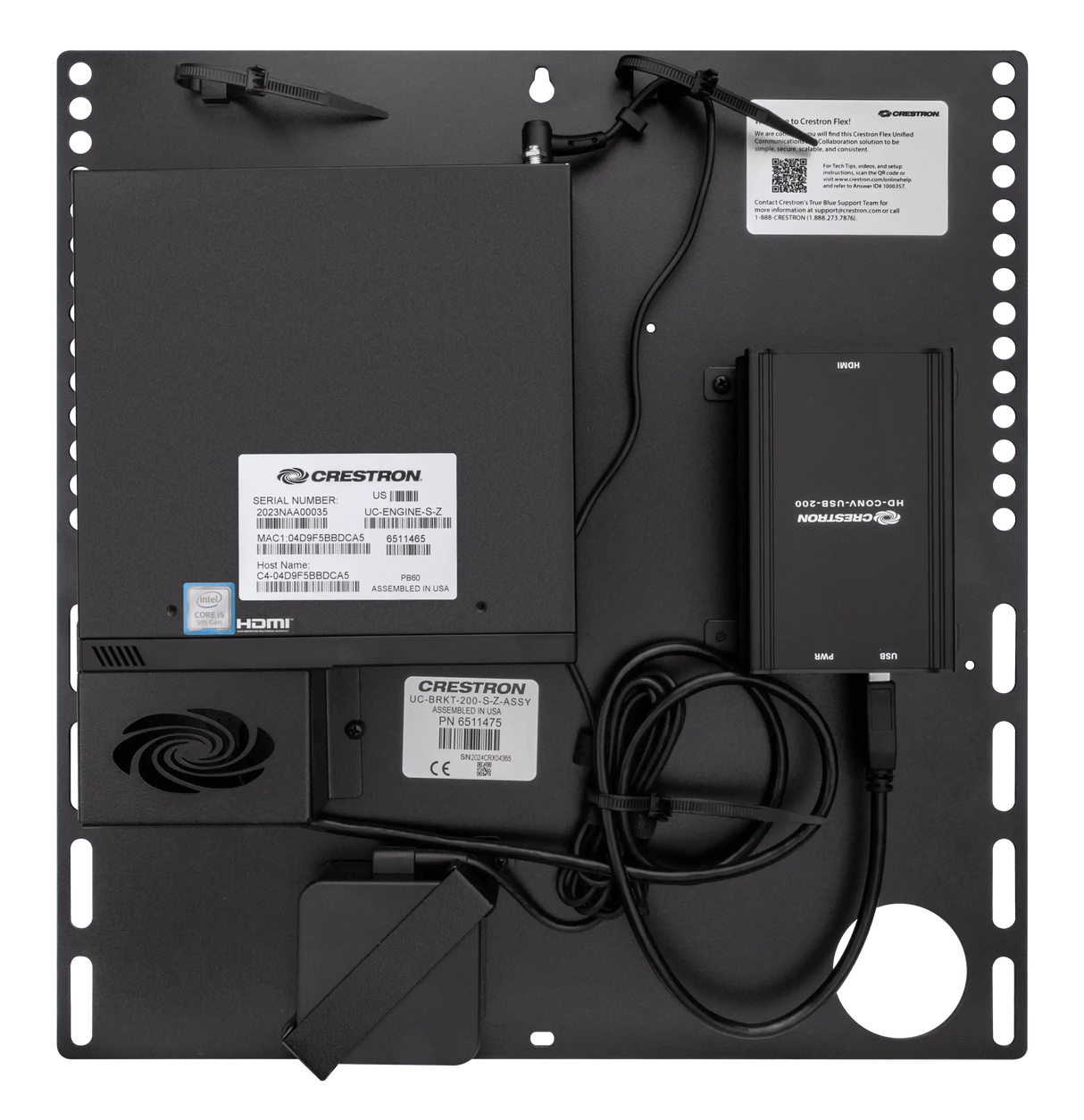

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
High‑Definition Video Conferencing with Impressive Audio

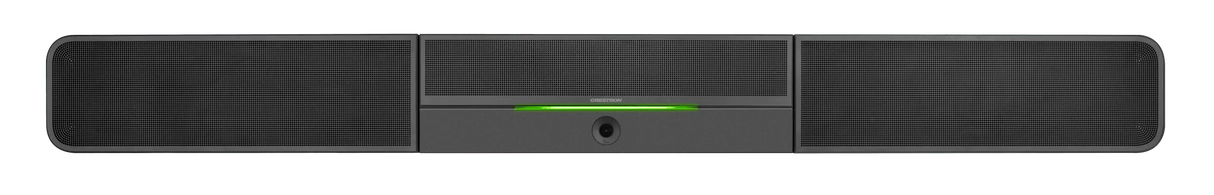

High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC-SB1-CAM-FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Key Features
- Front‑of‑room video conferencing solution for Zoom Rooms® software
- Native Zoom Rooms touch screen UI provides a consistent, simple user experience with one‑touch meeting joins
- Complete kit contains a 10.1 in. tabletop touch screen, smart soundbar and camera, UC bracket assembly, and PoE injector— just add a display and mount
- Easy to specify and install — no custom design, programming, or software installation required
- Network management and provisioning and system alerts through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
- Supports up to three video displays (not included)
Specifications
| Included Components | |
| TS‑1070‑B‑S | 10.1 in. (257 mm) tabletop touch screen, black |
| UC‑BRKT‑200‑S‑Z‑ASSY | UC Bracket Assembly for Zoom Rooms systems, comprised of:
|
| UC‑SB1‑CAM‑FLEX | UC Video Conference Smart Soundbar and Camera |
| CBL-4K-DP-HD-6 | DisplayPort™ to HDMI Cable, 6 ft (1.8 m); secondary display |
| CBL-CAT5E-7 | Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m) |
| CBL‑HD‑6 | HDMI Interface Cable, 6 ft (1.8 m); primary display |
| CBL‑HD‑20 | HDMI Interface Cable, 20 ft (6.1 m); content sharing |
| PWE-4803RU | PoE Injector |
| Tabletop Touch Screen | |
| Touch Screen | 10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels |
| UI | Zoom Rooms UI plus optional Crestron Smart Graphics® room control UI2 |
| Ethernet | 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant |
| Power over Ethernet | IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE |
| PoE Injector | A PoE injector is included to power the touch screen if network PoE is not available |
| Construction | Plastic, smooth black finish, edge-to-edge glass with black surround |
| Dimensions | Height: 5.29 in. (134 mm) Width: 9.63 in. (245 mm) Depth: 4.67 in. (119 mm) |
| Weight | 2.44 lb (1105 g) |
| Smart Soundbar and Camera | |
| Speakers | Stereo 2‑way, 20 W per channel; 3 in. (76 mm) woofers; 3 x 4-3/8 in. (76 x 112 mm) passive radiators; 1 in. (25 mm) dome tweeters; 80 Hz to 20 kHz (±3 dB) frequency response; 91 dB SPL @ 1 m output level (both channels driven at full power) |
| Microphone | Linear quad-element far-field adaptive beamforming microphone array; 15 ft (4.6 m) pickup range, 180° horizontal and 180° vertical pickup angle; 20 Hz to 8 kHz frequency response |
| NOTE: Microphone pickup range may vary in rooms with highly reflective infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or above average ambient noise. | |
| Audio DSP | Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed); Full-duplex IEEE 1329 Type 1 compliant |
| Camera Optics | 12 Megapixel 1/2.3 CMOS sensor, ultra wide angle six element aspherical glass lens, f/2.8 aperture |
| Camera Field of View | 150º diagonal, 120º horizontal, 90º vertical |
| Autozoom | Genius Framing automatic lossless digital zoom intelligently frames around people in the room |
| Camera Noise Reduction | 3D noise reduction, bias compensating spatio-temporal filtering, wide area chroma filtering, flicker elimination |
| Camera Scaling | Real-time scaling, dewarping, and perspective correction |
| Camera Resolution | HD 1080p @ 30 fps |
| Analog Audio Input | 2-Channel stereo via 3.5 mm TRS mini-phone jack, fixed level (bypasses DSP), 1 Vrms maximum per channel for full rated output, for in-room amplification of an external audio source |
| Analog Audio Output | 2-Channel stereo via 3.5 mm TRS mini-phone jack, fixed level, 1 Vrms maximum, feeds amplified audio content to an assistive listening system |
| Status Bar | Multi-segment RGBY LED zero-center mutually-diverging linear bargraph |
| Main Power | 24 VDC via external 100‑240VAC, 50/60 Hz power pack, model PW‑2420RU (included) |
| Enclosure | Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die-cast aluminum rear cover, integral steel hinged mounting bracket |
| Mounting | Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached) |
| Dimensions | Height: 4.57 in. (116 mm), 4.64 in. (118 mm) with feet Width: 43.60 in. (1107 mm) Depth: 3.90 in. (99 mm) |
| Weight | 13.56 lb (6.2 kg) |
| UC Bracket Assembly | |
| Mini PC | Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity |
| UC Client | Zoom Rooms software |
| Management Client | XiO Cloud Service |
| Content Ingest | HDMI input via HDMI to USB 3.0 converter |
| Display Output | Up to three displays support1 |
| Display Output Resolution | 1080p |
| Power | 100‑240VAC, 50/60 Hz adapter (included) |
| Construction | Metal mounting bracket, black, preassembled with UC‑ENGINE‑S‑Z and HDMI to USB 3.0 converter |
| Mounting | Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate |
| Dimensions | Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Depth: 1.87 in. (48 mm) (UC Bracket Assembly with HD-CONV-USB-200) 1.93 in. (49 mm) (UC Bracket Assembly with HD-CONV-USB-300) |
| Weight | 7.7 lb (3.5 kg) (UC Bracket Assembly with HD-CONV-USB-200) 7.95 lb (3.6 kg) (UC Bracket Assembly with HD-CONV-USB-300) |
