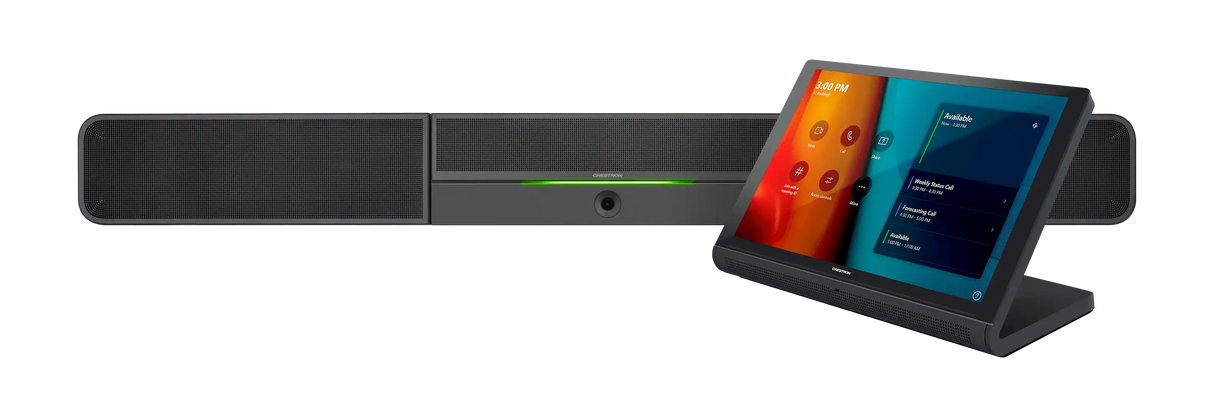

The Crestron Flex tabletop conferencing system, model UC-B30-T, is an excellent choice for small conference rooms that need video conferencing capabilities for Microsoft Teams® Rooms software. It is equipped with a smart soundbar and camera, UC bracket assembly, PoE injector, and cables. Additionally, it supports single or dual video displays1 (which are not included) and features a tabletop touch screen.
Native Microsoft Teams® Rooms Experience
The UC-B30-T system brings the full Microsoft Teams Rooms UC experience to any enterprise or SMB facility meeting space.
Intuitive User Interface

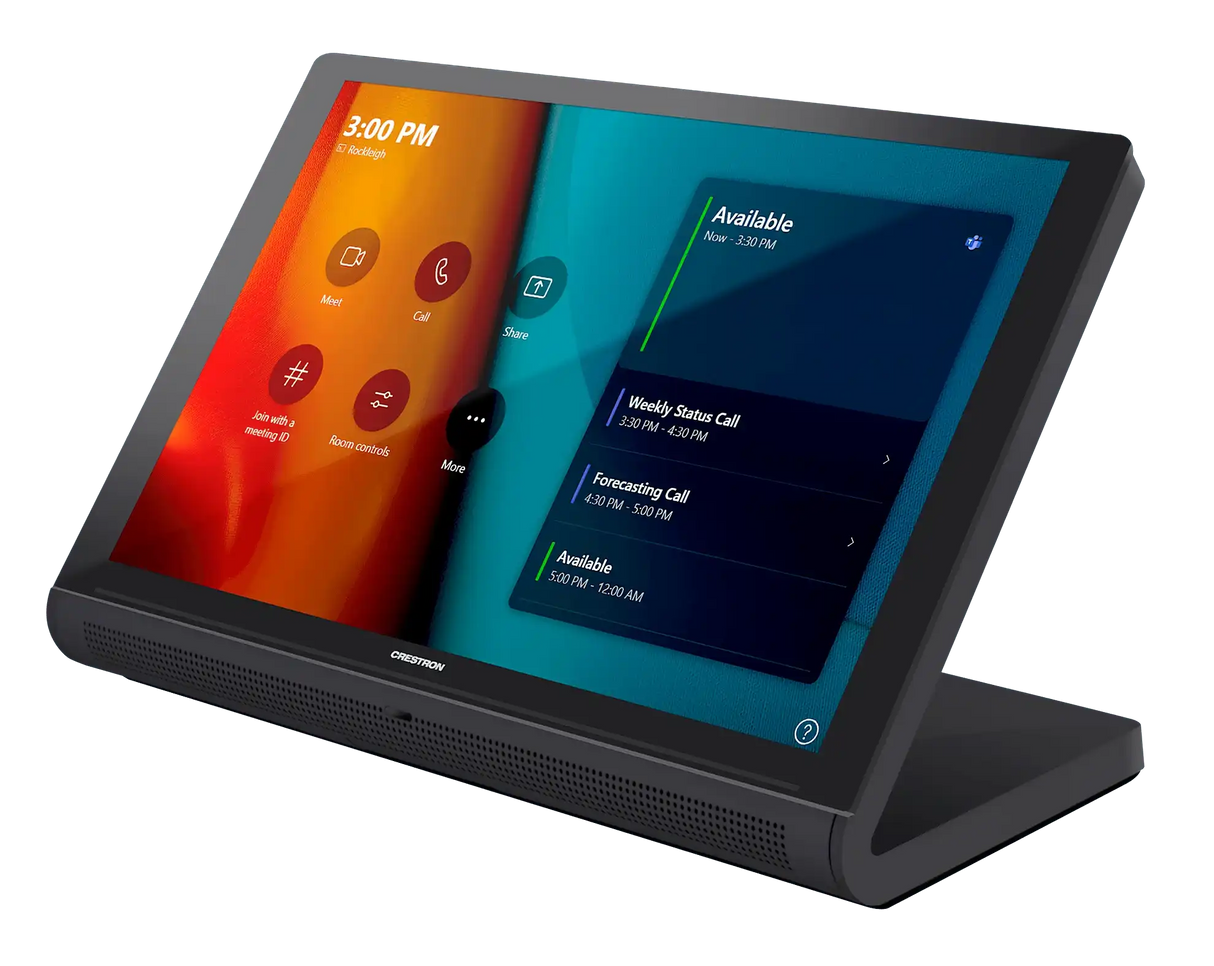

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.2

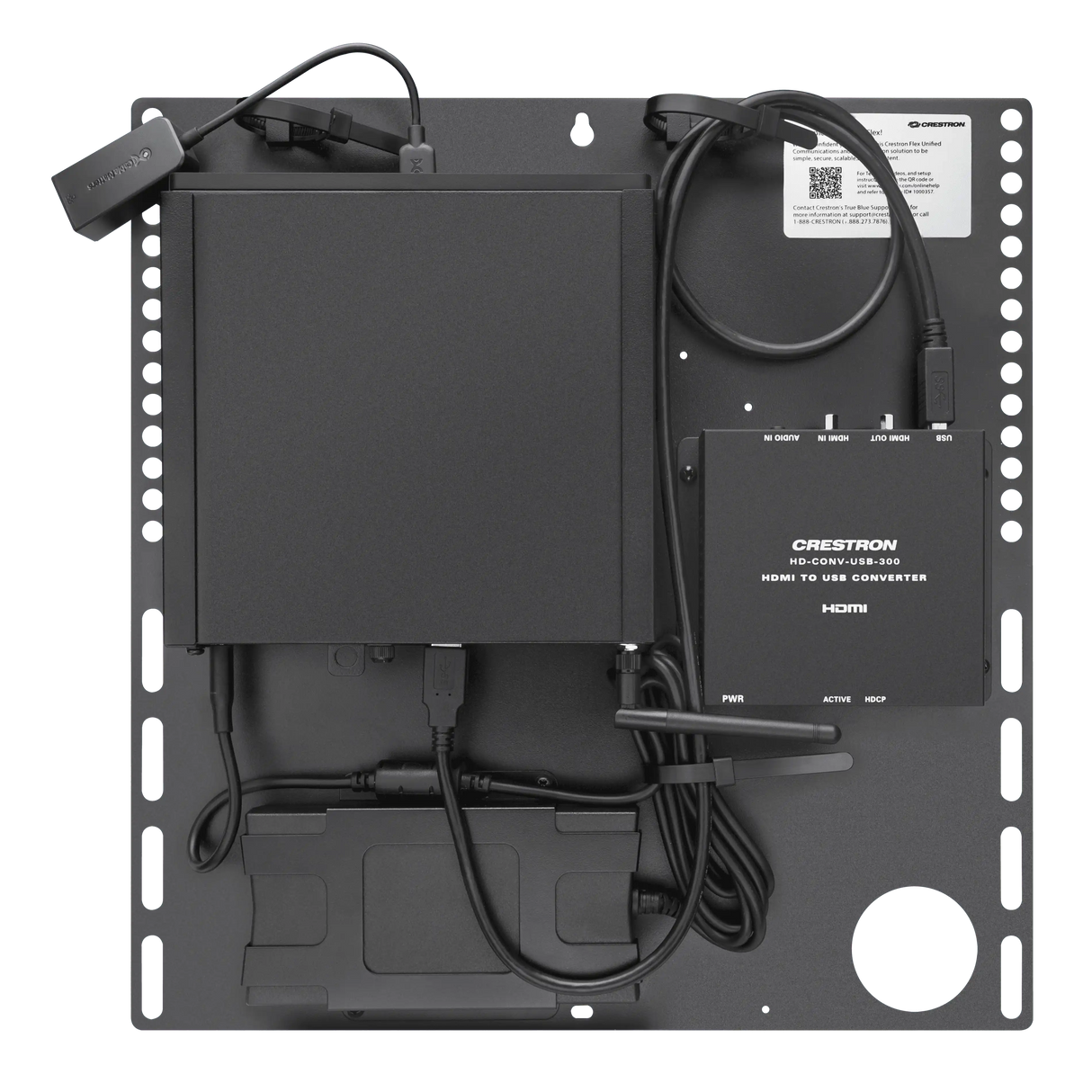

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.3
High‑Definition Video Conferencing with Impressive Audio

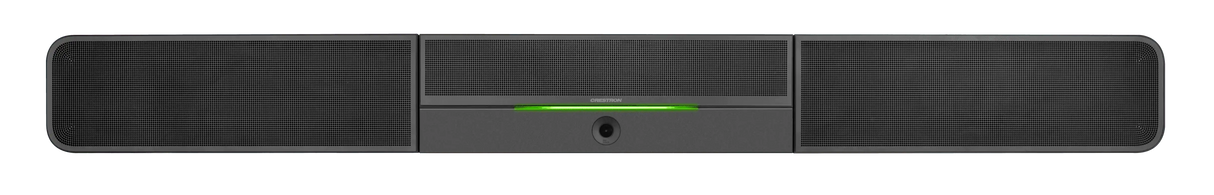

High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC‑SB1‑CAM‑FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.
Crestron Control System Integration
The UC-B30-T can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.2
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management

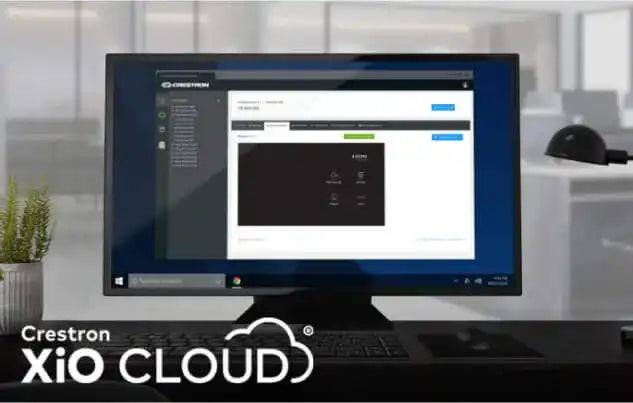

The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Visit www.crestron.com/flexcare for additional information.
Dual Control Option
A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.2, 3
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.
- Front‑of‑room video conferencing solution for a Microsoft Teams® Rooms environment
- Native Microsoft Teams Rooms touch screen UI provides a consistent, simple user experience with one‑touch meeting joins
- Complete kit contains a 10.1 in. tabletop touch screen, smart soundbar and camera, UC bracket assembly, and PoE injector— just add a display and mount
- Easy to specify and install — no custom design, programming, or software installation required
- Optional integration with Crestron® control systems
- Direct connection option between UC Engine and touch screen for simple installation and configuration
- Network management and provisioning, system alerts, and the pairing of the touch screen to the system’s UC Engine through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
- Supports single or dual video displays (not included)
|TS‑1070‑B‑S‑T‑V||10.1 in. (257 mm) tabletop touch screen, black|
|UC‑BRKT‑200‑S‑T‑ASSY||UC Bracket Assembly for Microsoft Teams Rooms systems, comprised of:
|UC‑SB1‑CAM‑FLEX||UC Video Conference Smart Soundbar and Camera|
|CBL-4K-DP-HD-6||DisplayPort™ to HDMI Cable, 6 ft (1.8 m); secondary display|
|CBL-CAT5E-7||Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)|
|CBL‑HD‑6||HDMI Interface Cable, 6 ft (1.8 m); primary display|
|CBL‑HD‑20||HDMI Interface Cable, 20 ft (6.1 m); content sharing|
|DM‑CBL‑ULTRA‑PC‑20||Ethernet LAN cable, CAT6a, RJ45‑to‑RJ45, blue, 20 ft (6.1 m)|
|Tabletop Touch Screen|
|Touch Screen||10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels|
|UI||Microsoft Teams UI plus optional Crestron Smart Graphics® room control UI2|
|Ethernet||100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant|
|Power over Ethernet||IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management;
With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP;
Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP;
Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
|PoE Injector||A PoE injector is included to power the touch screen if network PoE is not available|
|Construction||Plastic, smooth black finish, edge-to-edge glass with black surround|
|Dimensions||Height: 5.29 in. (134 mm)
Width: 9.63 in. (245 mm)
Depth: 4.67 in. (119 mm)
|Weight||2.44 lb (1105 g)|
|Smart Soundbar and Camera|
|Speakers||Stereo 2‑way, 20 W per channel;
3 in. (76 mm) woofers;
3 x 4-3/8 in. (76 x 112 mm) passive radiators;
1 in. (25 mm) dome tweeters;
80 Hz to 20 kHz (±3 dB) frequency response;
91 dB SPL @ 1 m output level (both channels driven at full power)
|Microphone||Linear quad-element far-field adaptive beamforming microphone array;
15 ft (4.6 m) pickup range, 180° horizontal and 180° vertical pickup angle;
20 Hz to 8 kHz frequency response
|NOTE: Microphone pickup range may vary in rooms with highly reflective infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or above average ambient noise.|
|Audio DSP||Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed);
Full-duplex IEEE 1329 Type 1 compliant
|Camera Optics||12 Megapixel 1/2.3 CMOS sensor, ultra wide angle six element aspherical glass lens, f/2.8 aperture|
|Camera Field of View||150º diagonal, 120º horizontal, 90º vertical|
|Autozoom||Genius Framing automatic lossless digital zoom intelligently frames around people in the room|
|Camera Noise Reduction||3D noise reduction, bias compensating spatio-temporal filtering, wide area chroma filtering, flicker elimination|
|Camera Scaling||Real-time scaling, dewarping, and perspective correction|
|Camera Resolution||HD 1080p @ 30 fps|
|Analog Audio Input||2-Channel stereo via 3.5 mm TRS mini-phone jack, fixed level (bypasses DSP), 1 Vrms maximum per channel for full rated output, for in-room amplification of an external audio source|
|Analog Audio Output||2-Channel stereo via 3.5 mm TRS mini-phone jack, fixed level, 1 Vrms maximum, feeds amplified audio content to an assistive listening system|
|Status Bar||Multi-segment RGBY LED zero-center mutually-diverging linear bargraph|
|Main Power||24 VDC via external 100‑240VAC, 50/60 Hz power pack, model PW‑2420RU (included)|
|Enclosure||Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die-cast aluminum rear cover, integral steel hinged mounting bracket|
|Mounting||Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached)|
|Dimensions||Height: 4.57 in. (116 mm), 4.64 in. (118 mm) with feet
Width: 43.60 in. (1107 mm)
Depth: 3.90 in. (99 mm)
|Weight||13.56 lb (6.2 kg)|
