Crestron TSW-880R-W – 8.1 In. Wall Mount Touch Screen, Crestron Home OS, White

Product Overview

The Crestron TSW-880R-W is an 8.1 in. in-wall touch screen designed to run Crestron Home OS in residential installations. It mounts in standard US, European, or UK electrical boxes and provides a fixed wall-mounted interface for controlling lighting, shading, climate, AV, and other home automation systems. The white finish version suits rooms with white or light-colored decor where a discreet wall panel is preferred.

Product Description

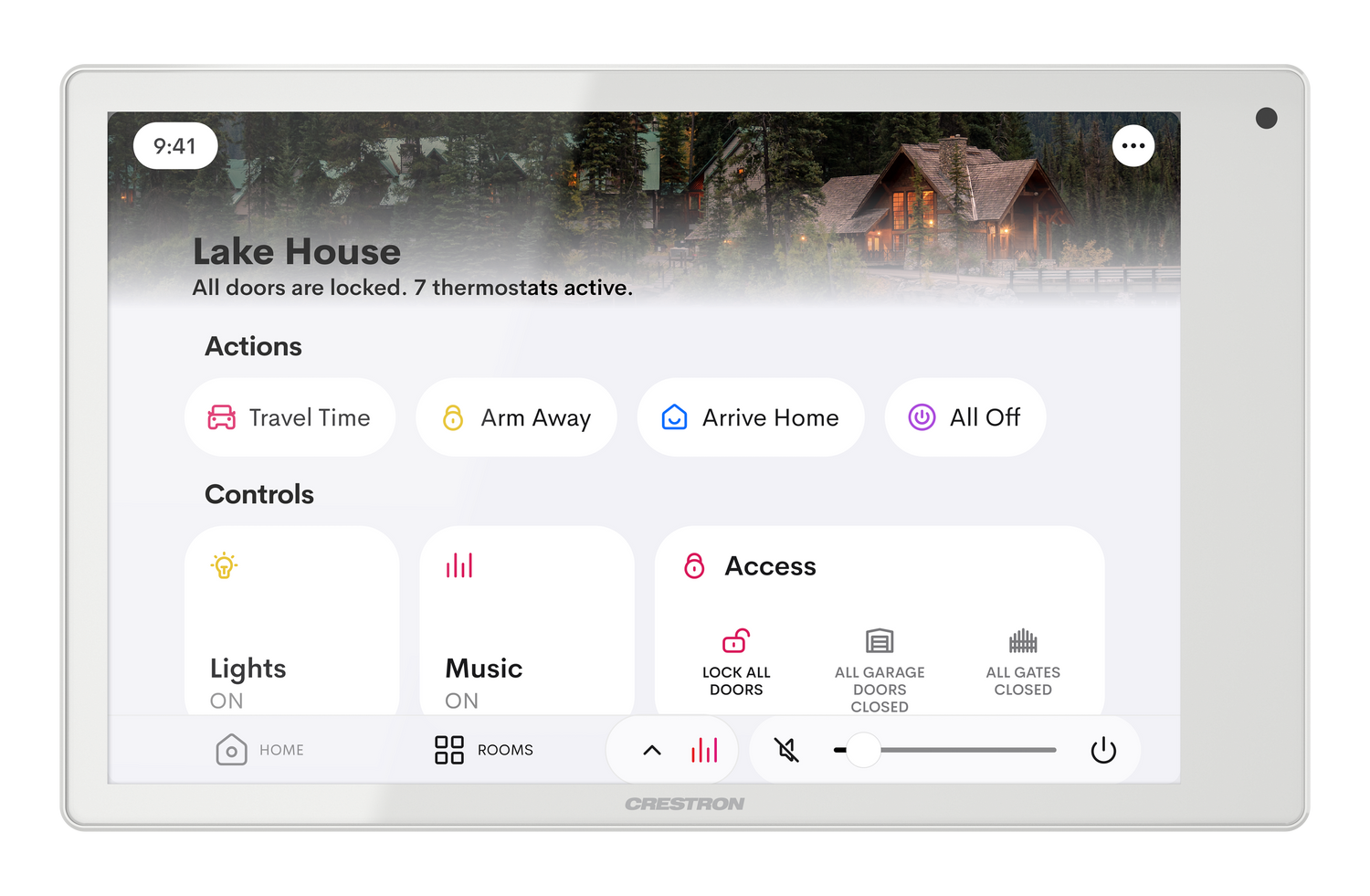

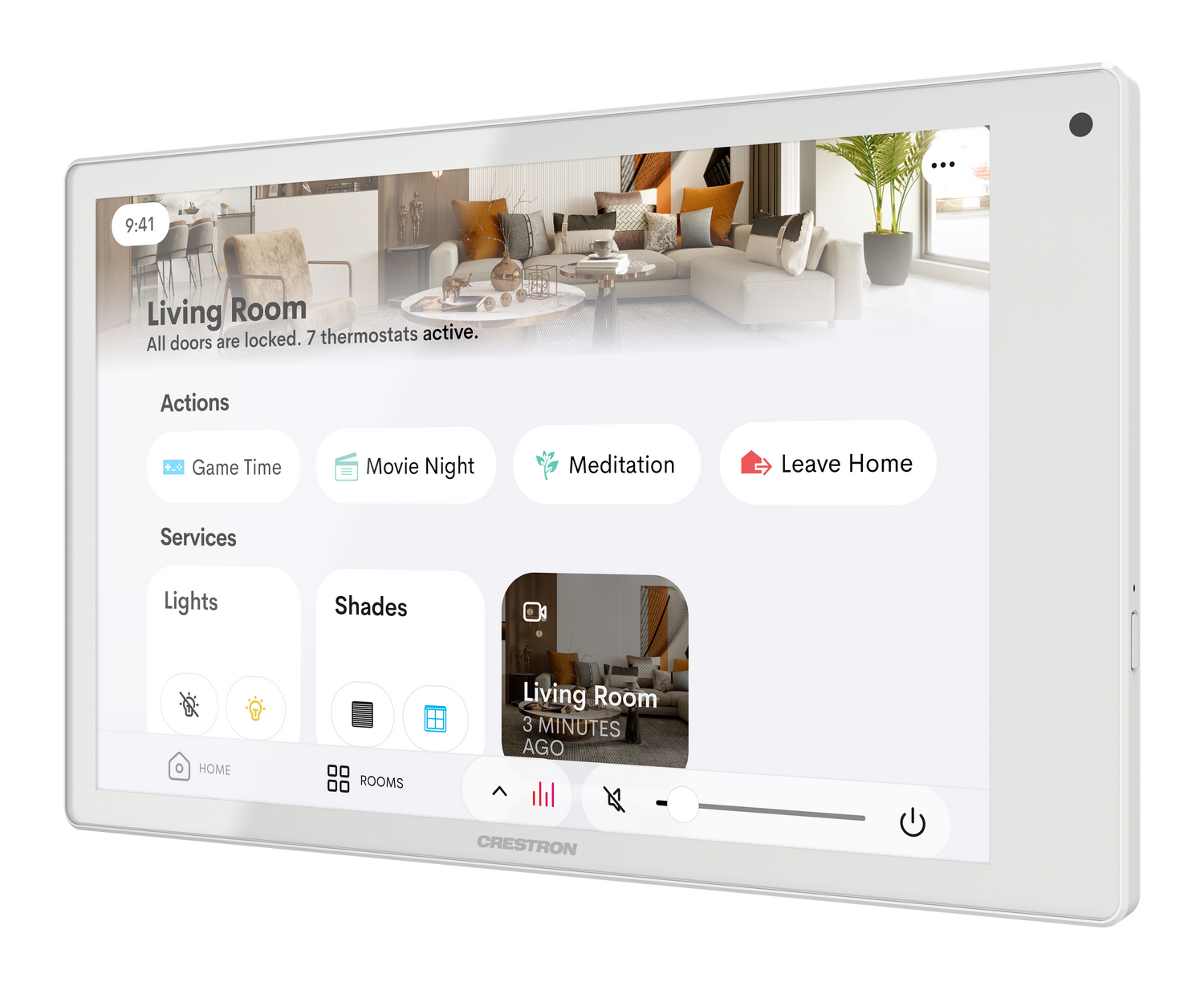

The TSW-880R-W features a 1280x800 WXGA projected capacitive display in a slim 1.18 in. deep wall mount enclosure. Power and data are delivered over a single PoE+ Ethernet cable, eliminating any dedicated power wiring at the wall location. Wi-Fi 6E provides network connectivity for locations where Ethernet cabling cannot be run to the box. The built-in Rava SIP Intercom with microphone and speakers supports hands-free room-to-room intercom and VoIP calling throughout the home.

Key Features

• 8.1 in. (206 mm) projected capacitive display, 1280x800 WXGA, up to 400 nits brightness

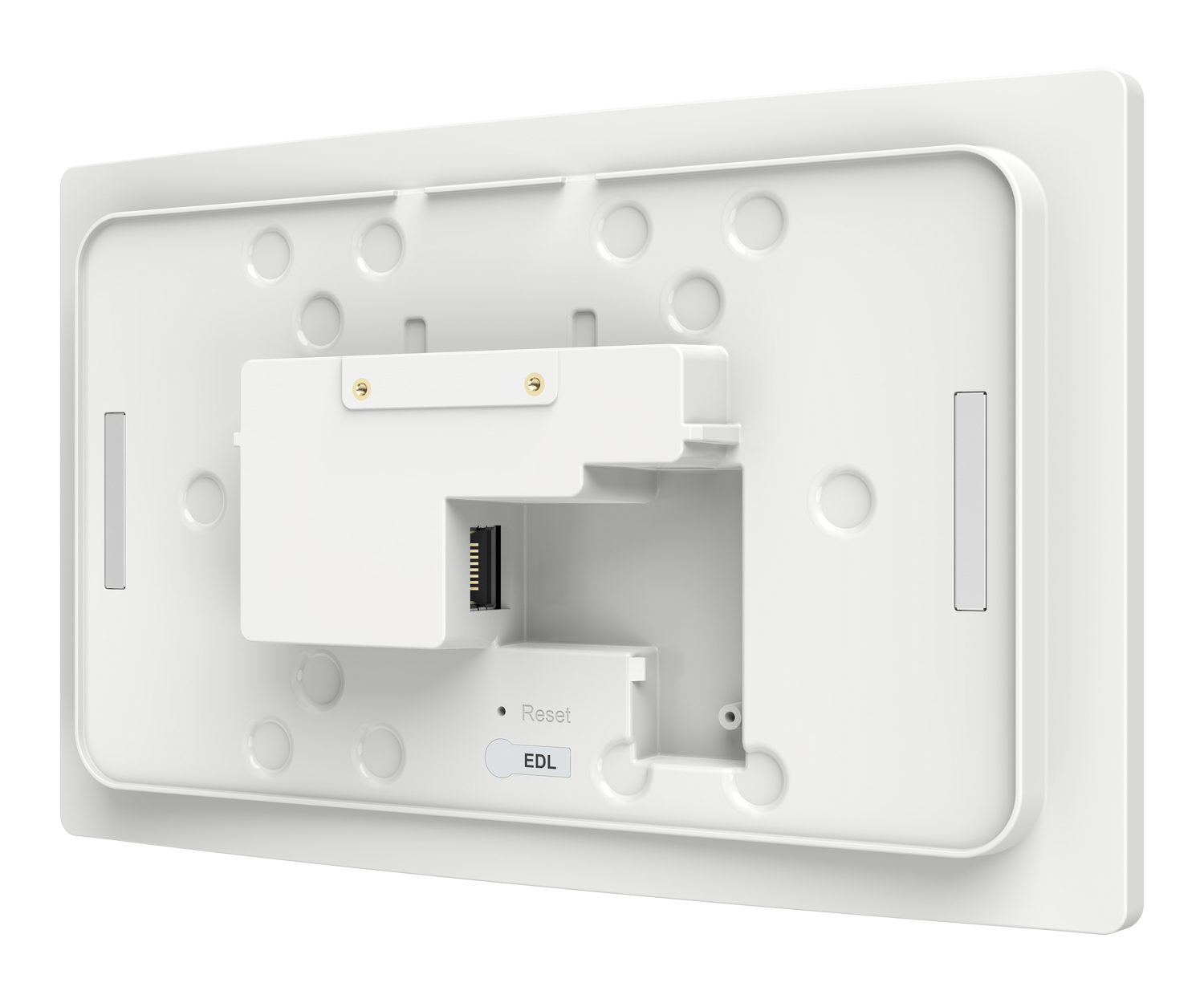

• Slim wall mount profile: 1.18 in. (30 mm) depth
• Mounts in standard 2- or 3-gang US electrical box (minimum 1.375 in. depth)
• Single Ethernet cable carries data and PoE+ power (IEEE 802.3at Type 2, 30 W)
• Wi-Fi 6E (802.11a/b/g/n/ac/ax, 2.4/5/6 GHz, 2x2 MIMO)
• Bluetooth 5.2/BLE
• Built-in Rava SIP Intercom with microphone and speakers
• H.265, H.264, MJPEG streaming video support via RTSP
• 8 GB LPDDR4 RAM, 40 GB eMMC storage
• White smooth finish

Typical Applications

• Whole-home Crestron Home OS wall control in residential new construction and renovations
• Bedroom, living room, and hallway wall control panels for lighting and climate
• In-wall intercom stations using Rava SIP Intercom technology
• Installations requiring a white finish to match light-colored walls and trim
• Rooms where a compact 8 in. wall panel fits better than a larger 10 in. model

Technical Specifications

• Model: TSW-880R-W
• Display Size: 8.1 in. (206 mm) diagonal
• Resolution: 1280 x 800 WXGA (16:10)
• Display Type: TFT active matrix color LCD, projected capacitive 5-point multitouch
• Brightness: 350–400 nits
• Contrast Ratio: 1000:1
• Memory: 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage
• Ethernet: 1000 Mbps, IEEE 802.3at PoE+ PD, RJ-45
• Wi-Fi: IEEE 802.11a/b/g/n/ac/ax Wi-Fi 6E, 2.4/5/6 GHz, 2x2 MIMO
• Bluetooth: BLE, BT 5.2
• USB: USB-C 2.0 host
• Audio: Built-in microphone and speakers, Rava SIP Intercom
• Streaming: H.265, H.264, MJPEG; RTSP protocol
• Power: PoE+ IEEE 802.3at Type 2 (30 W Class 4)
• Heat Dissipation: 44 BTU/hr
• Operating Temperature: 32–104°F (0–40°C)
• Mounting: 2- or 3-gang US electrical box; 2-gang EU (DIN 49073); 2-gang UK (BS 4662)
• Dimensions: H 4.87 in. x W 7.93 in. x D 1.18 in. (124 x 201 x 30 mm)
• Weight: 0.90 lb (410 g)
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (US and Canada) / Intertek
• Finish: Smooth white

Frequently Asked Questions

Q: What is the difference between the TSW-880R-W and TSW-880R-B?
A: The only difference is the finish color. The TSW-880R-W has a smooth white housing and the TSW-880R-B has a smooth black housing. Both have identical electrical and functional specifications.

Q: Is the TSW-880R-W the wall mount equivalent of the TS-880R-W tabletop model?
A: Yes. Both run Crestron Home OS and share the same 8.1 in. 1280x800 display and feature set. The TSW-880R-W mounts into a wall box, while the TS-880R-W sits on a surface in a tabletop enclosure.

Q: Does the TSW-880R-W require a Wi-Fi network to operate?
A: No. The primary connection method is wired Ethernet, which also delivers PoE+ power. Wi-Fi 6E is available as an alternative connection method when Ethernet cabling is not available at the wall location.
