Crestron TSW-880R-B – 8.1 in. Wall Mount Touch Screen, Black

Product Overview

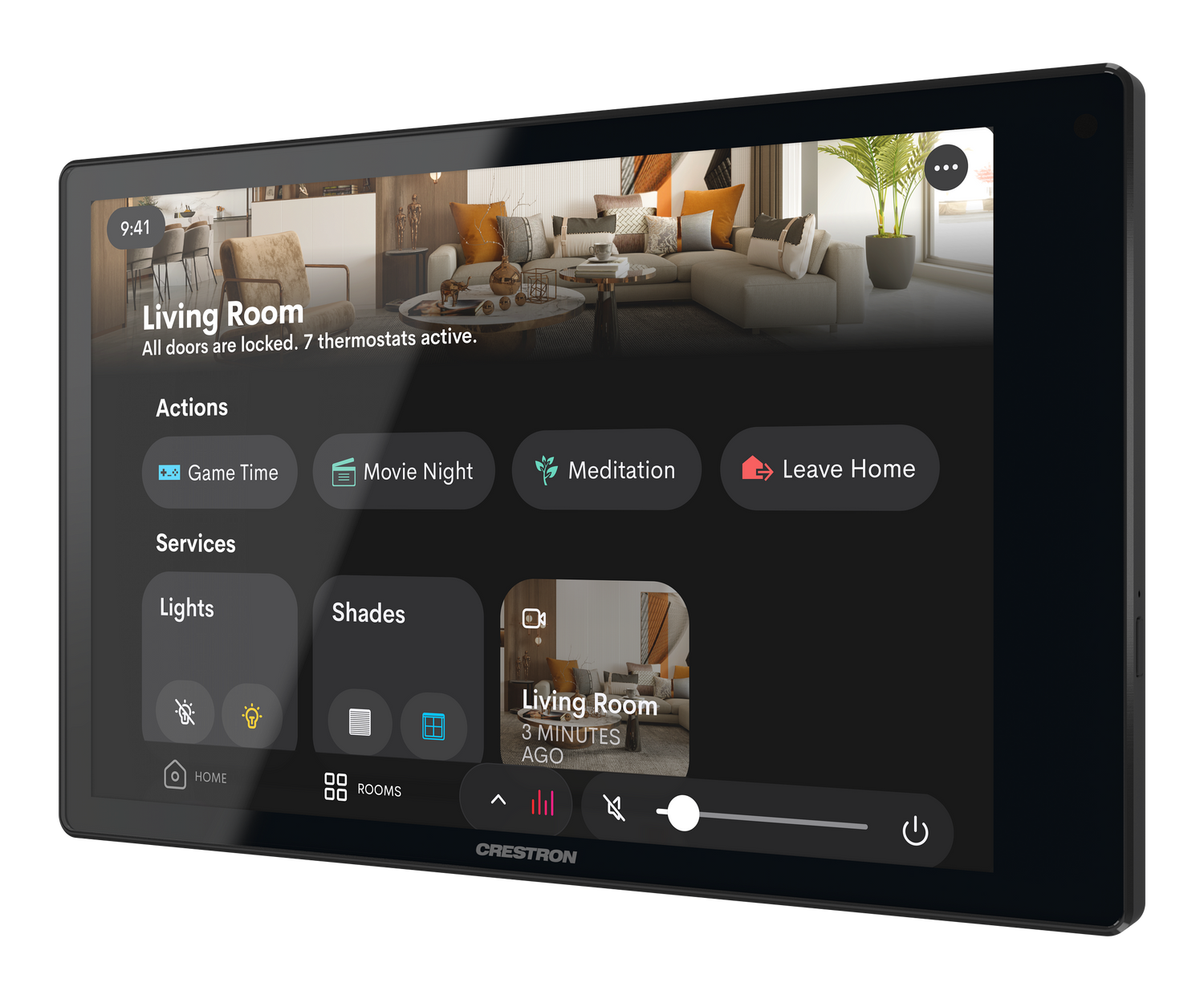

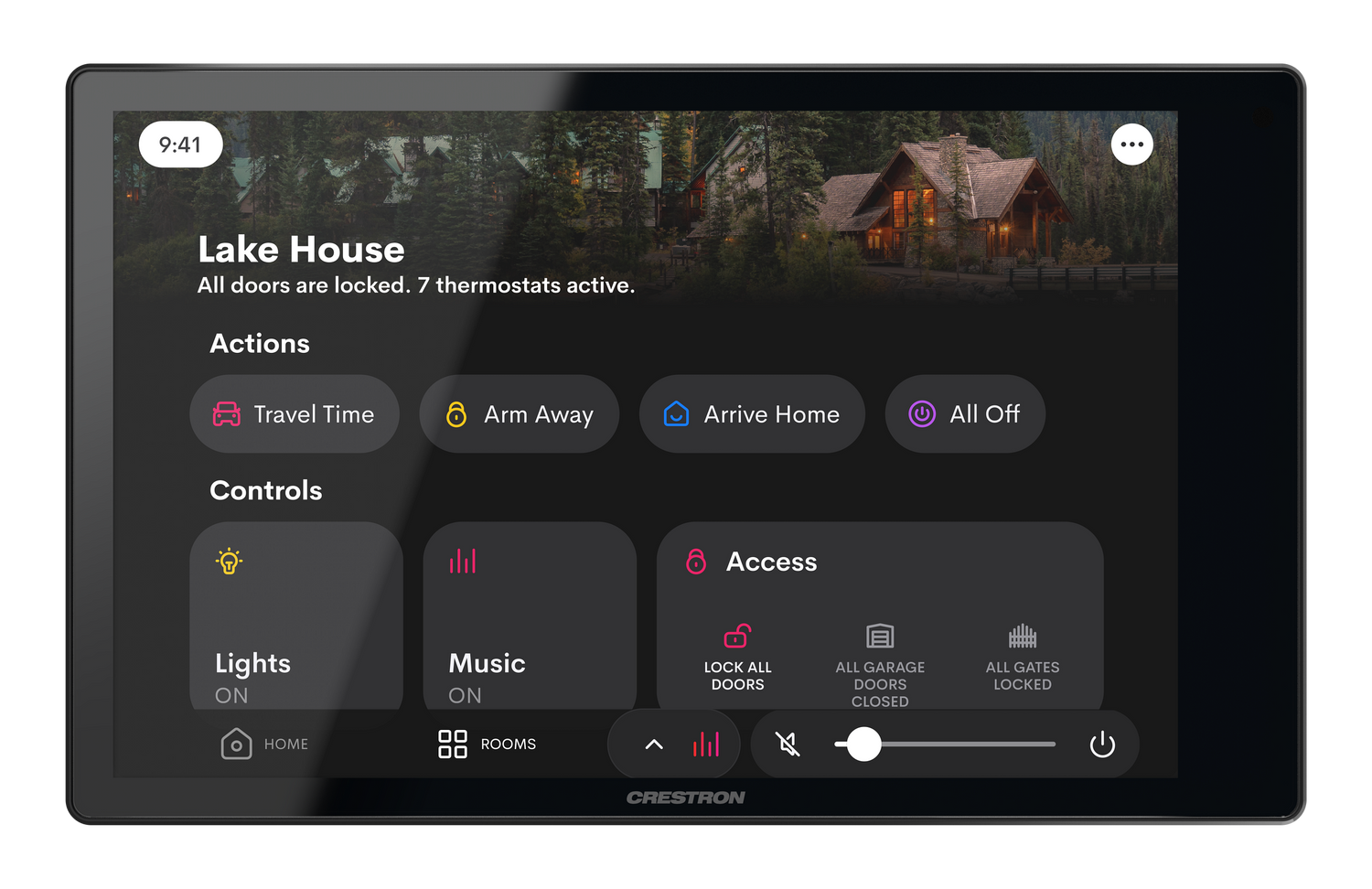

The Crestron TSW-880R-B is an 8.1 in. wall mount touch screen for Crestron Home OS residential deployments. It runs the Crestron Home app natively on a 1280 x 800 display, sitting between the 7 in. TSW-770R-B and the 10.1 in. TSW-1070R-B in the TSW residential touch screen lineup. It controls lighting, shading, climate, audio/video, and security systems in whole-home Crestron installations.

Product Description

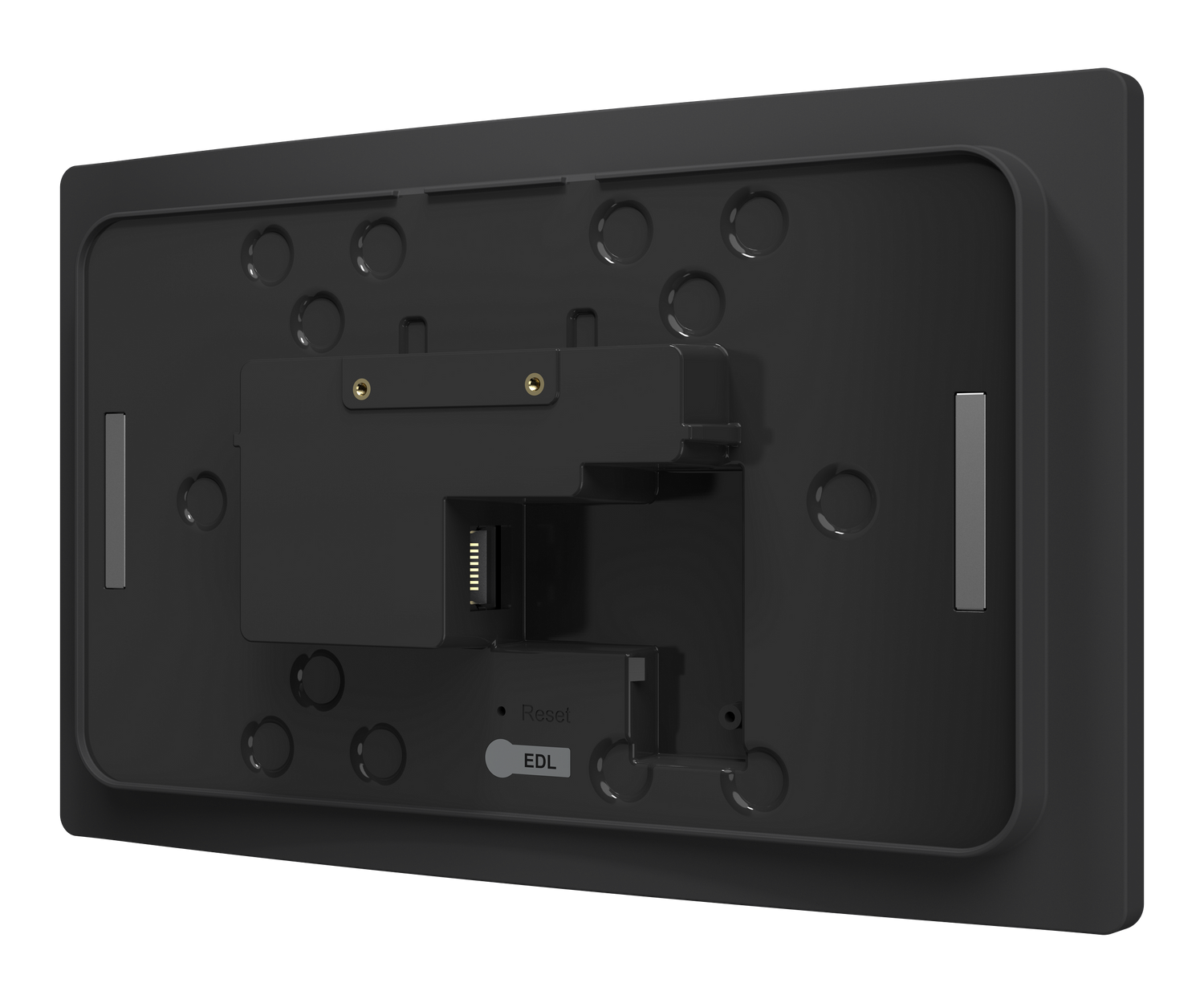

The TSW-880R-B mounts in a 4-gang electrical wall box and shares the same Android-based platform as other TSW residential panels. Gigabit Ethernet with PoE+ handles both connectivity and power over a single cable. Wi-Fi 6E provides wireless fallback where wired installation is not practical. Rava SIP Intercom enables two-way audio communication with door stations and other intercom-capable Crestron devices. A built-in proximity sensor activates the display when a user approaches the panel.

Key Features

• 8.1 in. (204 mm) IPS display, 1280 x 800 WXGA at up to 400 nits
• Native Crestron Home OS app for residential whole-home control
• Rava SIP Intercom with far-field microphone and full-duplex speakers
• Gigabit Ethernet with PoE+ (IEEE 802.3at) — single-cable installation
• Wi-Fi 6E (802.11ax, 2.4/5/6 GHz)
• Proximity sensor for automatic wake-on-approach
• XiO Cloud remote provisioning and management
• 4-gang electrical wall box mount, Black finish

Typical Applications

• Primary and secondary room control panels in high-end residential installations
• Whole-home Crestron Home OS deployments requiring a mid-size touch screen
• MDU in-unit AV, lighting, shading, and HVAC control panels
• Residential intercom stations via Rava SIP
• Media room and home theater control panels

Technical Specifications

• Model: TSW-880R-B
• SKU: TSW-880R-B
• Display: 8.1 in. (204 mm) IPS, 1280 x 800 WXGA, up to 400 nits
• Touch: Projected capacitive, 5-point multitouch
• Network: 1000 Mbps Ethernet, PoE+ (IEEE 802.3at Type 2)
• Wi-Fi: 802.11a/b/g/n/ac/ax Wi-Fi 6E (2.4, 5, 6 GHz)
• Bluetooth: BLE, BT5.2
• Weight: 0.90 lb (410 g)
• Mounting: 4-gang electrical wall box
• Finish: Black
• Operating Temperature: 32–104°F (0–40°C)
• Compliance: FCC Part 15 Class B, IC Class B, CE, UL/Intertek Listed

Frequently Asked Questions

Q: Where does the TSW-880R-B fit in the Crestron residential touch screen lineup?
A: The TSW-880R-B has an 8.1 in. display and sits between the 7 in. TSW-770R-B and the 10.1 in. TSW-1070R-B. Integrators typically use the 8.1 in. panel for living areas and master bedrooms where a larger display is preferred but the 10.1 in. panel is not required.

Q: Does the TSW-880R-B require PoE+ or will standard PoE work?
A: PoE+ (IEEE 802.3at Type 2) is required. Standard PoE (802.3af) does not provide sufficient power. Confirm your network switch or injector supports 802.3at before deployment.

Q: Can the TSW-880R-B be used for commercial AV control in addition to Crestron Home?
A: The TSW-880R-B (“R” designation) is configured for Crestron Home OS residential use. For commercial AV control requiring custom HTML5 UI projects or enterprise room scheduling, consider the TSW-880-B (non-R variant), which supports full commercial programming.
