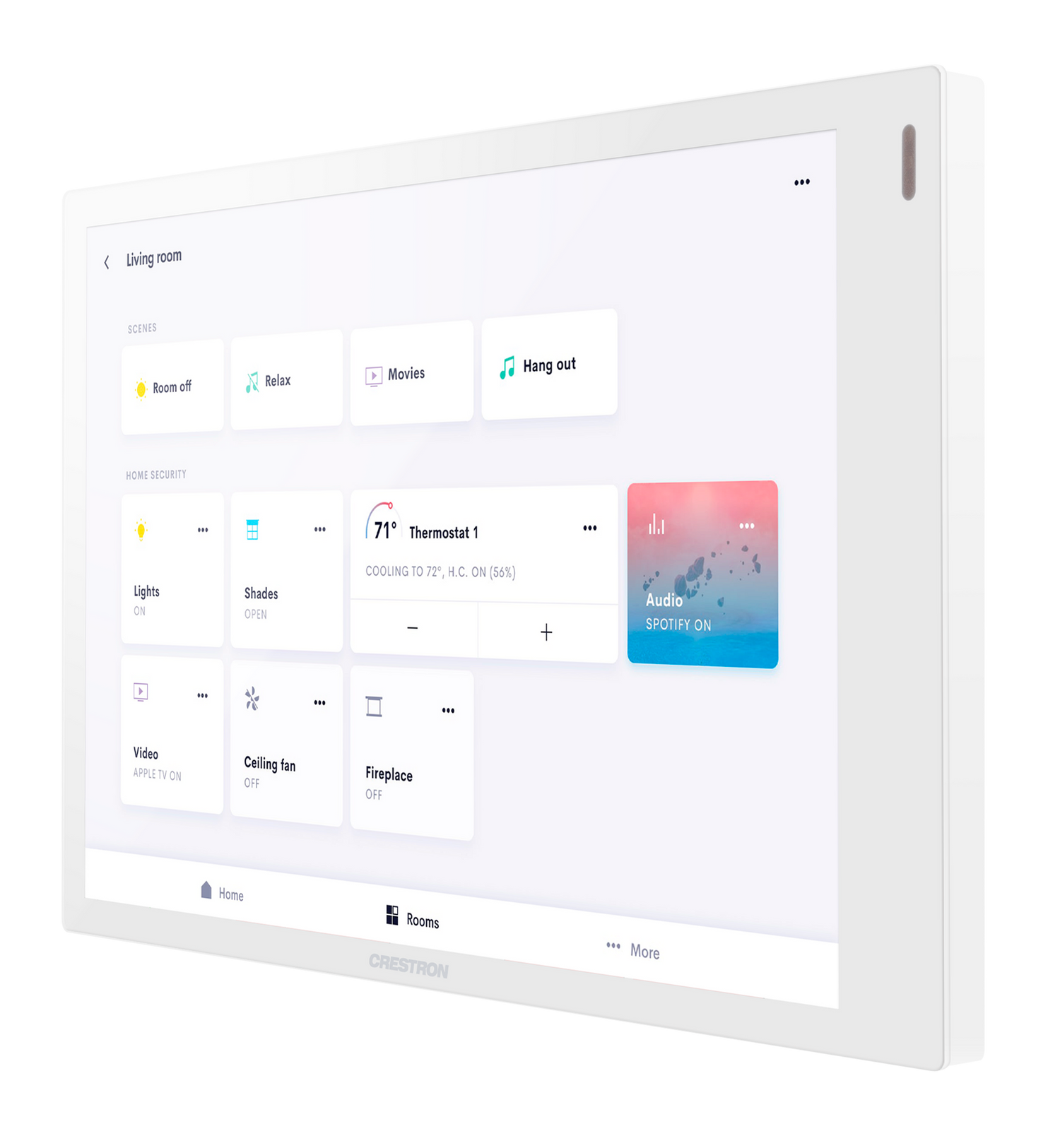

Crestron TSW-770R-W – 7 in. Wall Mount Touch Screen for Crestron Home OS, White

Product Overview

The Crestron TSW-770R-W is a 7 in. in-wall touch screen designed for Crestron Home OS residential automation. Its compact form factor suits hallways, bedrooms, and secondary rooms where a full 10.1 in. panel is not required. PoE+ powered via a single CAT cable, it installs cleanly in a standard wall box and provides intuitive control of lighting, climate, shades, and AV systems.

Product Description

The TSW-770R-W features a 1280x800 TFT LCD display at 350 nits with projected capacitive 5-point multitouch and a 16:10 aspect ratio. It connects at 100 Mbps over PoE+ and includes two USB 2.0 Type-A host ports for local peripheral connectivity. Wi-Fi 802.11ac dual-band (2.4/5 GHz) provides wireless network connectivity. The unit supports H.265/H.264/MJPEG streaming via RTSP for video-capable Crestron Home applications. Built-in microphone and speakers support Rava SIP Intercom functionality.

Key Features

• 7 in. TFT LCD, 1280x800 resolution, 16:10 aspect ratio, 350 nits, 850:1 contrast
• Projected capacitive 5-point multitouch; 24-bit color
• PoE+ IEEE 802.3at single-cable power and data
• Wi-Fi 802.11a/b/g/n/ac dual-band 2.4/5 GHz 2x2 MIMO
• (2) USB 2.0 Type-A host ports
• Built-in microphone and speakers; Rava SIP Intercom support
• H.265/H.264/MJPEG video streaming via RTSP (up to 1920x1080@30fps)
• Certifications: CE, IC, FCC Part 15 Class B

Typical Applications

• Bedroom and hallway Crestron Home OS control panel for lighting and climate
• Secondary room AV and scene control touch point
• Entry foyer touch control for lighting scenes and door intercom
• Multi-zone shade and lighting control in residential applications
• Rava SIP intercom station for room-to-room or door communication

Technical Specifications

• Model: TSW-770R-W
• Weight: 0.88 lb (400 g)
• Dimensions (H x W x D): 4.17 in. x 6.80 in. x 1.99 in. (106 mm x 173 mm x 51 mm)
• Display Size: 7 in. diagonal
• Display Resolution: 1280 x 800 (16:10)
• Brightness: 350 nits; 850:1 contrast; 24-bit color
• Touch: Projected capacitive, 5-point multitouch
• Power: PoE+ IEEE 802.3at Type 2; 15 W typical with LLDP; 30 W (Class 4) without LLDP; 15.4 W from 802.3af; 44 BTU/hr
• Network: 100 Mbps; TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP, 802.1X, SNMP, IPv4/IPv6, HTTPS
• Wireless: Wi-Fi 802.11a/b/g/n/ac 2.4/5 GHz 2x2 MIMO
• USB: (2) USB 2.0 Type-A host ports
• Audio/Video: Built-in mic and speakers; H.265, H.264, MJPEG; up to 1920x1080@30fps RTSP
• Memory: 2 GB LPDDR3 RAM; 16 GB eMMC pSLC
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: CE, IC, FCC Part 15 Class B

Frequently Asked Questions

Q: Does the TSW-770R-W include an intercom feature?
A: Yes. The TSW-770R-W includes a built-in microphone and speakers supporting Rava SIP Intercom, enabling audio communication between rooms or with a door station when configured in Crestron Home.

Q: How does the TSW-770R-W differ from the TSW-770R-B?
A: The TSW-770R-W and TSW-770R-B are identical in specifications; the only difference is the trim color — white versus black. Both run Crestron Home OS.

Q: Does the TSW-770R-W support Crestron commercial touch screen programming?
A: No. The TSW-770R-W is a Crestron Home OS device. For commercial SIMPL-programmable deployments, the TSW-770 (without the R suffix) is the appropriate model.
