Crestron Multisurface Mount Kit for TSW-770 and TSW-1070 Series (Angled, Black Smooth) - TSW-770/1070-MSMK-ANG-B-S

Availability: Call for Availability
Crestron SKU: TSW-770/1070-MSMK-ANG-B-S
No reviews
Price:
$39.00 $64.00

Description

Spec Sheet

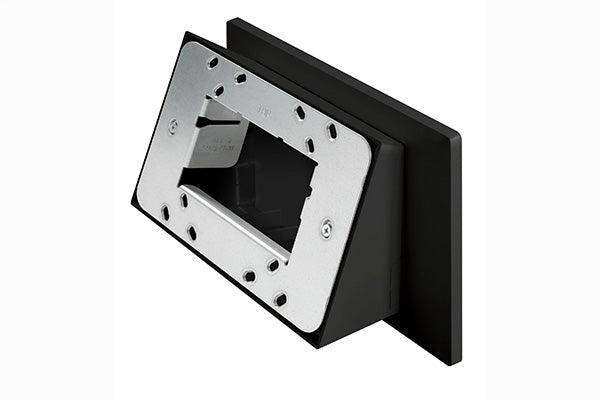

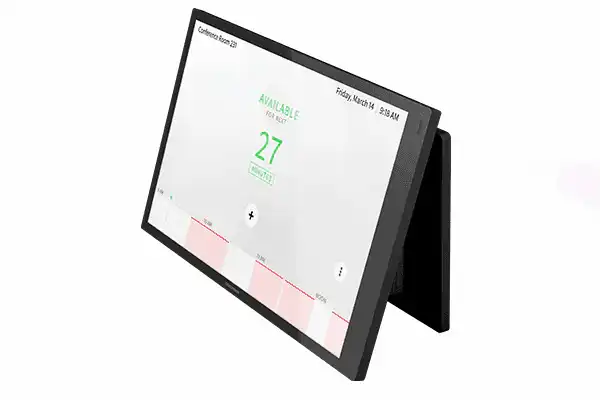

The Crestron TSW‑770/1070‑MSMK‑ANG is a black, angled, and smooth multisurface mount kit that provides a versatile mounting solution for a TSW‑770, TSS‑770, TSW‑1070, or TSS‑1070 touch screen. Using the kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. The touch screen can also be mounted into wall or supported electrical boxes. The TSW‑770/1070‑MSMK‑ANG is ideal for mounting near the entrance to a meeting space for room scheduling applications. When installed, the touch screen is angled upwards at a 20° tilt.

The TSW‑770/1070‑MSMK‑ANG attaches securely to a flat, smooth surface without screws using the included peel‑and‑stick adhesive pad or attaches to a wall or an electrical box using the screws provided. For a finished appearance when mounted to a transparent glass wall, a cosmetic label is provided, which affixes to the opposing side of the glass behind the unit. Cables may be run through the back of the unit (wall mount only) or through one of the raceway knockouts located on the bottom or either side of the unit.
  • Enables mounting a TSW‑770, TSS‑770, TSW‑1070, or TSS‑1070 series touch screen to glass or another flat smooth surface, into a wall, or over an electrical box
  • Ideal for mounting near the entrance to a meeting space for room scheduling applications
  • Provides a 20° upward tilt angle
  • Secure, screwless installation using peel-and-stick adhesive pad
  • Available in smooth white or black finish
Construction
Housing Plastic, smooth black or white finish
Surface Mounting Peel-and-stick adhesive mount to glass or other flat, smooth surface
Wall Mounting Attaches to a wall or to a 2-gang or 3-gang US electrical box, horizontally‑oriented 1-gang US electrical box, 2-gang European electrical box, or 2-gang UK electrical box
Dimensions
Surface mount without touch screen Height: 4.45 in. (113 mm);
Width: 5.96 in. (151 mm);
Depth: 2.50 in. (63 mm)
Wall mount without touch screen Height: 5.11 in. (130 mm);
Width: 6.71 in. (170 mm);
Depth: 2.77 in. (70 mm)
Surface mount with TSW‑770 Height: 4.76 in. (121 mm);
Width: 6.80 in. (173 mm);
Depth: 3.07 in. (78 mm)
Wall mount with TSW‑770 installed Height: 5.11 in. (130 mm);
Width: 6.80 in. (173 mm);
Depth: 3.35 in. (85 mm)
Surface mount with TSW‑1070 installed Height: 5.60 in. (142 mm);
Width: 9.46 in. (240 mm);
Depth: 3.38 in. (86 mm)
Wall mount with TSW‑1070 installed Height: 6.22 in. (158 mm);
Width: 9.46 in. (240 mm);
Depth: 3.66 in. (93 mm)
