Crestron TSW-570PR-W – 5 in. Wall Mount Touch Screen, Portrait, Crestron Home OS, White

Product Overview

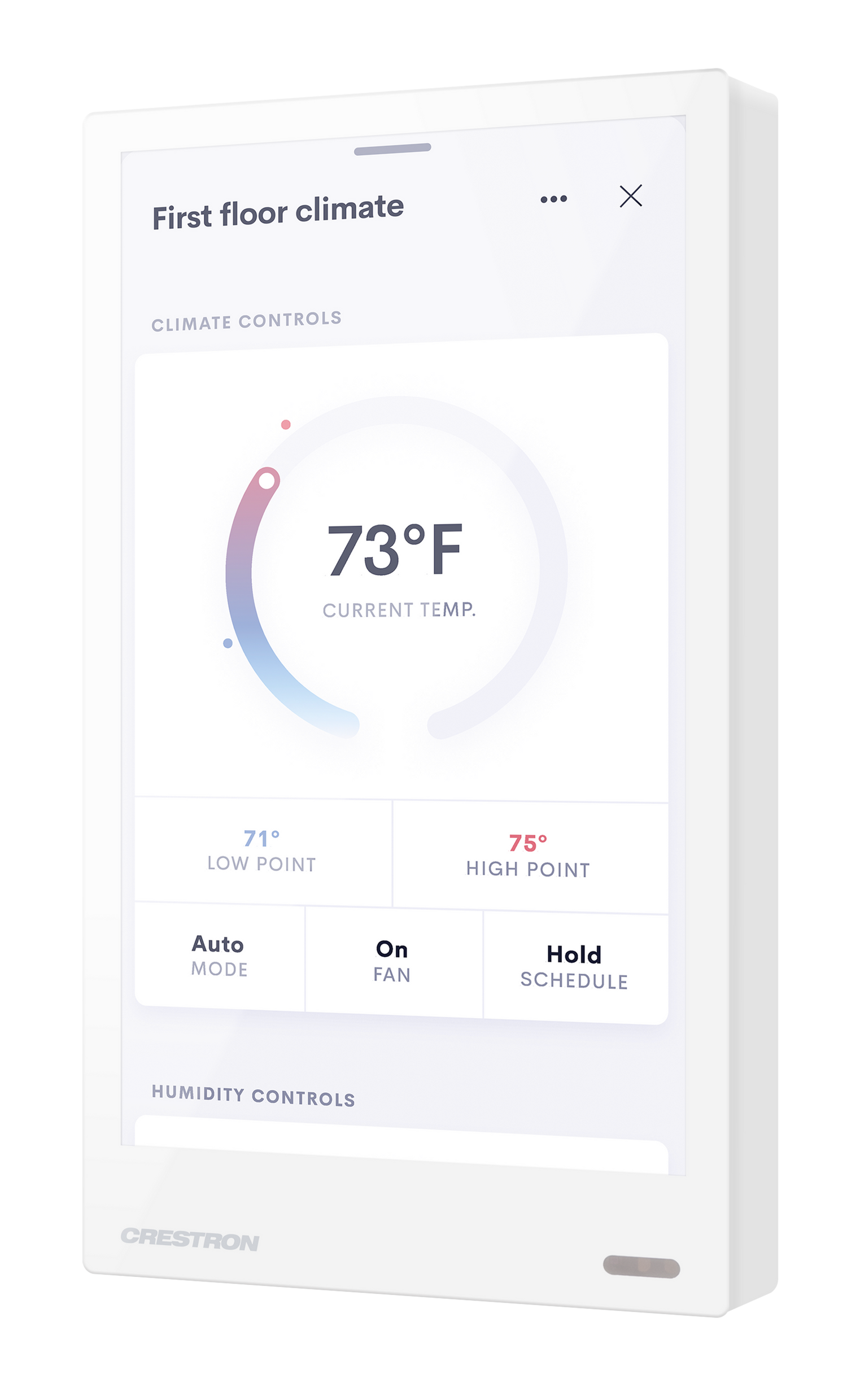

The Crestron TSW-570PR-W is a 5 in. portrait-orientation wall mount touch screen designed for Crestron Home OS residential automation. Its narrow footprint and vertical layout make it ideal for tight installation locations such as doorways, stairwells, narrow walls, and locations where standard landscape panels do not fit. PoE+ powered over a single CAT cable, it simplifies wiring in retrofit and new construction residential projects.

Product Description

The TSW-570PR-W features a 720x1280 HD 720 display at 400 nits with projected capacitive 5-point multitouch in a portrait orientation. It connects at 100 Mbps via PoE+ and includes two USB 2.0 Type-A host ports. The panel supports H.265/H.264/MJPEG streaming via RTSP for video display applications. It mounts over a 3-3/4 in. H x 2 in. W wall cutout requiring a minimum 2-13/16 in. box depth, compatible with standard single-gang wall boxes when using an appropriate Crestron mounting bracket.

Key Features

• 5 in. TFT LCD, portrait orientation, 720x1280 (HD 720), 16:9 aspect ratio, 400 nits, 800:1 contrast
• Projected capacitive 5-point multitouch; 24-bit color
• PoE+ (IEEE 802.3at Type 2) single-cable power and data; 44 BTU/hr
• 100 Mbps Ethernet with SSL, TLS, SSH, SFTP, 802.1X, IPv4/IPv6
• (2) USB 2.0 Type-A host ports
• H.265/H.264/MJPEG video streaming via RTSP (up to 1920x1080@30fps)
• 2 GB LPDDR3 RAM; 16 GB eMMC pSLC storage
• Certifications: IC, CE, FCC Part 15 Class B

Typical Applications

• Doorway or narrow wall Crestron Home OS control panel where space is limited
• Single-gang wall box installation for lighting or climate control
• Secondary room control in spaces with constrained wall real estate
• Residential retrofit installation requiring a compact, vertical touch screen
• Entry point scene control with a minimal footprint

Technical Specifications

• Model: TSW-570PR-W
• Weight: 0.55 lb (250 g)
• Dimensions (H x W x D): 5.14 in. x 2.84 in. x 1.97 in. (131 mm x 72 mm x 50 mm)
• Display Size: 5 in. (127 mm) diagonal
• Display Resolution: 720 x 1280 (HD 720, 16:9) portrait
• Brightness: 400 nits; 800:1 contrast; 24-bit color
• Touch: Projected capacitive, 5-point multitouch
• Power: PoE+ IEEE 802.3at Type 2; 15 W (with LLDP); 30 W Class 4 (without LLDP); 15.4 W from 802.3af; 44 BTU/hr
• Network: 100 Mbps; 802.3at, 802.1X, TLS, SSH, SFTP, IPv4/IPv6
• USB: (2) USB 2.0 Type-A host ports
• Video: H.265, H.264, MJPEG; up to 1920x1080@30fps RTSP
• Memory: 2 GB LPDDR3 RAM; 16 GB eMMC pSLC
• Mounting: Surface mount over 3-3/4 in. H x 2 in. W cutout; 2-13/16 in. (72 mm) min depth
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: IC, CE, FCC Part 15 Class B

Frequently Asked Questions

Q: Does the TSW-570PR-W fit in a standard single-gang electrical box?
A: The TSW-570PR-W mounts over a 3-3/4 in. H x 2 in. W cutout requiring a minimum 2-13/16 in. depth. A single-gang box meeting that depth requirement with the appropriate Crestron bracket can work. Verify dimensions with the Crestron installation guide before rough-in.

Q: Is the TSW-570PR-W the same as a TSW-570P but in white?
A: The TSW-570PR-W is specifically the Crestron Home OS (R) version in portrait (PR) orientation with white (W) finish. The equivalent black version would be a TSW-570PR-B model.

Q: Does this panel support Crestron commercial programming?
A: No. The TSW-570PR-W runs Crestron Home OS. For commercial SIMPL-programmable portrait wall panels, Crestron offers the TSW-570P commercial variants.
