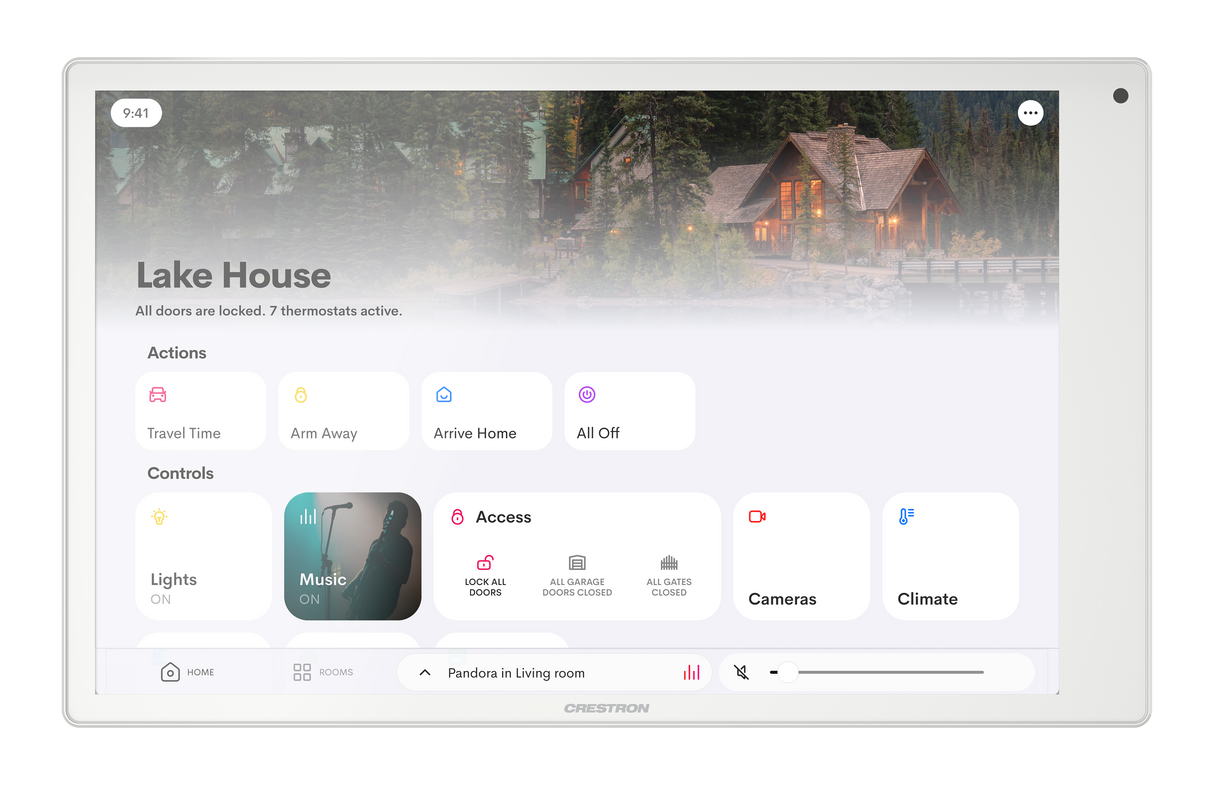

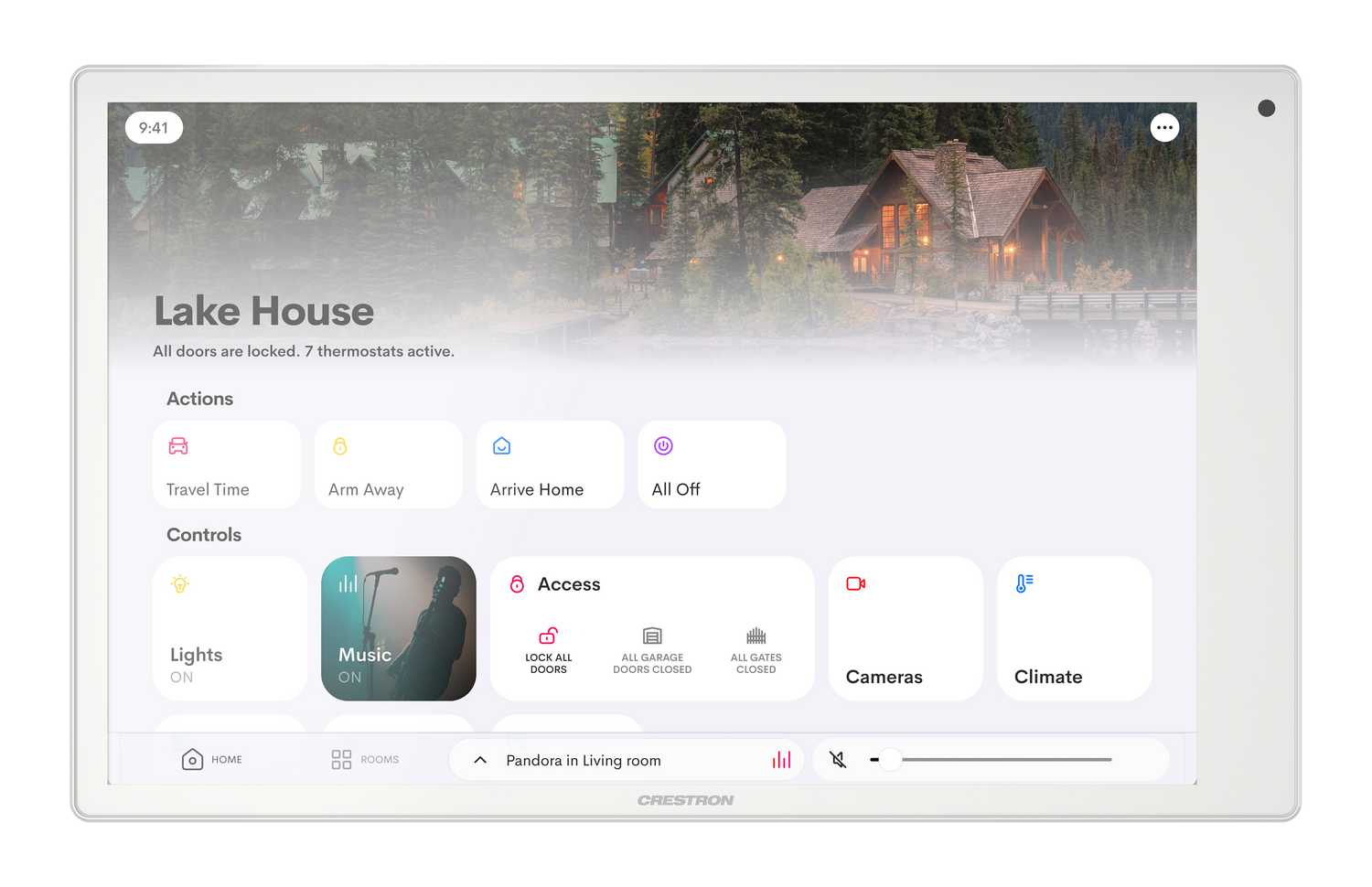

Crestron TSW-1080R-W – 10.1 in. Wall Mount Touch Screen for Crestron Home OS, White

Product Overview

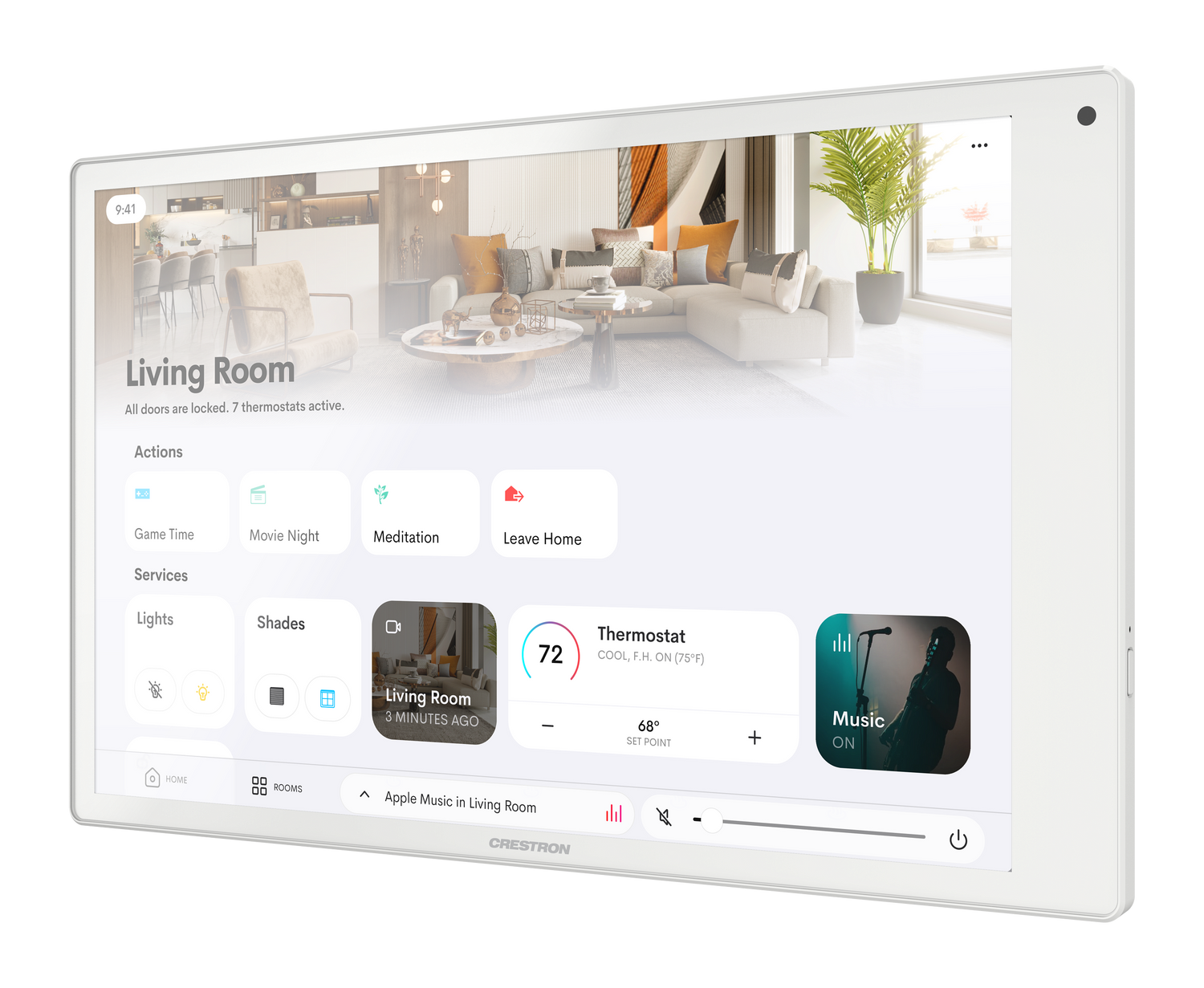

The Crestron TSW-1080R-W is a 10.1 in. in-wall touch screen designed for Crestron Home OS residential automation systems. Featuring a flush wall mount profile of just 1.18 in. depth, it provides an integrated, architectural look for hallways, bedrooms, kitchens, and living spaces. It is powered via PoE+ over a single CAT cable, making in-wall wiring clean and straightforward for integrators.

Product Description

The TSW-1080R-W delivers a 1920x1200 WUXGA display with projected capacitive 5-point multitouch at 350-400 nits brightness for clear visibility in varied lighting conditions. Wi-Fi 6E (802.11ax) with 2.4 GHz, 5 GHz, and 6 GHz support ensures solid wireless connectivity as a backup to the primary wired PoE+ connection. Bluetooth 5.2 enables local wireless pairing. The USB Type-C port supports peripherals and video output. This panel runs Crestron Home OS natively, providing direct control of lighting, climate, shades, AV, and security.

Key Features

• 10.1 in. TFT active matrix LCD, 1920x1200 WUXGA, 16:10 aspect ratio, 350-400 nits
• Projected capacitive 5-point multitouch with edgelit LED backlight

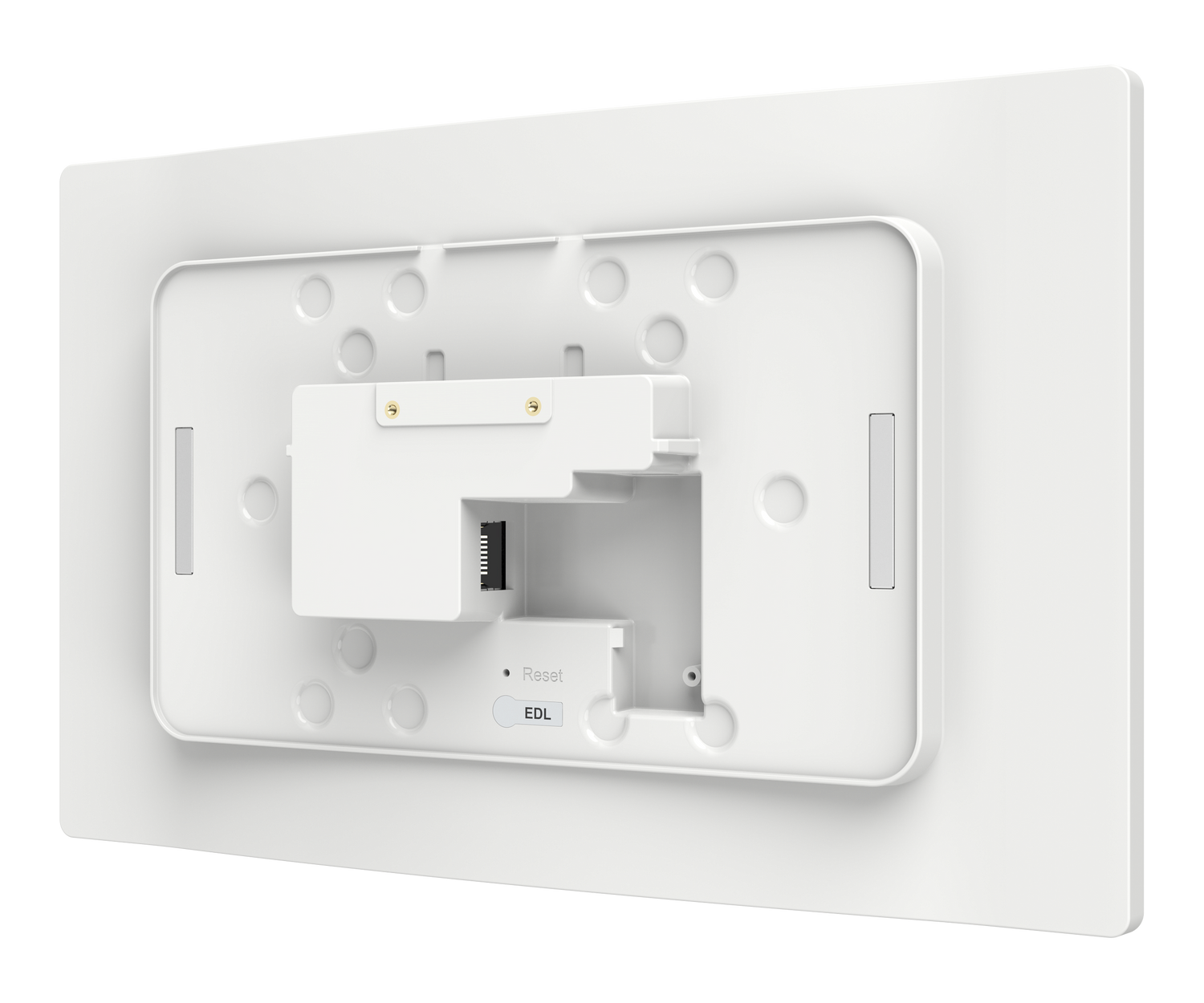

• Ultra-slim 1.18 in. (30 mm) depth for architectural flush wall installation
• PoE+ (IEEE 802.3at Class 4, 30 W) or PoE (802.3af, 15.4 W) single-cable power and data
• Wi-Fi 6E 802.11a/b/g/n/ac/ax 2.4/5/6 GHz 2x2 MIMO
• Bluetooth BLE/BT5.2
• (1) USB Type-C port
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Typical Applications

• Primary Crestron Home OS wall control panel in bedrooms, hallways, and kitchens
• Whole-home lighting and climate control touch point
• In-wall AV source selection and volume control panel
• Residential security system status and arm/disarm interface
• High-end residential installations requiring a sleek flush-mount aesthetic

Technical Specifications

• Model: TSW-1080R-W
• Weight: 19.4 oz (550 g)
• Dimensions (H x W x D): 5.96 in. x 9.68 in. x 1.18 in. (151 mm x 246 mm x 30 mm)
• Display Size: 10.1 in. (257 mm) diagonal
• Display Resolution: 1920 x 1200 (WUXGA, 16:10)
• Display Type: TFT active matrix LCD, edgelit LED, projected capacitive 5-point multitouch; 350-400 nits; 1000:1 contrast; 24-bit color
• Power: PoE+ IEEE 802.3at Class 4 (30 W); IEEE 802.3af (15.4 W)
• Heat Dissipation: 44 BTU/hr
• Network: (1) RJ-45 PoE+ 1000BASE-TX
• Wireless: Wi-Fi 6E 802.11a/b/g/n/ac/ax 2.4/5/6 GHz 2x2 MIMO
• Bluetooth: BLE/BT5.2
• USB: (1) USB Type-C
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Frequently Asked Questions

Q: What wall box does the TSW-1080R-W require for installation?
A: The TSW-1080R-W mounts to a standard Crestron back box or surface mount kit. Refer to the Crestron installation guide for specific back box part numbers and rough-in dimensions.

Q: Does the TSW-1080R-W work with Crestron commercial processors or only Crestron Home?
A: The TSW-1080R-W is specifically designed for Crestron Home OS residential systems. For commercial deployments, the TSW-1080 series without the R suffix is the appropriate commercial touch screen.

Q: Can the TSW-1080R-W operate on standard 802.3af PoE rather than PoE+?
A: Yes. The TSW-1080R-W accepts both 802.3at PoE+ (30 W) and 802.3af PoE (15.4 W), though 802.3af limits available power for peripherals.
