Crestron TSW-1080R-B – 10.1 In. Wall Mount Touch Screen, Crestron Home OS, Black

Product Overview

The Crestron TSW-1080R-B is a 10.1 in. wall mount touch screen designed to run the Crestron Home OS platform in residential installations. It mounts into standard 2- or 3-gang electrical boxes and serves as a fixed control interface for lighting, climate, shading, AV, and other home automation subsystems. Integrators use it to provide consistent room-level control access throughout a home.

Product Description

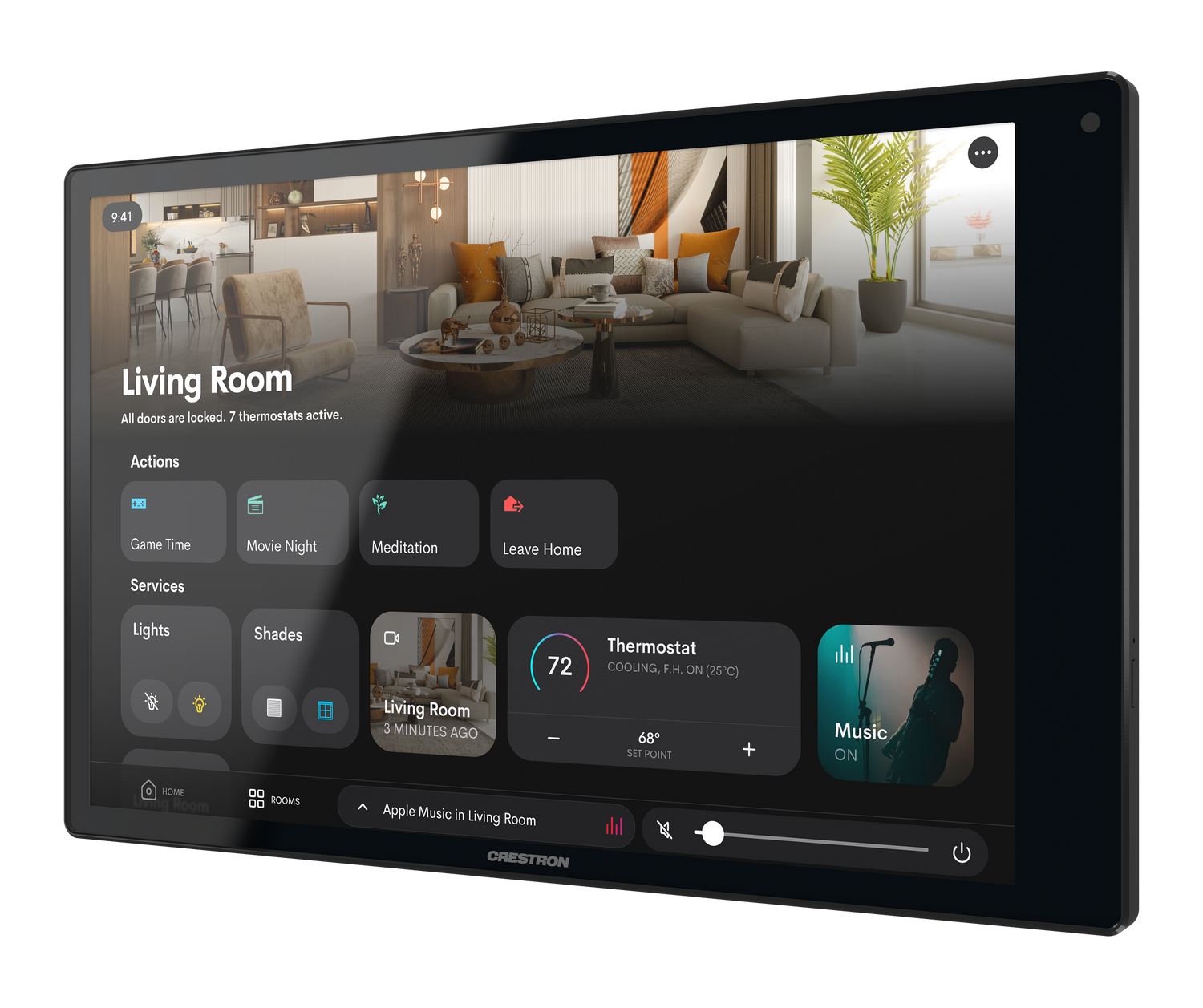

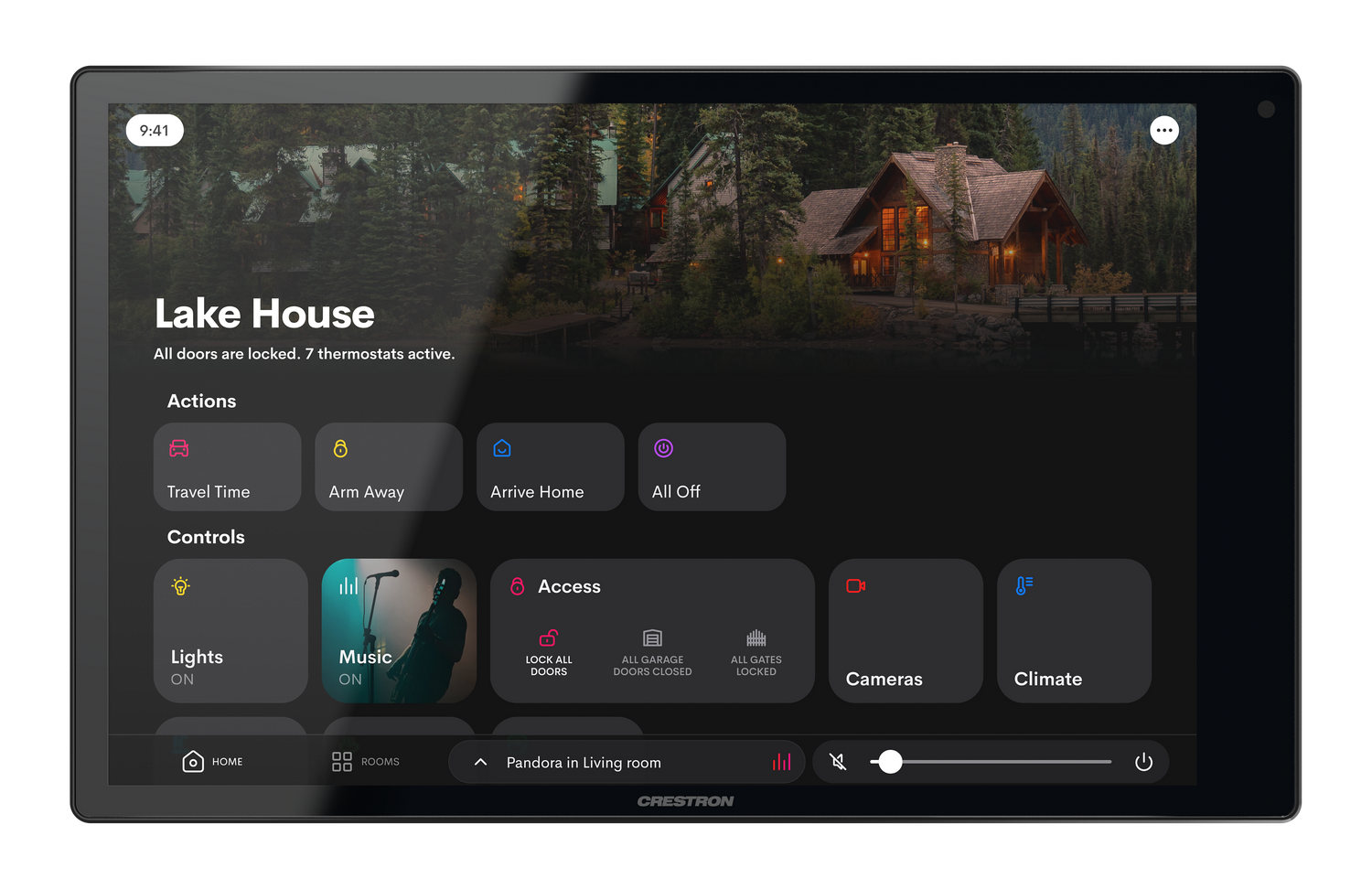

The TSW-1080R-B features a 1920x1200 WUXGA projected capacitive display in a low-profile wall mount form factor with a depth of 1.18 in. The device draws power via PoE+ over the same Ethernet cable used for data, eliminating separate power wiring. Wi-Fi 6E provides an alternative wireless network path when Ethernet is not available at the wall location. The built-in Rava SIP Intercom with microphone and speakers supports hands-free intercom and VoIP calling between rooms and door stations across the home.

Key Features

• 10.1 in. (257 mm) capacitive touch display, 1920x1200 WUXGA, 400 nits max brightness

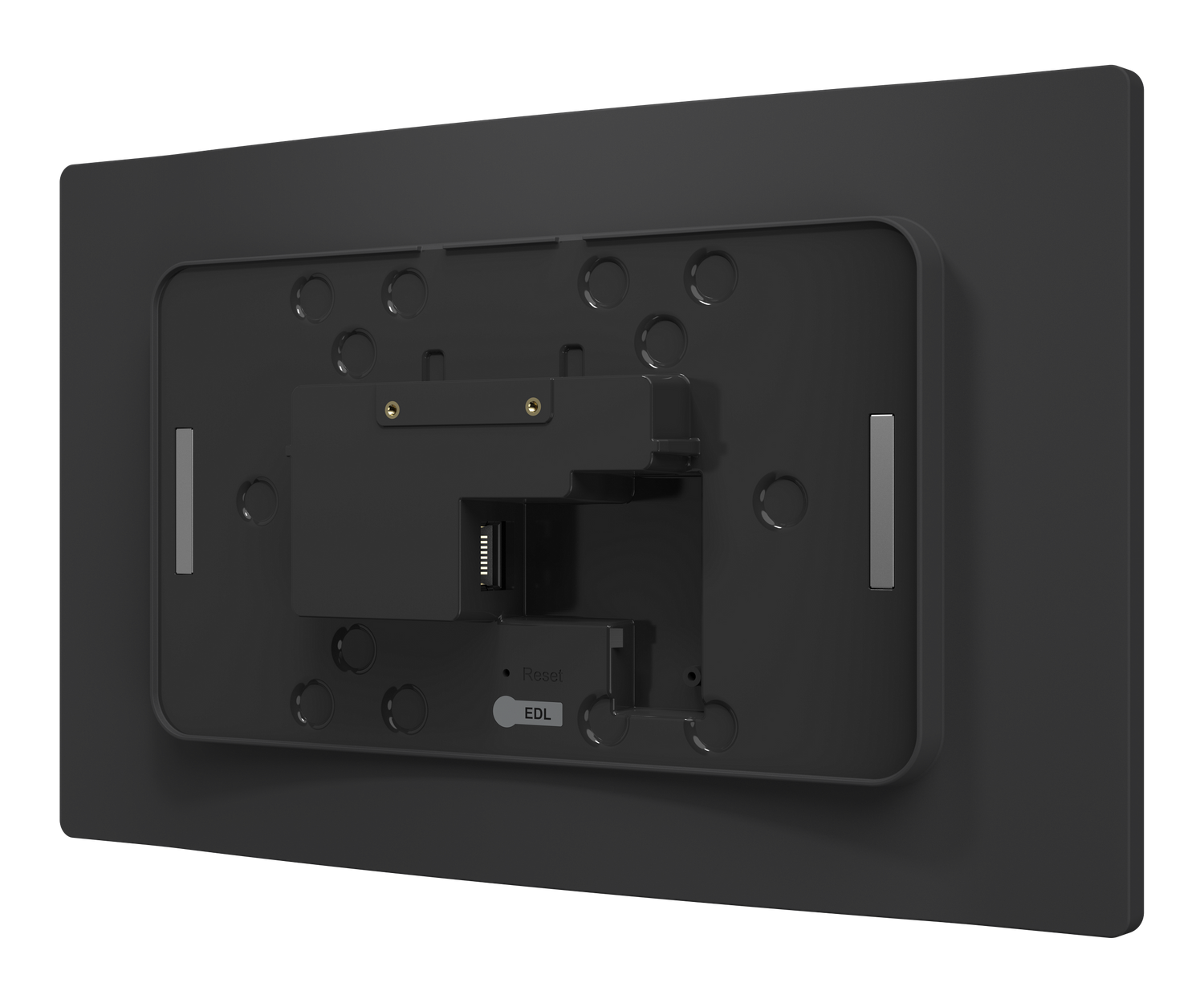

• Mounts in standard 2- or 3-gang US electrical box (1.375 in. minimum depth)
• Single Ethernet cable delivers data and PoE+ power (IEEE 802.3at Type 2, 30 W)
• Wi-Fi 6E (802.11a/b/g/n/ac/ax, 2.4/5/6 GHz, 2x2 MIMO) wireless connectivity
• Bluetooth 5.2/BLE
• Built-in Rava SIP Intercom with microphone and speakers
• H.265, H.264, MJPEG streaming video display from IP cameras (RTSP)
• 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage
• Enterprise-grade security: 802.1X, TLS, HTTPS, Active Directory integration
• Available in black or white finish

Typical Applications

• Room-level Crestron Home OS wall control panels in new construction and retrofit homes
• Lighting, climate, and shading control interfaces in living areas and bedrooms
• IP camera viewing stations integrated into wall control surfaces
• Whole-home intercom panels using Rava SIP Intercom technology
• Installations requiring a low-profile in-wall touch screen with no dedicated power run

Technical Specifications

• Model: TSW-1080R-B
• Display Size: 10.1 in. (257 mm) diagonal
• Resolution: 1920 x 1200 WUXGA (16:10)
• Display Type: TFT active matrix color LCD, projected capacitive 5-point multitouch
• Brightness: 350–400 nits
• Contrast Ratio: 1000:1
• Memory: 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage
• Ethernet: 1000 Mbps, IEEE 802.3at PoE+ PD, RJ-45
• Wi-Fi: IEEE 802.11a/b/g/n/ac/ax Wi-Fi 6E, 2.4/5/6 GHz, 2x2 MIMO
• Bluetooth: BLE, BT 5.2
• USB: USB-C 2.0 host
• Audio: Built-in microphone and speakers, Rava SIP Intercom
• Streaming: H.265, H.264, MJPEG; up to 3840x2160@30fps; RTSP
• Power: PoE+ IEEE 802.3at Type 2 (30 W Class 4)
• Heat Dissipation: 44 BTU/hr
• Operating Temperature: 32–104°F (0–40°C)
• Mounting: 2- or 3-gang US electrical box; 2-gang EU (DIN 49073); 2-gang UK (BS 4662); minimum 1.375 in. depth
• Dimensions: H 5.96 in. x W 9.68 in. x D 1.18 in. (151 x 246 x 30 mm)
• Weight: 1.21 lb (550 g)
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (US and Canada) / Intertek
• Finish: Smooth black

Frequently Asked Questions

Q: What electrical box does the TSW-1080R-B mount into?
A: The TSW-1080R-B mounts into a standard 2- or 3-gang US electrical box with a minimum depth of 1.375 in. It also supports 2-gang European (DIN 49073) and UK (BS 4662) boxes, making it suitable for international residential installations.

Q: Is the TSW-1080R-B the wall mount version of the TS-1080R-B tabletop model?
A: Yes. Both models run Crestron Home OS and share the same 10.1 in. 1920x1200 display and feature set. The TSW-1080R-B mounts flush to a wall via an electrical box, while the TS-1080R-B sits on a surface in a tabletop enclosure.

Q: Does the TSW-1080R-B support streaming video from security cameras?
A: Yes. The device supports H.265, H.264, and MJPEG video streams via RTSP at resolutions up to 3840x2160@30fps, allowing live IP camera feeds to appear directly on the touch screen interface.
