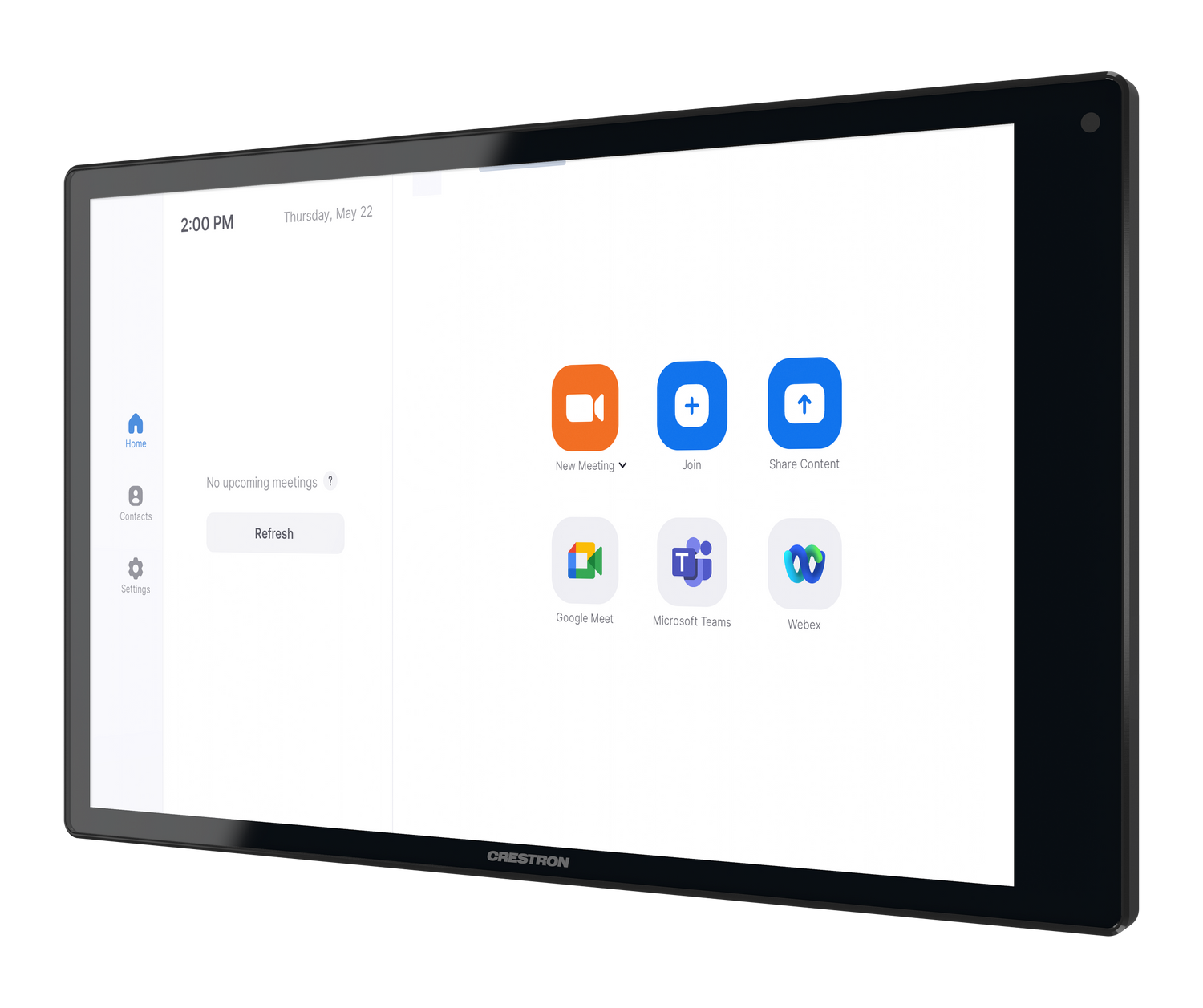

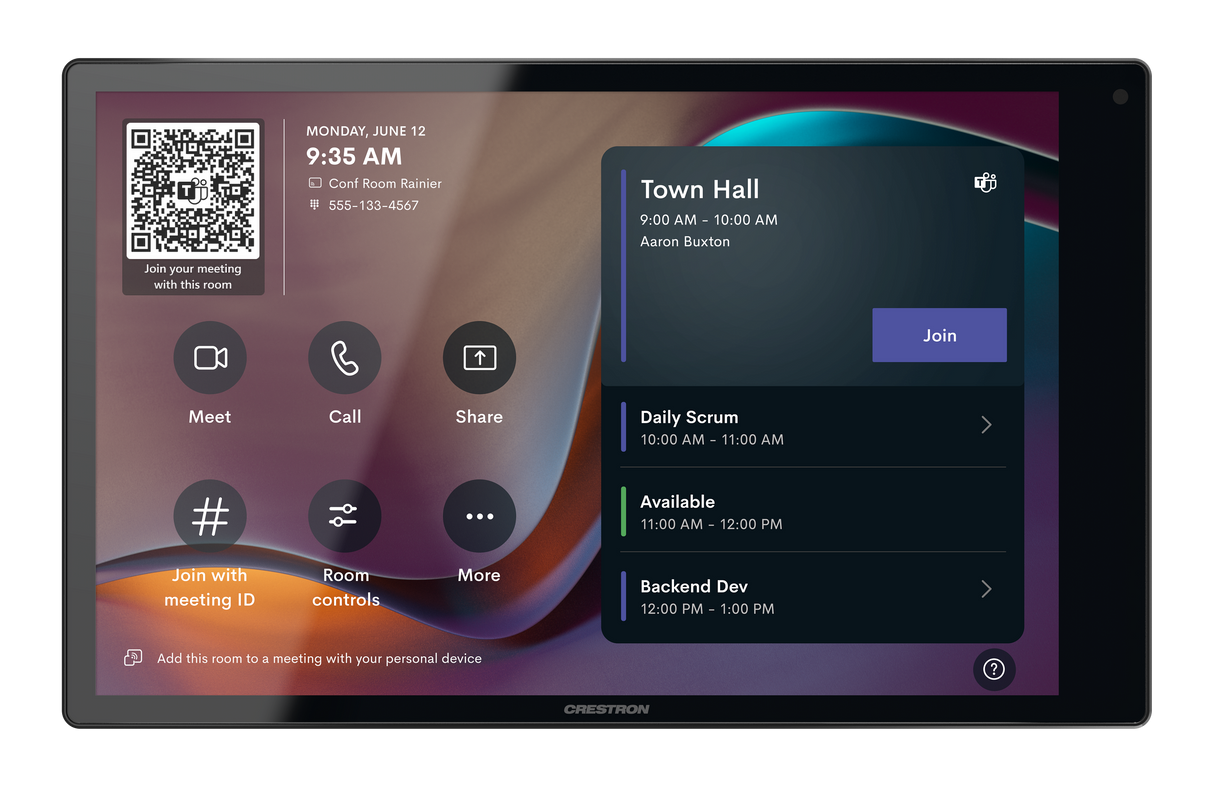

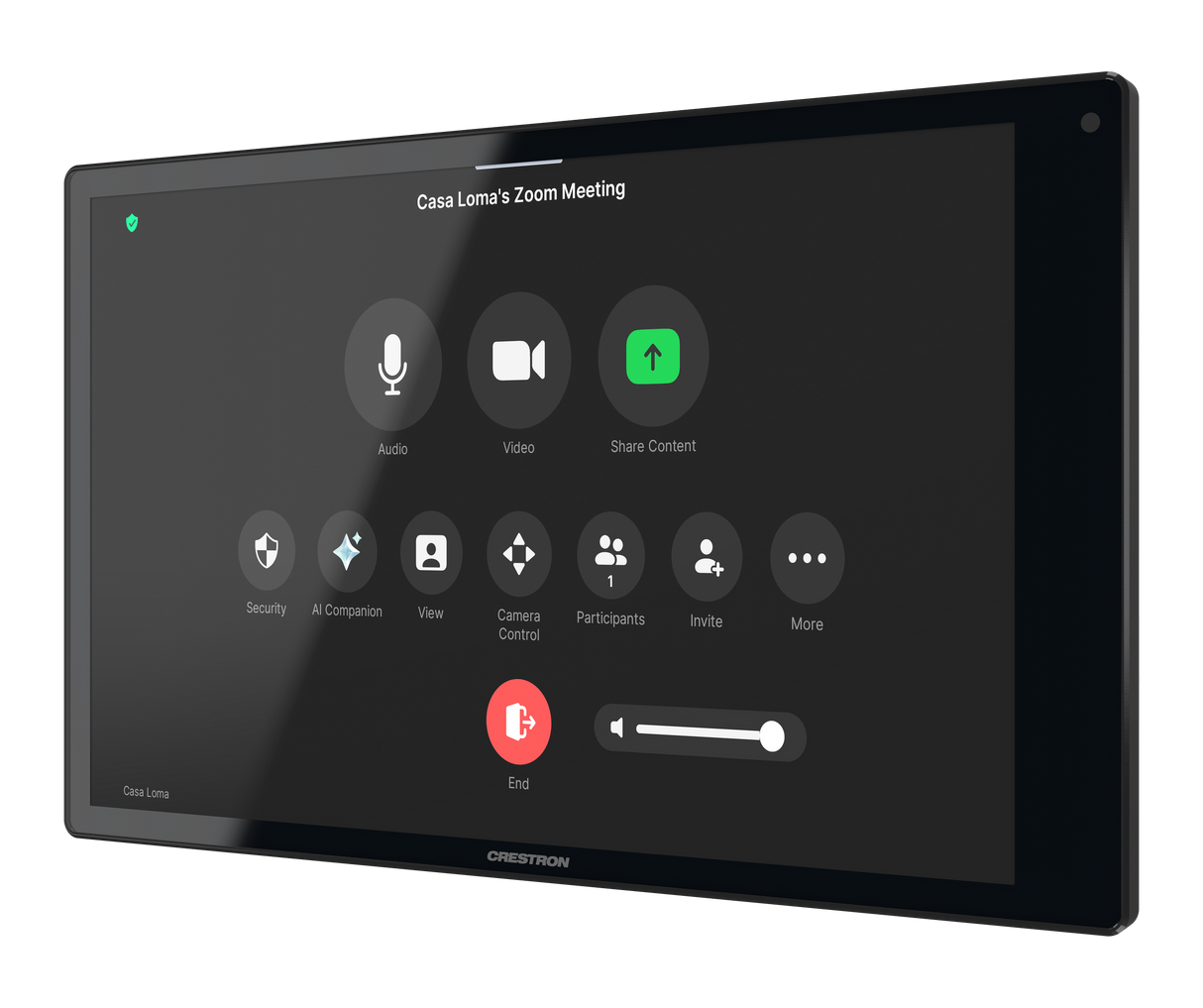

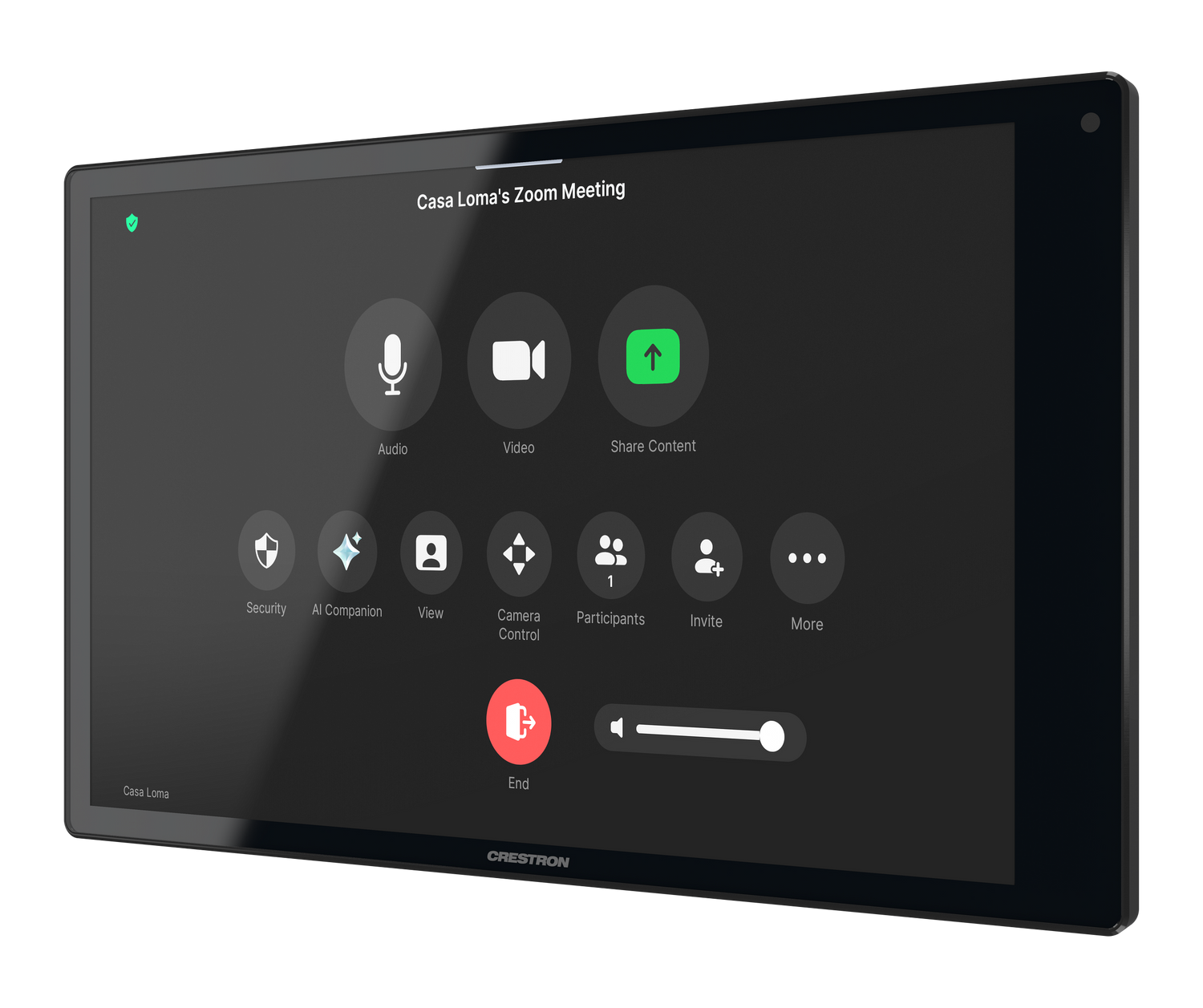

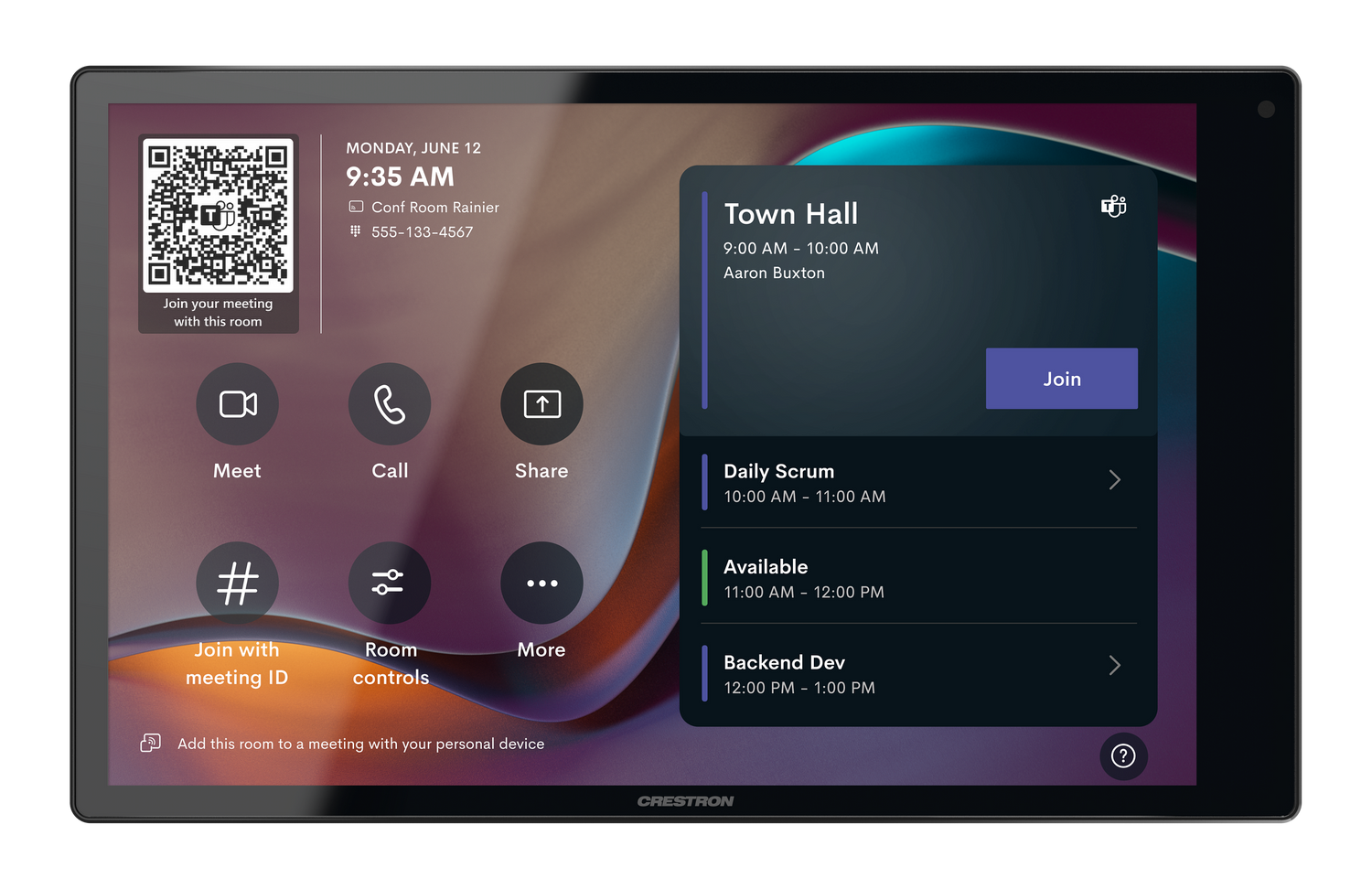

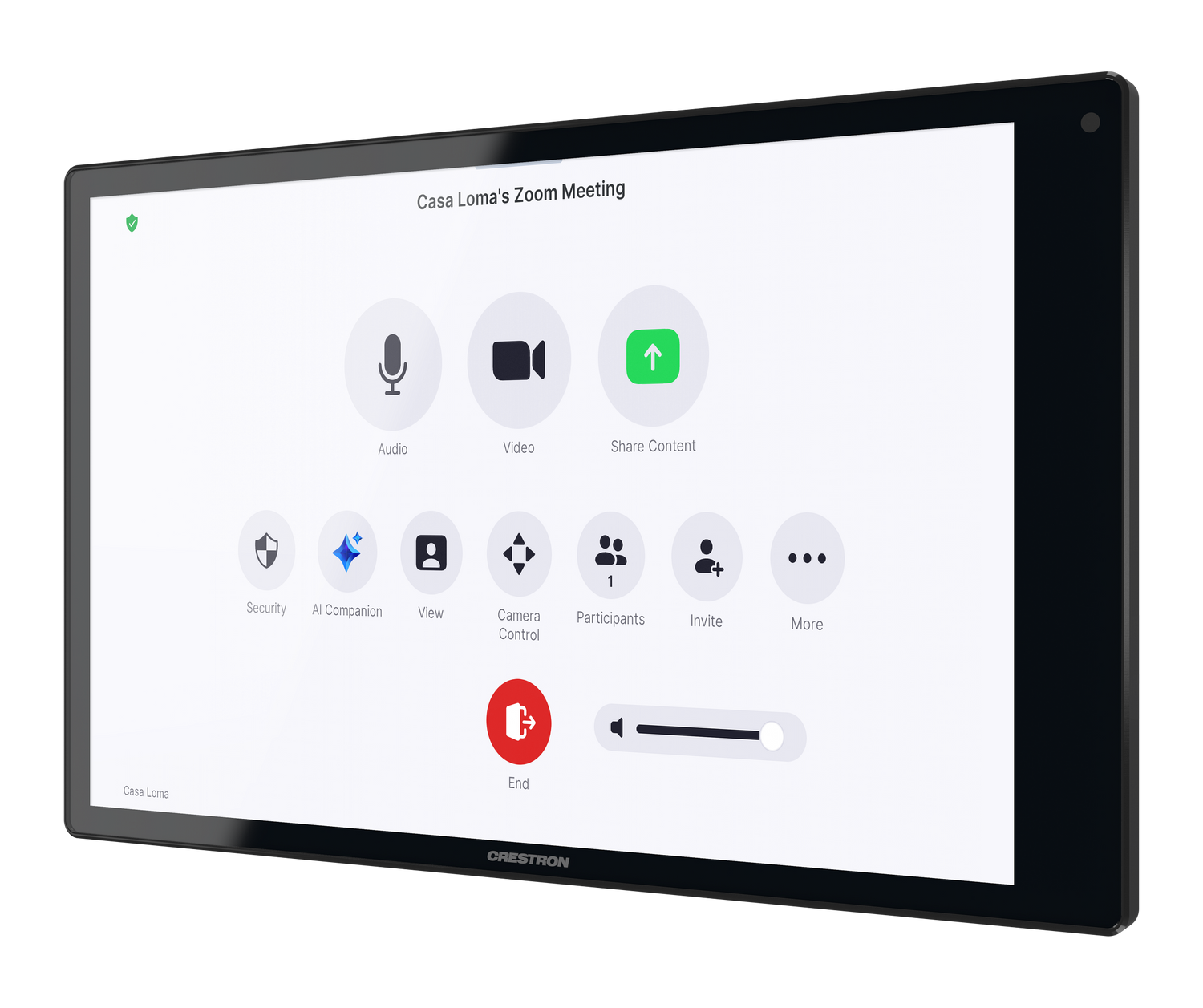

Crestron TSW-1080-UC-B – 10.1 in. Wall Mount Touch Screen, Unified Communications

Product Overview

The Crestron TSW-1080-UC-B is a 10.1 in. wall mount touch screen designed for unified communications (UC) deployments. It provides a dedicated room control interface for Microsoft Teams, Zoom, or other UC platforms when paired with Crestron Flex, AirMedia Series 3, or Collab Compute systems. It is appropriate for corporate conference rooms, huddle spaces, and collaboration areas requiring a wall-mounted touch control panel.

Product Description

The TSW-1080-UC-B features a 1920x1200 WUXGA display at 350-400 nits with projected capacitive 5-point multitouch and a 1000:1 contrast ratio. It connects via a single PoE+ CAT cable and is compatible with Crestron UC room systems including the Crestron Videobar 70, Collab Compute, and AirMedia Series 3. USB Type-C connectivity provides peripheral and data connectivity. The panel supports Crestron's XiO Cloud remote management platform for enterprise-scale deployment and monitoring.

Key Features

• 10.1 in. TFT active matrix LCD, 1920x1200 WUXGA, 16:10 aspect ratio, 350-400 nits, auto brightness
• Projected capacitive 5-point multitouch; 1000:1 contrast ratio; 24-bit color; ±80° viewing angle

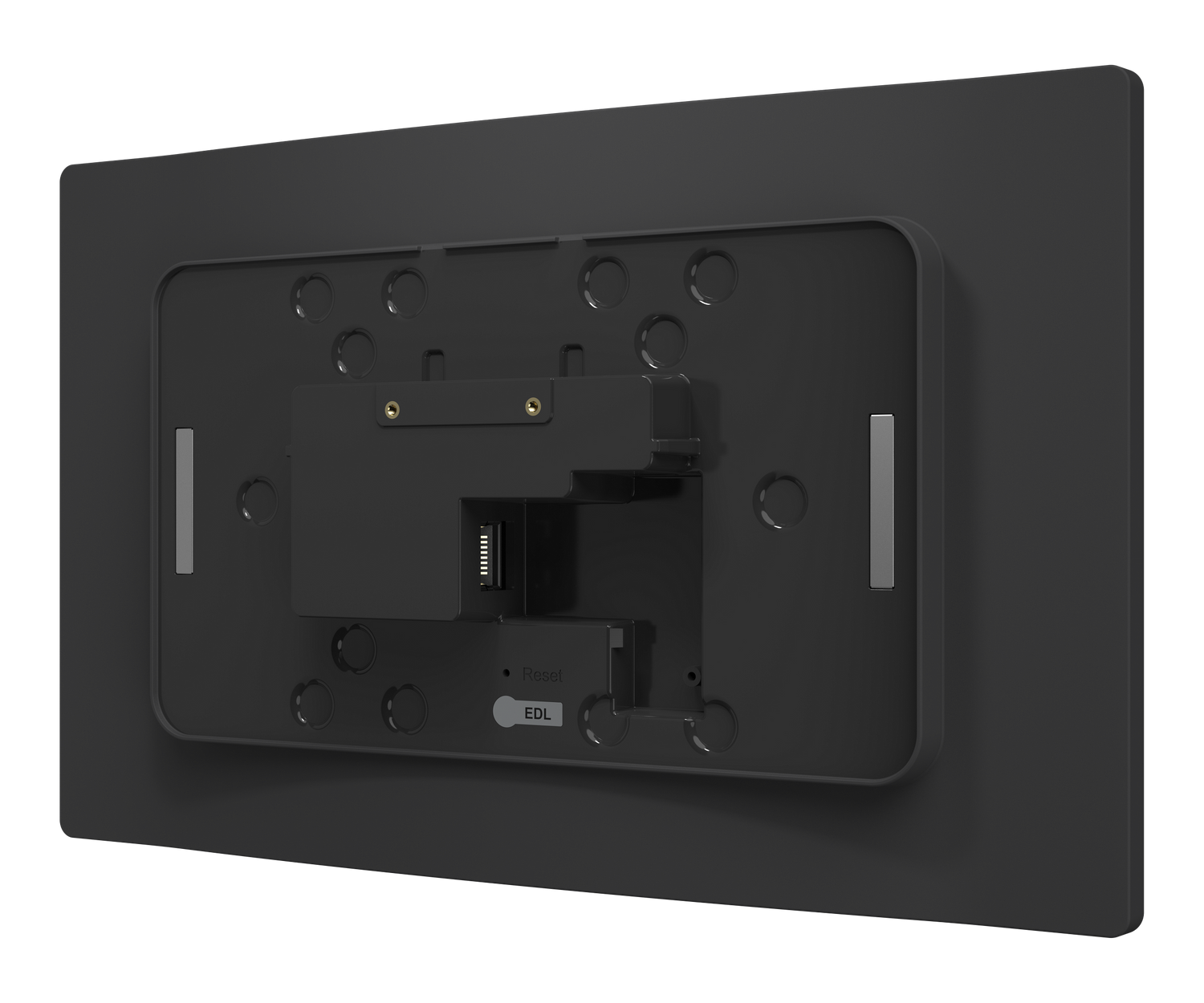

• Ultra-slim 1.18 in. (30 mm) depth for flush wall installation
• PoE+ (IEEE 802.3at Type 2, 30 W); requires 802.3at for USB port operation
• (1) USB Type-C for peripheral and data connectivity
• Compatible with Crestron Flex, Collab Compute, and AirMedia Series 3 UC systems
• XiO Cloud remote management support
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Typical Applications

• Wall-mounted room controller for Microsoft Teams Rooms or Zoom Rooms deployments
• Conference room AV and UC system control panel adjacent to the display
• Crestron Flex system touch interface for medium to large meeting rooms
• AirMedia Series 3 room control and wireless presentation management
• Enterprise campus standardized room control at scale with XiO Cloud management

Technical Specifications

• Model: TSW-1080-UC-B
• Weight: 19.4 oz (550 g)
• Dimensions (H x W x D): 5.96 in. x 9.68 in. x 1.18 in. (151 mm x 246 mm x 30 mm)
• Display Size: 10.1 in. (257 mm) diagonal
• Display Resolution: 1920 x 1200 (WUXGA, 16:10)
• Display Type: TFT active matrix LCD, edgelit LED, auto brightness; 350-400 nits; 1000:1 contrast; 24-bit color; ±80° H/V viewing angle
• Power: PoE+ IEEE 802.3at Type 2 (30 W); USB port requires 802.3at Type 2; IEEE 802.3af (15.4 W)
• Heat Dissipation: 44 BTU/hr
• Network: (1) RJ-45 PoE+ 1000 Mbps 802.3at
• USB: (1) USB Type-C
• Compatible UC Systems: Crestron Videobar 70, Collab Compute, AirMedia Series 3
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Humidity: 10 to 95% RH (non-condensing)
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Frequently Asked Questions

Q: What UC platforms does the TSW-1080-UC-B support?
A: The TSW-1080-UC-B is designed for use with Crestron Flex, Collab Compute, and AirMedia Series 3 systems running Microsoft Teams Rooms, Zoom Rooms, or similar UC platforms. It is not a standalone UC device.

Q: Does the TSW-1080-UC-B require 802.3at PoE+ or will standard 802.3af work?
A: 802.3at PoE+ (Type 2) is required when using the USB Type-C port. The panel can operate from 802.3af (15.4 W) without USB peripheral support.

Q: Can the TSW-1080-UC-B be managed remotely?
A: Yes. The TSW-1080-UC-B supports Crestron XiO Cloud for remote provisioning, monitoring, and management across enterprise deployments.
