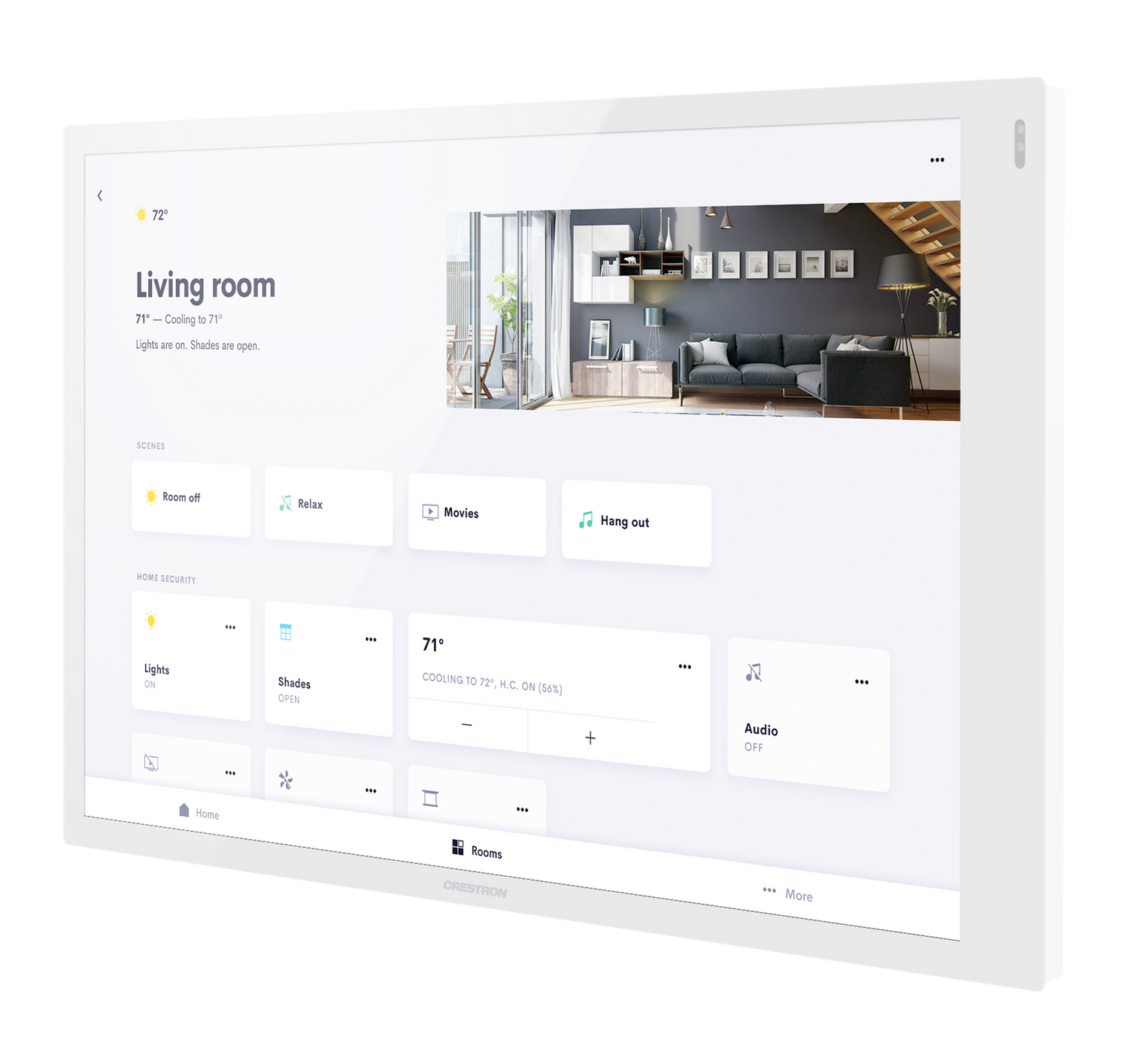

Crestron TSW-1070R-W – 10.1 in. Wall Mount Touch Screen for Crestron Home OS, White

Product Overview

The Crestron TSW-1070R-W is a 10.1 in. wall mount touch screen designed for Crestron Home OS residential automation deployments. It provides an in-wall control interface for lighting, shades, climate, AV, and security with a relatively low-profile enclosure depth suited for standard wall boxes. The unit is PoE+ powered over a single CAT cable, making it a practical choice for both new construction and retrofit residential projects.

Product Description

The TSW-1070R-W features a 1920x1200 WUXGA display at 400 nits brightness with projected capacitive 5-point multitouch for responsive control. It connects at 100 Mbps over a PoE+ (802.3at) CAT cable and includes two USB Type-A ports for local USB peripheral connectivity. Wi-Fi 802.11ac (dual-band 2.4/5 GHz) provides wireless network access. This panel is a predecessor generation to the TSW-1080R series, with a slightly deeper wall box profile and USB Type-A ports instead of Type-C.

Key Features

• 10.1 in. TFT active matrix LCD, 1920x1200 WUXGA resolution, 16:10 aspect ratio, 400 nits
• Projected capacitive 5-point multitouch with edgelit LED backlight
• PoE+ (IEEE 802.3at) single-cable power and data; 802.3af compatible at 15.4 W
• Wi-Fi 802.11a/b/g/n/ac dual-band 2.4/5 GHz 2x2 MIMO
• (2) USB 2.0 Type-A host ports for local peripherals
• Crestron Home OS native interface for residential automation
• H.265/H.264/MJPEG video streaming via RTSP (up to 1920x1080@30fps)
• Certifications: CE, IC, FCC Part 15 Class B

Typical Applications

• Crestron Home OS wall control panel in bedrooms, hallways, and living spaces
• Lighting and climate control touch point in residential environments
• In-wall AV source selection and volume control
• Multi-zone shade and lighting control in estate or custom home installations
• Retrofit residential projects requiring wall-mount PoE touch control

Technical Specifications

• Model: TSW-1070R-W
• Weight: 1.61 lb (730 g)
• Dimensions (H x W x D): 5.87 in. x 9.46 in. x 2.01 in. (149 mm x 240 mm x 51 mm) without mounting bracket
• Display Size: 10.1 in. (257 mm) diagonal
• Display Resolution: 1920 x 1200 (WUXGA, 16:10)
• Display Type: TFT active matrix LCD, edgelit LED, projected capacitive 5-point multitouch; 400 nits; 1000:1 contrast; 24-bit color
• Power: PoE+ IEEE 802.3at; 15 W typical with LLDP; 15.4 W from 802.3af
• Heat Dissipation: 44 BTU/hr
• Network: (1) RJ-45 100BASE-TX PoE+
• Wireless: Wi-Fi 802.11a/b/g/n/ac 2.4/5 GHz 2x2 MIMO
• USB: (2) USB 2.0 Type-A host ports
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: CE, IC, FCC Part 15 Class B

Frequently Asked Questions

Q: How does the TSW-1070R-W differ from the TSW-1080R-W?
A: The TSW-1080R-W is the newer generation with Gigabit Ethernet, Wi-Fi 6E, USB Type-C, and Bluetooth 5.2. The TSW-1070R-W uses 100 Mbps Ethernet, Wi-Fi 5 (802.11ac), two USB Type-A ports, and no Bluetooth. Both run Crestron Home OS.

Q: Does the TSW-1070R-W support Crestron commercial programming?
A: No. The TSW-1070R-W is a Crestron Home OS device. For commercial touch screen deployments, the TSW-770 or TSW-1070 (without the R suffix) are the appropriate commercial versions.

Q: What PoE specification is required to power the TSW-1070R-W?
A: The TSW-1070R-W requires IEEE 802.3at (PoE+) for full operation. It will also operate from an 802.3af (15.4 W) source at reduced performance when LLDP power negotiation is used.
