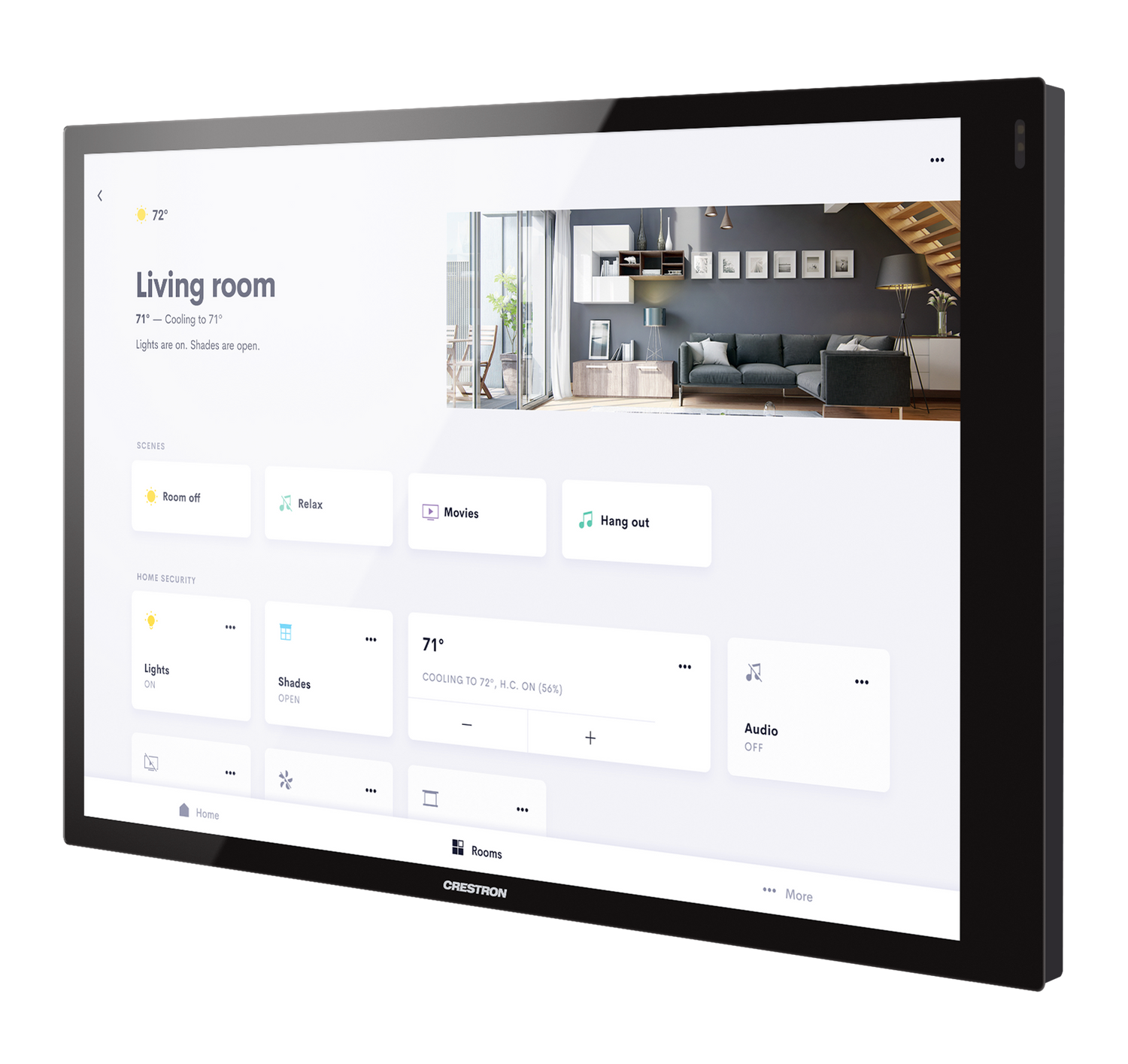

Crestron TSW-1070R-B – 10.1 in. Wall Mount Touch Screen, Black

Product Overview

The Crestron TSW-1070R-B is a 10.1 in. wall mount touch screen designed for residential Crestron Home OS deployments. It runs the Crestron Home app natively and integrates with lighting, shading, climate, audio/video, and security systems in high-end residential and MDU (multi-dwelling unit) installations. The -R designation indicates the panel is optimized for Crestron Home OS residential control.

Product Description

The TSW-1070R-B features a 1280 x 800 WXGA IPS display and mounts in a standard 4-gang electrical wall box. It connects via Gigabit Ethernet with PoE+ for single-cable installation. The panel supports Rava SIP Intercom for two-way voice communication with door stations and other Rava-enabled devices throughout the home. It runs on the same Android-based platform as other TSW-series panels, delivering a consistent user experience across screen sizes in a whole-home Crestron system.

Key Features

• 10.1 in. (256 mm) IPS display, 1280 x 800 WXGA at up to 400 nits
• Native Crestron Home OS app for residential whole-home control
• Rava SIP Intercom with far-field microphone and full-duplex speakers
• Gigabit Ethernet with PoE+ (IEEE 802.3at) — single-cable installation
• Wi-Fi 6E (802.11ax, 2.4/5/6 GHz) for flexible placement
• Proximity sensor for automatic wake-on-approach
• XiO Cloud provisioning and remote management
• 4-gang electrical wall box mount, Black finish

Typical Applications

• Whole-home Crestron Home OS control panels in high-end residential installations
• MDU common area and in-unit AV and building system control
• Primary room control for lighting, shading, climate, and A/V
• Front door and gate intercom stations via Rava SIP
• Residential integrator deployments requiring standardized touch screen form factors

Technical Specifications

• Model: TSW-1070R-B
• SKU: TSW-1070R-B
• Display: 10.1 in. (256 mm) IPS, 1280 x 800 WXGA, up to 400 nits
• Touch: Projected capacitive, 5-point multitouch
• Network: 1000 Mbps Ethernet, PoE+ (IEEE 802.3at Type 2)
• Wi-Fi: 802.11a/b/g/n/ac/ax Wi-Fi 6E (2.4, 5, 6 GHz)
• Bluetooth: BLE, BT5.2
• Weight: 1.61 lb (730 g)
• Mounting: 4-gang electrical wall box
• Finish: Black
• Operating Temperature: 32–104°F (0–40°C)
• Compliance: FCC Part 15 Class B, IC Class B, CE, UL/Intertek Listed

Frequently Asked Questions

Q: What is the difference between the TSW-1070R-B and the standard TSW-1070-B?
A: The TSW-1070R-B (“R” for Residential) runs the Crestron Home OS app natively and is optimized for residential deployments. The standard TSW-1070-B supports custom HTML5 programming and commercial applications in addition to Crestron Home. For pure residential Crestron Home installs, the R variant is the appropriate choice.

Q: Does the TSW-1070R-B require a separate PoE injector?
A: The panel requires PoE+ (IEEE 802.3at Type 2). A PoE+ capable switch or a separate PoE+ injector is required. Standard PoE (802.3af) does not supply sufficient power for this panel.

Q: Can the TSW-1070R-B be installed without Ethernet using Wi-Fi only?
A: The TSW-1070R-B supports Wi-Fi 6E and can operate over wireless, but PoE+ via Ethernet is the recommended installation method for reliability in production residential deployments. If Wi-Fi only is used, a separate 12V DC power supply is required.
