Crestron TSW-1070-LB-W-S – 10.1 In. Touch Screen with Light Bar, White Smooth

Product Overview

The Crestron TSW-1070-LB-W-S is a 10.1-inch touch screen bundled with the Crestron Light Bar accessory, in white smooth finish with surface-mount installation. The TSW-1070 features a 1920×1200 WUXGA display with 5-point projected capacitive multitouch, 2 GB RAM, 16 GB storage, and built-in 802.11ac Wi-Fi. It runs Crestron’s HTML5 environment and supports native Microsoft Teams Rooms, Zoom Rooms, and Crestron Home OS applications, making it suited for both control and room scheduling deployments.

Product Description

The TSW-1070 touch screen is Crestron’s 10-inch platform for conference room control and scheduling. Powered by PoE+ (IEEE 802.3at), it requires only a single network cable for data, power, and control, simplifying installation in conference rooms and collaborative spaces. The WUXGA 16:10 display delivers sharp graphics at 400 nits with 1000:1 contrast ratio and ±80° viewing angle, maintaining readability across wide seating arrangements. The bundled Light Bar accessory provides an additional visual presence indicator — useful for room availability signaling at the door. Built-in microphone and speakers support Rava SIP Intercom and voice recognition, enabling hands-free operation. Crestron Fusion scheduling integration works with Microsoft Exchange/O365, Google Calendar, CollegeNET 25Live, and Ad Astra. Two USB-A 2.0 ports support connected USB peripherals. The white smooth finish with edge-to-edge glass suits modern commercial interiors. Additional TSW-1070 variants and accessories are available at creationnetworks.net.

Key Features

• 10.1 in. TFT LCD, 1920×1200 WUXGA, 16:10, 400 nits, 1000:1 contrast, 5-point projected capacitive multitouch
• 2 GB LPDDR3 RAM; 16 GB eMMC storage; max project size 600 MB
• 100 Mbps PoE+ Ethernet (IEEE 802.3at); 802.11a/b/g/n/ac Wi-Fi 2.4/5 GHz; Bluetooth beacon
• (2) USB-A 2.0 host ports
• Built-in microphone and speakers; Rava SIP Intercom; voice recognition
• Native Microsoft Teams Rooms, Zoom Rooms, and Crestron Home OS application support
• Crestron Fusion scheduling: Exchange/O365, Google Calendar, CollegeNET 25Live, Ad Astra
• H.265/H.264 video streaming up to 1920×1080@30fps
• Bundled with Crestron Light Bar accessory
• White smooth finish; edge-to-edge glass; surface-mount installation

Typical Applications

• Conference room and meeting space touch-screen control panels
• Room scheduling panels at conference room entry points (with Light Bar for status indication)
• Microsoft Teams Rooms and Zoom Rooms scheduling and control
• Corporate and university AV control systems
• Crestron Home OS touch screen interfaces

Technical Specifications

• Display: 10.1 in. TFT active matrix LCD; 16:10 WUXGA; 1920×1200 px; 400 nits; 1000:1 contrast; 24-bit color; edgelit LED; auto brightness; ±80° viewing angle
• Touch: 5-point projected capacitive multitouch
• RAM: 2 GB LPDDR3
• Storage: 16 GB eMMC; max project 600 MB
• Wired Network: 100 Mbps Ethernet, PoE+ IEEE 802.3at; (2) USB-A 2.0 host
• Wireless: 802.11a/b/g/n/ac Wi-Fi, 2.4/5 GHz, WPA2; Bluetooth beacon
• Power: PoE+ IEEE 802.3at; normal ~15W; with room scheduling + USB ~18W; without LLDP ~30W
• Audio: Built-in mic and speakers; Rava SIP Intercom; voice recognition
• Video Streaming: H.265/H.264, up to 25 Mbps, RTSP; up to 1920×1080@30fps
• Height: 5.87 in. (149 mm)
• Width: 9.46 in. (240 mm)
• Depth: 2.01 in. (51 mm)
• Weight: 1.61 lb (730 g)
• Finish: White smooth plastic; edge-to-edge glass
• Mounting: 2–3 gang US box, 2-gang EU/UK box, or lectern cutout; 1-3/8 in. min depth
• Protocols: TCP/IP, DHCP, SSL, TLS, SSH, SFTP, SNMP, IPv4/IPv6, 802.1X
• Compliance: IC, CE, FCC Part 15 Class B; Regulatory Model M201923003
• Includes: Light Bar accessory

FAQs

Does the TSW-1070-LB-W-S require a separate power supply?

No. The touch screen is powered via PoE+ (IEEE 802.3at) over the Ethernet connection. A PoE+ capable switch or injector is required; neither is included.

What is the Light Bar accessory included in this bundle?

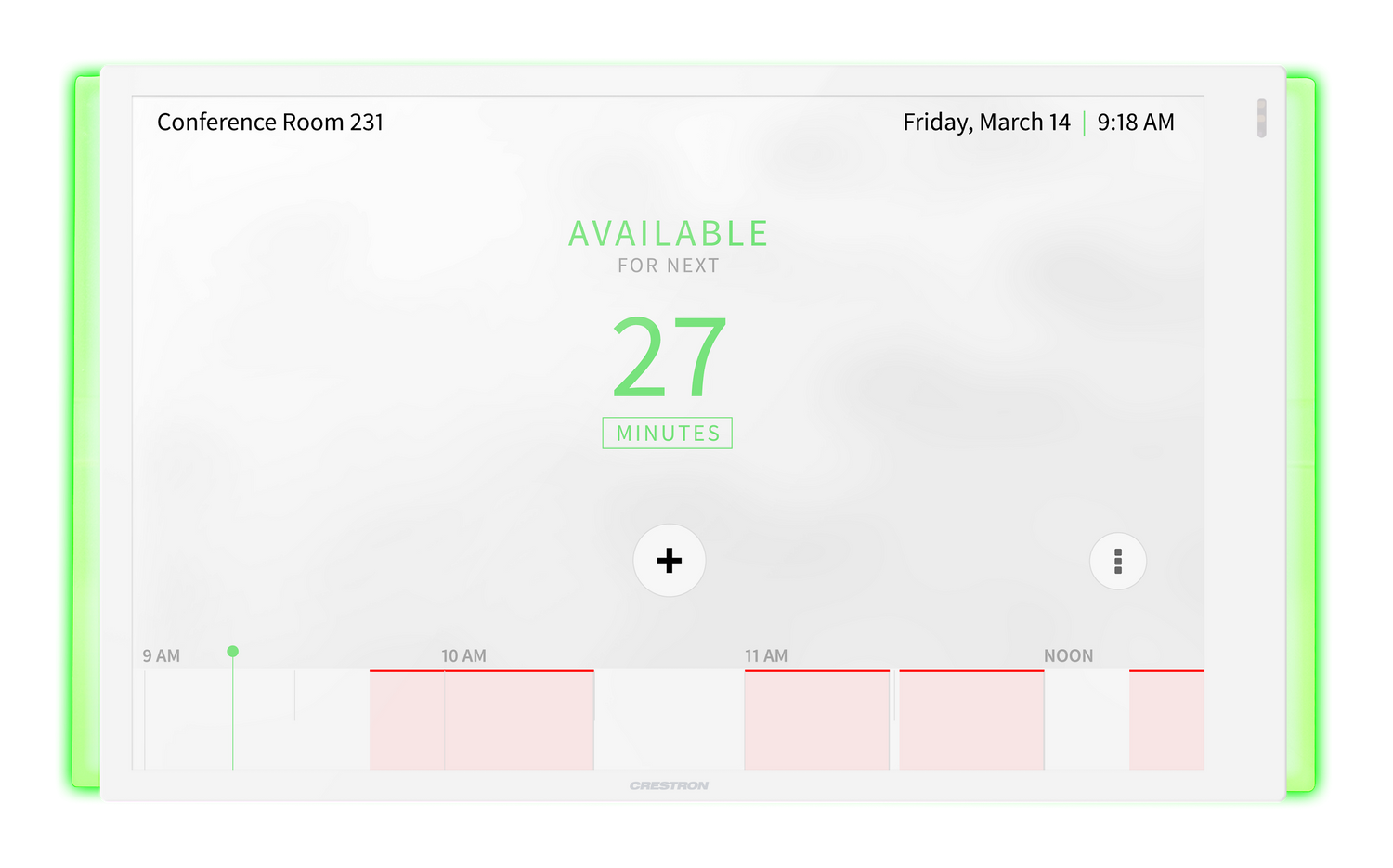

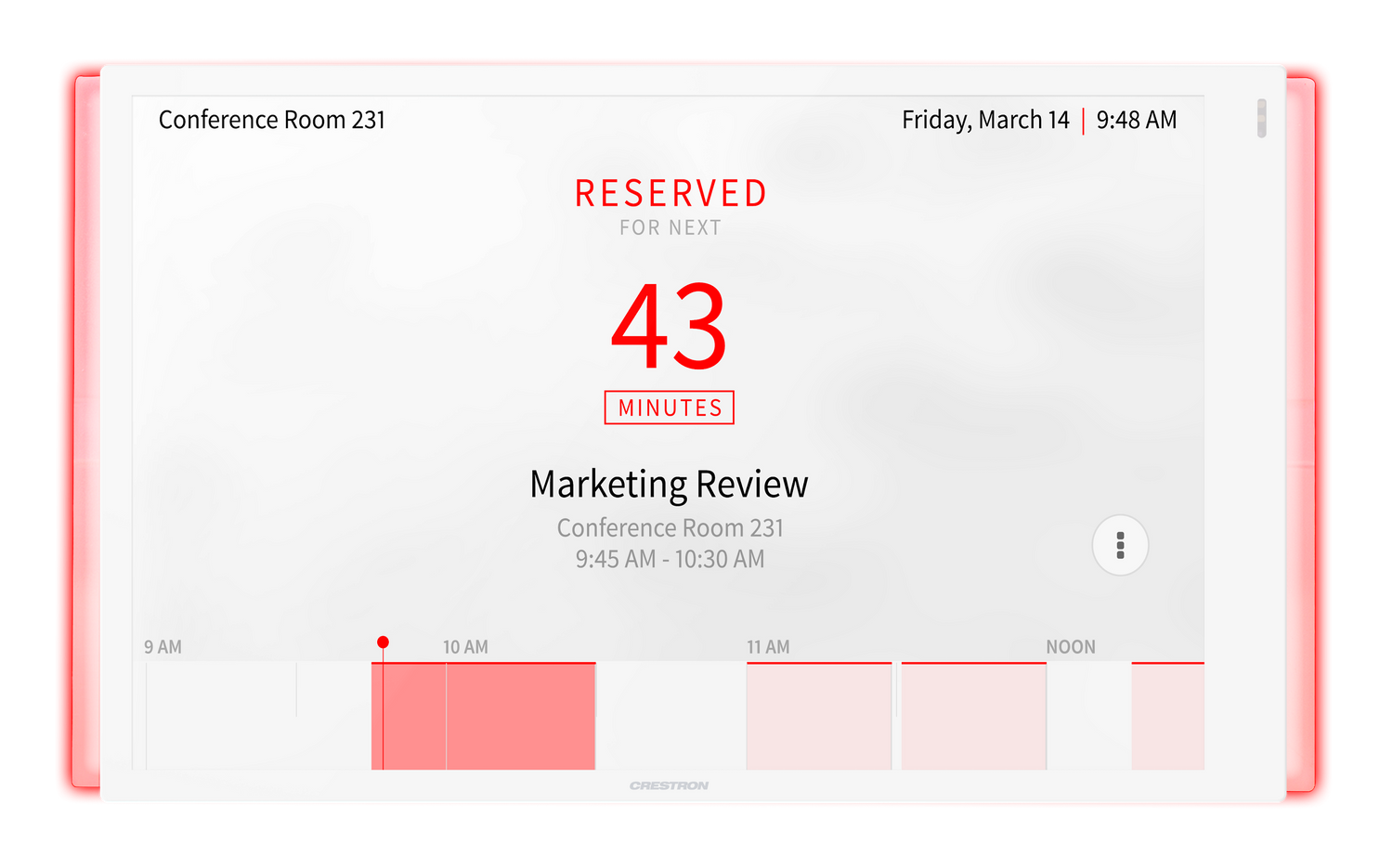

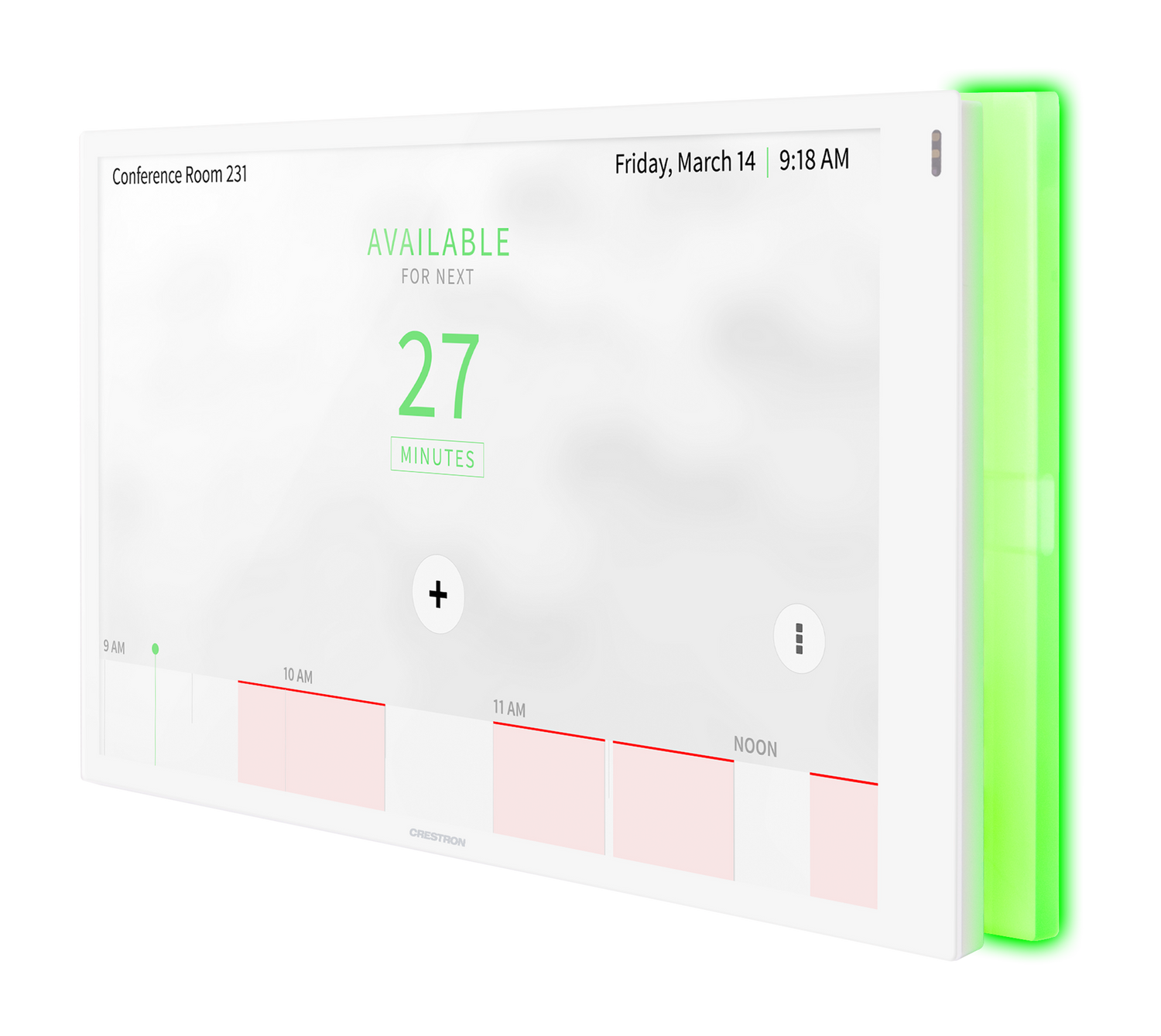

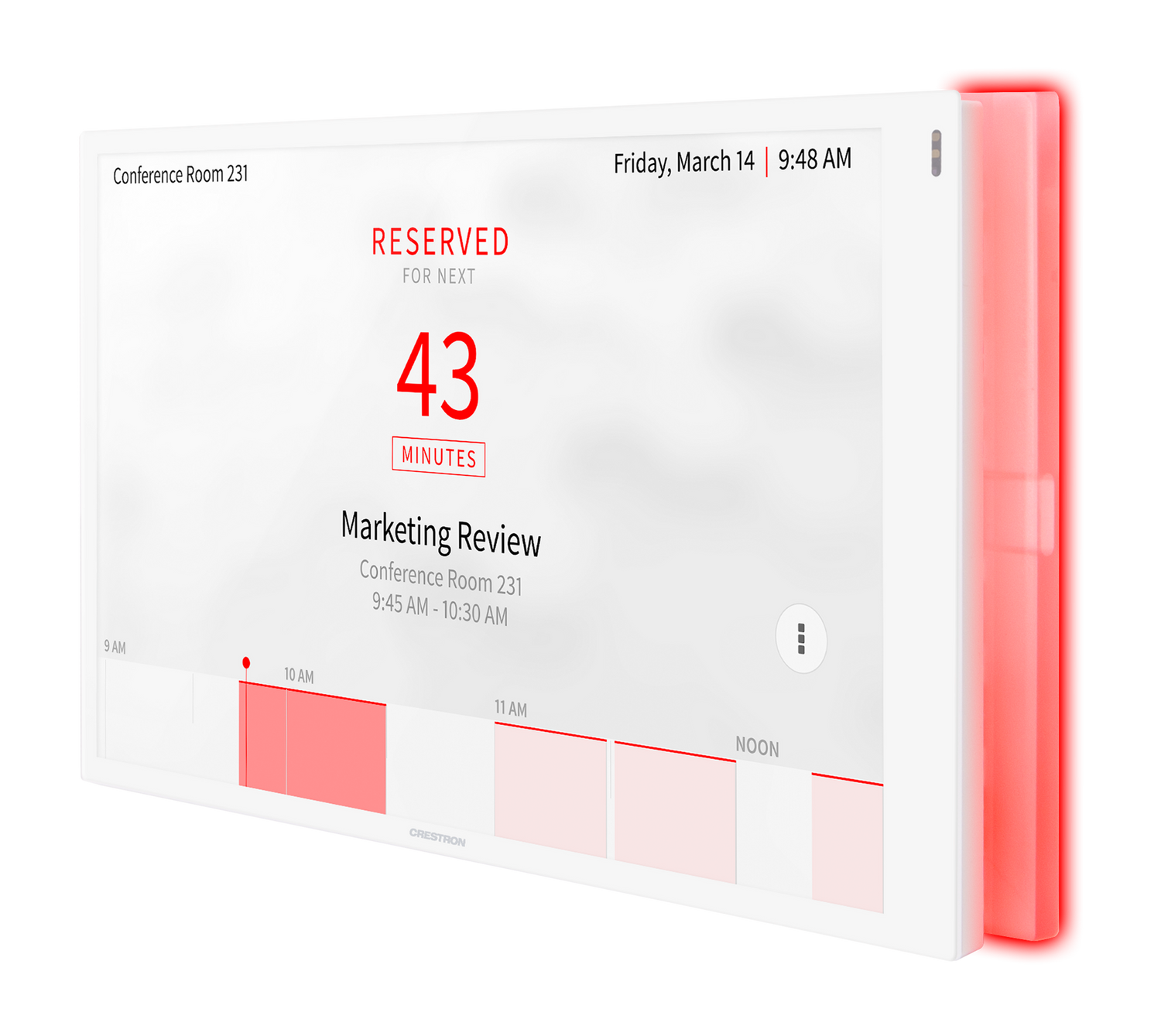

The Crestron Light Bar is a visual room availability indicator that mounts alongside the touch screen. It displays colored light to indicate room status — available, occupied, or reserved — visible from down the corridor.

Does this touch screen support Microsoft Teams Rooms natively?

Yes. The TSW-1070 supports the native Microsoft Teams Rooms scheduling application, as well as Zoom Rooms and Crestron Home OS.

What room scheduling platforms are supported?

The TSW-1070 integrates with Crestron Fusion On-Premises, Microsoft Exchange/O365, Google Calendar, CollegeNET 25Live, and Ad Astra for room scheduling.

Where can I purchase this touch screen?

The TSW-1070-LB-W-S is available from Creation Networks at creationnetworks.net.
