Available July 14th, 2023

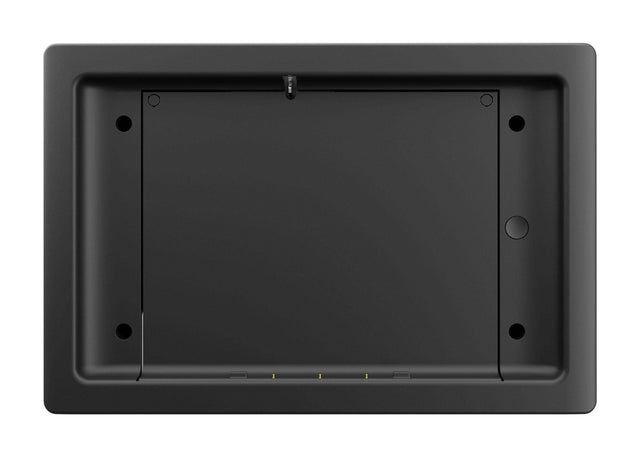

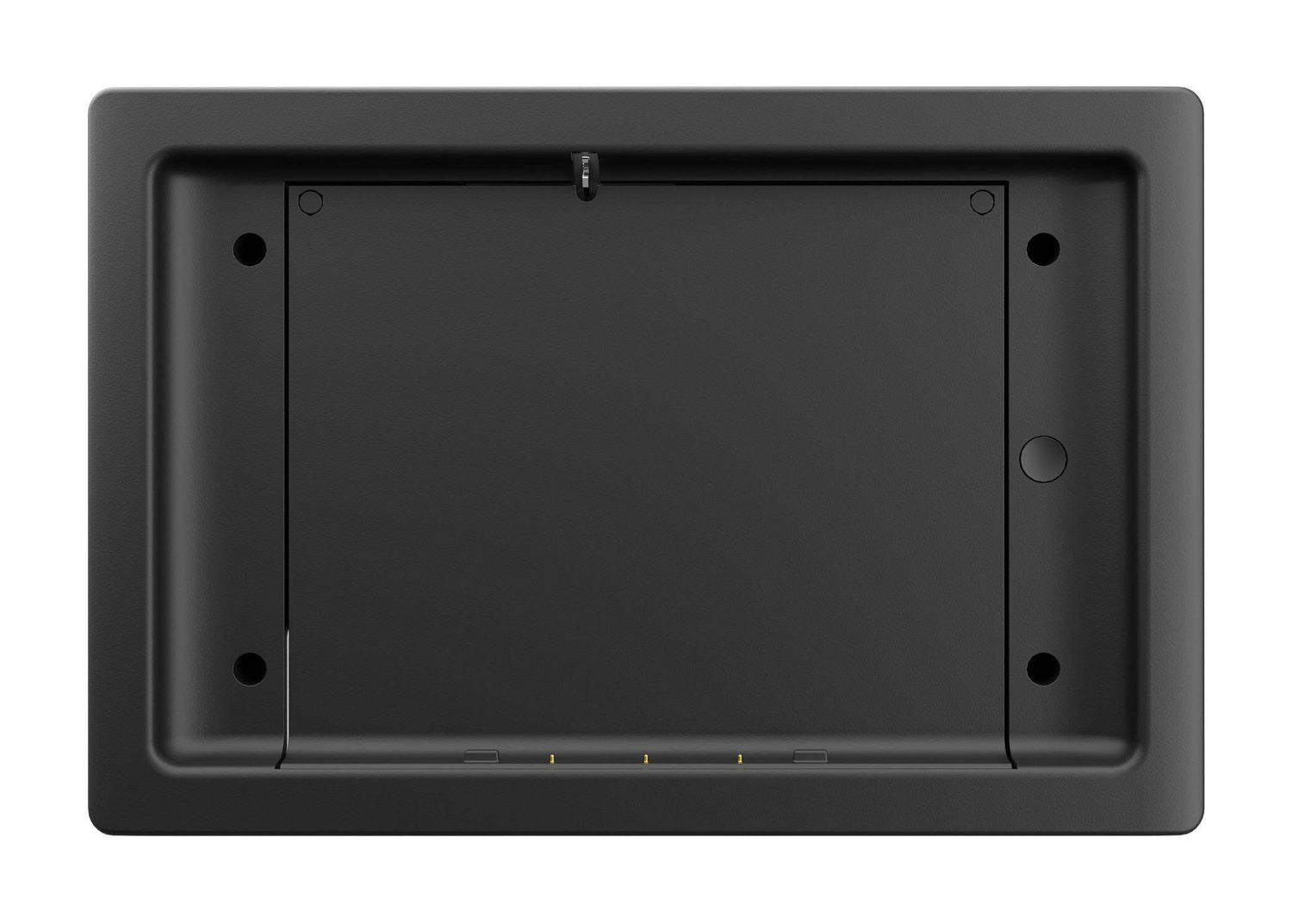

The TST‑1080‑DSW is an optional wall dock for the TST‑1080 wireless touch screen. Placing the TST‑1080 into the wall dock allows it to be used as a stationary touch screen while simultaneously charging its internal battery.

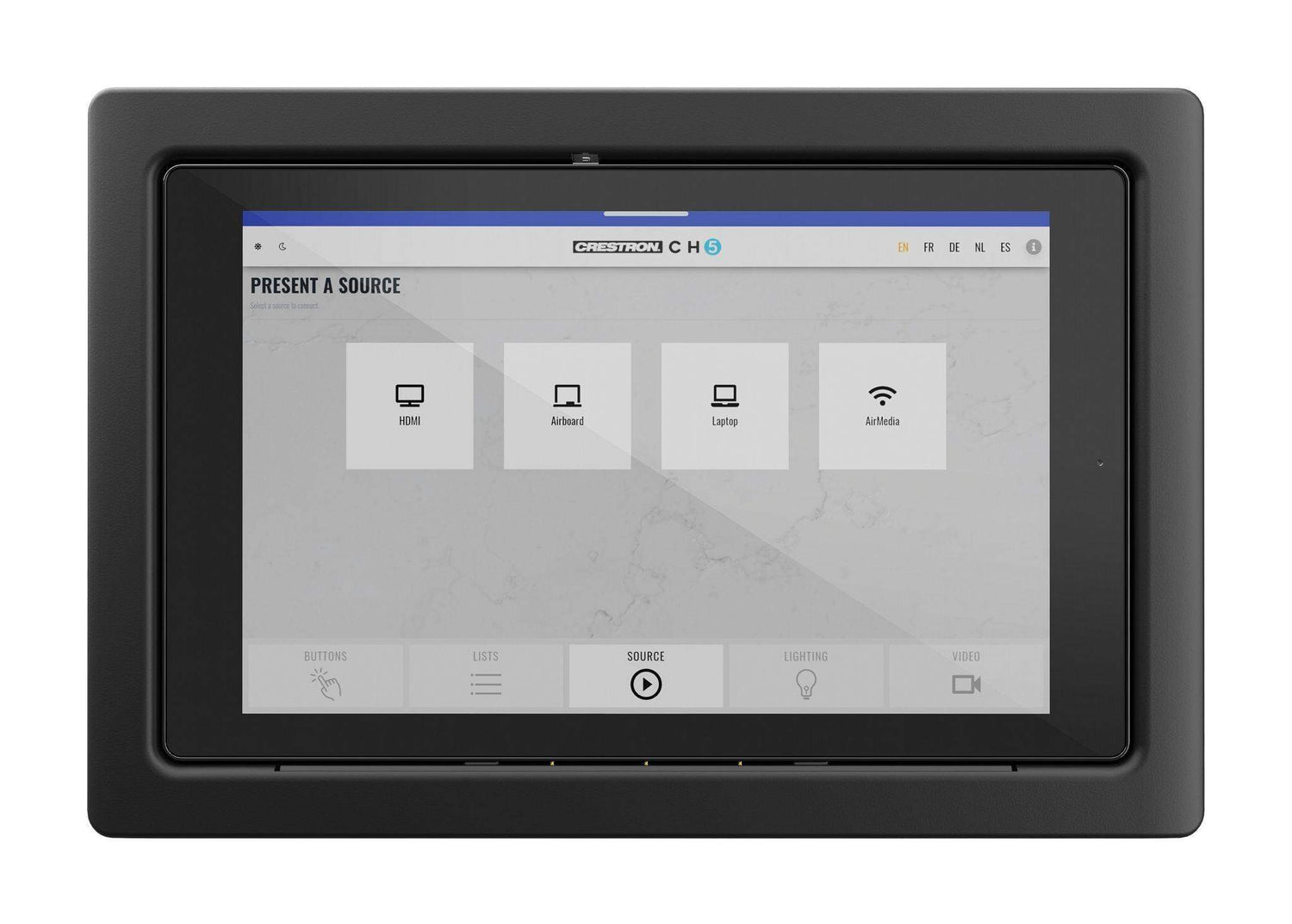

When docked in the TST‑1080‑DSW, the touch screen sits nearly flush with the outer bezel, affording a clean appearance while preventing unauthorized removal. By entering a pass code or pressing a button on the touch screen, the mechanism gently tilts the touch screen outward, allowing it to be released for wireless use. A hardware key is included to release the touch screen in the event of a power outage.
The TST‑1080‑DSW is designed for flush‑mount installation in a flat, vertical wall structure.1 Installation of the wall dock requires additional hardware (not included):
- The TST‑902‑DSW‑BB and TST‑902‑DSW‑BBI back boxes are available for both framed and masonry construction.
- The TST‑902‑DSW‑PMK, TST‑902‑DSW‑WMKM, and TST‑902‑DSW‑WMKT mounting kits are available for preconstruction and postconstruction applications that do not require a back box.
Specifications
Connectors | |

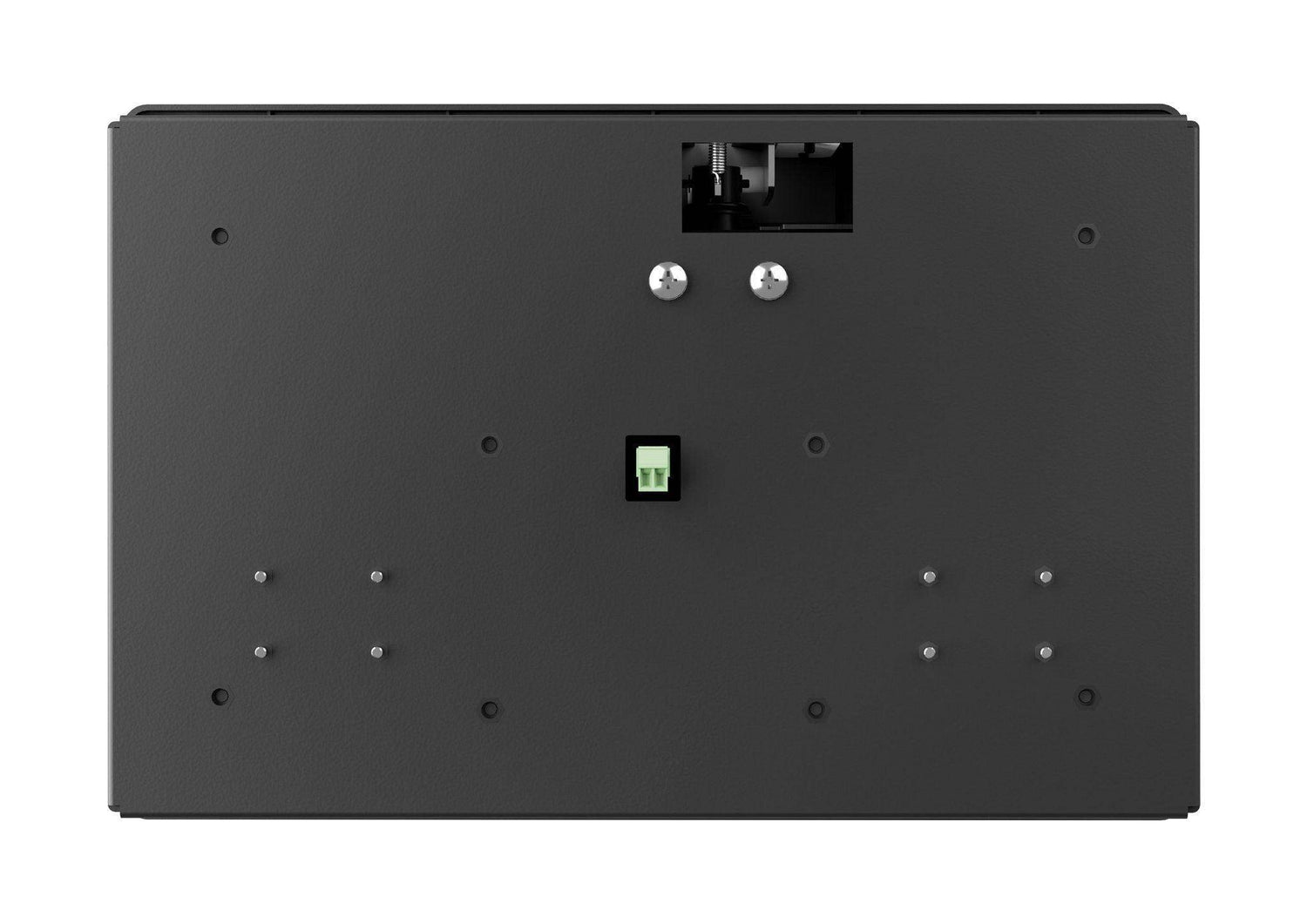

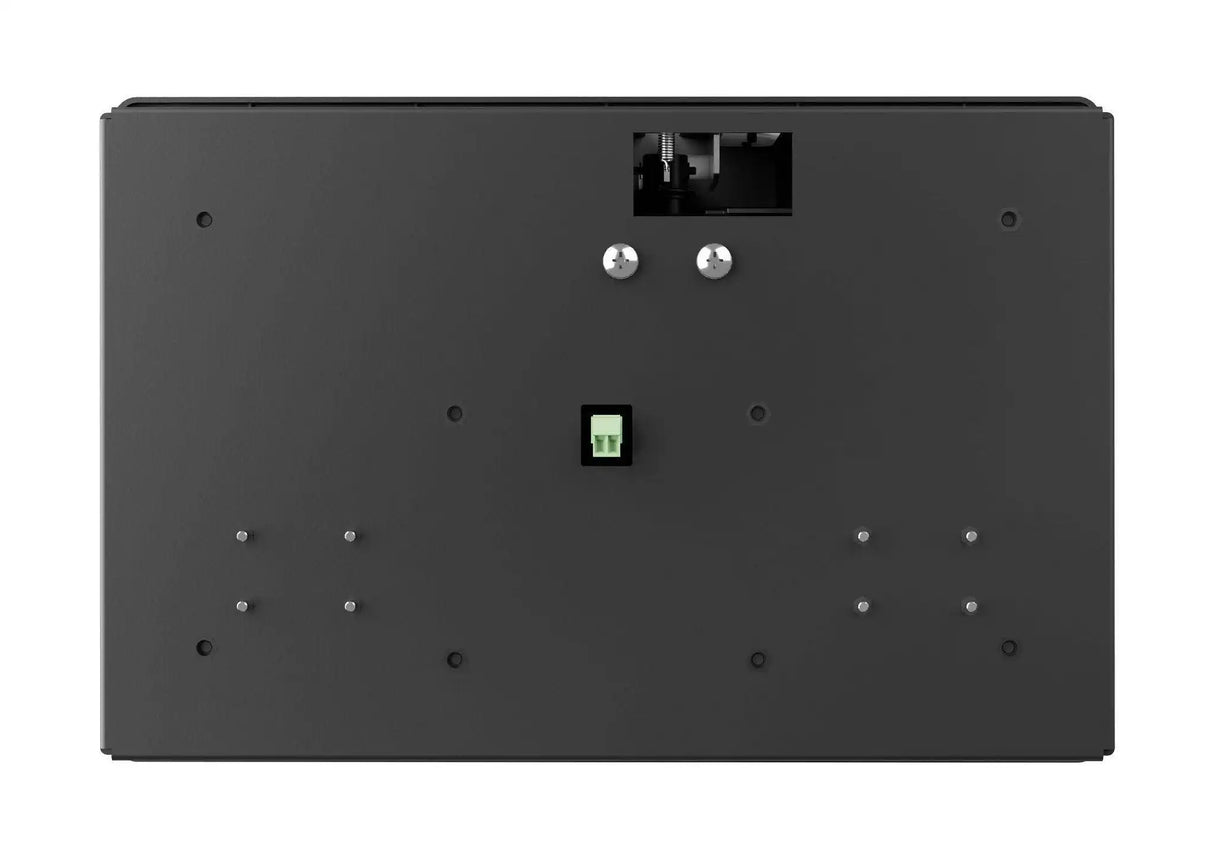

24VDC | (1) 2-pin 3.5 mm detachable terminal block; 24VDC power input; Wire size: 18 AWG (0.75 mm2) maximum |
Controls | |
OPEN | (1) Push button, accessible when touch screen is not docked; Releases the docking mechanism that allows the TST‑1080 to be docked |
Power Requirements | |
Cresnet® Power Usage | 30 W (1.25A @ 24VDC) with touch screen docked |
NOTE: May be powered by Cresnet® network power or a dedicated Cresnet power supply. Does not support Cresnet data communication (only power).
|
|
Environmental | |
Temperature | 41° to 112°F (5° to 45°C); 50° to 104°F (10° to 40°C) while charging |
Humidity | 10% to 90% RH (noncondensing) |
Enclosure | |
Chassis | Metal, flush‑mountable in a vertical wall structure (with optional mounting accessories, sold separately)1 |
Faceplate | Plastic, black |
Dimensions | |
Height | 8.01 in. (204 mm) |
Width | 11.86 in. (301 mm) |
Depth | 4.37 in. (111 mm) in undocked state; 3.16 in. (80 mm) in docked state |
Weight | |
4.7 lb (2.1 kg) | |
Compliance | |
WEEE |
