Crestron TSS-880-GV-B – 8.1 in. Room Scheduling Touch Screen, Government Version

Product Overview

The Crestron TSS-880-GV-B is an 8.1-inch capacitive touch screen room scheduling panel engineered specifically for U.S. government facilities. It delivers calendar-integrated room booking at the door while meeting the security and compliance requirements mandated for Department of Defense and federal installations. The Government Version designation indicates JITC certification support and DoD-aligned security hardening not available on commercial variants.

Product Description

Built on the same hardware platform as the commercial TSS-880, the TSS-880-GV-B adds the security profile required for government network environments. It integrates directly with Microsoft Exchange, Office 365, and Google Workspace, allowing facilities teams to display real-time room availability and allow ad-hoc or scheduled bookings without additional middleware. Power is delivered over a single PoE+ network cable, simplifying installation to a standard single-gang wall box. The panel is centrally managed via XiO Cloud, giving IT administrators remote provisioning, monitoring, and firmware update capabilities across all deployed units from a single dashboard.

Key Features

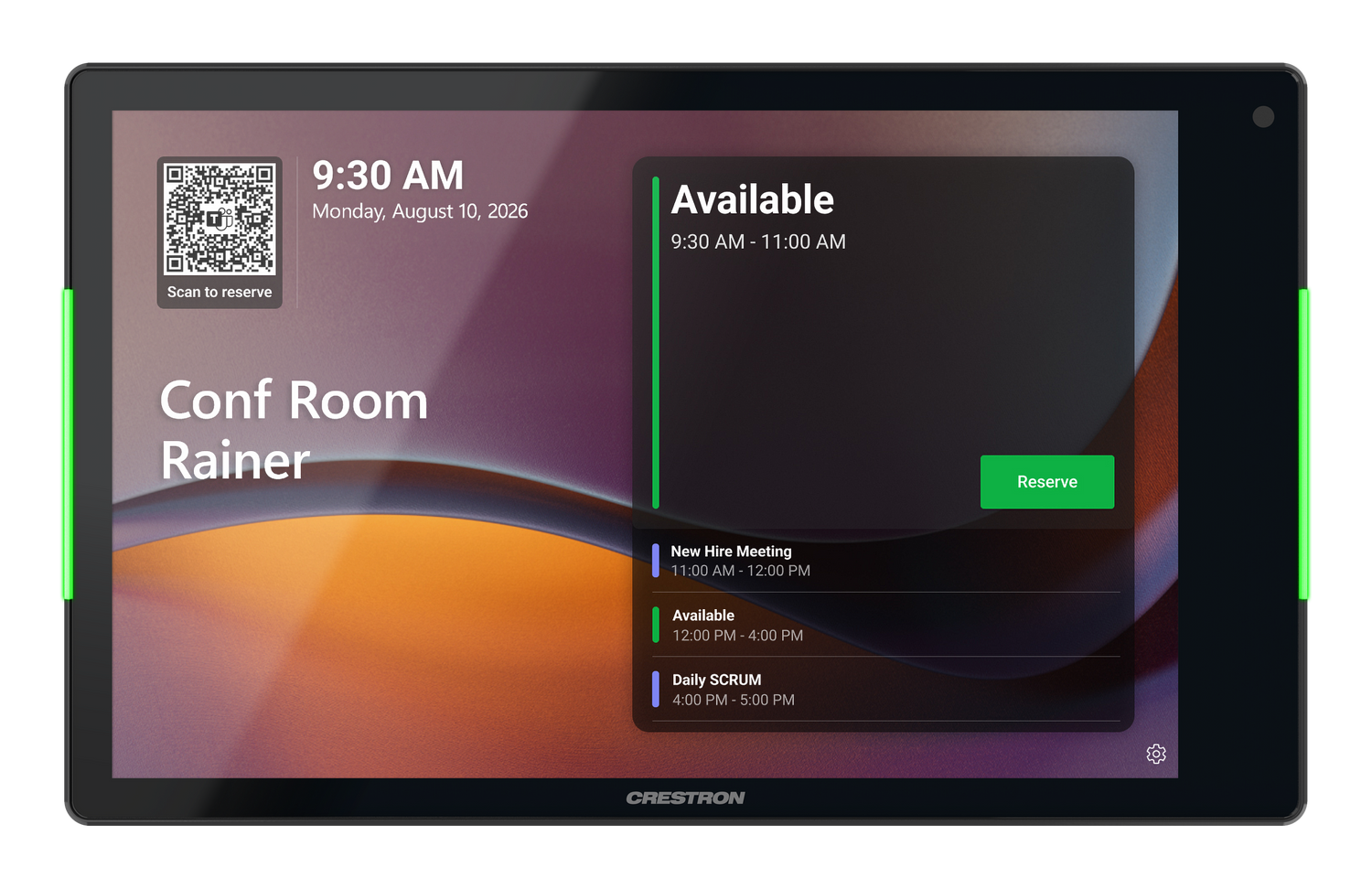

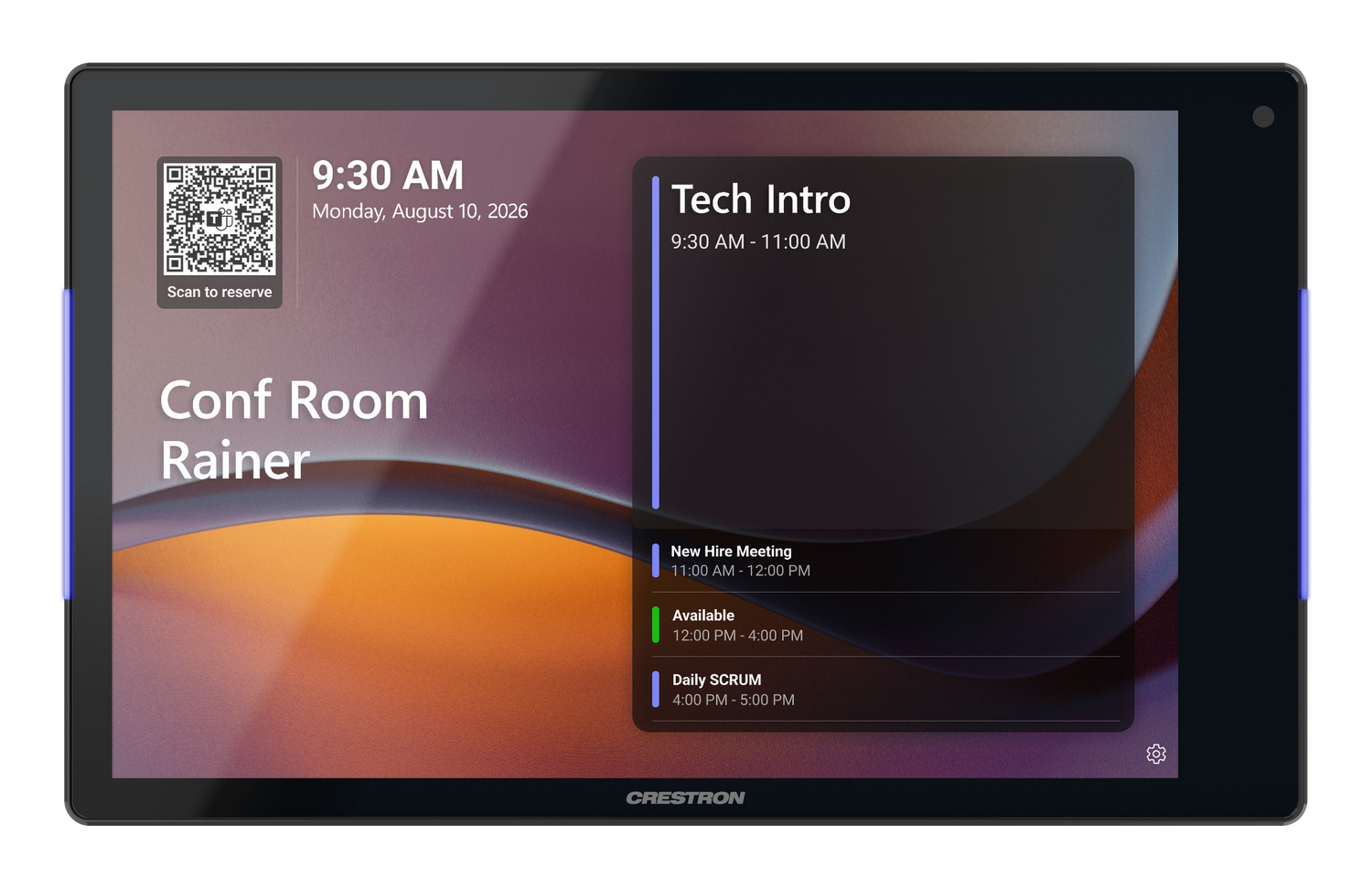

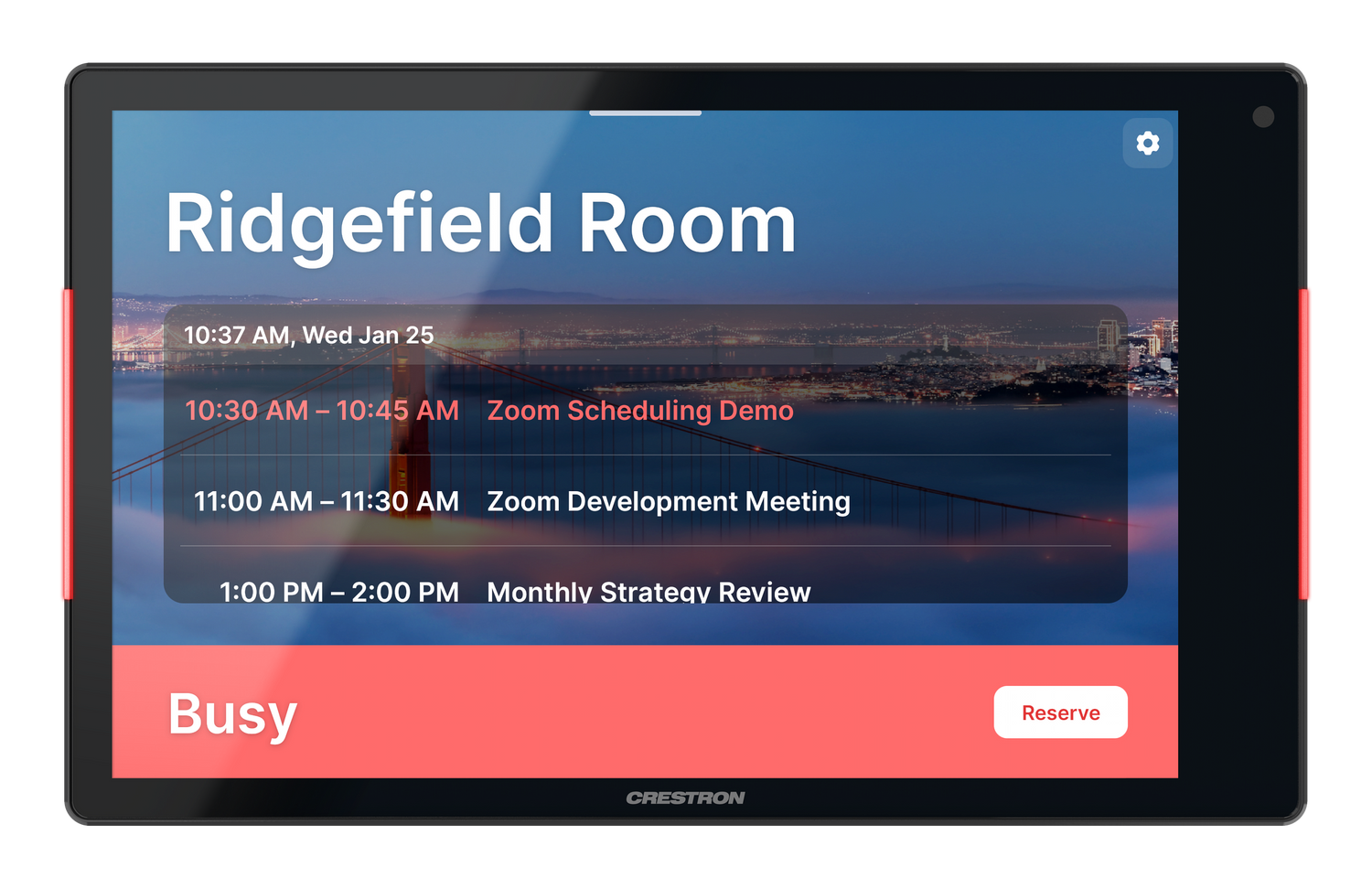

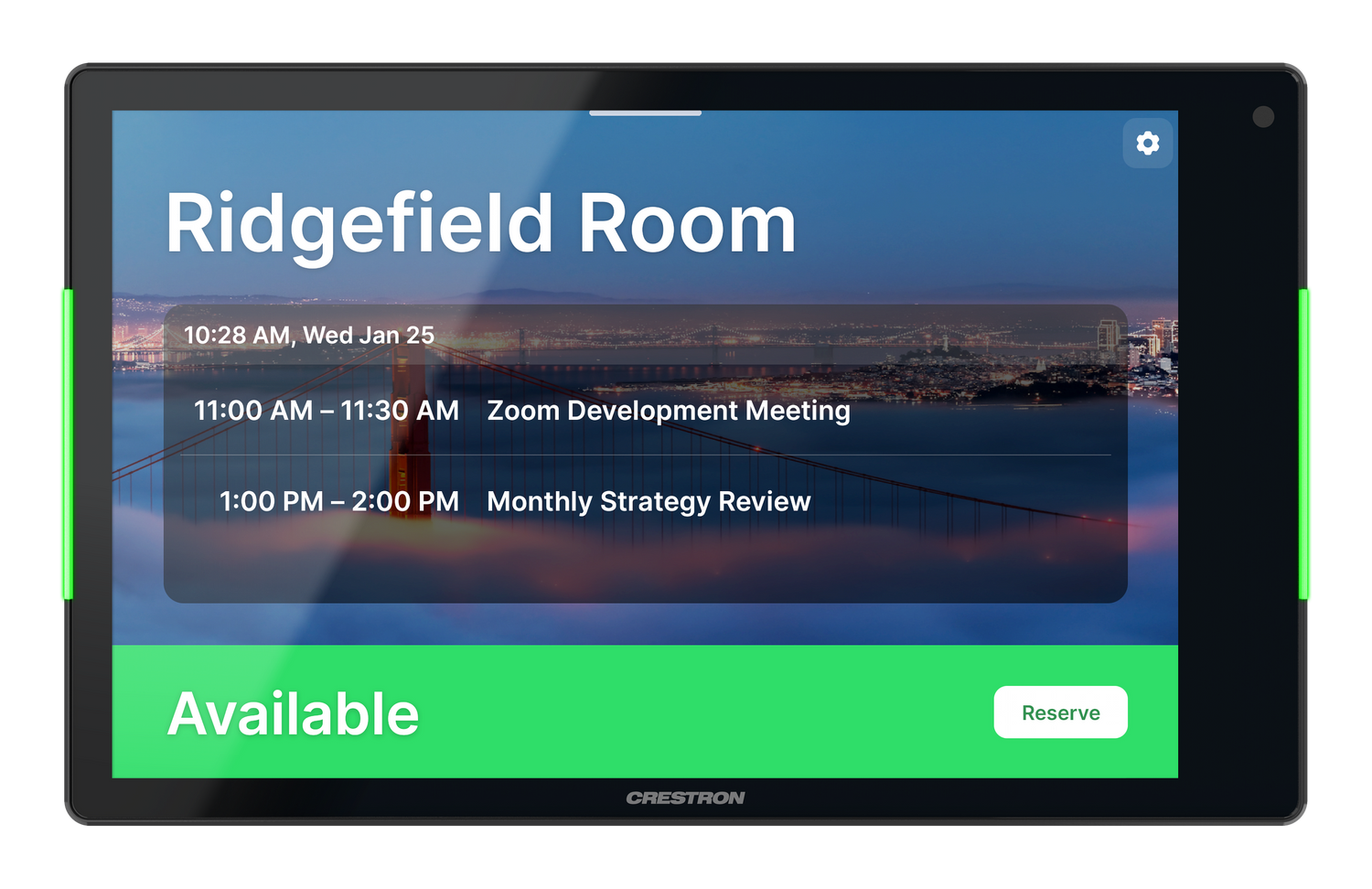

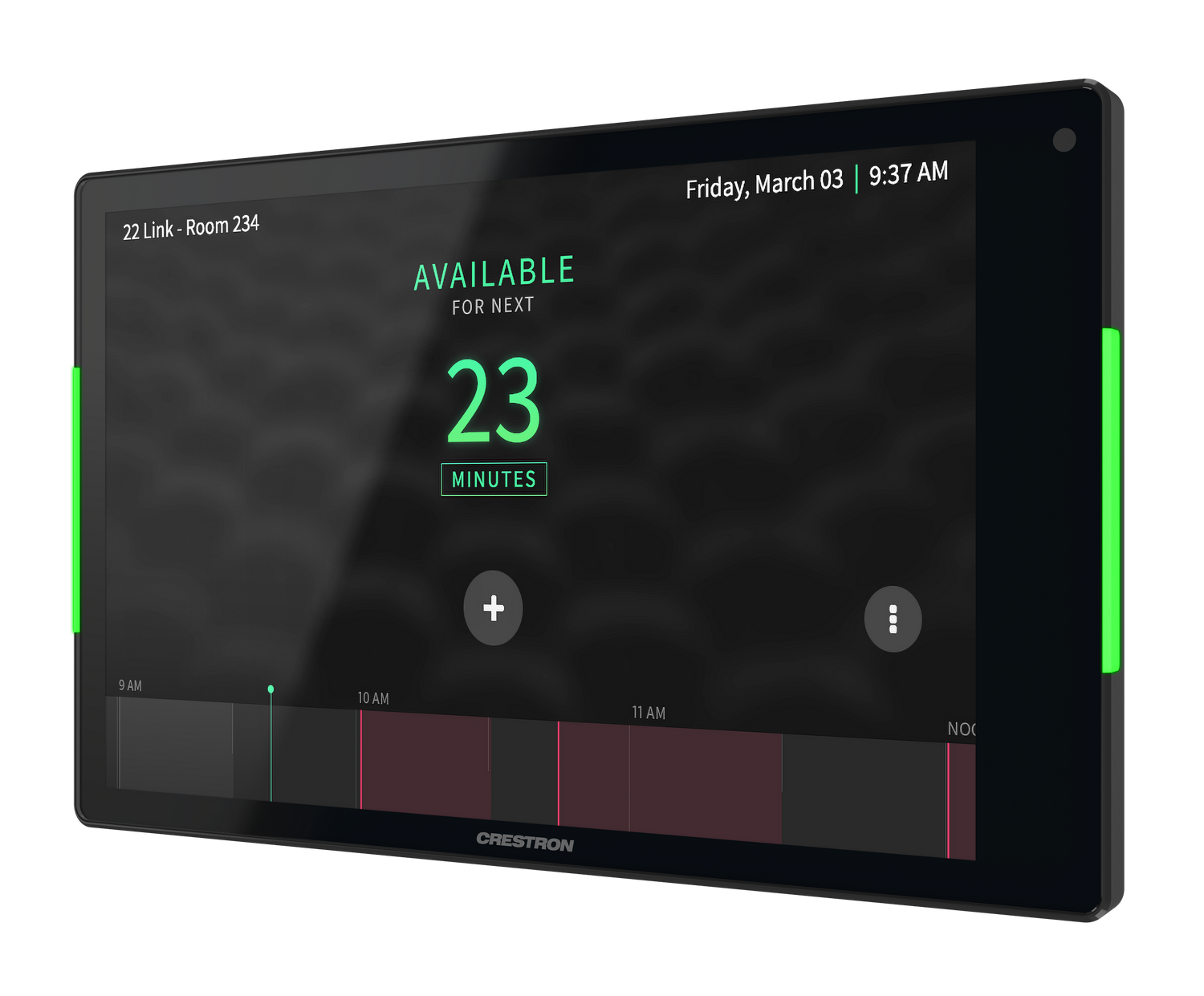

• 8.1-inch capacitive touch display, 1280x800 resolution for clear room status indication
• Government Version with JITC certification support and DoD-compliant security features
• Native integration with Microsoft Exchange, Office 365, and Google Workspace calendars
• PoE+ powered (IEEE 802.3at) — single cable for data and power, no separate power supply required
• XiO Cloud compatible for centralized remote management and provisioning
• Single-gang wall box mounting for clean, standard installation
• Black finish suitable for professional government and enterprise environments
• Operating temperature range 32–104°F for standard indoor deployments

Typical Applications

• Conference room and meeting space scheduling in federal buildings and military installations
• Secure government campus facilities requiring JITC-compliant AV and scheduling hardware
• DoD and intelligence community facilities with strict network security policies
• Corporate and enterprise campuses that require government-grade security standards
• Multi-room deployment managed centrally by IT over XiO Cloud

Technical Specifications

FAQs

What distinguishes the Government Version (GV) from the standard TSS-880?

The TSS-880-GV-B includes JITC certification support and enhanced security features aligned with Department of Defense network requirements. These include hardened firmware and security configurations not present on the commercial version, making it suitable for federal and military network environments.

Does the TSS-880-GV-B require a separate power supply?

No. The panel is powered via PoE+ (IEEE 802.3at) through the same Ethernet cable used for network connectivity, eliminating the need for a separate power supply or electrical outlet at the installation point.

Can the TSS-880-GV-B be managed remotely?

Yes. It is compatible with Crestron XiO Cloud, which allows IT administrators to provision, monitor, update firmware, and manage all deployed units from a centralized cloud-based dashboard. For more information, visit creationnetworks.net.
