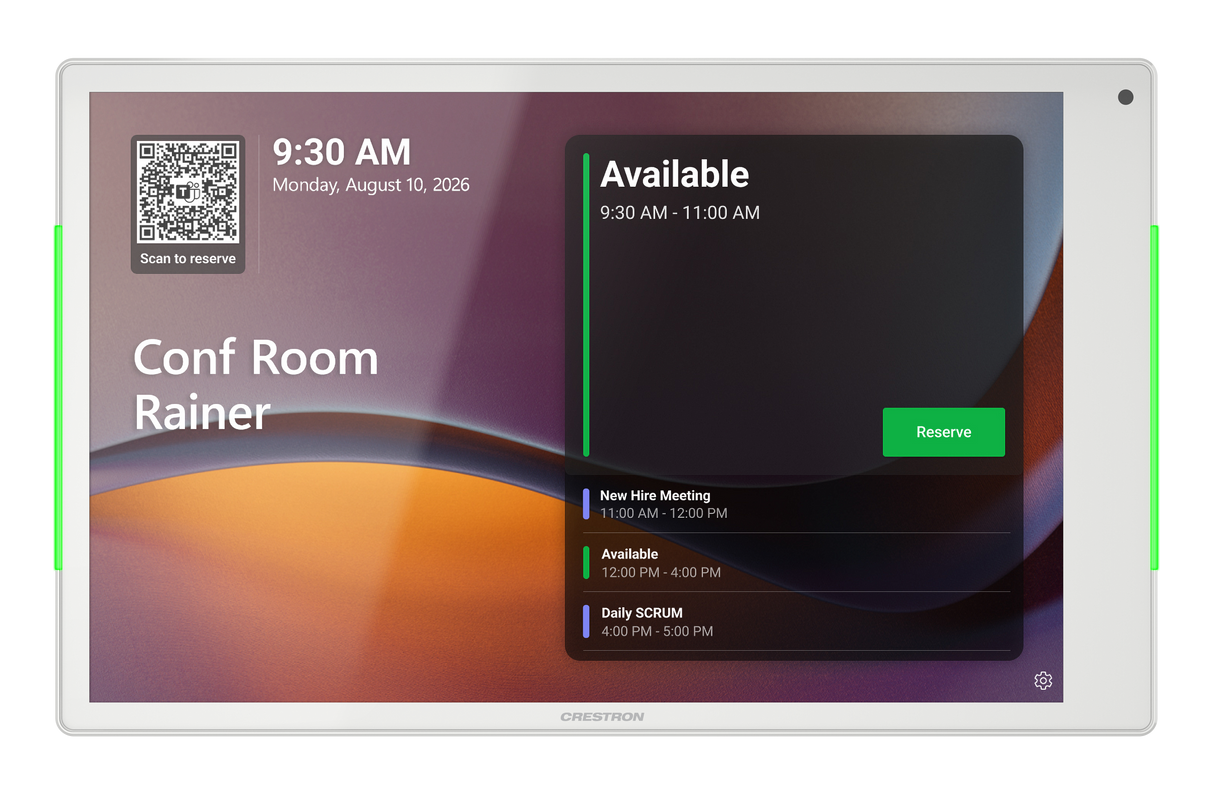

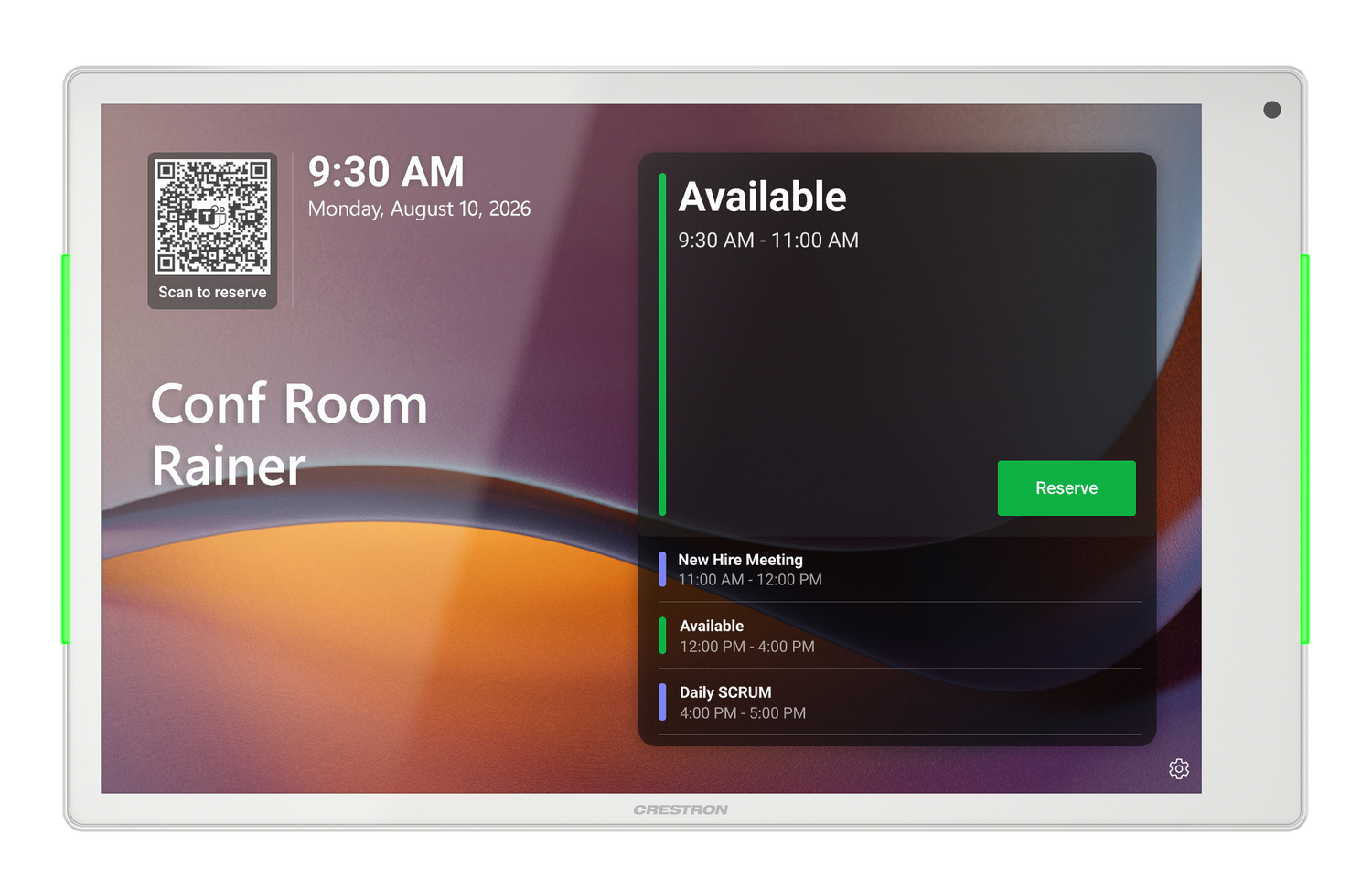

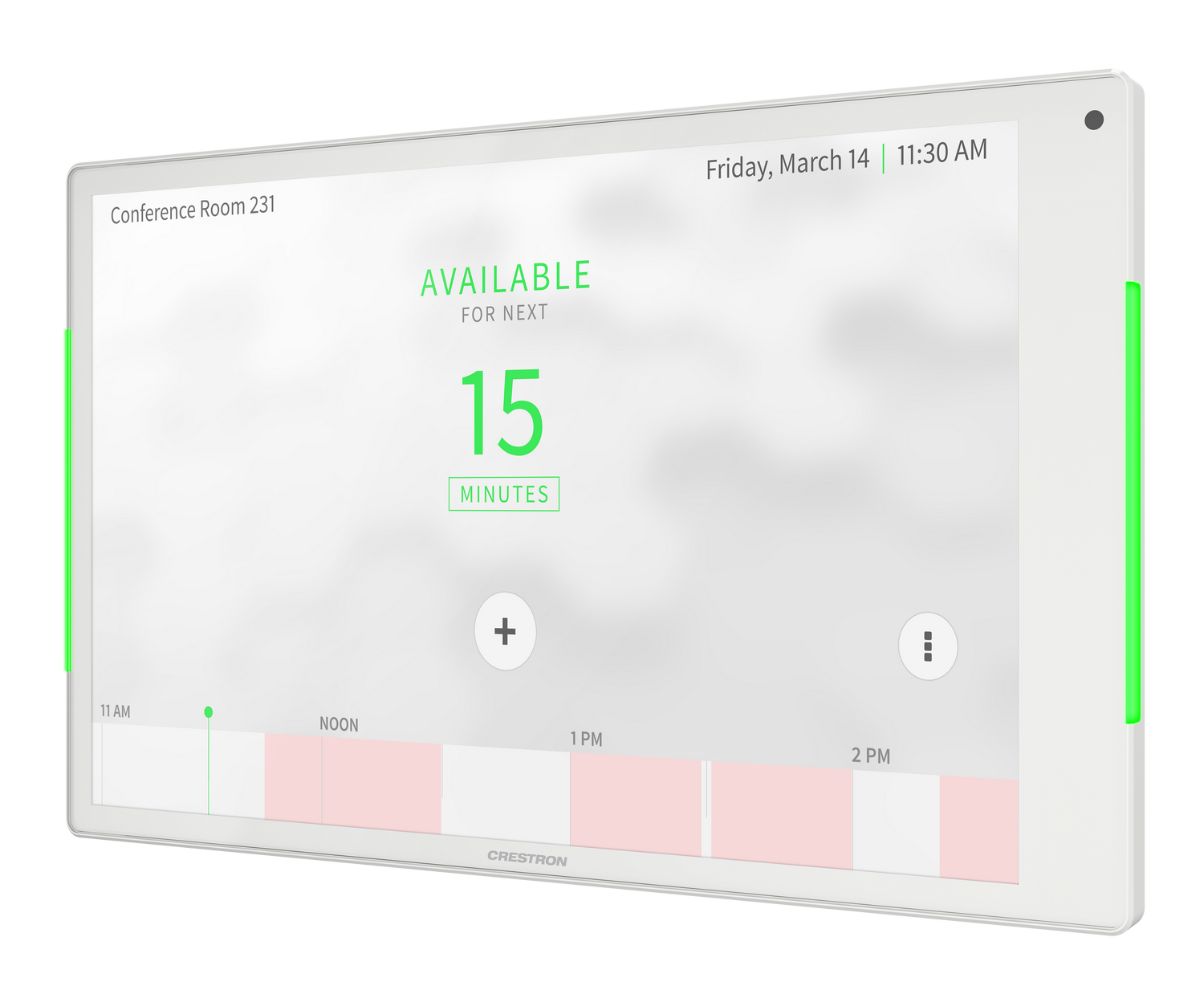

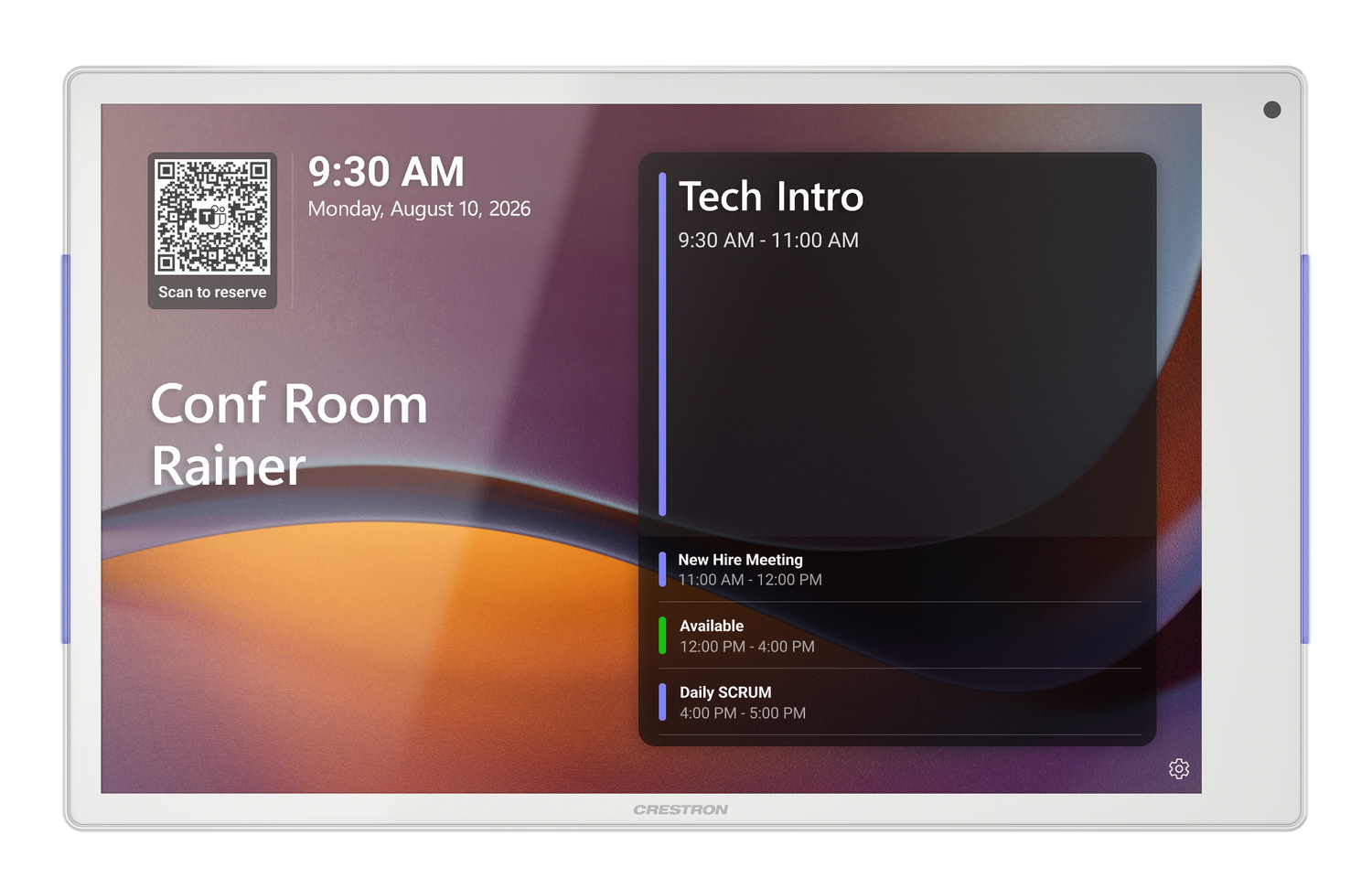

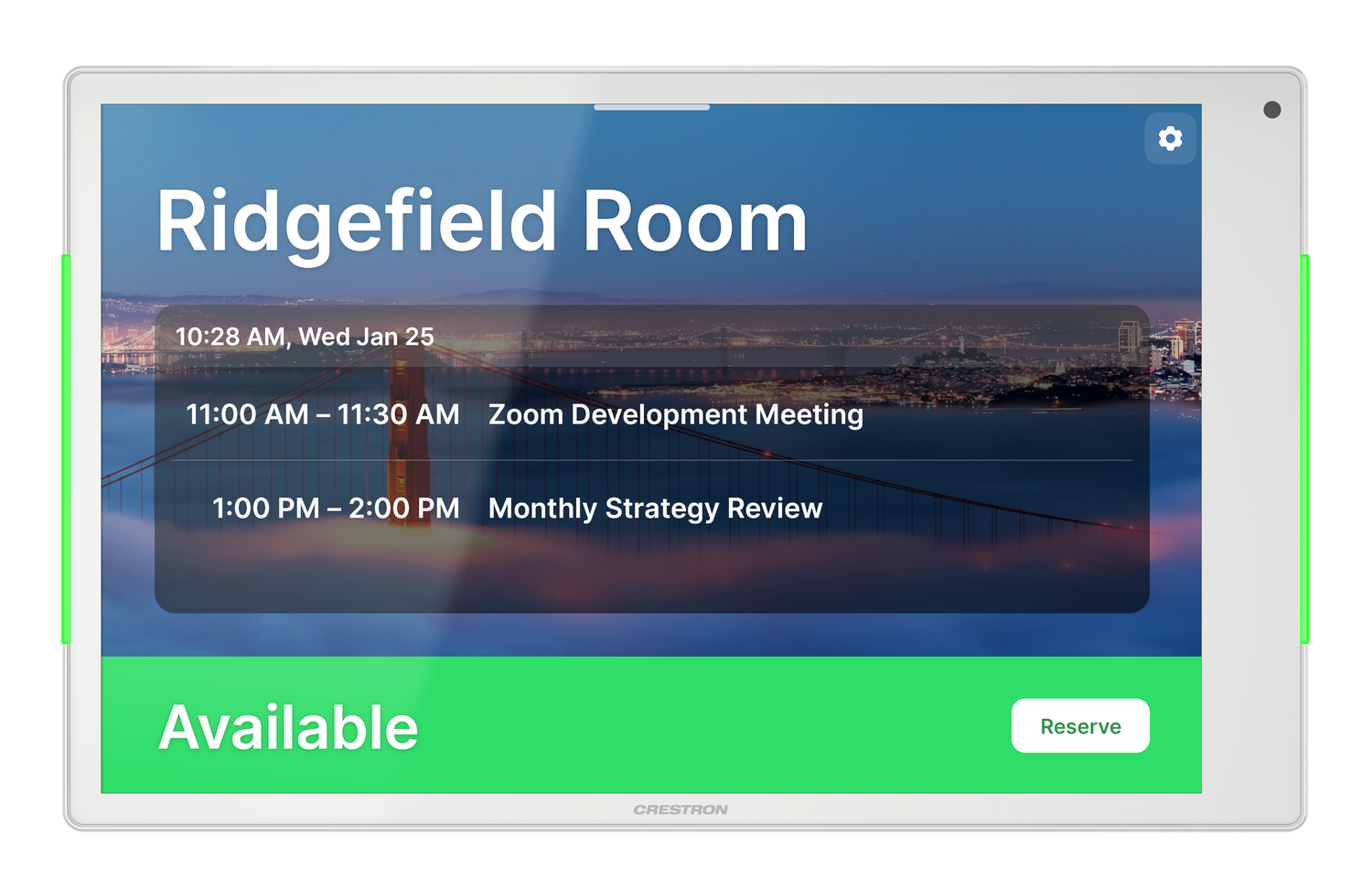

Crestron TSS-1080-W – 10.1 in. Room Scheduling Touch Screen, White

Product Overview

The Crestron TSS-1080-W is a 10.1 in. room scheduling touch screen designed for enterprise meeting room management. It integrates directly with Microsoft Exchange/365, Google Calendar/G Suite, CollegeNET 25Live, and Ad Astra scheduling platforms, providing real-time room availability and booking at the door. The white finish suits modern corporate, education, and government environments requiring a clean, professional aesthetic.

Product Description

The TSS-1080-W mounts flush to the wall at 1.18 in. depth and is powered via a single PoE+ CAT cable, requiring no dedicated electrical outlet. It features a 1920x1200 WUXGA display at 350-400 nits with projected capacitive 5-point multitouch and Wi-Fi 6 (802.11ac) and a Crestron Bluetooth beacon for room occupancy detection. The panel supports H.265/H.264/MJPEG streaming up to 4K30 via RTSP. XiO Cloud remote management enables enterprise-scale deployment and monitoring across hundreds of rooms from a single console.

Key Features

• 10.1 in. TFT LCD, 1920x1200 WUXGA, 350-400 nits, 1000:1 contrast, 24-bit color
• Projected capacitive 5-point multitouch; USB Type-C host port
• Flush mount at 1.18 in. (30 mm) depth; PoE+ (IEEE 802.3at) single-cable power
• Supports Microsoft Exchange/365, Google Calendar/G Suite, CollegeNET 25Live, Ad Astra
• Wi-Fi 802.11a/b/g/n/ac 2.4/5 GHz; WPA/WPA2/WPA3 Enterprise
• Crestron Bluetooth beacon for room occupancy sensing
• 8 GB LPDDR4 RAM; 40 GB eMMC pSLC storage
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Typical Applications

• Enterprise meeting room scheduling panel mounted outside conference rooms
• University classroom and common space booking display
• Government agency meeting room management system
• Healthcare facility conference and consultation room scheduling
• Campus-wide room booking deployment managed via XiO Cloud

Technical Specifications

• Model: TSS-1080-W
• Weight: 1.27 lb (576 g)
• Dimensions (H x W x D): 5.96 in. x 9.68 in. x 1.18 in. (151 mm x 246 mm x 30 mm)
• Display Size: 10.1 in. diagonal; 1920 x 1200 (WUXGA, 16:10)
• Brightness: 350-400 nits; 1000:1 contrast; 24-bit color
• Touch: Projected capacitive, 5-point multitouch
• Power: PoE+ IEEE 802.3at Type 2; requests 30 W (w/o LLDP); 15.4 W from 802.3af; 44 BTU/hr
• Network: 1000BASE-TX PoE+ RJ-45; TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP, 802.1X, SNMP, IPv4/IPv6
• Wireless: 802.11a/b/g/n/ac 2.4/5 GHz; WPA/WPA2/WPA3, WPA/WPA2 Enterprise
• Bluetooth: Crestron Bluetooth beacon (occupancy)
• USB: (1) USB Type-C, USB 2.0 host
• Memory: 8 GB LPDDR4 RAM; 40 GB eMMC pSLC
• Scheduling Integrations: Microsoft Exchange/365, Google Calendar/G Suite, CollegeNET 25Live, Ad Astra
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Humidity: 10 to 95% RH (non-condensing)
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Frequently Asked Questions

Q: Does the TSS-1080-W require a Crestron control processor for room scheduling?
A: No. The TSS-1080-W connects directly to the enterprise network and communicates with scheduling platforms (Exchange, Google Calendar, etc.) without requiring a separate Crestron processor for basic room scheduling functions.

Q: What calendar systems does the TSS-1080-W support?
A: The TSS-1080-W supports Microsoft Exchange/Office 365, Google Calendar/G Suite, CollegeNET 25Live, and Ad Astra. It does not natively support other third-party room booking systems without additional middleware.

Q: How is the TSS-1080-W different from the TSS-1080-B?
A: The TSS-1080-W and TSS-1080-B are identical in specifications. The only difference is the trim color — white versus black.
