Crestron TSS-1080-B – 10.1 in. Room Scheduling Touch Screen, Black

Product Overview

The Crestron TSS-1080-B is a 10.1 in. wall mount room scheduling touch screen designed for conference room and office space management. It integrates with Microsoft Exchange, Microsoft 365, Google Calendar, and third-party scheduling platforms to display real-time room availability, allow instant booking, and reduce scheduling conflicts in enterprise facilities.

Product Description

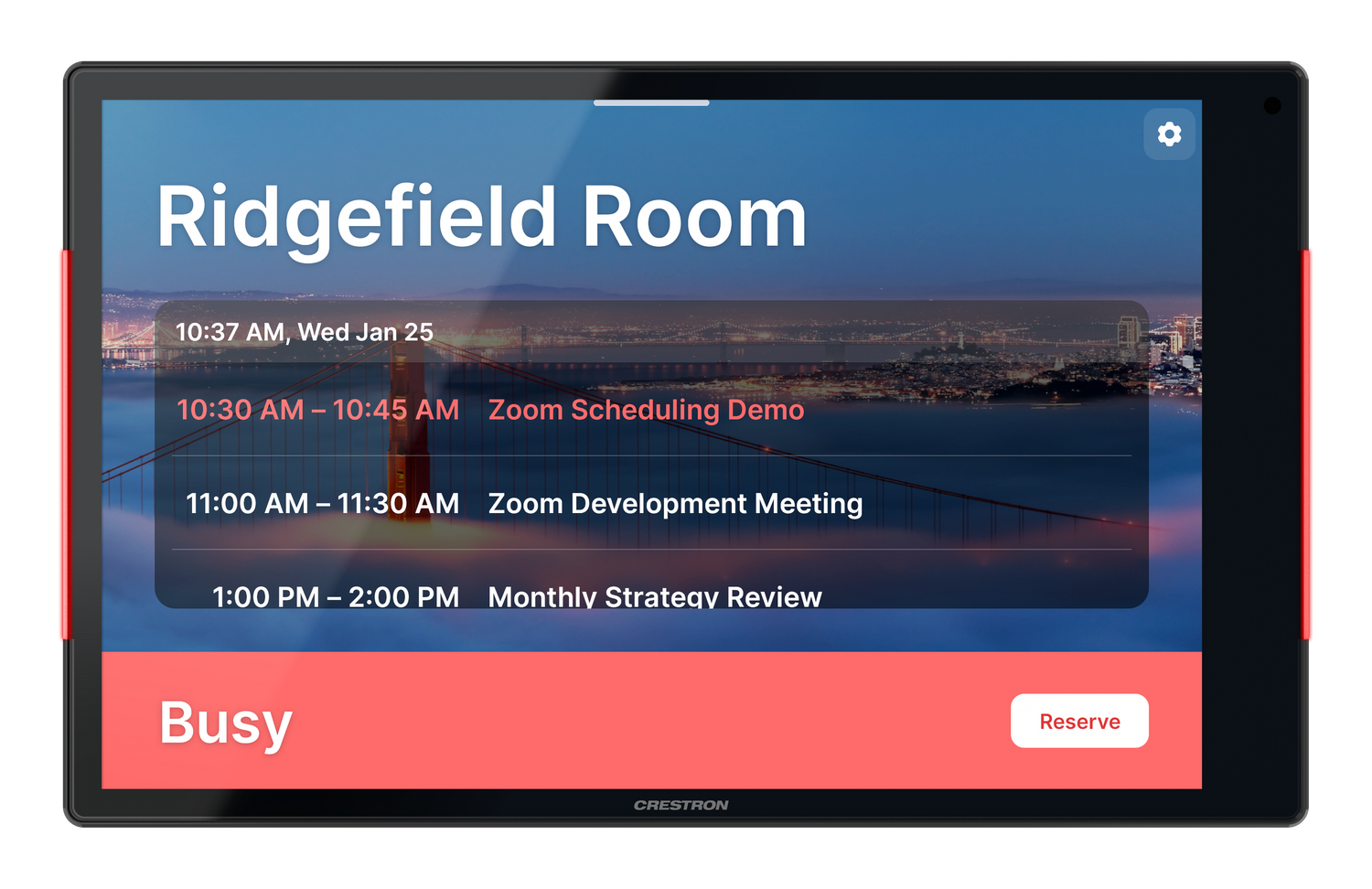

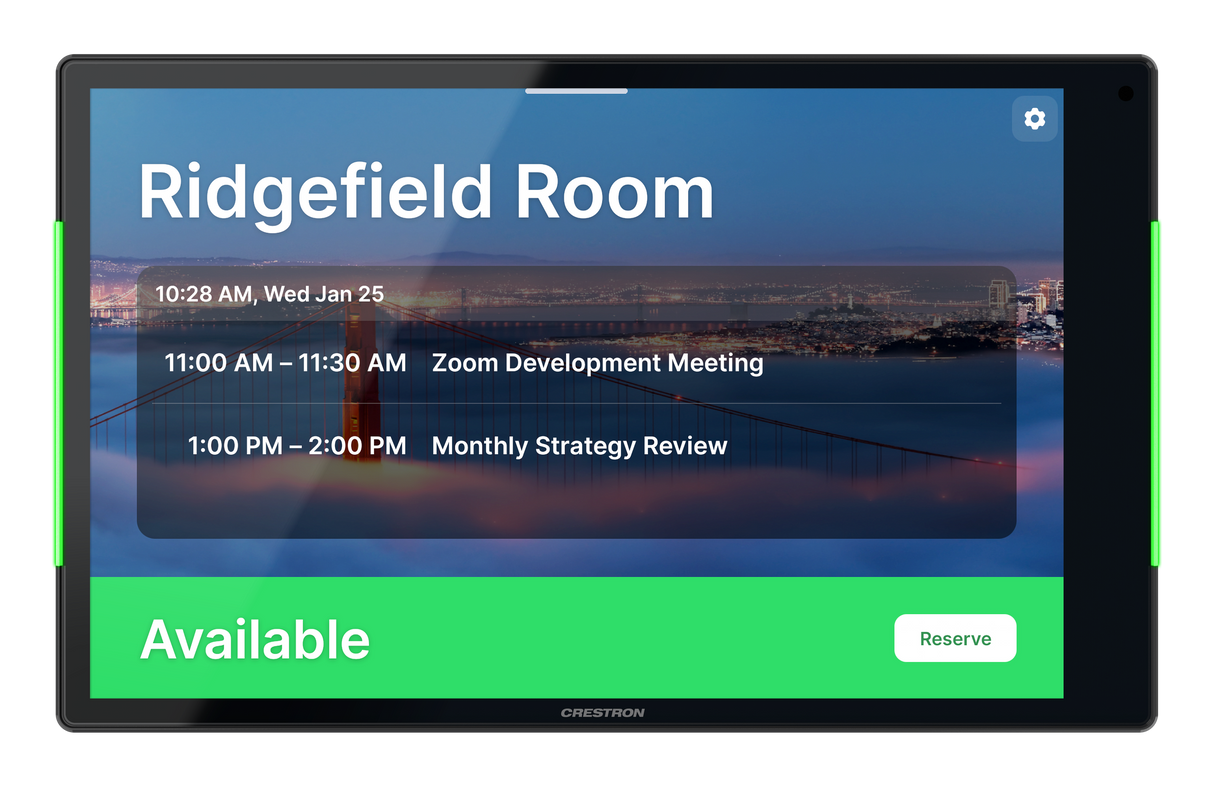

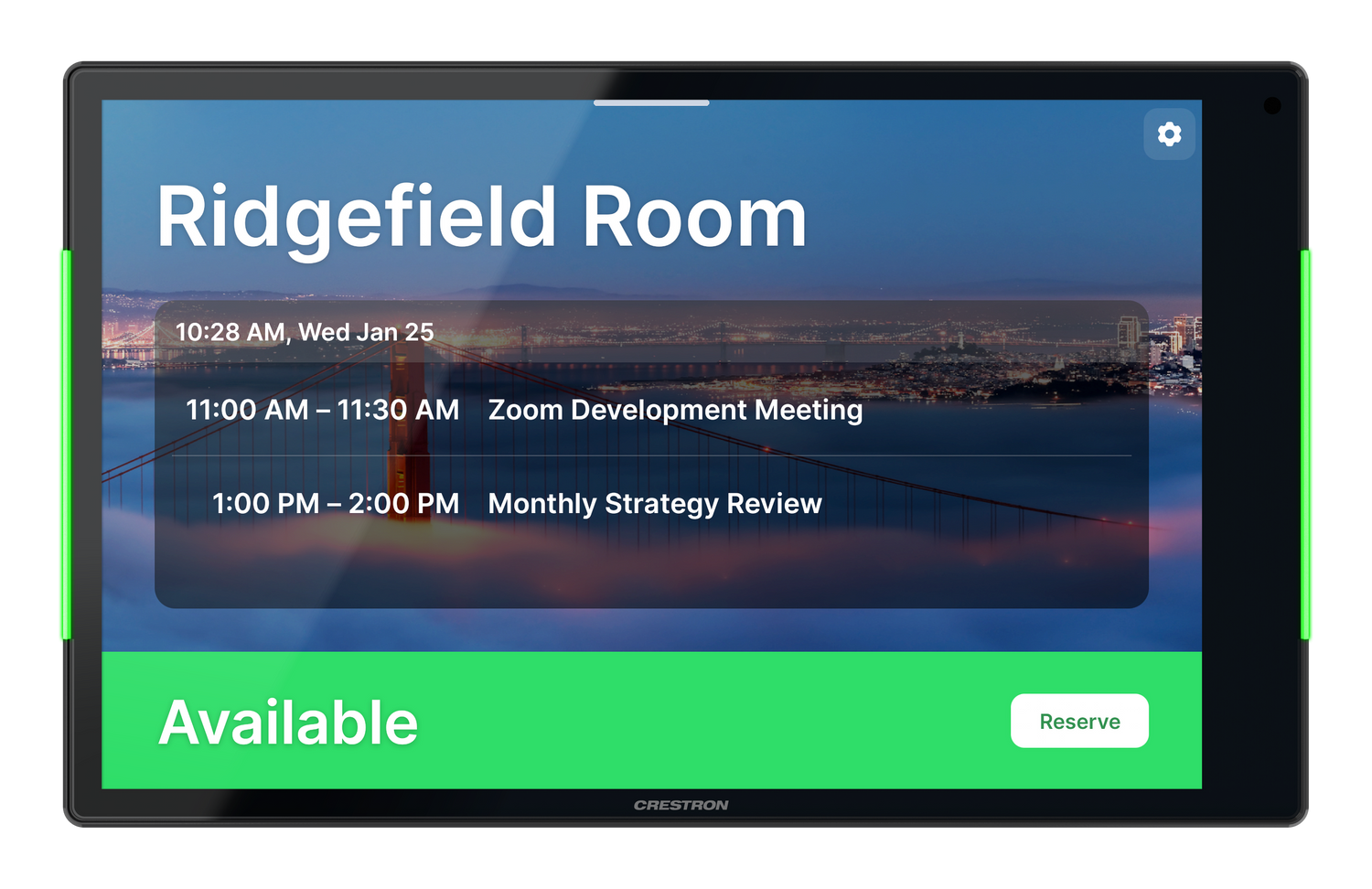

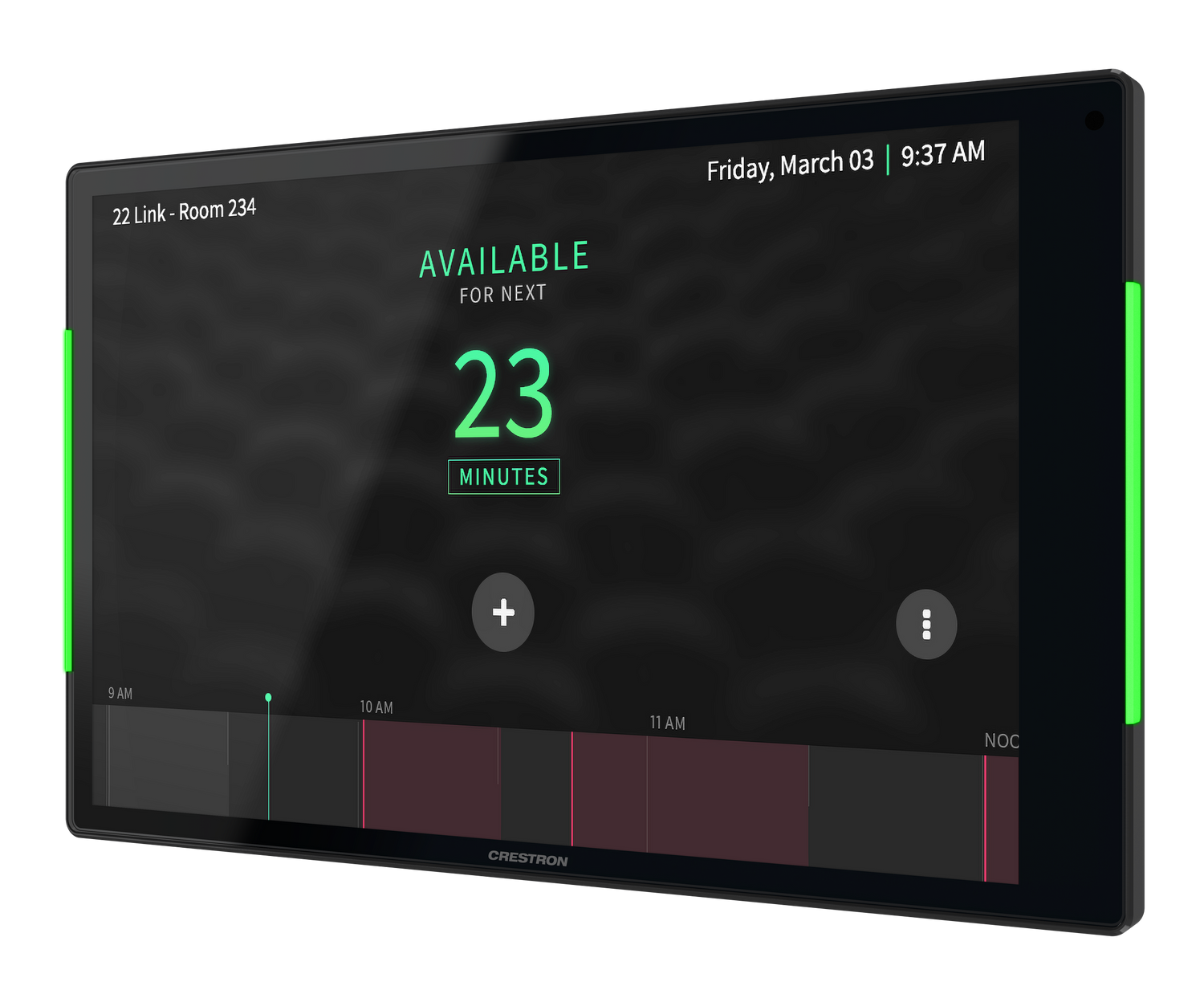

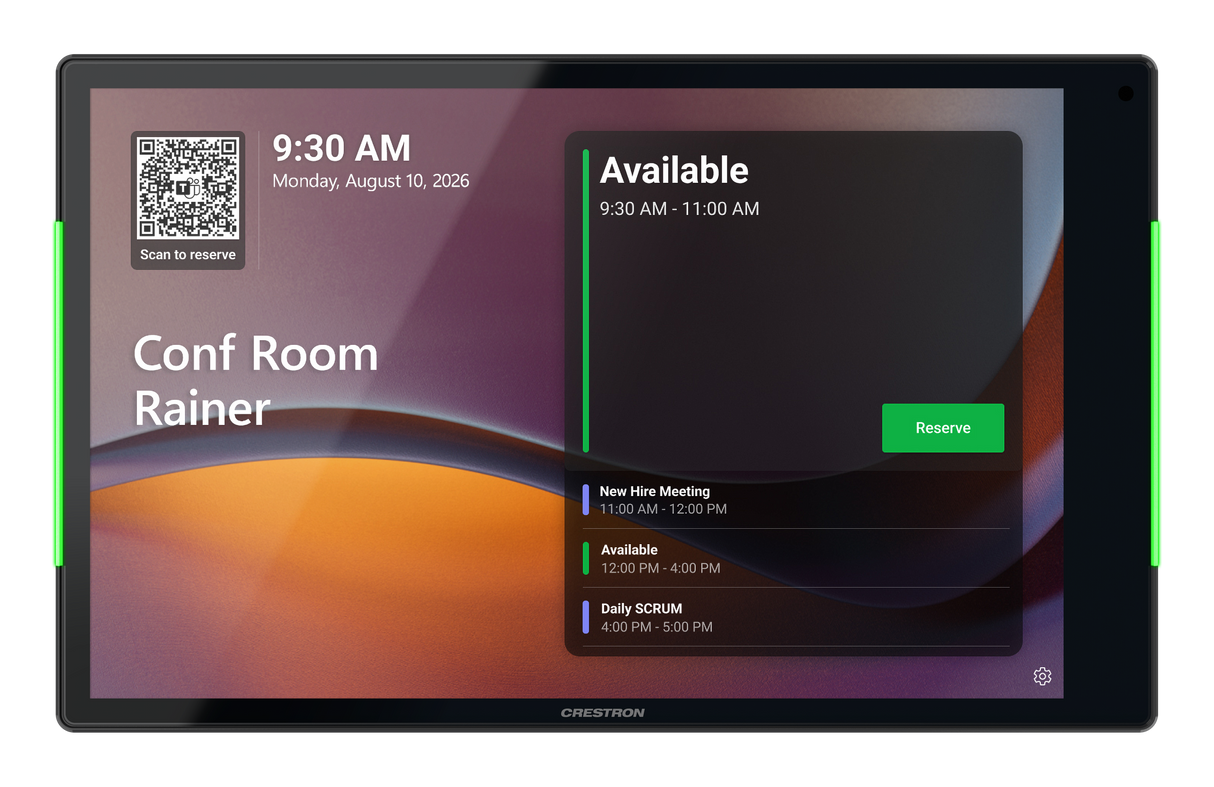

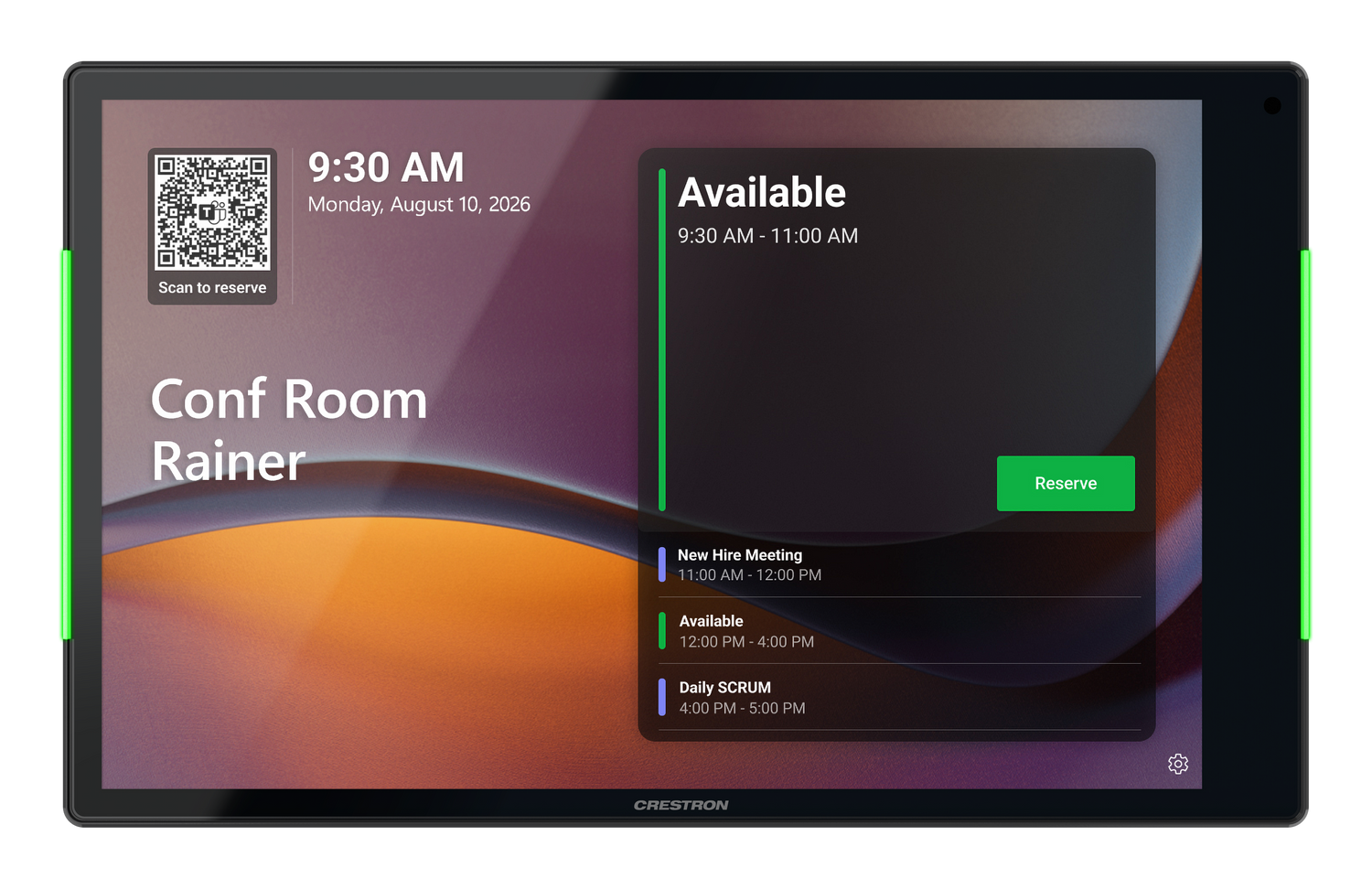

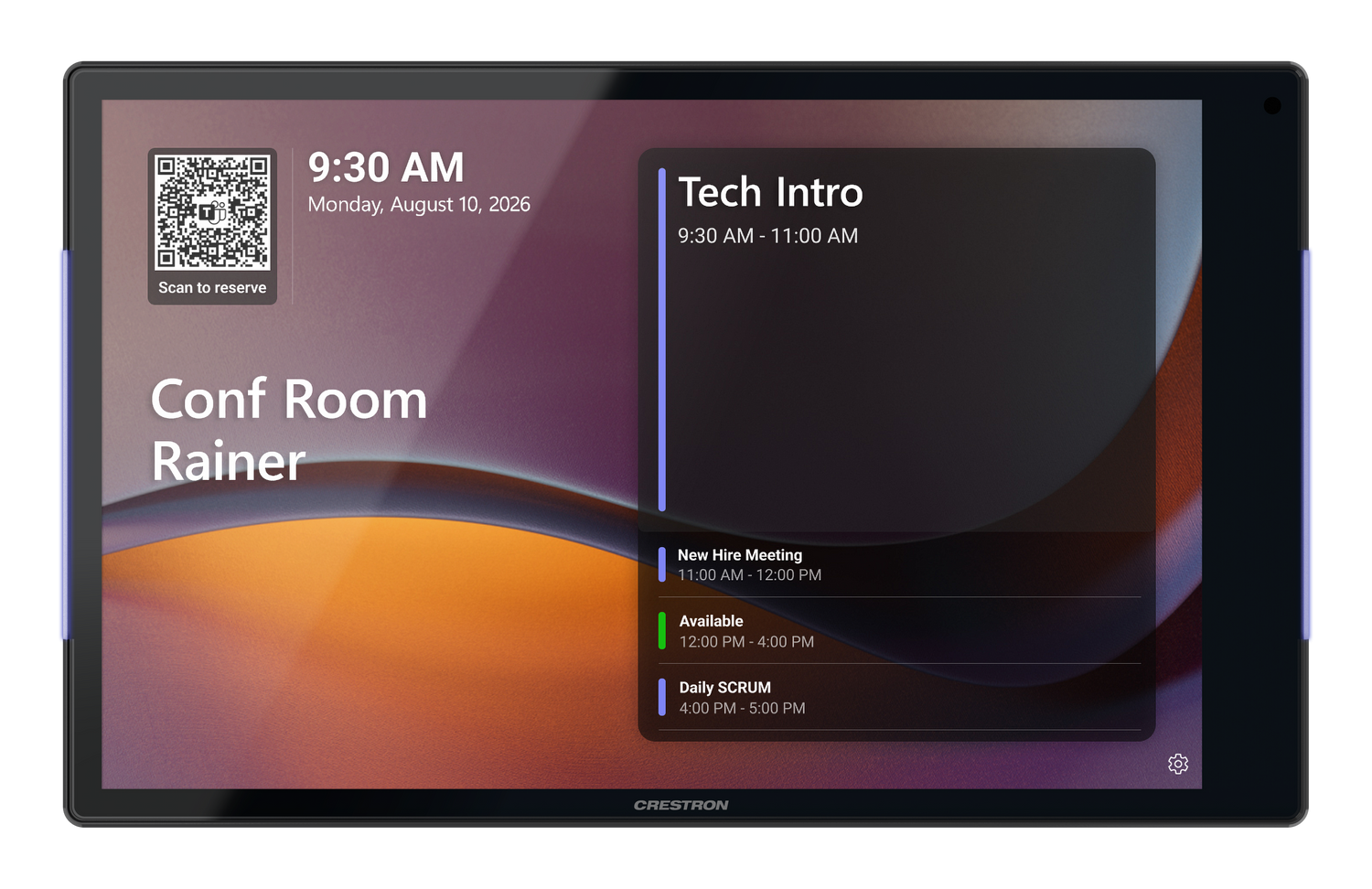

The TSS-1080-B mounts flush in a standard single-gang wall box or directly to drywall using the included hardware. The display shows room status at a glance using configurable color indicators — green for available, red for occupied. Facilities managers can deploy the panel using XiO Cloud for remote provisioning and configuration without on-site programming. The panel is powered via PoE+ over a single Ethernet cable, simplifying installation in conference rooms, huddle spaces, and shared workspaces.

Key Features

• 10.1 in. capacitive touch display for room scheduling and booking
• Supports Microsoft Exchange/365, Google Calendar, and third-party scheduling apps
• Color-coded availability status display (configurable)
• PoE+ (IEEE 802.3at) powered via single Ethernet cable — no separate power required
• XiO Cloud provisioning and remote device management
• Single-gang or direct wall mount installation
• 802.1X, TLS, HTTPS enterprise security
• No custom programming required for scheduling deployments

Typical Applications

• Conference room and meeting room booking panels
• Huddle space and collaboration area scheduling
• Corporate office hot-desking and shared workspace management
• University and campus facility scheduling
• Government and enterprise multi-room scheduling deployments managed via XiO Cloud

Technical Specifications

• Model: TSS-1080-B
• SKU: TSS-1080-B
• Display: 10.1 in. capacitive touch screen
• Finish: Black
• Network: Gigabit Ethernet, PoE+ (IEEE 802.3at)
• Scheduling Integrations: Microsoft Exchange, Microsoft 365, Google Calendar, CollegeNET 25Live, Ad Astra, and others
• Management: XiO Cloud remote provisioning and configuration
• Security: 802.1X, TLS 1.2/1.3, HTTPS, Active Directory integration
• Mounting: Single-gang wall box or direct drywall mount
• Power: PoE+ IEEE 802.3at Type 2

Frequently Asked Questions

Q: Does the TSS-1080-B require a Crestron control system to operate?
A: No. The TSS-1080-B connects directly to your calendar service (Microsoft 365, Google Calendar, etc.) and does not require a Crestron control processor for scheduling panel deployments. XiO Cloud handles configuration and management.

Q: What is the difference between the TSS-1080-B and the TSS-1080-GV-B?
A: The TSS-1080-GV-B is a Crestron Green-certified variant of the same panel, meeting additional sustainability and energy-efficiency requirements. Both panels have identical scheduling features and installation requirements.

Q: Can the TSS-1080-B be managed remotely across multiple locations?
A: Yes. XiO Cloud allows IT administrators to provision, configure, and monitor TSS-1080-B panels across any number of sites from a single management dashboard without physical access to each device.
