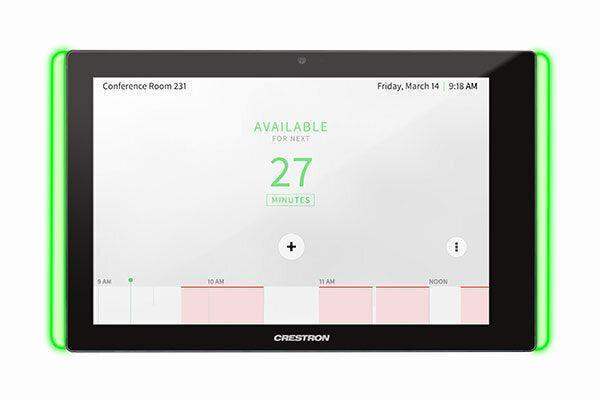

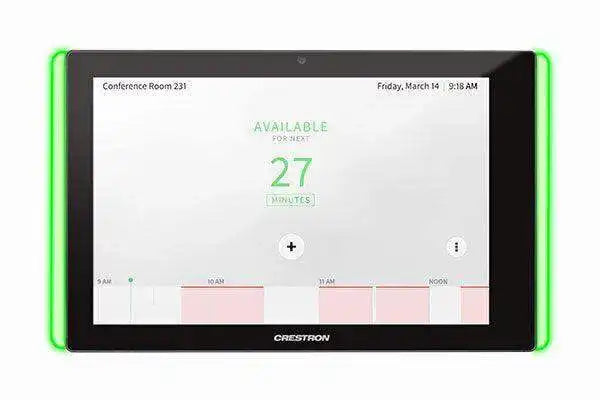

Crestron TSS-1070-B-S-LB KIT 10.1 in. Room Scheduling Touch Screen, Black Smooth, includes one TSW-1070-LB-B-S light bar

Product Overview

The Crestron TSS-1070-B-S-LB KIT is a 10.1 in. room scheduling touch screen that mounts at the entrance of a meeting room to display real-time availability and the day's schedule. The black smooth panel ships with one TSW-1070-LB-B-S room availability light bar, providing a complete enterprise room scheduling solution out of the box. Running the native Crestron Scheduling app, the touch screen integrates with Microsoft Exchange, Office 365, Google Calendar, and other services, installing over a standard electrical box with web-based configuration and no control system required. This Crestron room scheduling touch screen suits corporate conference rooms, huddle spaces, and higher-education facilities.

Product Description

The TSS-1070-B-S-LB KIT pairs the 10.1 in. capacitive touch screen with the TSW-1070-LB-B-S light bar that provides a 180-degree visual indication of room status, illuminating green when available and red when reserved, with custom color options. The touch screen connects over a single Ethernet cable with PoE or PoE+ power, or over Wi-Fi via a local wireless access point. The native Crestron Scheduling app supports ad hoc on-the-spot booking and can pair with a CEN-ODT-C-POE occupancy sensor (sold separately) to report no-shows and unscheduled usage. Dual USB 2.0 ports support the included light bar plus one additional accessory such as an RFID-USB card reader. The unit is managed through the XiO Cloud service and supports enterprise security including 802.1X, TLS, HTTPS, and Active Directory. PoE+ is required when powering the light bar over USB.

Key Features

• Crestron Scheduling App — Integrates with Microsoft Exchange, Office 365, Google Calendar, CollegeNET 25Live, and Ad Astra.
• 10.1 in. Capacitive Display — 1920 x 1200 WUXGA projected-capacitive, 5-point multitouch screen at 400 nits brightness.
• Included Light Bar — Ships with one TSW-1070-LB-B-S light bar for 180-degree green/red room availability indication.
• PoE/PoE+ and Wi-Fi — Single-wire Ethernet power and connectivity, with 802.11a/b/g/n/ac Wi-Fi as an alternative.
• Ad Hoc Booking — Reserve a room on the spot and pair an occupancy sensor for no-show reporting.
• Dual USB 2.0 Ports — Connect the light bar plus one additional scheduling accessory.
• Enterprise Security — Supports 802.1X, TLS, HTTPS, and Active Directory authentication.
• XiO Cloud Management — Cloud-based provisioning and monitoring across the enterprise.
• Flexible Mounting — Surface mounts over 2- or 3-gang US, 2-gang European, or 2-gang UK electrical boxes.

Typical Applications

• Enterprise conference rooms and meeting spaces
• Corporate huddle rooms and collaboration areas
• Higher-education classrooms and bookable study rooms
• Facilities standardizing on cloud-managed room scheduling

Technical Specifications

Frequently Asked Questions

Which scheduling services does it support?
The Crestron Scheduling app integrates with Microsoft Exchange, Office 365, Google Calendar, CollegeNET 25Live, and Ad Astra. Refer to the Crestron data sheet for the current supported list.

Is the light bar included?
Yes. The kit includes one TSW-1070-LB-B-S room availability light bar for 180-degree green/red status indication.

How is it powered?
The touch screen is powered over a single Ethernet cable. PoE+ (802.3at Type 2) is required when the light bar is connected via USB.

Does it require a control system?
No. Setup is web-based and the panel is managed through the XiO Cloud service; no control system or programming is required.

What warranty applies?
This product carries the Crestron 3-year limited warranty. For configuration guidance or volume pricing, contact Creation Networks.
