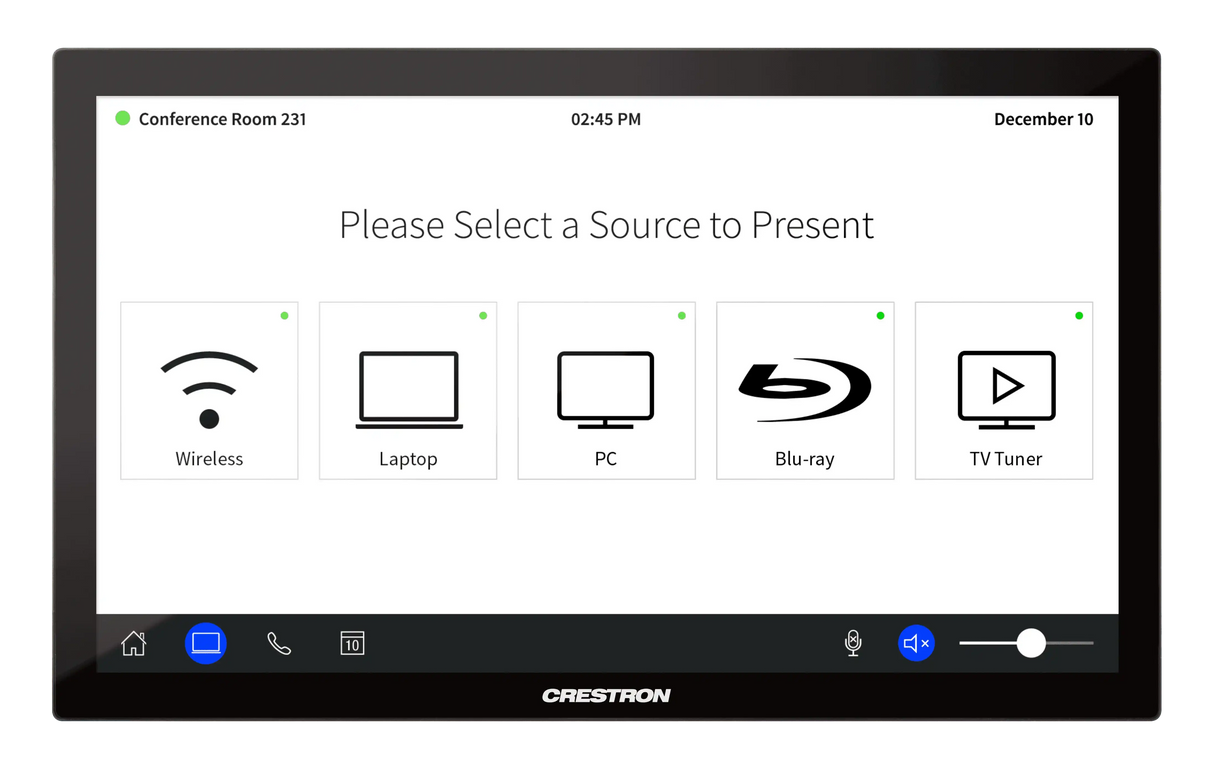

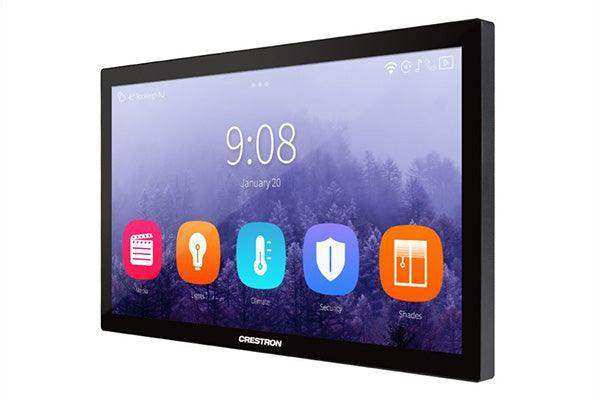

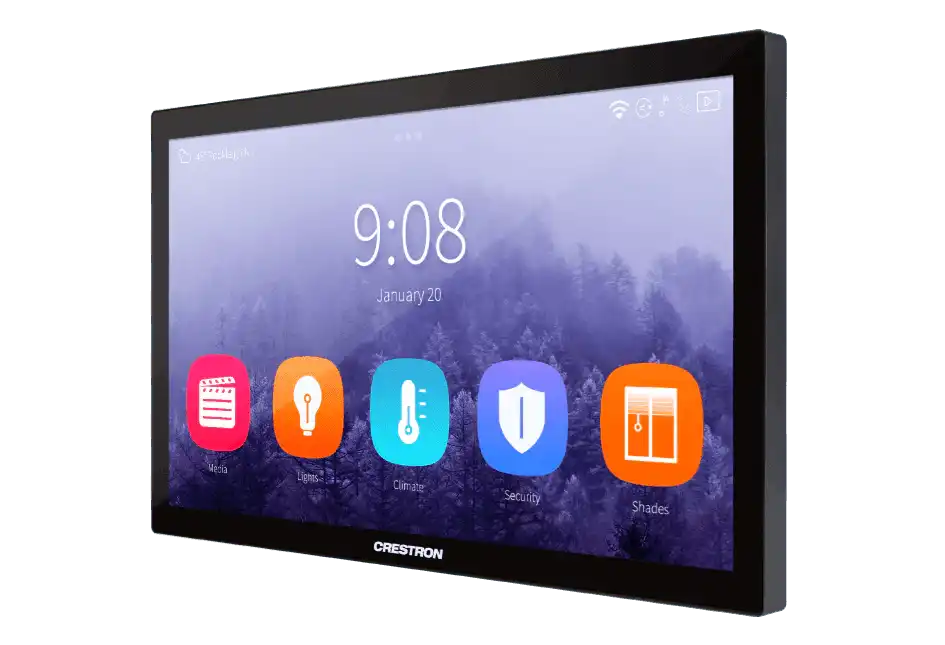

Crestron TSD-2220-B 21.5” HD Touch Screen Display, Black

Crestron SKU: TSD-2220-B
No reviews

Sale price$2,200.00


The TSD-2220 is a 21.5" (546 mm) Full HD capacitive touch screen display that can be used with the Crestron® DGE-100 or DM-DGE-200-C digital graphic engines (both sold separately) to provide a powerful touch screen control solution. It supports input resolutions up to 4K60 UHD (3840x2160@60Hz) via a single HDMI® input. It can be installed using a variety of VESA compliant mounting accessories, including wall-mount brackets, desk stands, and articulating arms. The TSD-2220 is compatible with VESA 100 x 100 mm and VESA 200 x 100 mm mounts (not included).

A flush in-wall mounting solution is available from third-party supplier Wall-Smart™ (

  • High-Definition 21.5" widescreen touch display
  • Full HD 1920 x 1080 display resolution
  • Built-in 4K UHD downscaling
  • HDCP 2.2 compliant
  • Multi-touch capacitive touch screen
  • Ultra wide 178 degree viewing angles
  • Built-in stereo speakers
  • Slim, rugged design
  • IP65 dust proof and water resistant
  • Rear connector cover
  • VESA 100x100 or 200x100 mountable
  • CEC controllable power, volume, and brightness
  • Designed for use with a DGE-100 or DM-DGE-200-C Digital Graphics Engine
  • 100-240V universal power pack included
  • Third-party flush wall mount kit available
Touch Screen Display
  Display Type TFT active matrix color LCD
  Size 21.5 inch (546 mm) diagonal
  Aspect Ratio 16:9 Full HD
  Resolution 1920 x 1080 pixels
  Brightness 225 nits (cd/m²)
  Contrast 1000:1
  Response Time 14 ms
  Color Depth 24-bit, 16.7M colors
  Illumination WLED backlit
  Viewing Angle ±89° horizontal, ±89° vertical
  Touch Screen Projected capacitive, 10-point multi-touch capable
Buttons & Indicators
  Power/Menu (rear) (5) Pushbuttons for power and setup
  Power (rear behind cover) (1) LED, indicates operating power supplied via the power pack
  Note: If power is lost while the TSD-2220 is powered on, it will automatically return to the powered on state when power is restored.
  USB USB Human Interface Device (USB HID)
  Input Signal Types HDMI
  Input Resolutions 3840x2160@60Hz maximum
  Refer to the DGE-100 or DM-DGE-200-C specifications for additional information.
  Input Signal Types HDMI
  Speakers Built-in rear-facing stereo amplified speakers
  Refer to the DGE-100 or DM-DGE-200-C specifications for additional information.
  HDMI (1) 19-pin Type A HDMI female;
HDMI digital video/audio input;
(DVI compatible [1])
  USB (1) USB type B, female;
USB device port;
6 ft (1.83 m) cable included
  12VDC (1) DC power connector;
12 Volt DC power input, power pack included
  Power Pack (included) Output: 4.16 Amp @ 12 Volts DC;
Input: 100-240 Volts AC, 50/60 Hz
  Power Consumption 27 Watts typical;
2 Watts standby (display backlight off)
  Temperature 32° to 104° F (0° to 40° C)
  Humidity 20% to 80% RH (non-condensing)
  Heat Dissipation 93 BTU/hr
  Plastic case, IEC IP65 rated, VESA 100x100 or 200x100 mm mountable (M4 screw size), third-party flush wall mount kit available from Wall-Smart (
  Height 12.34 in (314 mm)
  Width 20.37 in (518 mm)

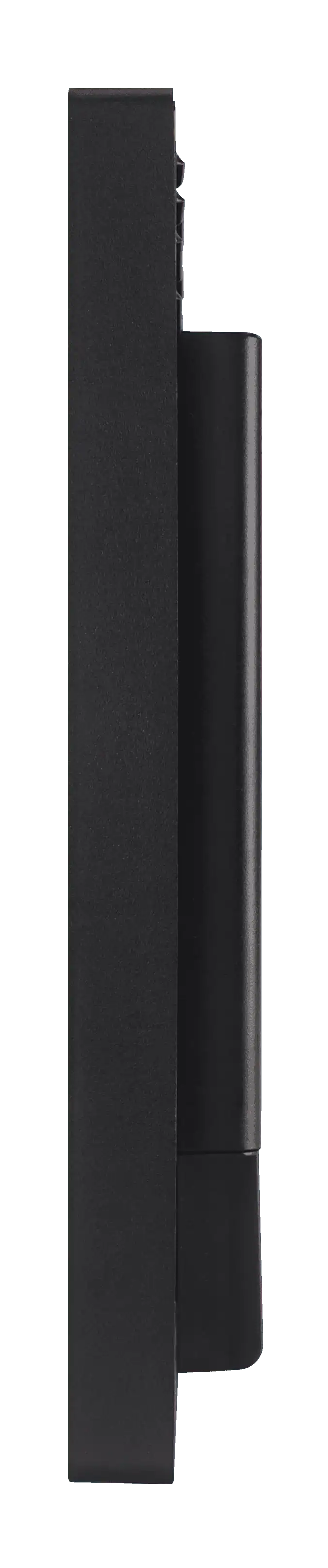

  Depth 1.82 in (46 mm)
  9.7 lb (4.4 kg)
