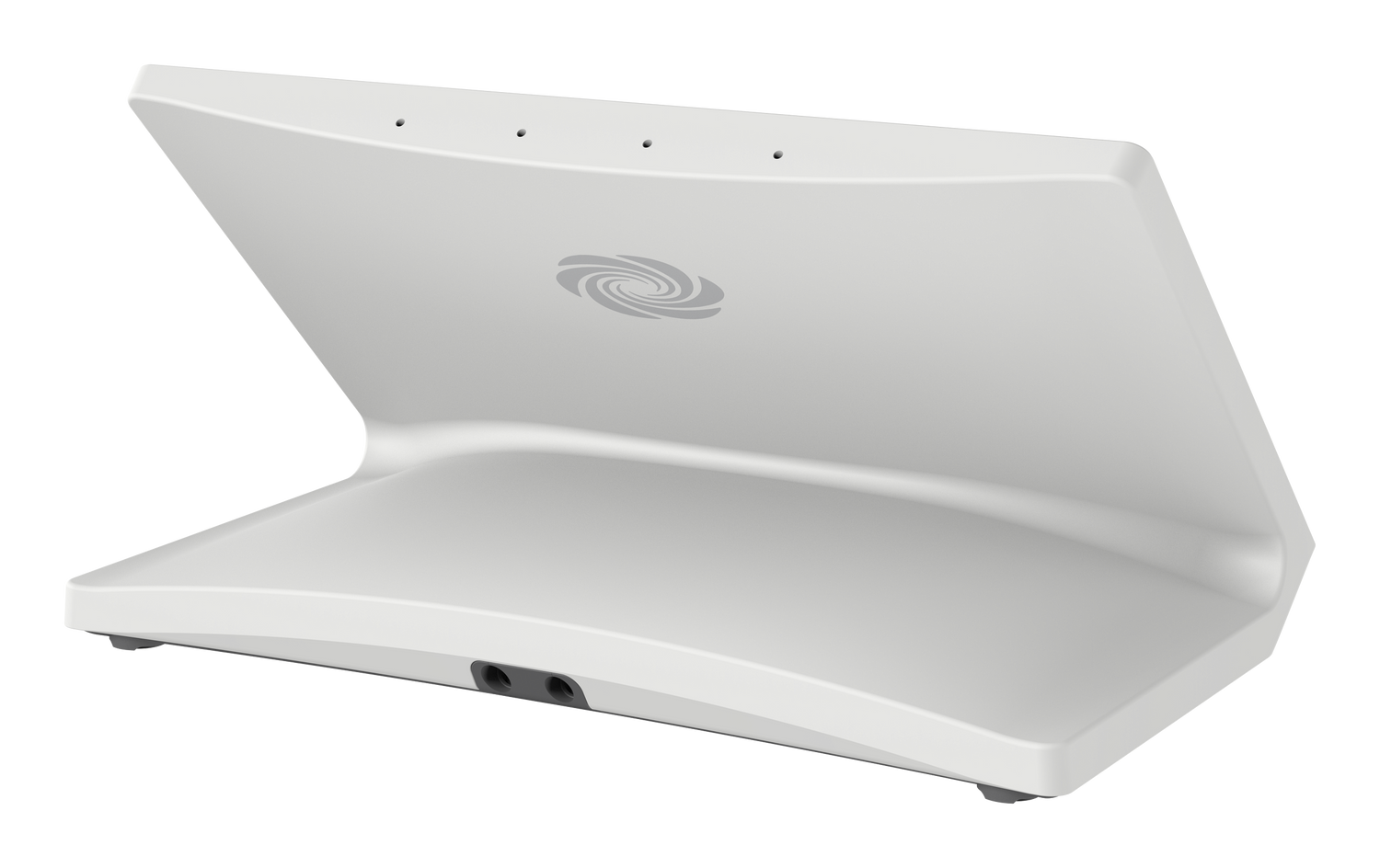

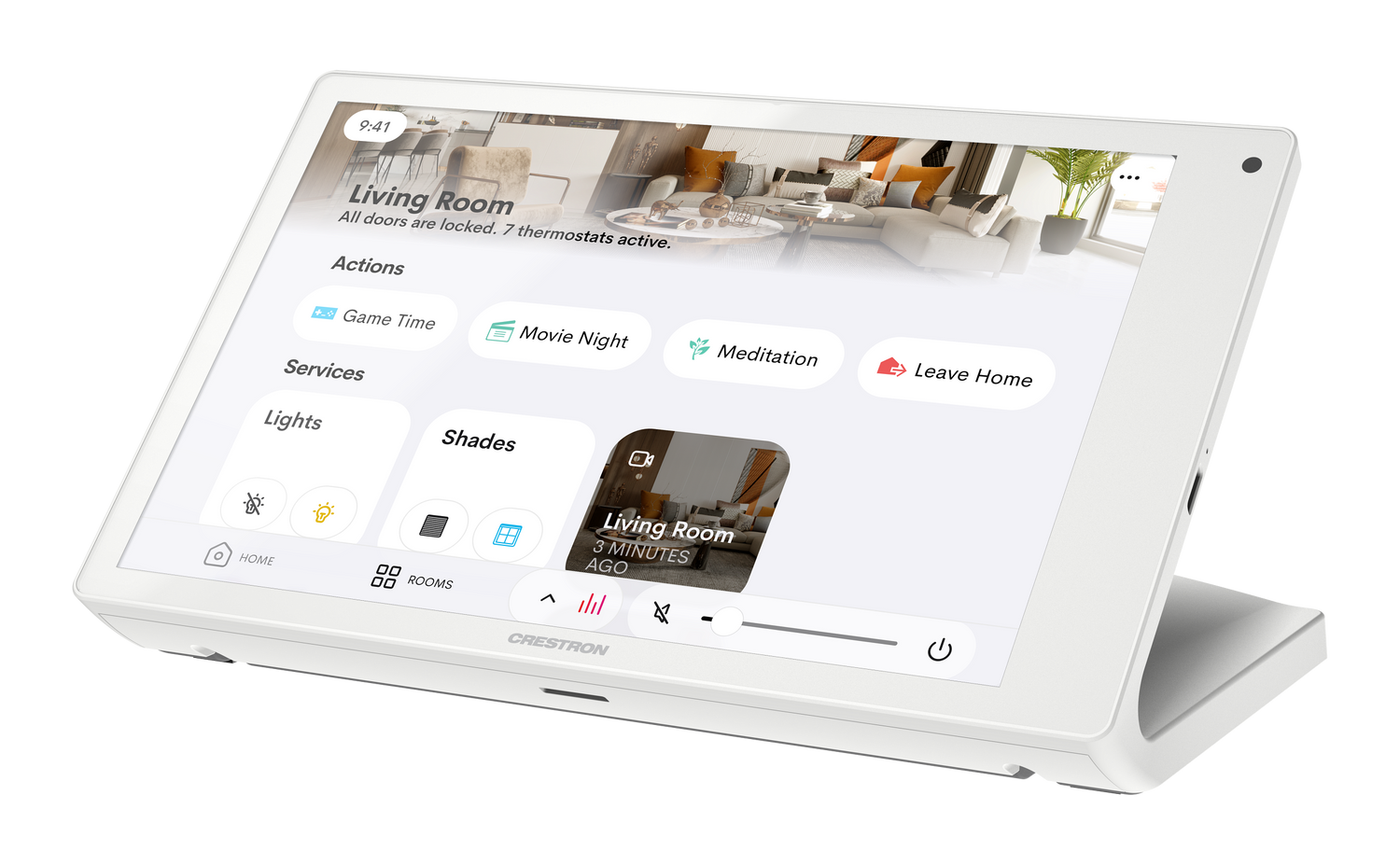

Crestron TS-880R-W – 8.1 in. Tabletop Touch Screen, Crestron Home OS, White

Product Overview

The Crestron TS-880R-W is an 8.1 in. tabletop touch screen designed exclusively to run Crestron Home OS for residential automation. It provides whole-home control of lighting, shading, climate, media, security, and cameras through a high-resolution capacitive display in a white finish.

Product Description

The TS-880R-W features a 1280 x 800 WXGA display with 8 GB LPDDR4 RAM and 40 GB eMMC storage, supporting H.265/H.264 streaming video for live camera feeds. Rava SIP Intercom capability enables two-way VoIP communication with other Rava-enabled devices over Ethernet. The screen connects via PoE+ or Wi-Fi 6E, keeping wiring minimal. Built-in speakers, a far-field microphone, and a dedicated mute button complete the user experience.

Key Features

• 8.1 in. (204 mm), 1280 x 800 WXGA capacitive display at up to 400 nits
• Designed exclusively for Crestron Home OS
• Built-in Rava SIP Intercom with far-field microphone and speakers
• H.265, H.264, MJPEG streaming video (up to 4K@30fps input)
• Wi-Fi 6E (802.11ax, 2.4/5/6 GHz) and Gigabit PoE+ connectivity
• 8 GB LPDDR4 RAM, 40 GB eMMC storage
• Bluetooth 5.2 BLE proximity beacon
• 802.1X, TLS, HTTPS enterprise security
• XiO Cloud service compatible for remote management

Typical Applications

• Whole-home Crestron Home OS control panels placed in living areas, bedrooms, and kitchens
• In-room media and lighting scene control
• Residential security and camera monitoring stations
• Crestron Home system intercom stations via Rava SIP

Technical Specifications

• Model: TS-880R-W
• SKU: TS-880R-W
• Display: 8.1 in. (204 mm) TFT LCD, 1280 x 800 WXGA, up to 400 nits
• Touch: Projected capacitive, 5-point multitouch
• RAM: 8 GB LPDDR4; Storage: 40 GB eMMC pSLC
• Network: 1000 Mbps Ethernet, PoE+ (IEEE 802.3at Type 2)
• Wi-Fi: 802.11a/b/g/n/ac/ax Wi-Fi 6E (2.4, 5, 6 GHz)
• Bluetooth: BLE, BT5.2, 33 ft (10 m) range
• Dimensions: 4.87 in. H x 7.93 in. W x 4.53 in. D (124 x 201 x 115 mm)
• Weight: 1.76 lb (799 g)
• Operating Temperature: 32–104°F (0–40°C)
• Compliance: FCC Part 15 Class B, IC Class B, CE, UL/Intertek Listed

Frequently Asked Questions

Q: Is the TS-880R-W compatible with Crestron commercial programming tools like SIMPL or VT Pro-e?
A: No. The TS-880R-W is designed exclusively for Crestron Home OS and communicates with the Crestron Home processor. It does not support custom SIMPL or HTML5 commercial programming.

Q: Can the TS-880R-W be powered by a standard 802.3af PoE switch?
A: Yes, though with reduced power allocation. For full functionality including the USB port, an 802.3at Type 2 PoE+ switch is recommended.

Q: Does this model support room scheduling applications?
A: No. The TS-880R-W runs Crestron Home OS only. For room scheduling, consider the TS-880-W or TSS series products designed for commercial environments.
