Crestron TS-880R-B – 8.1 in. Tabletop Touch Screen for Crestron Home OS, Black

Product Overview

The Crestron TS-880R-B is an 8.1 in. tabletop touch screen built for Crestron Home OS residential automation systems. Its compact footprint makes it suitable for nightstands, kitchen counters, and desk surfaces where a dedicated home control interface is needed. The unit is powered via PoE+ over a single CAT cable and features Wi-Fi 6E and Bluetooth 5.2 for flexible deployment.

Product Description

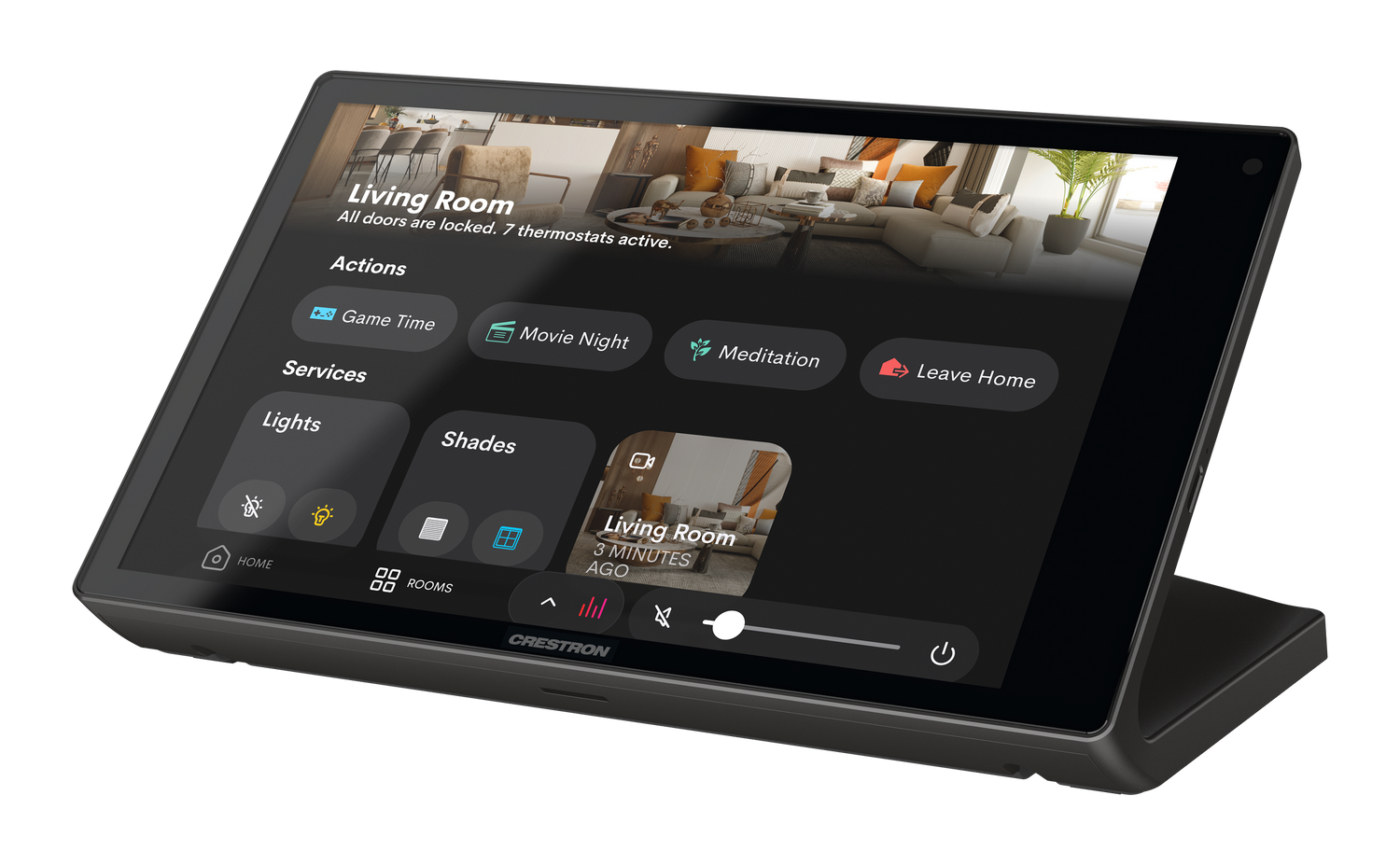

The TS-880R-B provides a 1280x800 WXGA display with projected capacitive 5-point multitouch and a black finish that suits modern residential interiors. It connects to the Crestron Home system via Gigabit Ethernet (PoE+) or Wi-Fi 6E, giving integrators installation flexibility. The USB Type-C port supports local peripheral connections. This touch screen runs Crestron Home OS natively, providing residents with direct control of all connected home systems from a single interface.

Key Features

• 8.1 in. TFT active matrix LCD, 1280x800 WXGA resolution, 16:10 aspect ratio
• Projected capacitive 5-point multitouch with edgelit LED backlight
• PoE+ (IEEE 802.3at Class 4, 30 W) or PoE (802.3af, 15.4 W) single-cable power and data
• Wi-Fi 6E 802.11a/b/g/n/ac/ax 2.4/5/6 GHz 2x2 MIMO
• Bluetooth BLE/BT5.2
• (1) USB Type-C port for local peripheral connectivity
• Black finish for modern residential aesthetics
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Typical Applications

• Bedroom nightstand Crestron Home OS control panel for lighting, shades, and climate
• Kitchen counter touch control for whole-home automation
• Home office desk-mounted AV and system control interface
• Guest suite control panel for simplified home automation access
• Supplemental room control touch screen in multi-zone residential installations

Technical Specifications

• Model: TS-880R-B
• Weight: 1.76 lb (799 g)
• Dimensions (H x W x D): 4.87 in. x 7.93 in. x 4.53 in. (124 mm x 201 mm x 115 mm)
• Display Size: 8.1 in. (204 mm) diagonal
• Display Resolution: 1280 x 800 (WXGA, 16:10)
• Display Type: TFT active matrix LCD, edgelit LED, projected capacitive 5-point multitouch
• Power: PoE+ IEEE 802.3at Class 4 (30 W); IEEE 802.3af (15.4 W)
• Heat Dissipation: 44 BTU/hr
• Network: (1) RJ-45 PoE+ 1000BASE-TX
• Wireless: Wi-Fi 6E 802.11a/b/g/n/ac/ax 2.4/5/6 GHz 2x2 MIMO
• Bluetooth: BLE/BT5.2
• USB: (1) USB Type-C
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Frequently Asked Questions

Q: What is the difference between the TS-880R-B and the TS-880-B?
A: The TS-880R-B runs Crestron Home OS for residential deployments. The TS-880-B is the commercial version for use with Crestron commercial control processors and SIMPL programming.

Q: Can the TS-880R-B be wall-mounted instead of used as a tabletop unit?
A: The TS-880R-B is designed as a tabletop device with an integrated stand. For wall-mount installations, the TSW-880R-B wall mount touch screen is the appropriate choice.

Q: Is Wi-Fi or wired Ethernet recommended for the TS-880R-B?
A: Wired PoE+ Ethernet provides the most reliable connection. Wi-Fi 6E is available as an alternative when running a CAT cable to the tabletop location is not practical.
