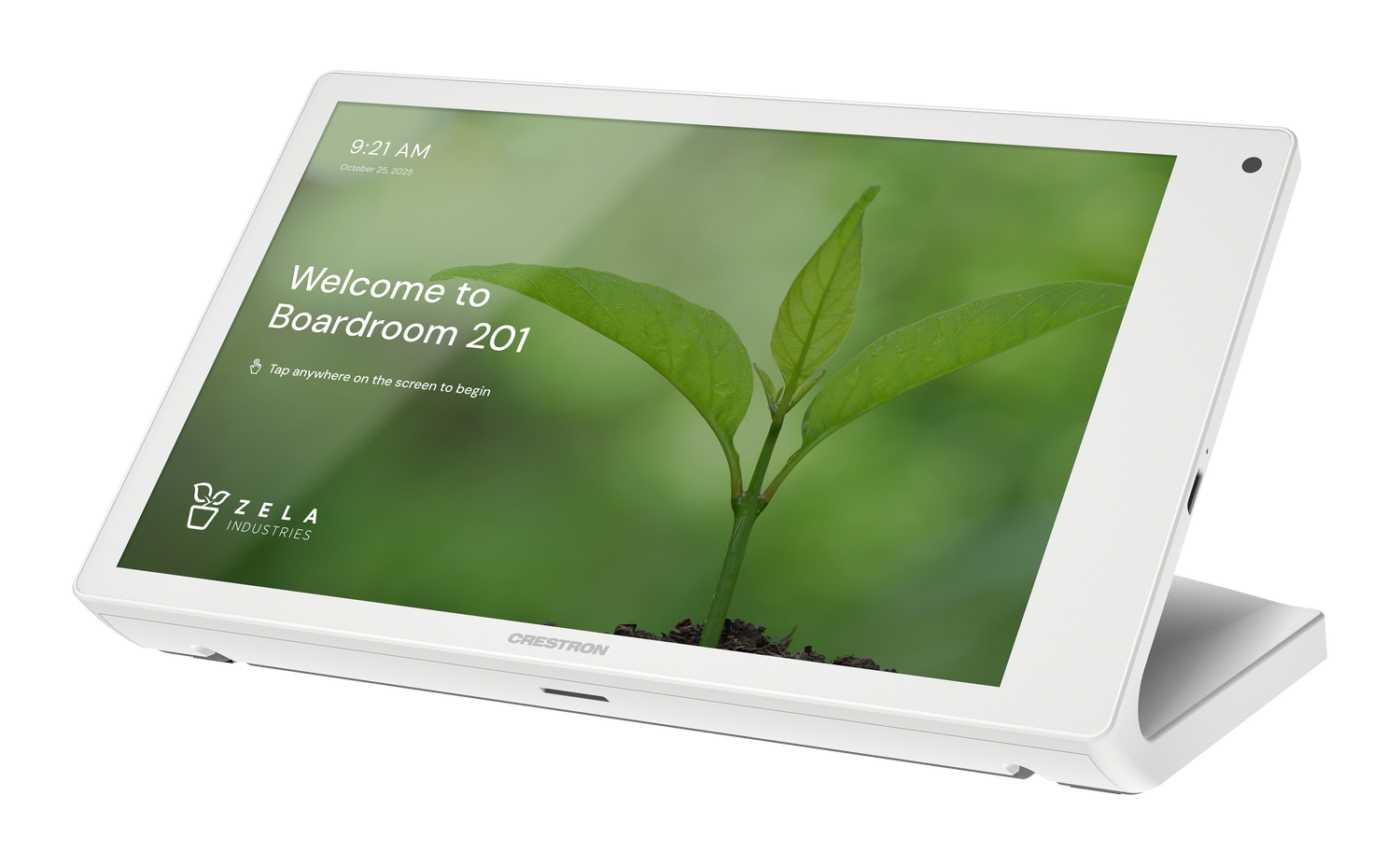

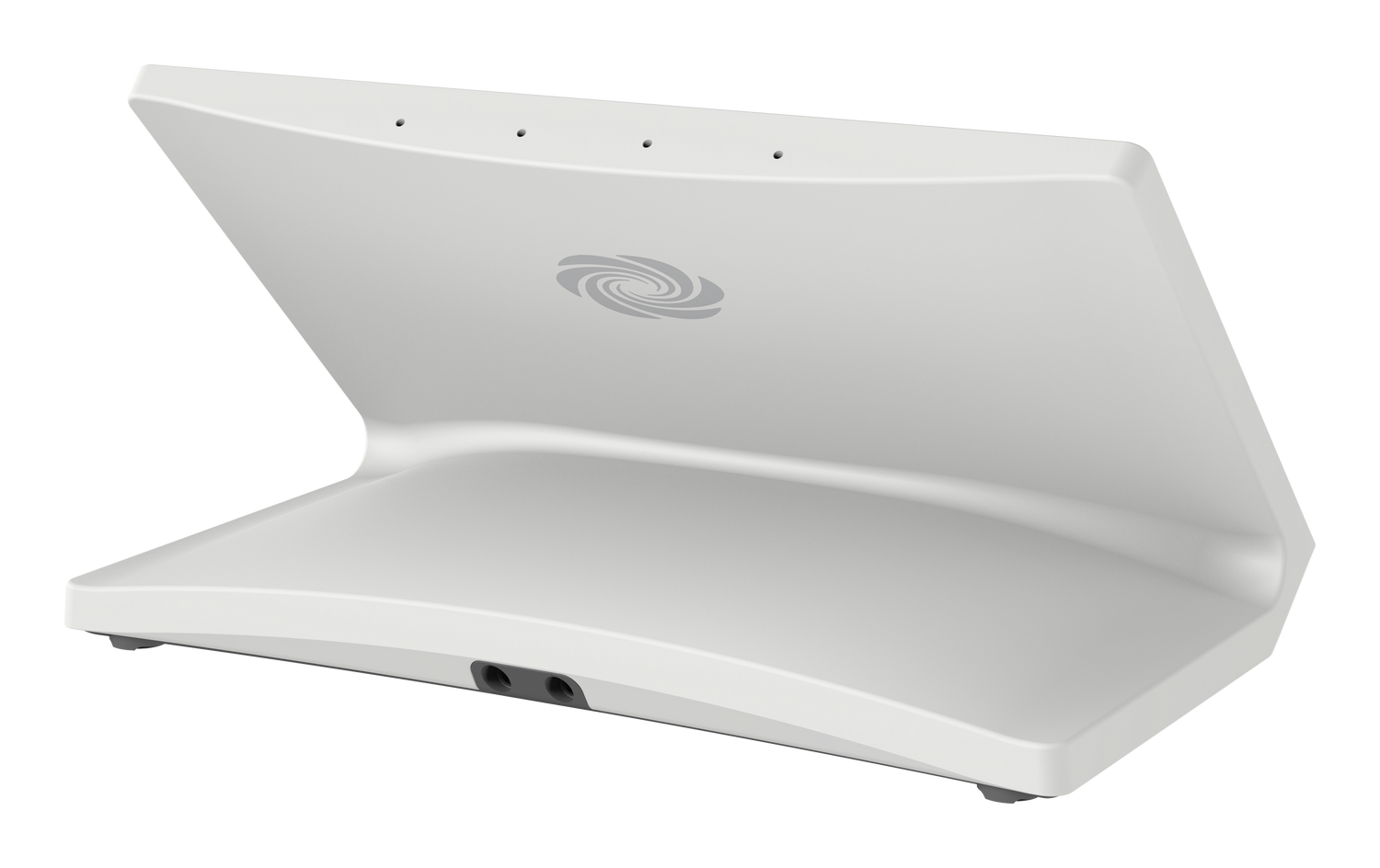

Crestron TS-880-W – 8.1 in. Tabletop Touch Screen, White

Product Overview

The Crestron TS-880-W is an 8.1 in. tabletop touch screen for residential and enterprise applications. It supports Crestron HTML5 and Crestron Construct custom user interfaces, native Crestron Home OS, third-party room scheduling applications, and Rava SIP Intercom, making it a versatile control surface for a wide range of deployments.

Product Description

The TS-880-W features a 1280 x 800 WXGA display with 8 GB LPDDR4 RAM and 40 GB eMMC pSLC storage. The screen runs custom-programmed HTML5 UIs or the Crestron Home app, and integrates with Microsoft Exchange, Google Calendar, and other scheduling services for conference room booking. Rava SIP Intercom with far-field microphone provides two-way voice communication without dedicated intercom wiring. Wi-Fi 6E and Gigabit PoE+ connectivity accommodate both new and retrofit installations.

Key Features

• 8.1 in. (204 mm), 1280 x 800 WXGA capacitive display at up to 400 nits
• Supports Crestron HTML5 and Crestron Construct custom UI projects
• Native Crestron Home OS app and room scheduling application support
• Rava SIP Intercom with far-field microphone and full-duplex speakers
• H.265, H.264, MJPEG streaming video support
• Wi-Fi 6E (802.11ax, 2.4/5/6 GHz) and Gigabit Ethernet PoE+
• 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage
• XiO Cloud provisioning and device management
• 802.1X, TLS, HTTPS enterprise security with Active Directory integration

Typical Applications

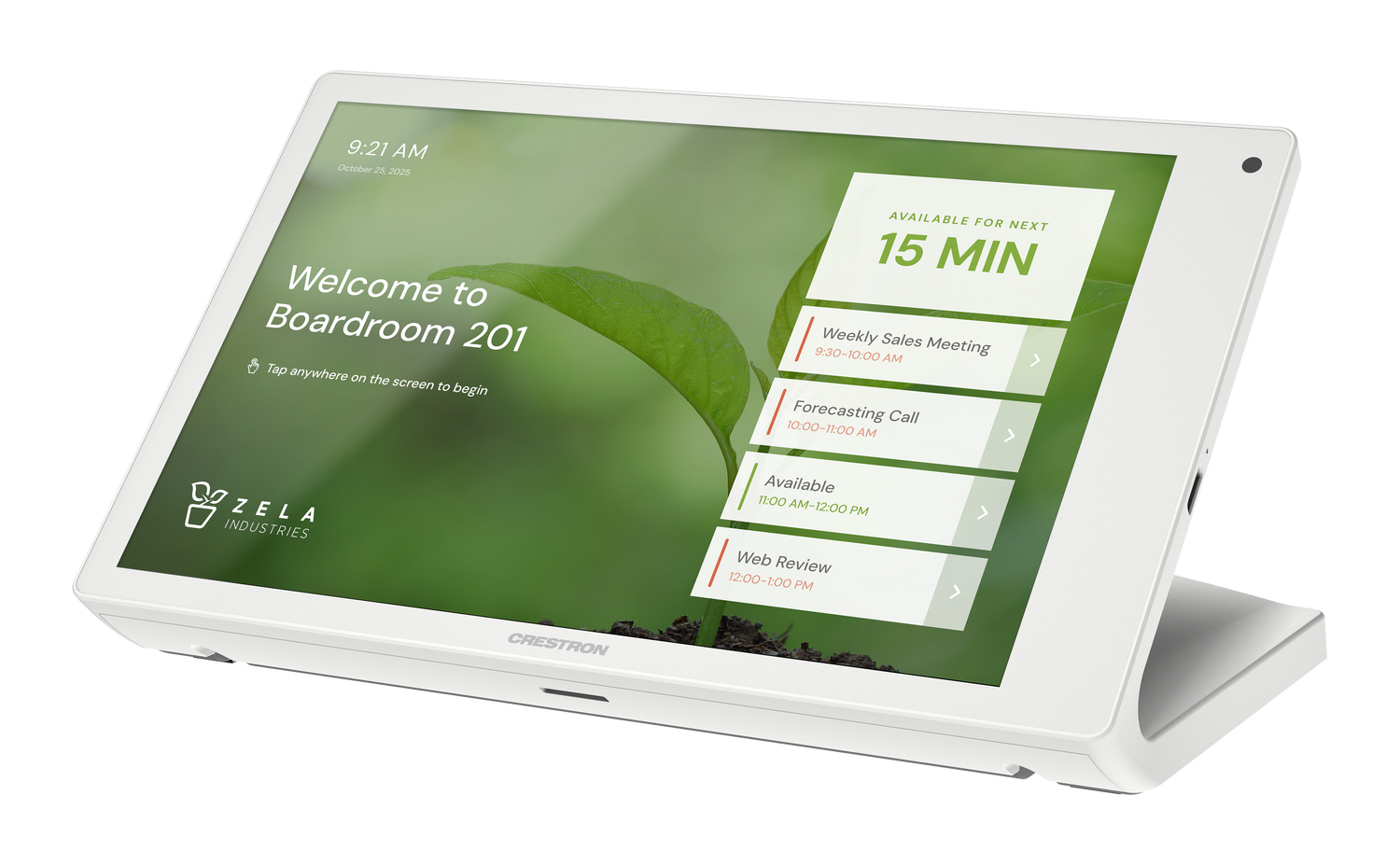

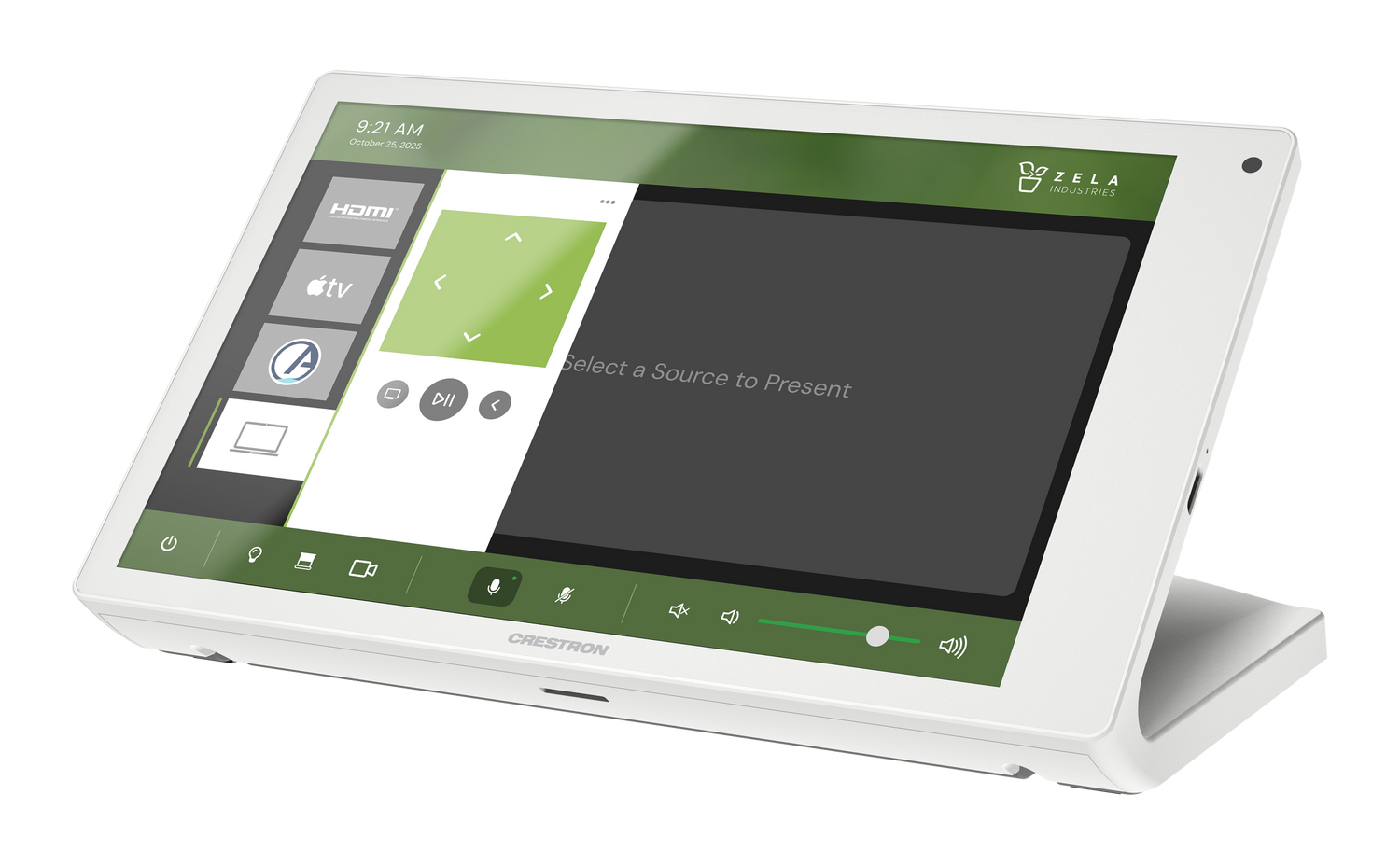

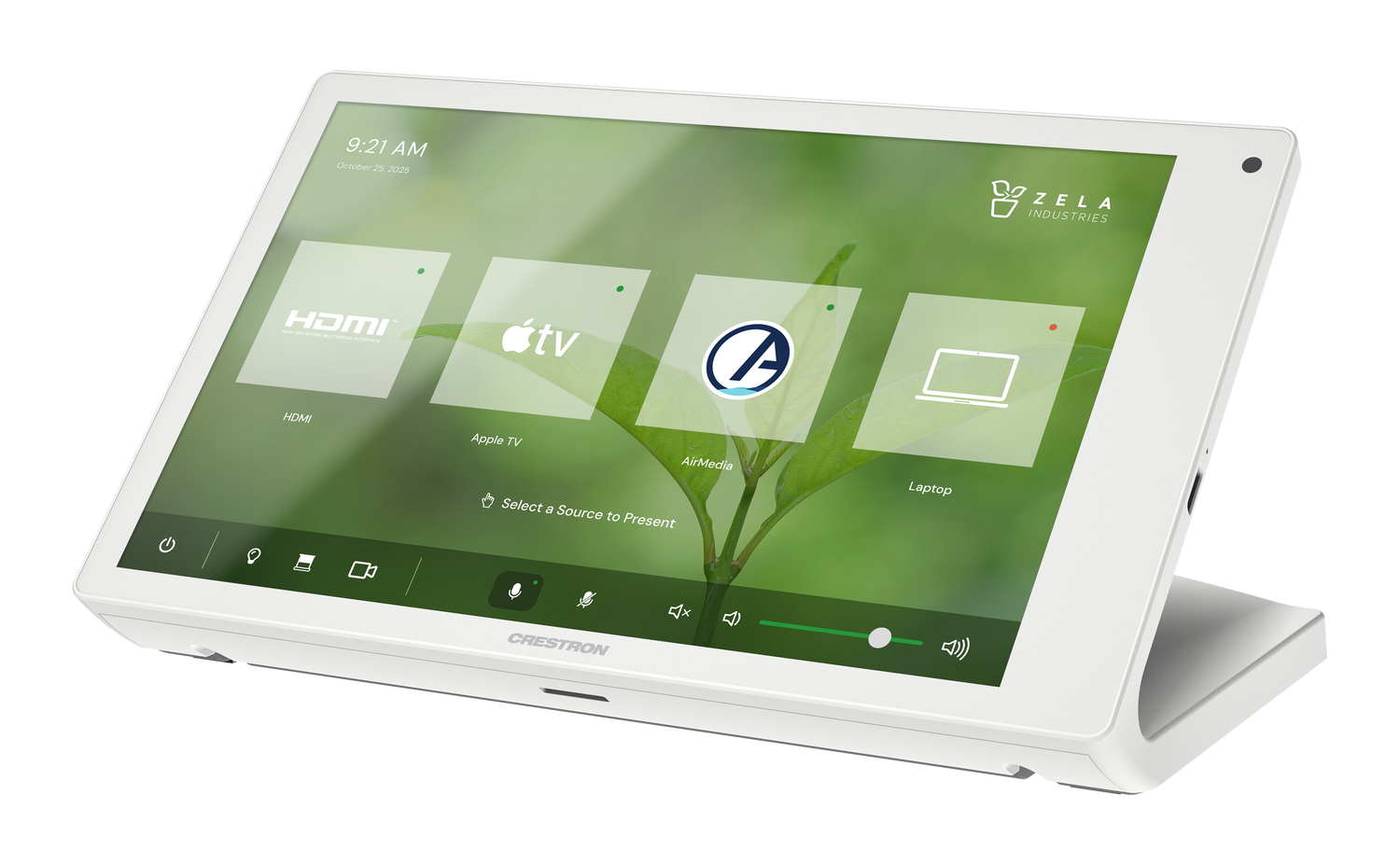

• Conference room AV control panels with room scheduling integration
• Residential Crestron Home OS whole-home control surfaces
• Boardroom touch screen control with custom HTML5 UI projects
• Enterprise facilities with standardized Crestron touch screen deployments
• In-room intercom and door station integration via Rava SIP

Technical Specifications

• Model: TS-880-W
• SKU: TS-880-W
• Display: 8.1 in. (204 mm) TFT LCD, 1280 x 800 WXGA, up to 400 nits
• Touch: Projected capacitive, 5-point multitouch
• RAM: 8 GB LPDDR4; Storage: 40 GB eMMC pSLC
• Network: 1000 Mbps Ethernet, PoE+ (IEEE 802.3at Type 2)
• Wi-Fi: 802.11a/b/g/n/ac/ax Wi-Fi 6E (2.4, 5, 6 GHz)
• Bluetooth: BLE, BT5.2, 33 ft (10 m) range
• Dimensions: 4.87 in. H x 7.93 in. W x 4.53 in. D (124 x 201 x 115 mm)
• Weight: 1.76 lb (799 g)
• Operating Temperature: 32–104°F (0–40°C)
• Compliance: FCC Part 15 Class B, IC Class B, CE, UL/Intertek Listed

Frequently Asked Questions

Q: What scheduling platforms does the TS-880-W support for room booking?
A: The TS-880-W supports Microsoft Exchange/Microsoft 365, Google Calendar, CollegeNET 25Live, Ad Astra, and various third-party scheduling apps via firmware-delivered downloads. No custom programming is required to deploy a scheduling panel.

Q: Can the TS-880-W run custom AV control interfaces alongside Crestron Home?
A: Yes. The TS-880-W supports both custom HTML5 UI projects via a Crestron control system and the native Crestron Home OS app, making it suitable for mixed residential and light commercial deployments.

Q: What is the difference between the TS-880-W and the TS-880R-W?
A: The TS-880R-W runs Crestron Home OS exclusively. The TS-880-W adds support for custom HTML5 programming and commercial room scheduling applications, making it appropriate for both residential and enterprise use.
