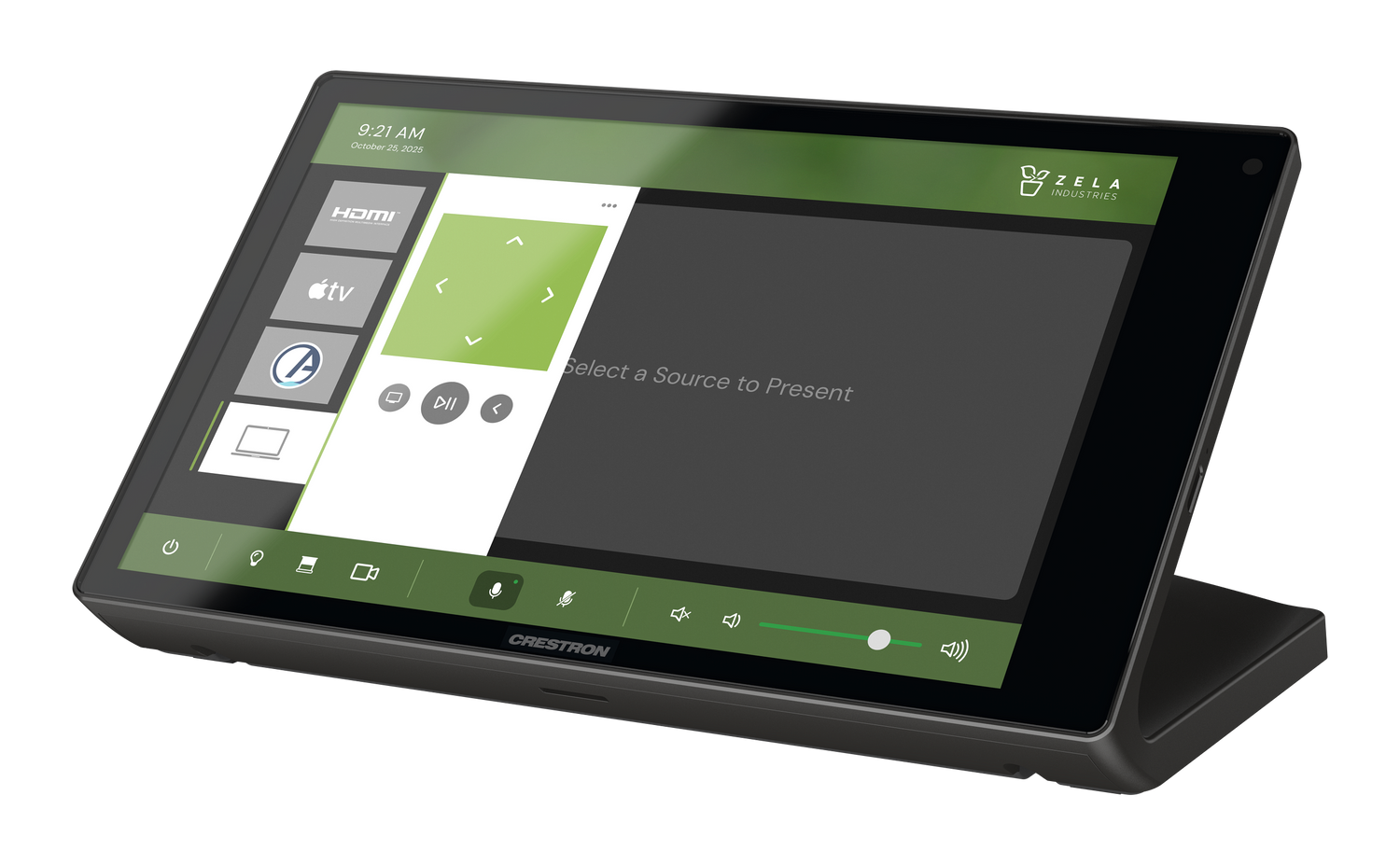

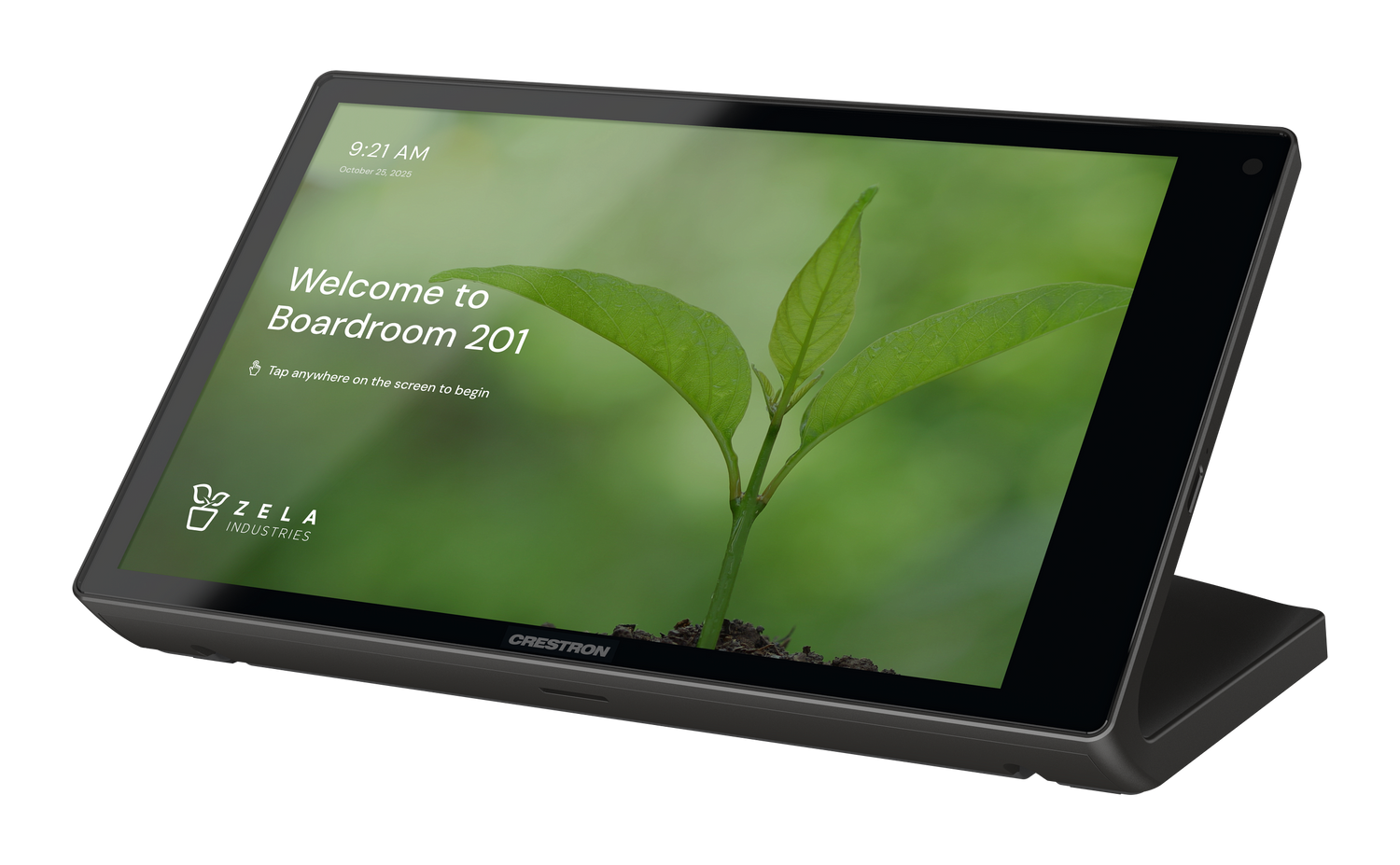

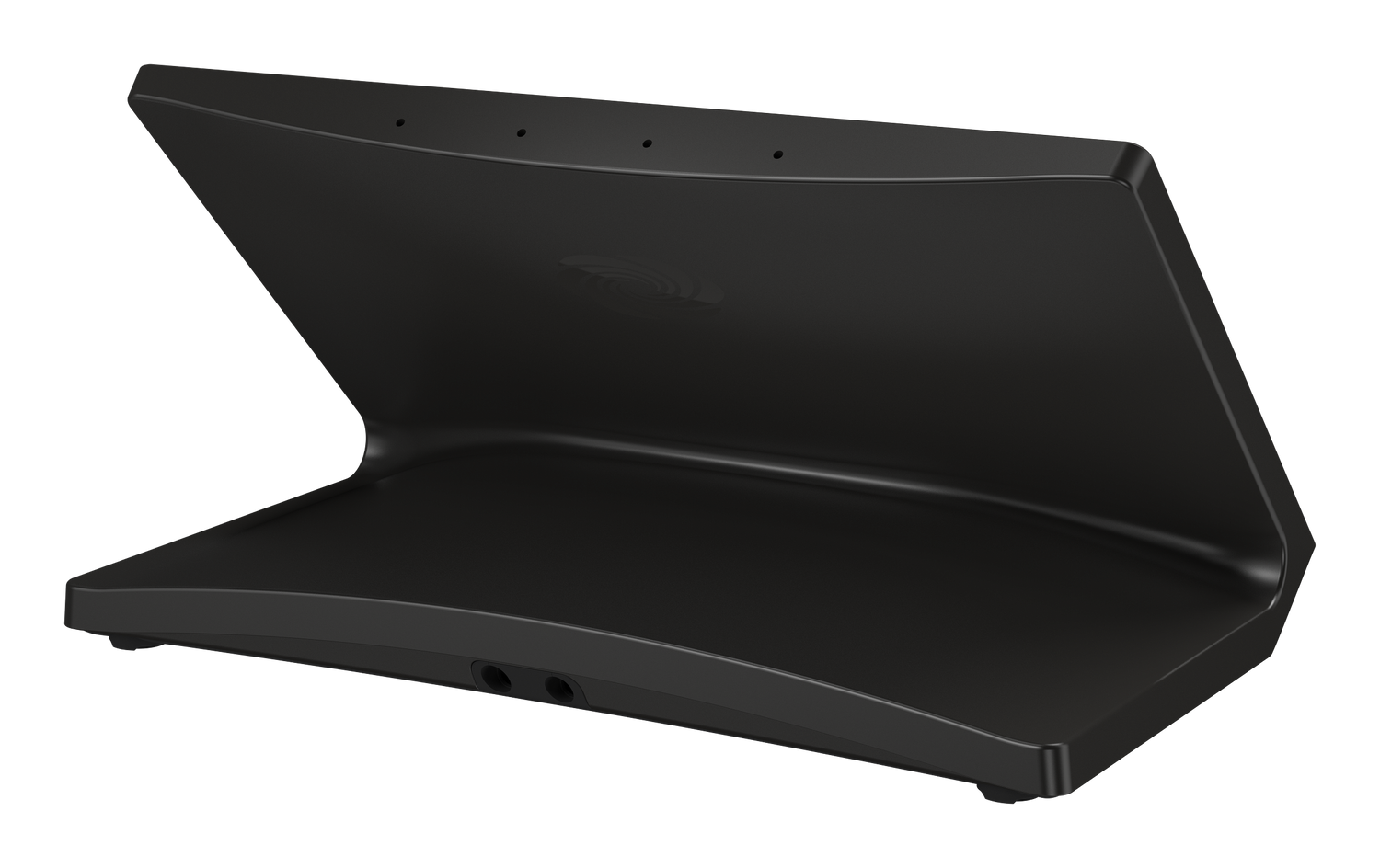

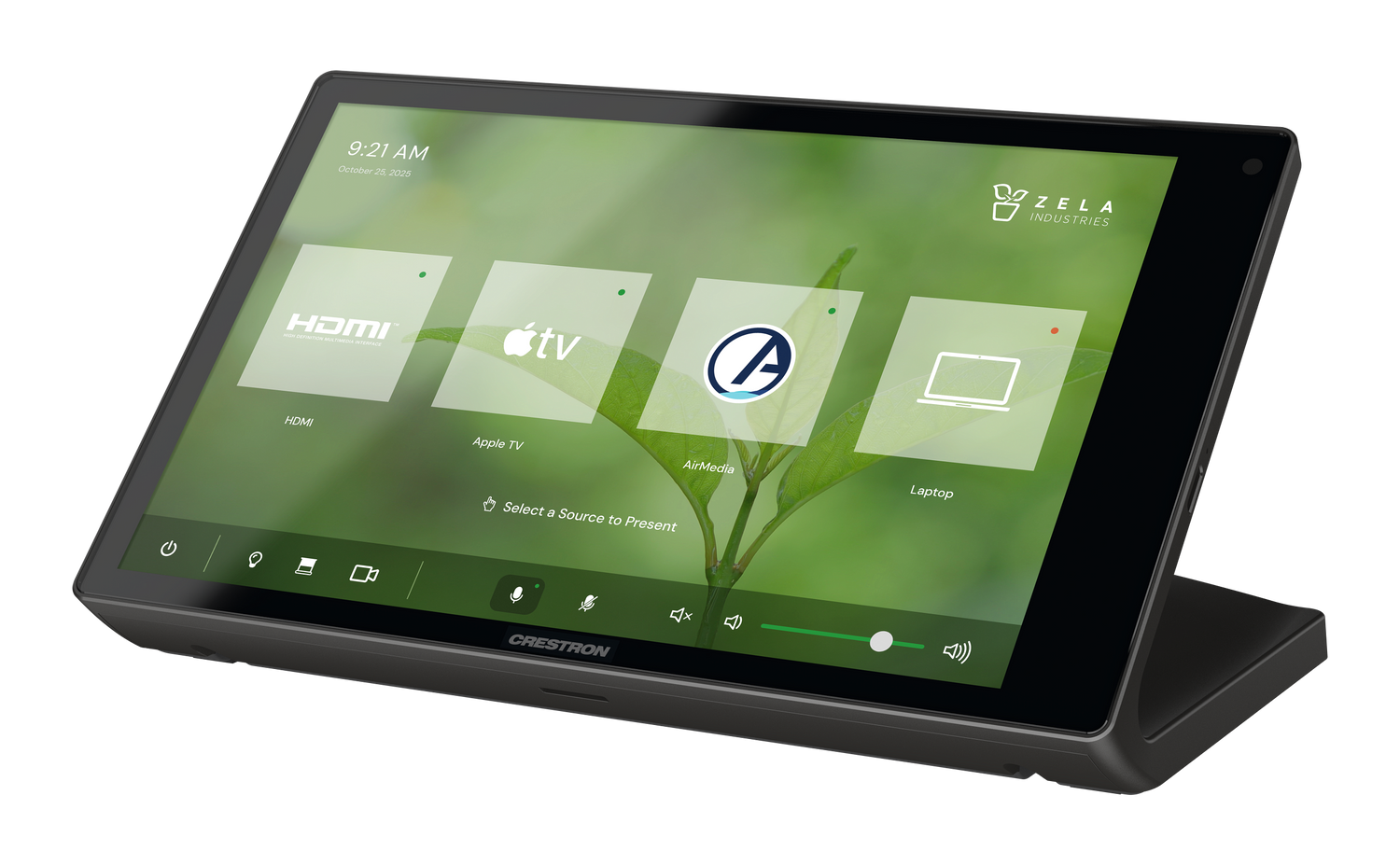

Crestron TS-880-W – 8.1 in. Tabletop Touch Screen, White

Product Overview

The Crestron TS-880-W is an 8.1 in. tabletop touch screen built for Crestron commercial AV and control deployments. It provides a compact, desk-mounted interface for controlling AV equipment, lighting, climate, and room technology in conference rooms, huddle spaces, and executive offices. A single PoE+ CAT cable delivers both network connectivity and power, keeping installation clean and cable-efficient.

Product Description

The TS-880-W features a 1280x800 WXGA display with projected capacitive 5-point multitouch, housed in a white finish that integrates with modern workplace aesthetics. It runs on Crestron's commercial touch screen platform, supporting full programmability via SIMPL or Crestron Studio. Wi-Fi 6E (802.11ax) with 2x2 MIMO and Bluetooth 5.2 enable flexible deployment scenarios. The USB Type-C port supports peripheral connections and DisplayPort video output.

Key Features

• 8.1 in. TFT active matrix LCD, 1280x800 WXGA resolution, 16:10 aspect ratio
• Projected capacitive 5-point multitouch with edgelit LED backlight
• PoE+ (IEEE 802.3at Class 4, 30 W) or PoE (802.3af, 15.4 W) single-cable power and data
• Wi-Fi 6E 802.11a/b/g/n/ac/ax 2.4/5/6 GHz 2x2 MIMO
• Bluetooth BLE/BT5.2
• (1) USB Type-C port for USB 2.0 host and peripheral connectivity
• White finish for clean integration in modern meeting spaces
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Typical Applications

• Conference room AV control interface on a table or credenza
• Huddle space and collaboration room touch control
• Executive office desk-mounted control surface
• Corporate campus meeting room deployment at scale
• Hotel room AV and amenity control panel

Technical Specifications

• Model: TS-880-W
• Weight: 1.76 lb (799 g)
• Dimensions (H x W x D): 4.87 in. x 7.93 in. x 4.53 in. (124 mm x 201 mm x 115 mm)
• Display Size: 8.1 in. (204 mm) diagonal
• Display Resolution: 1280 x 800 (WXGA, 16:10)
• Display Type: TFT active matrix LCD, edgelit LED, projected capacitive 5-point multitouch
• Power: PoE+ IEEE 802.3at Class 4 (30 W); IEEE 802.3af (15.4 W)
• Heat Dissipation: 44 BTU/hr
• Network: (1) RJ-45 PoE+ 1000BASE-TX
• Wireless: Wi-Fi 6E 802.11a/b/g/n/ac/ax 2.4/5/6 GHz 2x2 MIMO
• Bluetooth: BLE/BT5.2
• USB: (1) USB Type-C
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Frequently Asked Questions

Q: What is the difference between the TS-880-W and the TS-880R-W?
A: The TS-880-W is the standard commercial touch screen for use with Crestron commercial control processors. The TS-880R-W is the Crestron Home OS version, designed for residential automation systems running Crestron Home.

Q: Can the TS-880-W be programmed for custom room control interfaces?
A: Yes. The TS-880-W is fully programmable via Crestron SIMPL, SIMPL#, and Crestron Studio, supporting custom UI design through VTPro-e or Crestron HTML5 UI tools.

Q: Does the TS-880-W support room scheduling software?

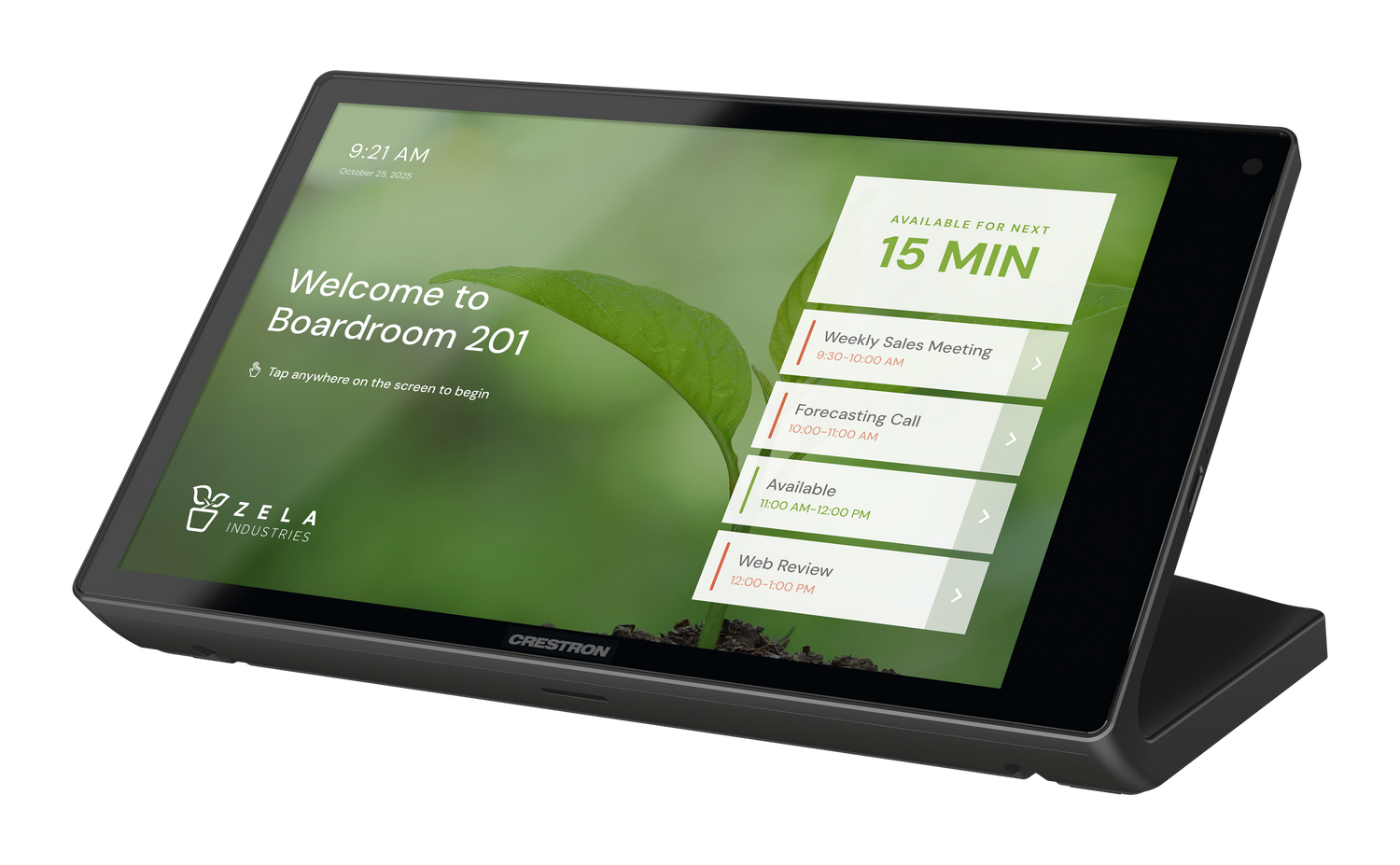

A: The TS-880-W is a general-purpose control touch screen. For dedicated room scheduling applications, the TSS-880-B or TSS-880-W scheduling panels with calendar integration are the recommended choice.
