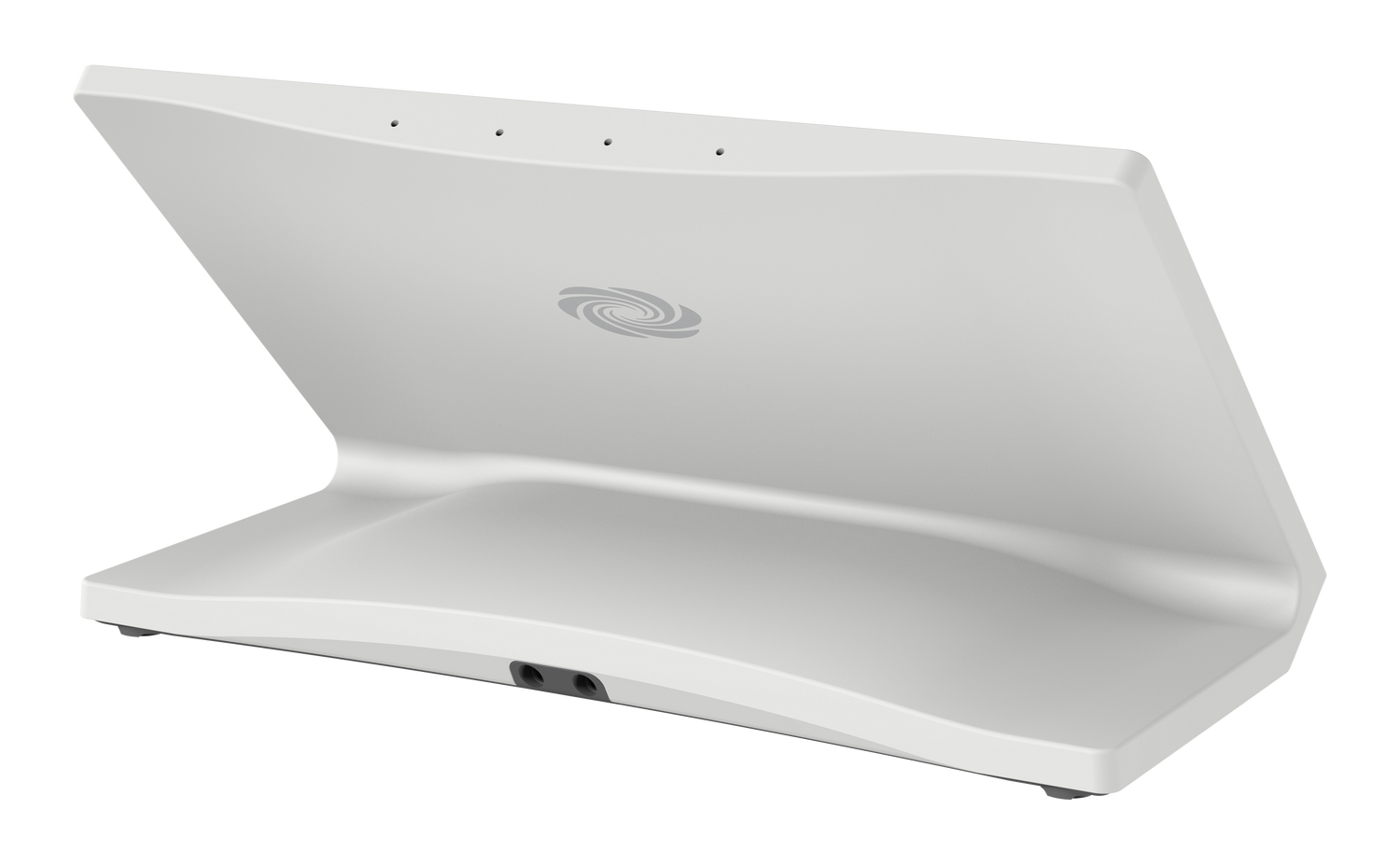

Crestron TS-1080R-W – 10.1 in. Tabletop Touch Screen for Crestron Home OS, White

Product Overview

The Crestron TS-1080R-W is a 10.1 in. tabletop touch screen engineered for Crestron Home OS residential and light commercial deployments. Designed for homeowners, integrators, and facilities managers, it serves as a central control interface for lighting, shades, climate, AV, and security systems. The unit is powered over a single CAT cable via PoE+, eliminating the need for a dedicated power supply at the installation location.

Product Description

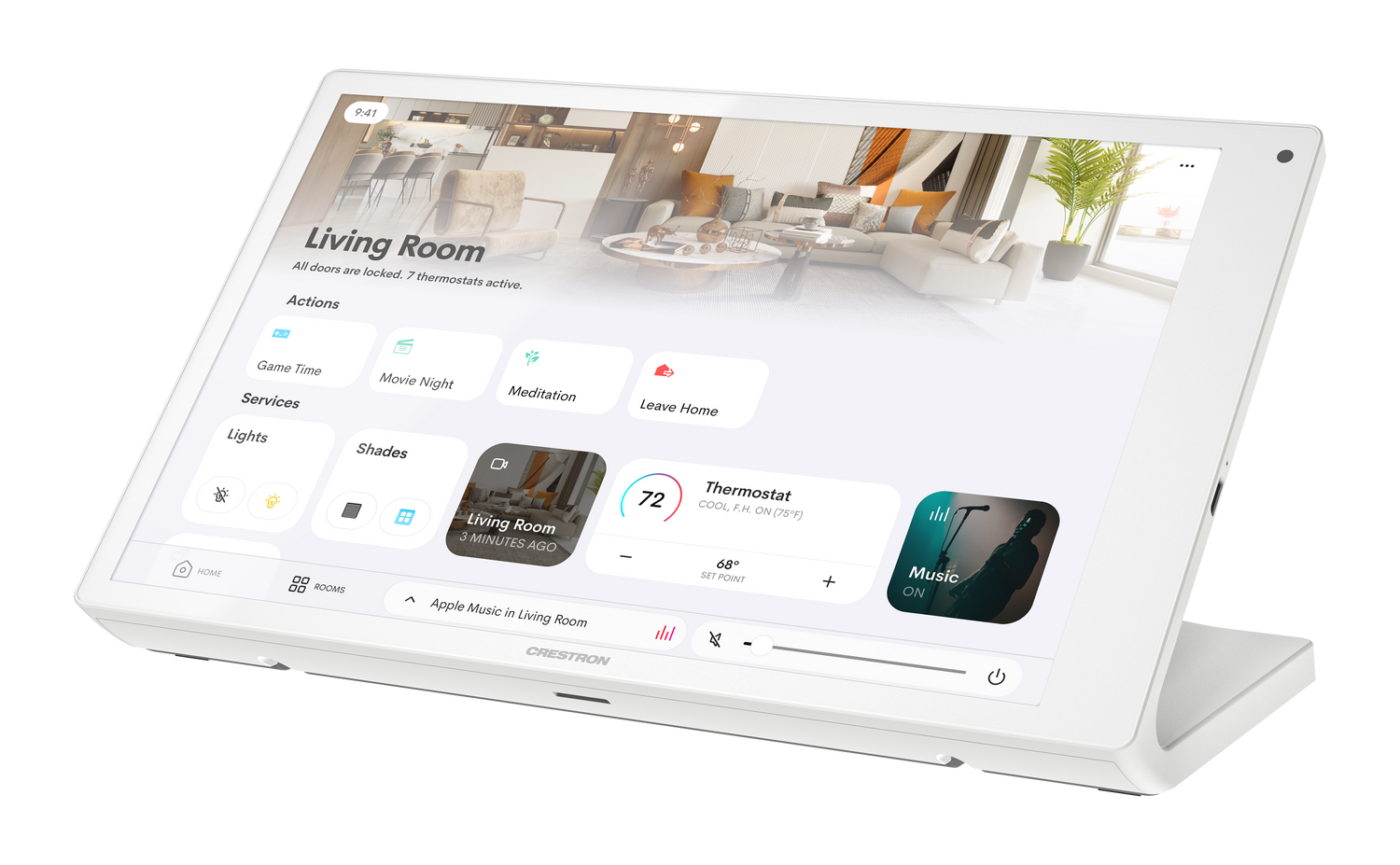

The TS-1080R-W features a 1920x1200 WUXGA display with 5-point projected capacitive multitouch, delivering sharp visuals and responsive operation. It connects via a single CAT cable carrying both network data and PoE+ power, simplifying installation in credenzas, conference tables, and countertops. Wi-Fi 6E (802.11ax) and Bluetooth 5.2 provide wireless flexibility for deployments where wired connectivity is preferred as a backup. A USB Type-C port with DisplayPort Alt Mode supports direct video output or peripheral connection.

Key Features

• 10.1 in. TFT active matrix LCD, 1920x1200 WUXGA resolution, 16:10 aspect ratio
• Projected capacitive 5-point multitouch with edgelit LED backlight
• PoE+ (IEEE 802.3at Class 4, 30 W) or PoE (802.3af, 15.4 W) powered via single RJ-45
• Wi-Fi 6E 802.11a/b/g/n/ac/ax 2.4/5/6 GHz support with 2x2 MIMO
• Bluetooth BLE/BT5.2 for wireless peripheral pairing
• USB Type-C port supporting USB 2.0 host and USB 3.1 DisplayPort Alt Mode
• Crestron Home OS native interface for whole-home automation control
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Typical Applications

• Whole-home Crestron Home OS control interface on a kitchen counter or living room credenza
• Primary AV and lighting control surface in a residential great room or home theater
• Central control panel in boutique hotel rooms or executive suites
• Tabletop control interface for small conference rooms or boardrooms
• Structured wiring enclosure integration for clean, single-cable installation

Technical Specifications

• Model: TS-1080R-W
• Weight: 2.23 lb (1,012 g)
• Dimensions (H x W x D): 5.96 in. x 9.68 in. x 4.53 in. (151 mm x 246 mm x 115 mm)
• Display Size: 10.1 in. (257 mm) diagonal
• Display Resolution: 1920 x 1200 (WUXGA, 16:10)
• Display Type: TFT active matrix LCD, edgelit LED, projected capacitive 5-point multitouch
• Power: PoE+ IEEE 802.3at Class 4 (30 W); IEEE 802.3af (15.4 W)
• Heat Dissipation: 44 BTU/hr
• Network: (1) RJ-45 PoE+ 1000BASE-TX
• Wireless: Wi-Fi 6E 802.11a/b/g/n/ac/ax 2.4/5/6 GHz 2x2 MIMO
• Bluetooth: BLE/BT5.2
• USB: (1) USB Type-C (USB 2.0 host / USB 3.1 DisplayPort Alt Mode)
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (Intertek)

Frequently Asked Questions

Q: Does the TS-1080R-W require a separate power supply?
A: No. The unit is powered entirely via PoE+ over a single CAT cable from a PoE+ switch or injector. No dedicated power supply or outlet is required at the installation location.

Q: Is the TS-1080R-W compatible with Crestron commercial systems, or only Crestron Home?
A: The TS-1080R-W is designed specifically for Crestron Home OS. For commercial Crestron deployments using 4-Series processors, the TSW series wall-mount or TS-880 tabletop panels are the appropriate choice.

Q: Can I use Wi-Fi instead of wired Ethernet on the TS-1080R-W?
A: Yes. The unit includes Wi-Fi 6E (802.11ax) supporting 2.4 GHz, 5 GHz, and 6 GHz bands, allowing wireless deployment where running a CAT cable is not practical.
