Crestron TS-1080R-B – 10.1 In. Tabletop Touch Screen, Crestron Home OS, Black

Product Overview

The Crestron TS-1080R-B is a 10.1 in. tabletop touch screen designed to run Crestron Home OS in residential installations. It provides a centralized control point for lighting, shades, climate, media, security, and camera systems throughout a home. The unit is suited for integrators deploying whole-home automation solutions where a room-by-room interface is required.

Product Description

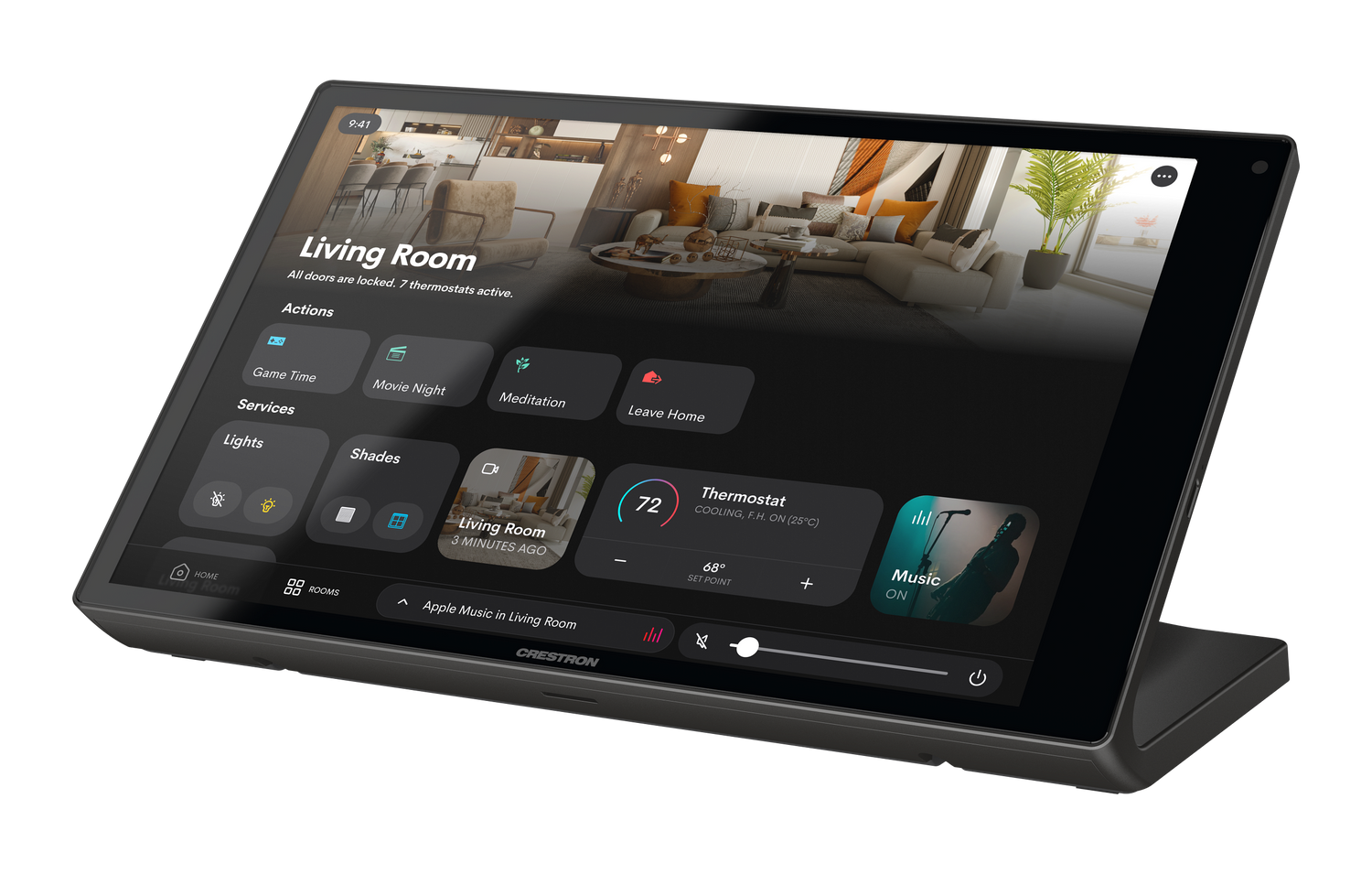

Featuring a 1920x1200 WUXGA projected capacitive display, the TS-1080R-B delivers sharp visuals and responsive multitouch input. The device connects via a single Ethernet cable that carries both data and PoE+ power, eliminating dedicated power wiring. Wi-Fi 6E connectivity provides an alternative network path for installations where Ethernet cabling is not accessible. Built-in Rava SIP Intercom, integrated microphone, and speakers enable hands-free two-way audio communication with other Crestron Rava-enabled devices throughout the home.

Key Features

• 10.1 in. (257 mm) capacitive touch display, 1920x1200 WUXGA, 400 nits max brightness
• Native Crestron Home OS application for whole-home control
• Single Ethernet cable carries data and PoE+ power (IEEE 802.3at Type 2, 30 W)
• Wi-Fi 6E (802.11a/b/g/n/ac/ax, 2.4/5/6 GHz, 2x2 MIMO) wireless connectivity
• Bluetooth 5.2/BLE support
• Built-in Rava SIP Intercom with far-field microphone and integrated speakers
• H.265, H.264, and MJPEG streaming video from IP cameras over Ethernet
• 8 GB LPDDR4 RAM, 40 GB eMMC storage
• Enterprise-grade security: 802.1X, TLS, HTTPS, Active Directory integration
• Available in black or white finish

Typical Applications

• Whole-home Crestron Home OS automation control in residential installs
• Room-by-room lighting, shade, climate, and media control panels
• IP camera and streaming video monitoring stations
• In-home intercom and VoIP hands-free communication
• Retrofit installations where PoE or Wi-Fi eliminates dedicated wiring runs

Technical Specifications

• Model: TS-1080R-B
• Display Size: 10.1 in. (257 mm) diagonal
• Resolution: 1920 x 1200 WUXGA (16:10)
• Display Type: TFT active matrix color LCD, projected capacitive 5-point multitouch
• Brightness: 350–400 nits
• Contrast Ratio: 1000:1
• Color Depth: 24-bit, 16.7M colors
• Memory: 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage
• Ethernet: 1000 Mbps, IEEE 802.3at PoE+ PD, RJ-45
• Wi-Fi: IEEE 802.11a/b/g/n/ac/ax Wi-Fi 6E, 2.4/5/6 GHz, 2x2 MIMO
• Bluetooth: BLE, BT 5.2
• USB: USB 2.0 host (Type-C connector)
• Audio: Built-in microphone and speakers, Rava SIP Intercom
• Streaming: H.265, H.264, MJPEG; up to 3840x2160@30fps; RTSP protocol
• Power: PoE+ IEEE 802.3at Type 2 (30 W Class 4)
• Operating Temperature: 32–104°F (0–40°C)
• Heat Dissipation: 44 BTU/hr
• Dimensions: H 5.96 in. x W 9.68 in. x D 4.53 in. (151 x 246 x 115 mm)
• Weight: 2.23 lb (1,012 g)
• Certifications: FCC Part 15 Class B, IC Class B, CE, UL Listed (US and Canada) / Intertek

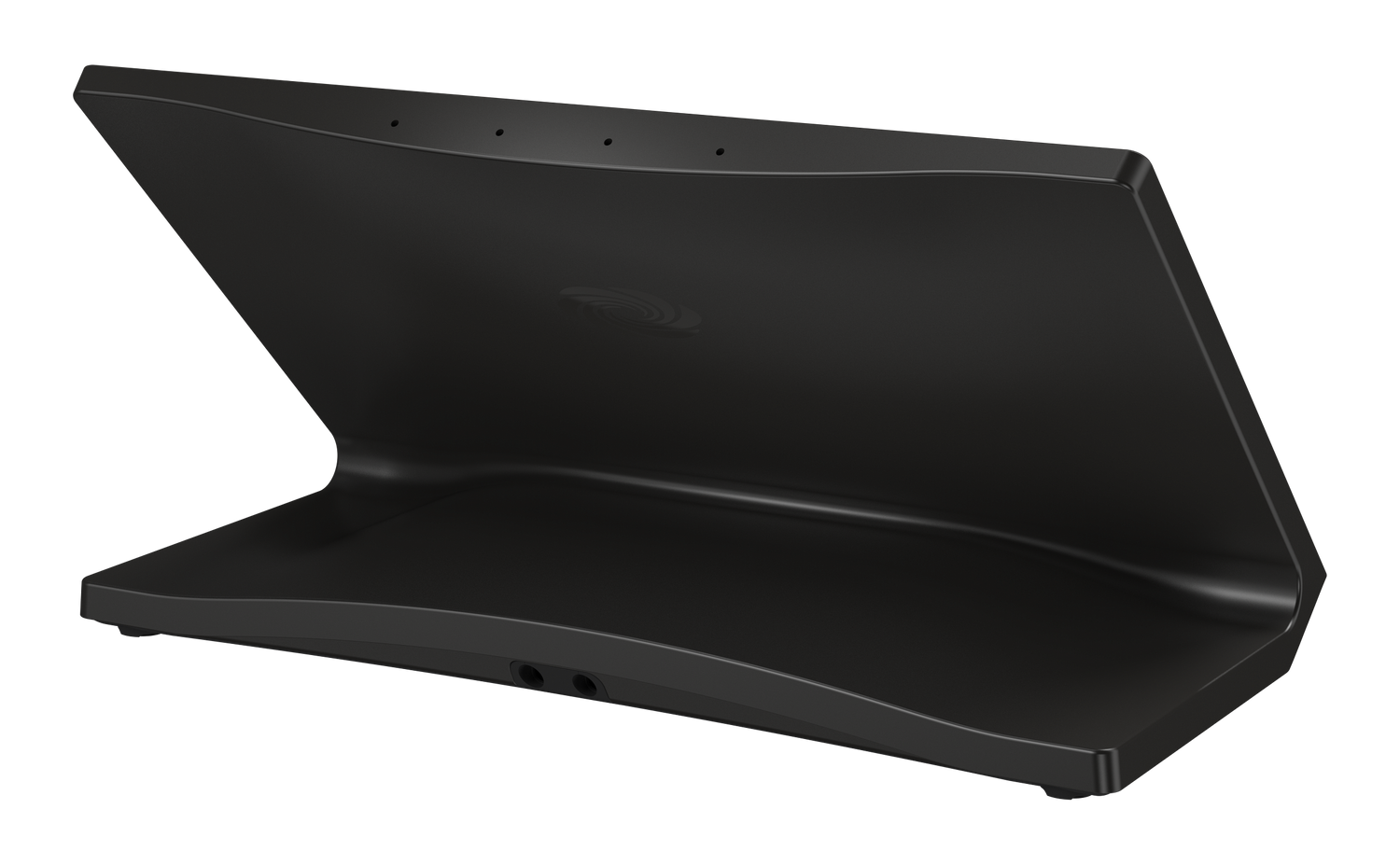

• Finish: Die-cast housing, smooth black

Frequently Asked Questions

Q: Does the TS-1080R-B require a separate power supply?
A: No. The TS-1080R-B is powered via PoE+ (IEEE 802.3at Type 2) over the same Ethernet cable used for data, eliminating the need for a dedicated power supply or local power wiring. A PoE+ capable switch or injector is required.

Q: Can the TS-1080R-B be used without a wired Ethernet connection?
A: Yes. The touch screen supports Wi-Fi 6E (802.11a/b/g/n/ac/ax) on 2.4, 5, and 6 GHz bands for installations where Ethernet cabling is not available. Note that Wi-Fi operation requires a separate PoE source or local power if no Ethernet is run to the device.

Q: Is the TS-1080R-B compatible with Crestron commercial systems?
A: The TS-1080R-B is designed specifically for the Crestron Home OS platform and is intended for residential applications. For commercial deployments, Crestron offers the standard TS-1080 series which supports the full range of commercial control programming.
