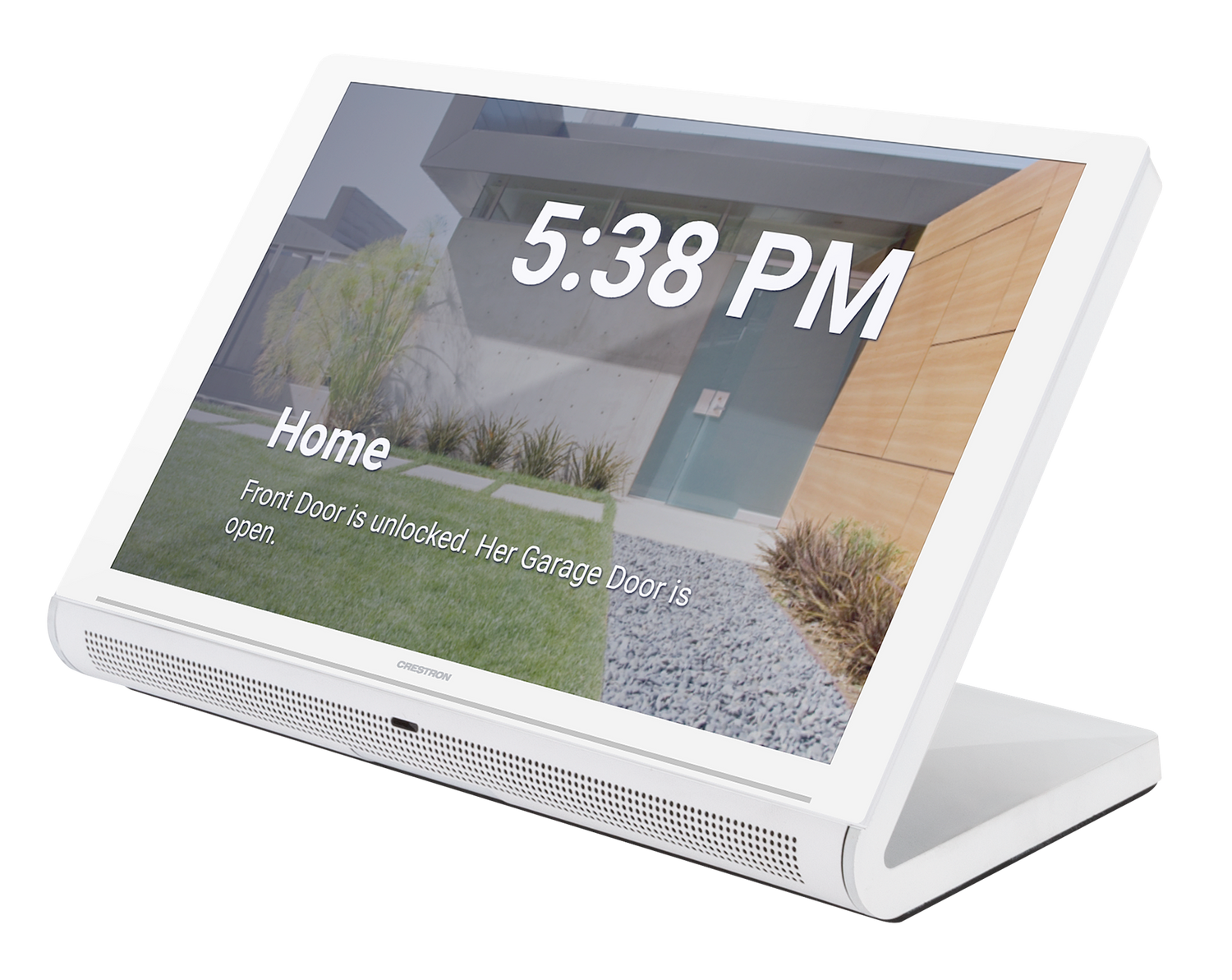

Crestron TS-1070R-W – 10.1 in. Tabletop Touch Screen, Crestron Home OS, White

Product Overview

The Crestron TS-1070R-W is a 10.1-inch tabletop touch screen running Crestron Home® OS, in White finish. It is the White color variant of the TS-1070R-B (Black) and is functionally identical in every specification. Designed for residential and light commercial AV deployments using the Crestron Home® platform, it provides a native interface for controlling AV sources, lighting, shades, climate, and scenes from a single tabletop panel. The White (W) finish suits white and light-colored furniture, residential cabinetry, and commercial interiors where a black panel would not coordinate with the design specification.

Product Description

The TS-1070R-W delivers the full Crestron Home® touchscreen experience on a 10.1-inch 1920x1200 WUXGA projected capacitive display in White. As with the Black variant, this panel is specifically designated for the Crestron Home® OS platform and is not interchangeable with standard TS-1070 commercial control panels. White-finish touch panels are commonly specified in residential installations where panels are placed on white or light-toned surfaces — end tables, kitchen countertops, credenzas, and white conference room tables. In light commercial settings, the White finish coordinates with white wall plates, white AV furniture, and healthcare-oriented color schemes. The panel communicates with the Crestron Home® processor over Ethernet (100 Mbps) or dual-band Wi-Fi 5 (802.11ac) and is powered via IEEE 802.3at PoE+ over the Ethernet cable. The 400-nit backlit display with ±80° viewing angles is readable from wide positions on a table surface. Built-in microphone and speaker support Rava SIP intercom. Single scalable RTSP streaming video window supports H.265, H.264, and MJPEG at up to 1080p30. XiO Cloud management supports remote provisioning and firmware updates. All specifications are identical to the TS-1070R-B; the only difference is the White housing.

Key Features

• White Finish — Matches white furniture, residential cabinetry, light-colored commercial interiors, and healthcare design specifications.
• Crestron Home® OS Platform — Pre-configured for Crestron Home®; native app interface for AV, lighting, shades, climate, and scene control.
• 10.1-Inch WUXGA Display — 1920x1200 projected capacitive 5-point multitouch; 400 nits; 1000:1 contrast; ±80° viewing angles.
• Tabletop Form Factor — Suitable for table, credenza, countertop, and lectern placement.
• PoE+ Powered — IEEE 802.3at Type 2 PoE+ powered device; single Ethernet cable installation.
• Dual-Band Wi-Fi — IEEE 802.11a/b/g/n/ac (Wi-Fi 5), 2.4 and 5 GHz; Crestron Bluetooth beacon.
• Streaming Video Window — RTSP streaming (H.265, H.264, MJPEG) up to 1080p30 at 25 Mbps.
• Built-In Mic and Speaker — Supports Rava SIP intercom and audio feedback.
• XiO Cloud Management — Remote provisioning, monitoring, and firmware updates via Crestron XiO Cloud.

Typical Applications

• Residential whole-home AV and system control with Crestron Home® OS in white-finish installations
• Light commercial boardroom and executive suite AV control with white furniture specification
• Healthcare facility conference room touch panel on white furnishings
• House of worship AV control position with white décor
• Multi-purpose room scene and AV management in light-toned commercial interiors

Technical Specifications

Frequently Asked Questions

Is the TS-1070R-W identical to the TS-1070R-B except for color?
Yes. The White and Black variants of the TS-1070R are functionally identical in every specification. The only difference is the housing color.

What is Crestron Home® OS?
Crestron Home® OS is a separate, dealer-installed residential and light commercial control platform. It enables AV integrators to deploy whole-home or single-room control systems — AV sources, lighting, shades, climate, scenes — without writing custom control processor code. The TS-1070R is specifically designed for this platform and is not compatible with commercial Crestron control system deployments.

Can the TS-1070R-W be used in a commercial AV installation?
Only if the room is controlled by the Crestron Home® platform. For standard commercial AV with Crestron processors, .AV Framework, or Crestron Fusion, the standard TS-1070 (non-R) is the correct panel.

How is the TS-1070R-W powered?
Via IEEE 802.3at PoE+ over Ethernet. With LLDP advanced power management active, the panel requests 15 W (standard) or 18 W (with room scheduling + USB enabled). Without LLDP, the panel requests up to 30 W (PoE+ Class 4). An 802.3at Type 2 PSE is required to enable the USB host port.

Is a Black version available?
Yes. The TS-1070R-B is the Black finish variant with identical specifications.

Does this panel support Crestron Fusion® room scheduling?
The TS-1070R is designed for Crestron Home® OS and includes native room scheduling support within that platform. For enterprise Crestron Fusion® scheduling, use the standard commercial TS-1070 platform panels.

Can the TS-1070R-W be managed remotely?
Yes. XiO Cloud support enables centralized remote provisioning, monitoring, firmware updates, and configuration management across multiple TS-1070R panels in a deployment.
