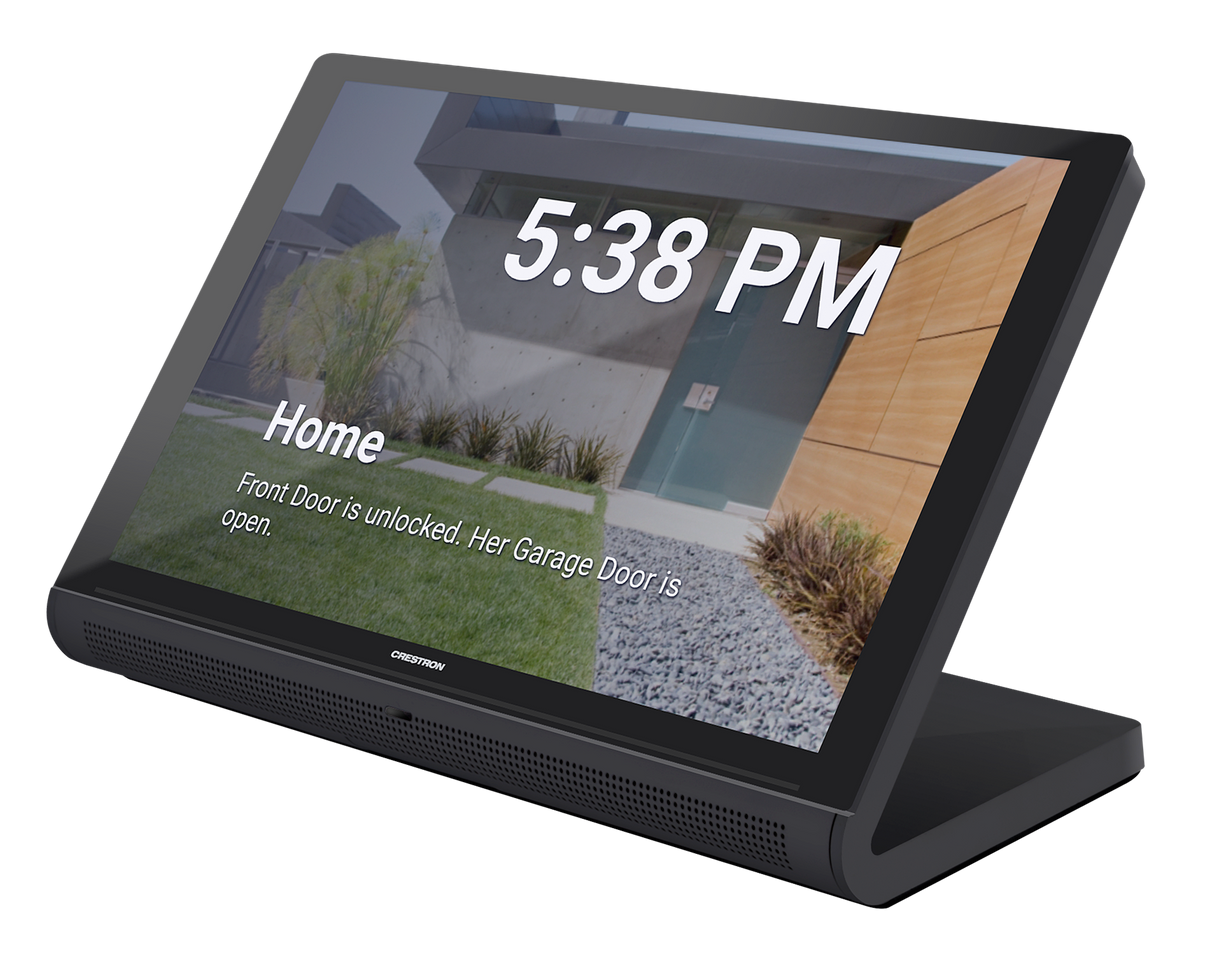

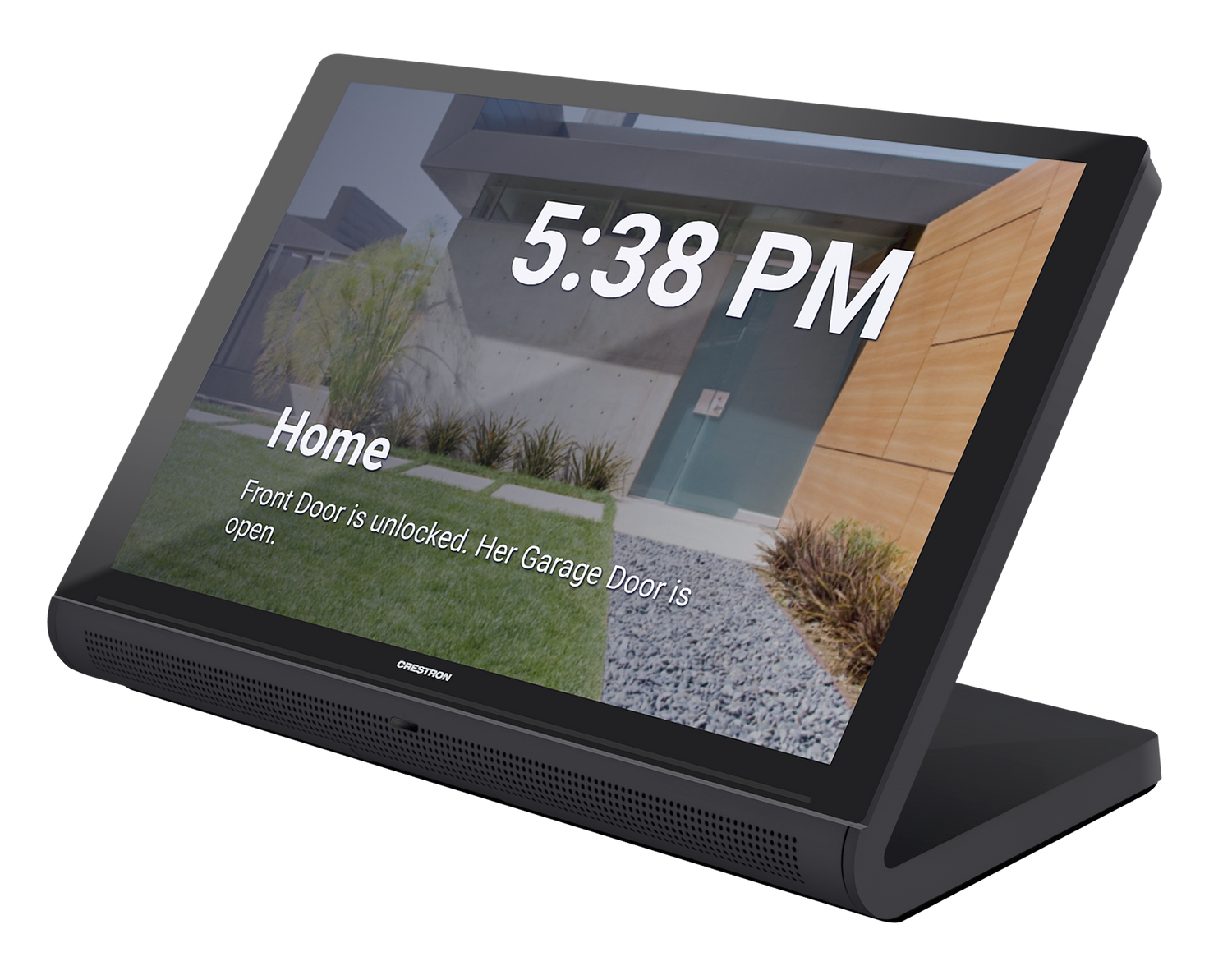

Crestron TS-1070R-B – 10.1 in. Tabletop Touch Screen, Crestron Home OS, Black

Product Overview

The Crestron TS-1070R-B is a 10.1-inch tabletop touch screen running Crestron Home® OS, designed for residential and light commercial AV control deployments where the Crestron Home® platform manages lighting, shades, climate, AV sources, and room scenes. The “R” designation indicates this panel is specifically configured for Crestron Home® OS and is not interchangeable with standard commercial TS-1070 panels running Crestron’s commercial control platform. In Black (B) finish, it suits dark furniture and residential AV installations. The TS-1070R-B delivers the full Crestron Home® touchscreen experience with a 1920x1200 WUXGA display, PoE+ power, and Wi-Fi connectivity in a tabletop form factor.

Product Description

Crestron Home® OS is Crestron’s dealer-installed residential and light commercial control platform, enabling professional AV integrators to deploy whole-home or single-room control systems without writing custom Crestron control processor code. The TS-1070R-B serves as the primary touchscreen interface in Crestron Home® deployments, providing a native app environment for controlling AV sources, lighting scenes, thermostat settings, shade positions, and security from a single intuitive panel. The 10.1-inch projected capacitive display runs at 1920x1200 WUXGA resolution with 400 nits brightness — providing a sharp, readable interface in both ambient and darker room conditions. The display supports single scalable streaming video windows for camera or source preview within the control interface. Communication with the Crestron Home® processor is over Ethernet (100 Mbps, IEEE 802.1X, TLS/SSL) or dual-band Wi-Fi 5 (802.11ac). Power is delivered via IEEE 802.3at PoE+ over the Ethernet cable, requiring only a single cable run to the tabletop location. USB 2.0 host port supports room scheduling accessories. Built-in microphone and speaker support the Rava SIP intercom feature. Memory is 2 GB LPDDR3 RAM with 16 GB eMMC storage and a maximum project size of 600 MB. XiO Cloud is supported for remote device management in multi-room Crestron Home® deployments. The Black (B) finish matches dark wood, black furniture, and standard AV rack aesthetic. The TS-1070R-W (White) variant is also available.

Key Features

• Crestron Home® OS Platform — Pre-configured for Crestron Home® deployments; provides native app interface for AV, lighting, shades, climate, and scene control.
• 10.1-Inch WUXGA Display — 1920x1200 projected capacitive 5-point multitouch; 400 nits; 1000:1 contrast; edgelit LED with auto brightness.
• Tabletop Form Factor — Designed for conference table, credenza, lectern, or entertainment surface placement.
• PoE+ Powered — IEEE 802.3at Type 2 PoE+ powered device; single Ethernet cable for power and data.
• Dual-Band Wi-Fi — IEEE 802.11a/b/g/n/ac (Wi-Fi 5), 2.4 and 5 GHz; up to 50 ft range; Crestron Bluetooth beacon.
• Streaming Video Window — Single scalable RTSP streaming video window (H.265, H.264, MJPEG; up to 1080p30 at 25 Mbps).
• Built-In Mic and Speaker — Supports Rava SIP intercom and audio feedback.
• XiO Cloud Management — Centralized remote provisioning, monitoring, and firmware updates via Crestron XiO Cloud.
• Black Finish — Coordinates with dark AV furniture and residential installation aesthetics.

Typical Applications

• Residential whole-home AV and system control with Crestron Home® OS
• Light commercial AV control in conference rooms using the Crestron Home® platform
• Boardroom and executive suite lighting, shade, and AV control surface
• Multi-purpose room scene and AV management
• House of worship AV control at operator position

Technical Specifications

Frequently Asked Questions

What is Crestron Home® OS and how does TS-1070R differ from the standard TS-1070?
Crestron Home® OS is a separate control platform from Crestron’s commercial control processor ecosystem. The TS-1070R is pre-configured to run Crestron Home® OS; the standard TS-1070 runs Crestron’s commercial control platform (.AV Framework or custom Simpl programming). The two panels are not interchangeable — specify the correct variant for the control platform being deployed.

Can the TS-1070R-B be used in a commercial conference room?
Yes, if the room is controlled by the Crestron Home® platform rather than a commercial Crestron processor. Crestron Home® is used in light commercial applications — boardrooms, executive suites, and small to medium meeting rooms — by integrators who prefer the Crestron Home® deployment model.

How is the TS-1070R-B powered?
The panel is powered via IEEE 802.3at PoE+ over the Ethernet cable. With LLDP advanced power management, the panel normally requests 15–18 W. Without LLDP, the panel requests up to 30 W (PoE+ Class 4). Enabling the USB host port requires an 802.3at Type 2 PoE+ PSE at the switch.

Does the TS-1070R-B support room scheduling?
The TS-1070R includes native room scheduling app support within the Crestron Home® platform. For enterprise room scheduling via Crestron Fusion®, the standard TS-1070 (non-R) commercial platform panels are the correct choice.

Is a White version available?
Yes. The TS-1070R-W is the White finish variant of this same panel with identical specifications.

What is the maximum video stream resolution for the on-screen video window?
The streaming video window supports up to 1920x1080 at 30 fps at a maximum bitrate of 25 Mbps (20 Mbps recommended) via RTSP, using H.265, H.264, or MJPEG video formats.

Can the TS-1070R-B be managed remotely?
Yes. The panel supports Crestron XiO Cloud for centralized remote provisioning, monitoring, firmware updates, and configuration management.
