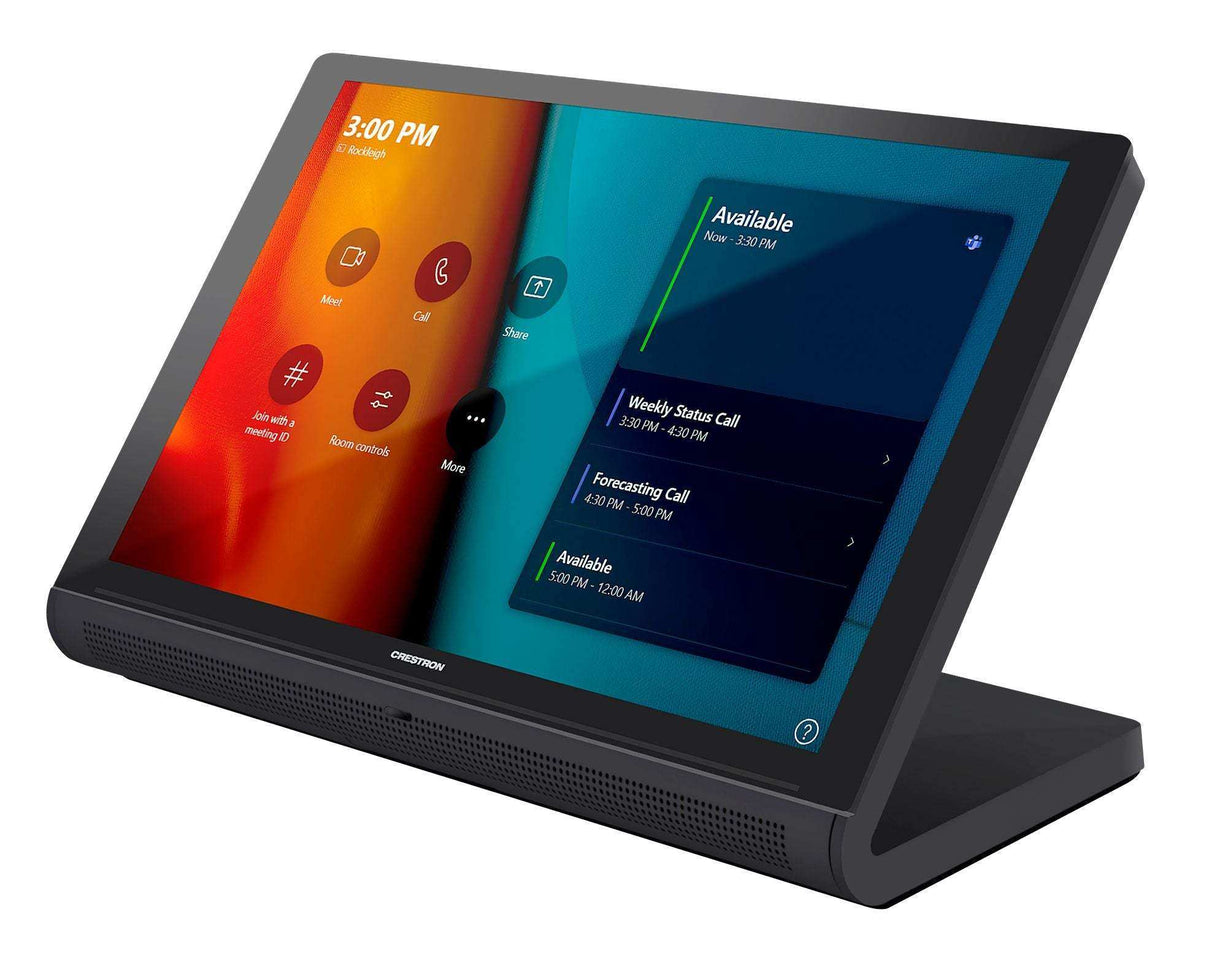

Crestron TS-1070-B-S-CNBS 10.1 in. Tabletop Touch Screen (Black, Smooth)

Product Overview

The Crestron TS-1070-B-S-CNBS is a 10.1 in. tabletop touch screen in a black smooth finish for commercial AV control and room scheduling. Its larger WUXGA display provides ample room for custom Smart Graphics interfaces, streaming video, and native scheduling apps. Power and network arrive over a single PoE+ cable, and built-in voice recognition, Wi-Fi, and Bluetooth round out a full-featured tabletop interface. The TS-1070-B-S-CNBS is designed for conference rooms, classrooms, and control environments that benefit from a larger touch display.

Product Description

The TS-1070-B-S-CNBS provides a 10.1 in. (257 mm) 1920x1200 WUXGA active-matrix display with projected capacitive 5-point multitouch and automatic brightness control. It runs Crestron HTML5 and Smart Graphics software, supporting custom interfaces for AV, lighting, shades, HVAC, security, and other building systems. Built-in voice recognition lets users issue spoken commands, while the integrated microphone, speakers, and Rava SIP intercom add two-way audio. The panel includes 802.11a/b/g/n/ac Wi-Fi, a Crestron Bluetooth beacon for the Crestron ONE mobile app, and a wired 100BASE-TX PoE+ Ethernet connection. Enterprise security includes TLS, SSH, IEEE 802.1X, SNMP, and Active Directory authentication, plus XiO Cloud management. A built-in H.265/H.264 streaming decoder displays a single scalable video window. The panel runs native room scheduling applications, the Zoom Rooms app, the Microsoft Teams app, and the Crestron Home OS app when designated for those modes. For smaller installations, the 7 in. Crestron TS-770-B-S tabletop touch screen shares the same software platform.

Key Features

• 10.1 in. WUXGA display — 1920x1200 active-matrix LCD with 5-point multitouch and auto brightness.
• Smart Graphics interface — Supports Crestron HTML5 and Smart Graphics custom user projects.
• Voice recognition — Lets users issue spoken commands to control devices, sources, lighting, and shades.
• Built-in audio and intercom — Includes a microphone, speakers, and Rava SIP intercom for two-way communication.
• Wi-Fi and Bluetooth — Provides 802.11ac Wi-Fi and a Crestron Bluetooth beacon for the Crestron ONE mobile app.
• Single-cable PoE+ power — Draws operating power and network over one IEEE 802.3at Type 2 Ethernet connection.
• Streaming video — Built-in H.265/H.264 decoder displays a single scalable streaming video window.
• Multi-platform scheduling — Runs native Crestron, Microsoft Teams, Zoom Rooms, and Crestron Home apps.
• Black smooth finish — Edge-to-edge glass with a black surround for a clean tabletop appearance.

Typical Applications

• Corporate conference rooms and boardrooms.
• Executive offices and collaboration spaces.
• Higher education classrooms and training facilities.
• Control rooms and operations centers.
• Room scheduling at the entrance of meeting spaces.
• Houses of worship and multipurpose venues.

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How is the TS-1070-B-S-CNBS powered? It is powered over the network using IEEE 802.3at Type 2 PoE+. A PoE+ source is required to enable the USB port.

Does it support voice control? Yes. Built-in voice recognition lets users issue spoken commands (internet connection required).

Which scheduling platforms does it support? It runs native Crestron, Microsoft Teams, Zoom Rooms, and Crestron Home apps when designated for those modes.

Can it connect over Wi-Fi? Yes. It includes 802.11a/b/g/n/ac Wi-Fi in addition to the wired PoE+ Ethernet port.

What is the CNBS designation? CNBS refers to the Crestron SKU configuration; the touch screen hardware and features follow the TS-1070 specification.

What warranty applies? The TS-1070-B-S-CNBS is covered by the Crestron 3-year limited warranty. For configuration or integration support, Contact Creation Networks.
