Crestron Swivel Mount Kit for TTK-MP/MPC/IPAC - SMK-MP/MPC/IPAC

Product Overview

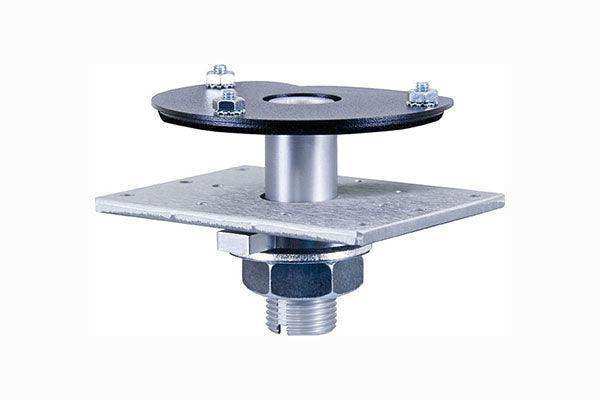

The Crestron SMK-MP/MPC/IPAC is a low-profile swivel mount accessory for the TTK-MP/MPC/IPAC Tabletop Kit. It permanently mounts the tabletop kit to a table, desk, or counter while preserving the ability to rotate the controller for optimal viewing and reach. The swivel range is adjustable using optional limit screws, up to a maximum of 330 degrees of rotation. Wiring can be routed through the center of the mount and concealed beneath the surface for a clean appearance.

Product Description

The SMK-MP/MPC/IPAC is designed specifically to work with the Crestron TTK-MP/MPC/IPAC tabletop kit, which houses MPC-series presentation controllers. By securing the kit to a flat work surface, the swivel mount allows a presenter or meeting host to reposition the controller toward the speaking position while keeping it permanently in place. The mount installs on any flat, level surface with a thickness from 1 in. (25 mm) minimum to 1-3/8 in. (35 mm) maximum. A central wire pass-through routes cabling beneath the mounting surface for a fully hidden appearance, accommodating a wire bundle up to 11/16 in. (17 mm) in diameter. Optional limit screws let the integrator restrict the swivel travel to suit the installation, up to the 330-degree maximum. This product is positioned as a mounting accessory and does not include the TTK tabletop kit or controller. Note that the SMK-MP/MPC/IPAC has been discontinued by Crestron; for current replacement options, contact your supplier. For additional mounting details and surface requirements, refer to the TTK-MP/MPC/IPAC spec sheet and the Crestron data sheet.

Key Features

• Low-profile swivel mount — Permanently secures the TTK-MP/MPC/IPAC kit while allowing rotation.
• Up to 330-degree rotation — Adjustable swivel travel for optimal controller positioning.
• Optional limit screws — Restrict the rotation range to suit the installation.
• Concealed wiring — Central pass-through routes cabling beneath the surface for a hidden appearance.
• Wire bundle capacity — Accommodates a cable bundle up to 11/16 in. (17 mm) in diameter.
• Surface compatibility — Mounts to flat, level surfaces 1 in. to 1-3/8 in. (25 to 35 mm) thick.

Typical Applications

• Conference room tables — Permanently mounting an MPC presentation controller with adjustable orientation.
• Lecterns and podiums — Repositionable control surface for presenters.
• Reception and counter installations — Secure, swiveling control placement on a fixed surface.
• Meeting spaces — Hidden cable routing for a clean tabletop appearance.

Technical Specifications

Frequently Asked Questions

What does the SMK-MP/MPC/IPAC mount?
It is a swivel mount accessory for the Crestron TTK-MP/MPC/IPAC tabletop kit, which houses MPC-series presentation controllers. The controller and tabletop kit are not included.

How far does it rotate?
Up to 330 degrees, with optional limit screws available to restrict the swivel travel for a given installation.

What surfaces does it support?
It installs on any flat, level surface from 1 in. to 1-3/8 in. (25 to 35 mm) thick, with central wire routing beneath the surface.

Is this product still in production?
It has been discontinued by Crestron. For a current replacement solution, contact your supplier or Crestron support. Availability is subject to remaining stock.

What warranty applies and where can I get help?
The product is covered by the Crestron 3-year limited warranty. For availability or a replacement recommendation, Contact Creation Networks.
