Crestron Swivel Mount Kit for TS-70 Series - TS-770/1070-SMK
Product Overview

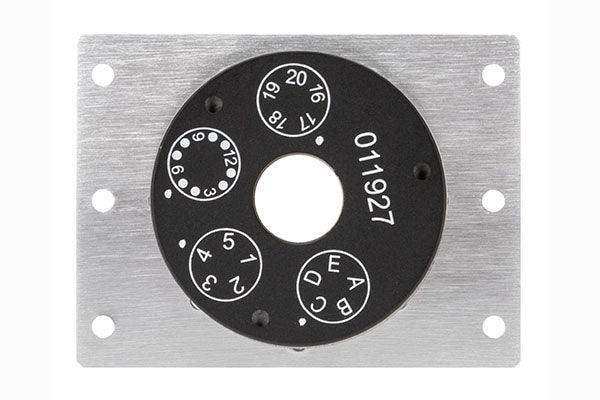

The Crestron TS-770/1070-SMK is a low-profile swivel mount kit for TS-770 and TS-1070 series tabletop touch screens. This Crestron swivel mount accessory permanently anchors a TS-70 Series touch screen to a tabletop while allowing it to rotate for optimal viewing. Cables route through the center of the mount and beneath the surface for a clean, hidden appearance.
Product Description
The TS-770/1070-SMK installs into a 1-1/16 in. (27 mm) cutout using the included template and mounts on any flat, level surface from 1 in. (25 mm) to 1-3/8 in. (35 mm) thick. It permits up to 330 degrees of rotation, with the swivel range customizable using optional limiting screws. Constructed from a metal swivel tube and swivel stop plate, it provides a durable, permanent tabletop mounting solution for conference tables, lecterns, and reception desks. Cable routing through the center keeps the installation tidy and protects connections below the surface.
Key Features
- 330° Swivel Rotation — Allows the touch screen to rotate up to 330 degrees for optimal positioning during meetings.
- Adjustable Swivel Range — Optional limiting screws let installers restrict rotation to a preferred range.
- Hidden Cable Routing — Cables pass through the center of the mount and beneath the surface for a clean appearance.
- Metal Construction — A metal swivel tube and swivel stop plate provide durable, long-term support.
- TS-70 Series Compatibility — Designed specifically for TS-770 and TS-1070 series tabletop touch screens.
- Template-Guided Installation — Installs into a 1-1/16 in. cutout using the included template for accurate placement.
Technical Specifications
| Compatibility | TS-770 and TS-1070 series tabletop touch screens |
| Rotation | Up to 330° (adjustable with optional limiting screws) |
| Material | Metal swivel tube and swivel stop plate |
| Mounting Cutout | 1-1/16 in. (27 mm) hole, included template |
| Surface Thickness | 1 in. (25 mm) min to 1-3/8 in. (35 mm) max |
| Cable Routing | Through center, beneath mounting surface |
| Dimensions (H x W x D) | 3.34 x 4.00 x 3.00 in. (85 x 102 x 76 mm) |
