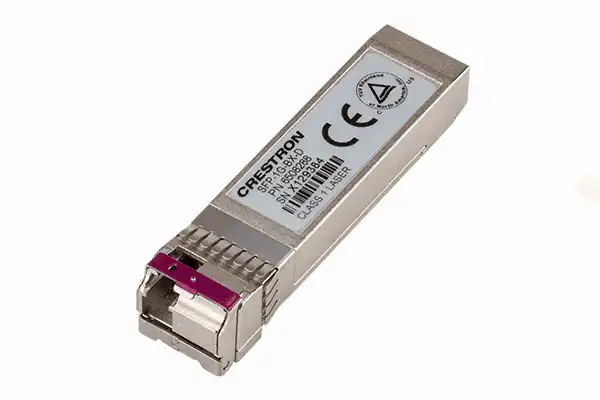

Crestron SFP-1G-BX-D – SFP 1000BASE-BX-D BiDi Fiber Transceiver, 1490nm TX / 1310nm RX, Downstream
Product Overview
The Crestron SFP-1G-BX-D is the downstream counterpart to the SFP-1G-BX-U — a 1000BASE-BX BiDirectional (BiDi) SFP fiber transceiver transmitting at 1490nm and receiving at 1310nm, enabling full-duplex Gigabit Ethernet over a single strand of singlemode fiber. Installed at the far end of a BiDi single-fiber Gigabit link from the SFP-1G-BX-U, it completes the wavelength-division duplex pair that allows one fiber strand to carry both transmit and receive simultaneously in a Crestron AV-over-IP or network uplink application.
Product Description
BiDi (Bidirectional) SFP transceivers use wavelength-division multiplexing to send and receive on a single fiber strand simultaneously — one wavelength travels in each direction on the same fiber. The SFP-1G-BX-D transmits at 1490nm and receives at 1310nm, the complement of the SFP-1G-BX-U (1310nm TX / 1490nm RX). One BX-U and one BX-D are required per single-fiber Gigabit link. This is the downstream transceiver — installed at the downstream end of the BiDi fiber link (typically at the edge switch or remote device end), while the BX-U is installed at the upstream end (typically at the core or aggregation switch). Specify in pairs: one SFP-1G-BX-U and one SFP-1G-BX-D per single-fiber Gigabit Ethernet connection.
Key Features
- Downstream BiDi Transceiver: 1490nm TX / 1310nm RX — installed at the far (downstream) end of a single-fiber Gigabit BiDi link from the SFP-1G-BX-U upstream transceiver.
- Single-Fiber Full-Duplex Gigabit: Full-duplex 1 Gbps over one singlemode fiber strand — halves fiber strand count vs. standard duplex SFP transceivers.
- Singlemode Fiber, LC Simplex Connector: Compatible with OS1/OS2 singlemode fiber with LC simplex connectors.
- Always Paired with SFP-1G-BX-U: Must be used with SFP-1G-BX-U at the opposite end of the fiber link — mismatched BiDi transceivers will not establish a link.
Technical Specifications
| Model | SFP-1G-BX-D |
| Standard | 1000BASE-BX (BiDi) |
| TX Wavelength | 1490nm |
| RX Wavelength | 1310nm |
| Fiber Type | Singlemode, single strand |
| Connector | LC simplex |
| Paired With | SFP-1G-BX-U at far end (required) |
| Maximum Distance | Refer to Crestron data sheet |
| SKU | SFP-1G-BX-D |
Competitor comparison: not applicable for this product.
Frequently Asked Questions
Can I use two SFP-1G-BX-D transceivers together?
No — BiDi links require one BX-U (1310nm TX / 1490nm RX) at one end and one BX-D (1490nm TX / 1310nm RX) at the other. Using two of the same BiDi transceiver type will not establish a link. Always order in matched pairs: one SFP-1G-BX-U and one SFP-1G-BX-D per single-fiber Gigabit connection. Contact Creation Networks for BiDi ordering guidance.
What is the warranty?
Crestron provides a standard warranty on SFP transceivers. Contact Creation Networks for warranty details.
