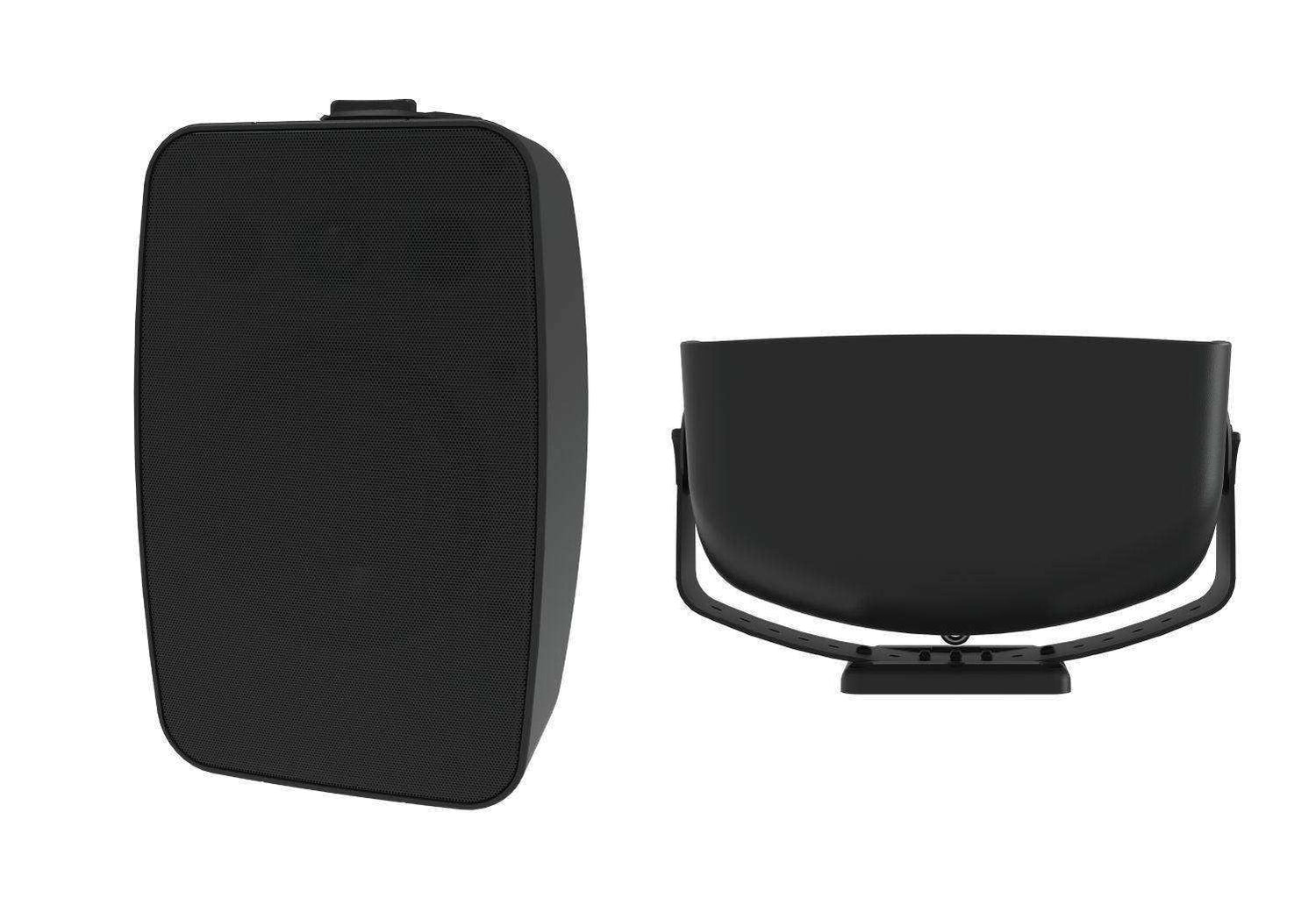

Crestron SAROS SMT6T-AW-B-T-EACH 6.5 in. 2-Way All Weather Surface Mount Indoor/Outdoor Speaker, Black Textured, Single

Crestron SKU: SMT6T-AW-B-T-EACH
No reviews

Price:
Sale price$300.00

Description

Spec Sheet

Saros® 6.5” 2-Way Surface Mount Indoor/Outdoor Speaker, Black Textured, Single (must be ordered in multiples of 2)

Saros® speakers by Crestron® deliver professional grade performance and flexible installation in a range of popular sizes for demanding commercial or residential applications. Solid construction, easy installation, and high-end components are hallmarks of the Saros speaker line. Ideal for use in background or foreground music, paging, and sound reinforcement systems, Saros speakers are engineered to achieve smooth, even coverage , high output, and clear, natural sound quality through the employment of horn-loaded titanium dome tweeters, high-efficiency damped cone woofers, ported enclosures, and precisely tuned crossovers.

The Saros SR6T model is a 2-way surface-mount speaker featuring a 6-1/2 inch woofer and horn-loaded 1 inch dome tweeter. A built-in 60 Watt multi-tap transformer allows for use with 70 and 100 Volt distributed speaker systems. Power handling at 8 Ohms is an impressive 150 Watts (program), with a frequency range from 70 Hz to 18 kHz (-10 dB).

The Saros SR6T is smartly designed for quick and easy installation and years of reliable performance. Its clean, contoured enclosure achieves an attractive appearance in restaurants and night clubs, retail spaces, houses of worship, convention facilities, universities, office buildings, and custom homes. Weatherized construction allows for use in outdoor entertainment venues, decks, patios, locker rooms, and swimming pools.

Featuring a unique "QuickBall" mounting system, the Saros SR6T can be mounted to any solid flat surface with the ability to orient and aim the speaker in virtually any position. The QuickBall bracket achieves a very clean and stable installation using a tool-free ball-and-socket mechanism. Simply position the speaker as desired and flip the clamp lever closed. A security screw is included to deter theft by preventing the lever from being released.

The QuickBall mounting bracket can be mounted over a 1-gang US, UK, or European electrical box, allowing wiring to be run through the wall and exit cleanly through the included cover plate. It can also be mounted to a light pole or post using pole-mounting straps (not included). A rear rigging point is also provided for securing the speaker using the optional safety tether kit (SPKA-ST-15 [1]).

Connecting the wire at the back of the speaker is facilitated using a detachable screw terminal block with provisions for easy parallel wiring in multi-speaker applications. A weather boot is included to protect the wiring connections from moisture. Setting the 70/100V transformer tap is done via a recessed screwdriver-adjustable control on the rear.

Saros SR6T speakers are available in white or black, and can be painted to blend with the surrounding architecture. They are priced individually, but must be ordered in pairs.

  • Features and Performance
    Woofer 6.5 in. Injection Molded PP
    Tweeter 1 in. ceramic coated aluminum
    Crossover Point 2 kHz
    Impedance 8 Ω nominal with tap transformer set to 8 Ω
    Transformer Taps 7.5 W, 15 W, 30 W, 60 W
    Frequency Response 65 Hz-20 kHz +/-3 dB
    Frequency Range 45 Hz-20 kHz +/-10 dB
    Power Handling 110W Program, 200 W Peak (8 Ω)
    Sensitivity 92 dB @1m
    Connections
    Input (1) 4-pin 5 mm detachable terminal block, Speaker input with parallel pass-through, 12 AWG maximum
    Controls
    Transformer Tap Front mounted, screwdriver-adjustable, used to select 70/100V taps or 8 Ω
    Maximum Wire Size 12 AWG
    Environmental
    Temperature 4° to 176° F (-15.5° to 80° C)
    Humidity 10% to 95% RH (non‑condensing)
    Splash Resistance IPX6
    Construction
    Enclosure PP+Fiber loaded, fire retardant, UL rated
    Baffle PP+Fiber loaded, fire retardant, UL rated
    Grille Powder-coated perforated aluminum
    Mounting Die Cast AL wall mount to fit 1 gang box, pole clamp capable, safety tether, adjustable yoke.
    Dimensions
    Height 13.11 in. (333 mm)
    Width 7.84 in. (199 mm)
    Depth 8.17 in. (208 mm)
    Weight
    Speaker 11.12 lb (5 kg)
