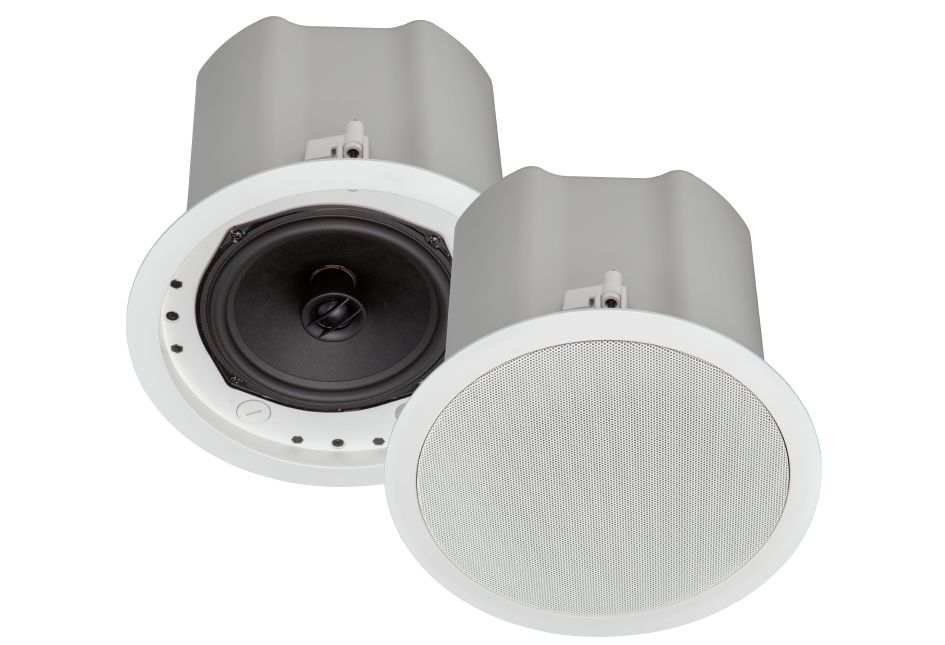

Crestron SAROS ICI6T-W-T-EACH+ Saros® Integrator 6.5” 2-Way In-Ceiling Speaker, White Textured, Single (must be ordered in multiples of 2)

Product Overview

The Crestron SAROS ICI6T-W-T-EACH+ is a Saros Integrator 6.5 in. 2-way in-ceiling speaker in a white textured finish, sold individually. It pairs a 6.5 in. woofer with a wide-dispersion dome tweeter and includes a built-in 30 Watt 70/100V multi-tap transformer for distributed audio systems. Designed for cost-sensitive commercial installations, it suits public address and background music applications. Units are priced individually but must be ordered in multiples of two.

Product Description

The Saros Integrator ICI6T delivers commercial-grade in-ceiling audio for restaurants, retail spaces, convention facilities, airports, and office buildings. Its 6.5 in. woofer and 3/4 in. dome tweeter provide clear background music and intelligible paging across a 110-degree nominal coverage pattern, with a frequency response of 95 Hz to 15 kHz (plus or minus 3 dB). A built-in 30 Watt multi-tap transformer supports 70V and 100V distributed speaker systems, and the tap is set with a screwdriver-adjustable rotary switch on the baffle behind the grille; the transformer can also be bypassed for 8-ohm operation. Unitized, plenum-rated construction simplifies specification and installation in both drop-tile and drywall ceilings. Four integral two-step toggle clamps secure the speaker, and an included tile bridge provides proper support in drop-tile ceilings, adjustable for off-center positioning. An integral metal back can meets the requirements of UL 2043 for installation in environmental air-handling (plenum) spaces, and a built-in cable clamp accommodates one or two 1/2 in. or 3/4 in. flexible conduits. A detachable screw terminal block simplifies wiring and parallel pass-through in multi-speaker runs. A rigging point on top of the enclosure accepts the optional SPKA-ST-15 safety tether kit. The speaker is available in white only.

Key Features

• 2-way in-ceiling design — Combines a 6.5 in. woofer with a wide-dispersion dome tweeter for clear music and paging.
• 30W multi-tap transformer — Built-in 70/100V transformer with taps of 3.75W/7.5W/15W/30W at 70V and 7.5W/15W/30W at 100V, plus 8-ohm bypass.
• Plenum-rated construction — Integral metal back can meets UL 2043 for installation in air-handling spaces.
• Fast toggle-clamp mounting — Four integral two-step toggle clamps and an included tile bridge speed installation.
• Flexible cabling — Built-in cable clamp accepts one or two 1/2 in. or 3/4 in. flexible conduits with a detachable terminal block for parallel wiring.
• Wide coverage — 110-degree nominal conical coverage with 95 Hz to 15 kHz response and 91 dB sensitivity.
• Safety tether ready — Integral rigging point accepts the optional SPKA-ST-15 safety tether kit.
